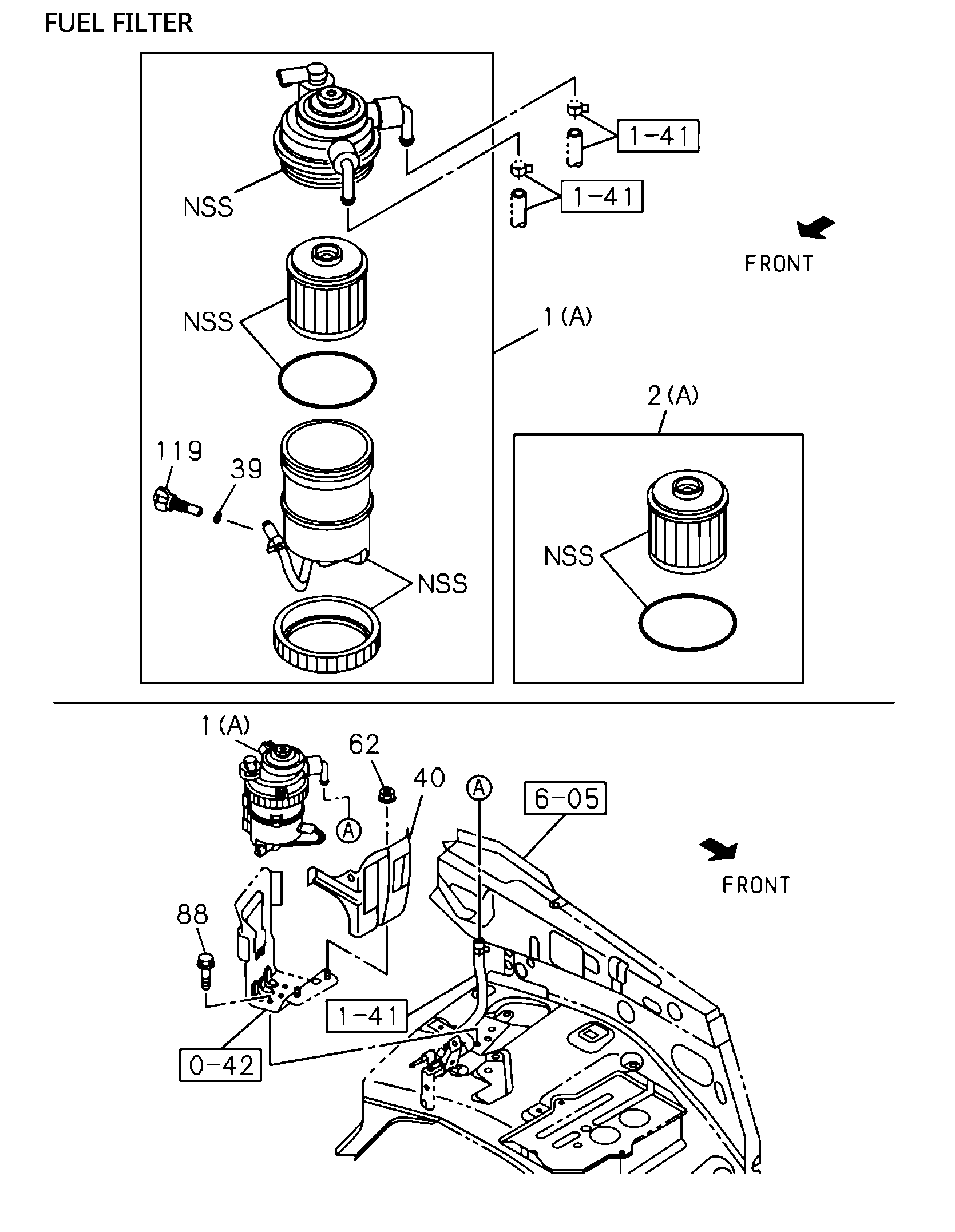

0-41 | 0-41 - FUEL FILTER AND BRACKET
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 62 | I0-91180 208-0 | NUT, FUEL FILTER | 2 | 2110- | AB | M8FLANGE | ||
| 119 | I8-98188 941-0 | PLUG, DRAIN,FUEL FILTER | 1 | 2110- | A B | |||
| 39 | I8-98188 943-0 | GASKET, DRAIN PLUG | 1 | 2110- | A B | |||
| 40 | I8-98388 198-2 | BRACKET, FUEL FILTER | 1 | 2110- | AB | |||
| 2 | I8-98159 693-0 | ELEMENT KIT, FUEL FILTER | 1 | 2110- | A B | (A) ORANGE PLATE END | ||
| 88 | I8-98076 109-0 | BOLT, BRKT.FUEL FILTER | 3 | 2110- | AB | M8X16 FLANGE | ||
| 1 | I8-98067 761-3 | FILTER ASM, | 1 | 2110- | A B | EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) | ||
| 2 | I8-98159 693-A | ELEMENT KIT, FUEL FILTER | 1 | 2110- | A B | IADG (A) ORANGE PLATE END |
