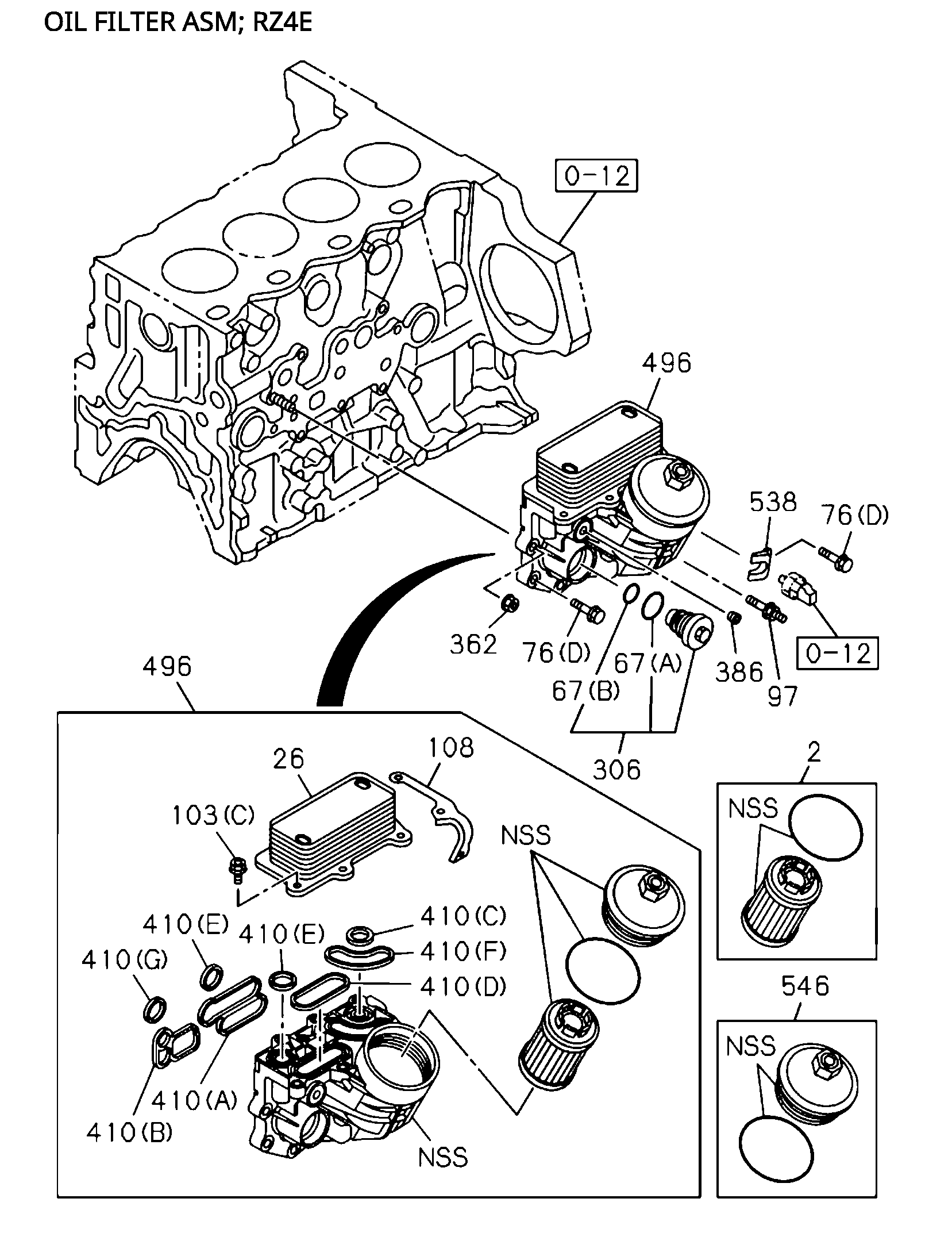

0-50 | 0-50 - OIL COOLER AND OIL FILTER
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 410 | I8-98312 763-0 | GASKET | 2311- | |||||
| 496 | I8-98347 600-3 | FILTER ASM, OIL | 1 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 410 | I8-98312 764-0 | GASKET | 2311- | |||||
| 2 | I8-98270 524-A | ELEMENT, OIL FILTER | 1 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 67 | I9-09566 226-0 | GASKET, VLV | 1 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (B) ID=26.2 | ||
| 67 | I1-09623 479-0 | GASKET, VLV | 1 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (A) ID=31.2 | ||
| 362 | I0-91180 208-0 | NUT, OIL FILTER | 2 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M8 FLANGE | ||
| 538 | I8-98312 152-0 | CLIP, FLEX | 1 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 410 | I8-98312 762-0 | GASKET | 2311- | |||||
| 546 | I8-98312 728-0 | CAP, OIL FILTER | 1 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 410 | I8-98312 761-0 | GASKET | 1 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 410 | I8-98312 760-0 | GASKET | 1 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (A) | ||
| 76 | I0-28050 830-0 | BOLT, OIL FILTER | 5 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (D) M8X30 FLANGE | ||
| 108 | I8-98332 979-1 | BRACKET, OIL COOLER | 1 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 267 | I0-91180 208-0 | NUT, OIL COOLER | 2 | 2110- | B | M8 FLANGE | ||
| 362 | I0-91180 208-0 | NUT, OIL FILTER | 2 | 2110- | B | M8 FLANGE | ||
| 105 | I0-41010 825-0 | STUD, OIL COOLER | 2 | 2110- | B | (B) M 8X25 1=37 | ||
| 76 | I0-28050 825-0 | BOLT, OIL FILTER | 2 | 2110- | B | (B) | ||
| 410 | I8-98312 766-0 | GASKET | 2311- | |||||
| 105 | I0-41010 820-0 | STUD, OIL COOLER | 2 | 2110- | B | (A) M8X20 L=32 | ||
| 340 | I0-28650 840-0 | BOLT, BRKT | 1 | 2110- | B | M8X40 FLANGE | ||
| 97 | I8-98028 225-0 | STUD, OIL COOLER BRKT | 2311- | |||||
| 306 | I8-98307 472-0 | VALVE, OIL FILTER | 1 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 410 | I8-98312 765-0 | GASKET | 2311- | |||||
| 103 | I8-98332 978-0 | BOLT, OIL COOLER | 2311- | |||||
| 26 | I8-98347 601-0 | CORE ASM, OIL COOLER | 1 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 9 | I9-09566 226-0 | GASKET, CENTER BOLT | 2 | 2110- | B | ID=26.2 |
