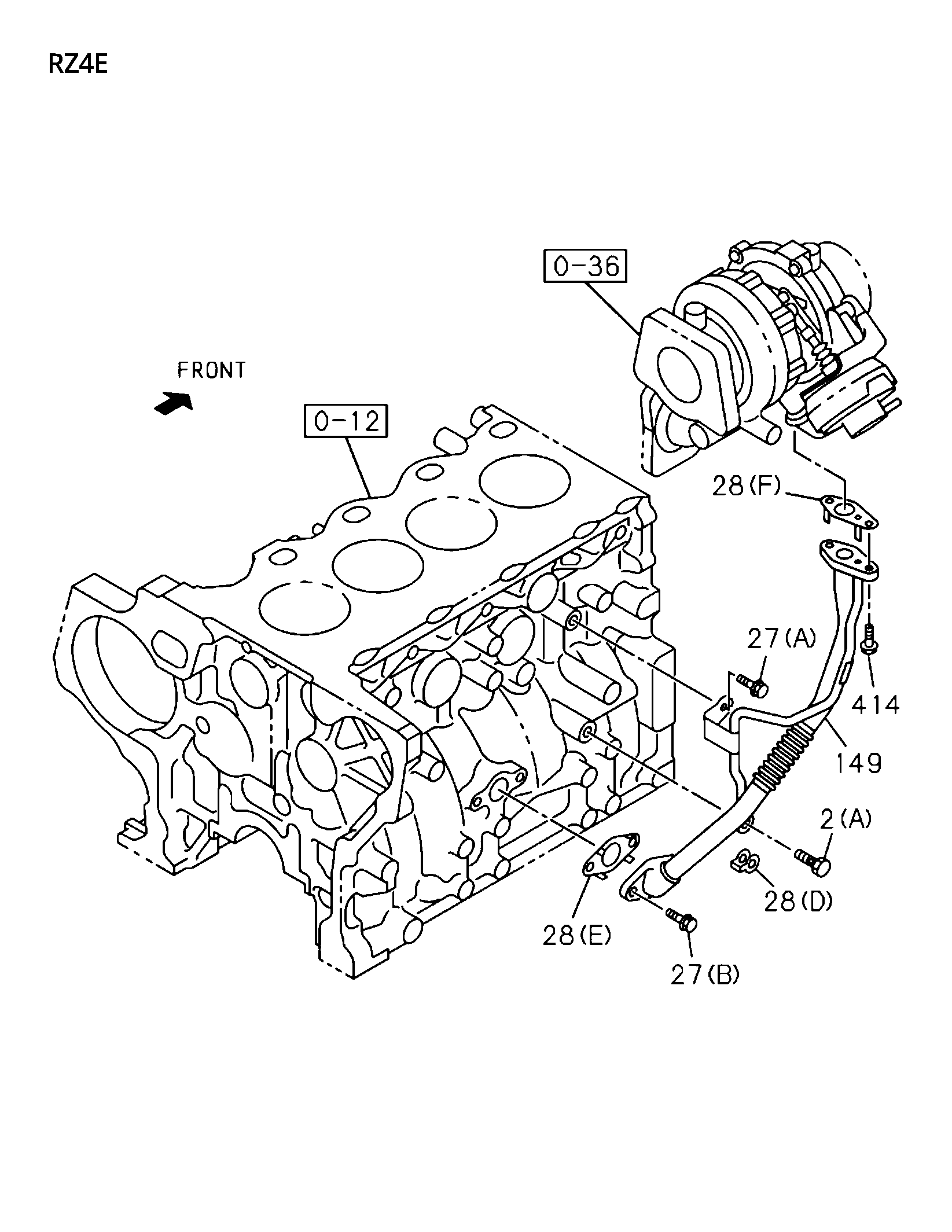

0-52 | 0-52 - OIL AND VACUUM PIPING, ENGINE
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 274 | I0-28050 820-0 | BOLT, BRKT | 1 | 2110- | B | (b) M8X20 FLANGE | ||
| 2 | I8-98037 824-0 | BOLT, EYE,OIL PIPE | 1 | 2110- | A | EURO4 SPECIFICATIONS),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (a) M10X23 EYE-BOLT | ||
| 534 | I0-91180 208-0 | NUT, OIL PIPE | 2 | 2110- | B | M8FLANGE | ||
| 28 | I8-98136 142-0 | GASKET, OIL PIPE | 1 | 2110- | A | EURO4 SPECIFICATIONS),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION (NT4) (D) ID=10.2 0D=16 | ||
| 27 | I0-28050 816-0 | BOLT, OIL PIPE FIX | 1 | 2110- | A | EURO4 SPECIFICATIONS),EUR02 SPECIFICATION^),EUR04 SPECIFICATION(NT4) (A) M8X16 FLANGE | ||
| 274 | I0-28050 816-0 | BOLT, BRKT | 2 | 2110- | B | EUR05 SPECIFICATIONS) (a) M8X16 FLANGE | ||
| 28 | I8-98292 482-0 | GASKET, OIL PIPE | 1 | 2110- | A | EURO4 SPECIFICATIONS),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION (NT4) | ||
| 27 | I0-28050 820-0 | BOLT, OIL PIPE FIX | 2 | 2110- | A | EURO4 SPECIFICATIONS),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION (NT4) (B) M8X20 FLANGE | ||
| 149 | I8-97679 739-0 | PIPE, OIL RETURN,TURBOCHARGER | 1 | 2311- | ||||
| 147 | I8-98292 482-0 | GASKET, OIL PIPE TO TURBOCHARGER | 1 | 2110- | B | |||
| 3 | I8-98136 142-0 | GASKET, EYE BOLT,OIL PIPE | 1 | 2110- | B | ID=10.2 0D=16 | ||
| 311 | I0-28050 816-0 | BOLT, PIPE FIX | 2 | 2110- | B | M8X16 FLANGE | ||
| 28 | I8-98247 536-1 | GASKET, OIL PIPE | 1 | 2110- | A | EURO4 SPECIFICATIONS),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (E) | ||
| 100 | I0-28050 812-A | BOLT, CLIP | 1 | 2110- | B | M8X12 FLANGE | ||
| 544 | I0-91180 208-0 | NUT, BRKT | 1 | 2110- | B | M8FLANGE | ||
| 563 | I0-41010 820-0 | STUD, OIL PIPE | 2 | 2110- | B | M8X20L=32 |
