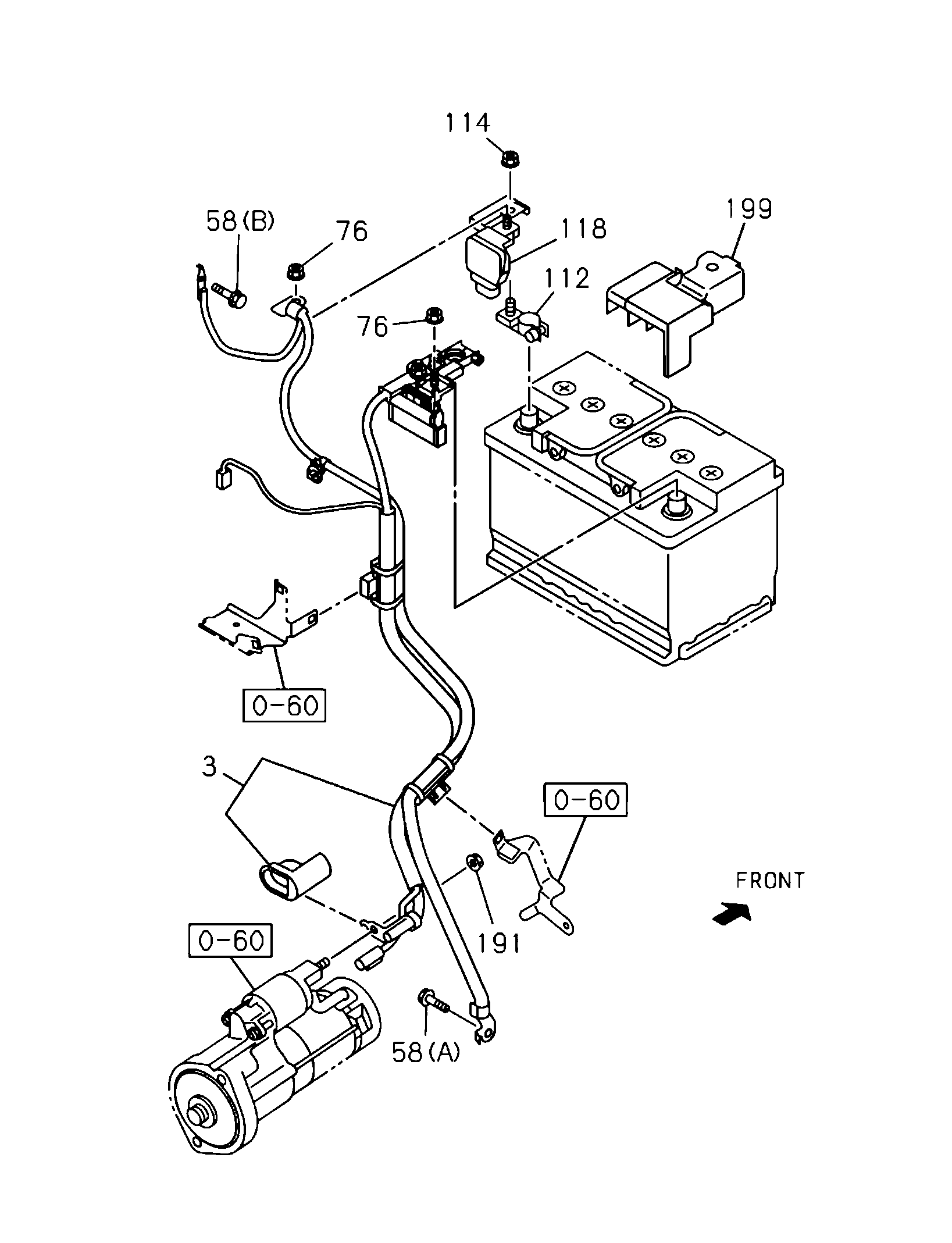

0-61 | 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 3 | I8-97844 698-0 | HARNESS, CABLE,BATTERY TO STARTER | 1 | 2311- | ||||
| 76 | I0-91180 108-0 | NUT, BATTERY CABLE | 2 | 2110- | AB | M8 FLANGE | ||
| 112 | I8-98228 976-0 | TERMINAL, BATTERY | 1 | 2110- | B | SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) <-> | ||
| 112 | I8-98228 976-0 | TERMINAL, BATTERY | 1 | 2110- | A | <-> | ||
| 199 | I8-97554 180-0 | COVER, BOX | 1 | 2110- | A B | |||
| 114 | I0-91180 108-0 | NUT, CABLE,BATTERY TERMINAL | 1 | 2110- | B | SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) M8 FLANGE | ||
| 118 | I8-97279 296-0 | SENSOR, BATTERY | 1 | 2311- | ||||
| 58 | I0-28650 820-0 | BOLT, CABLE.BATTERY | 1 | 2110- | AB | (A) M8X20 FLANGE | ||
| 58 | I8-98164 836-0 | BOLT, CABLE.BATTERY | 1 | 2110- | AB | (B) M6X14W/PL WASHER | ||
| 114 | I0-91180 108-0 | NUT, CABLE,BATTERY TERMINAL | 1 | 2110- | A | M8 FLANGE | ||
| 191 | I0-91180 108-0 | NUT, STARTER | 1 | 2110- | A B | M8FLANGE |
