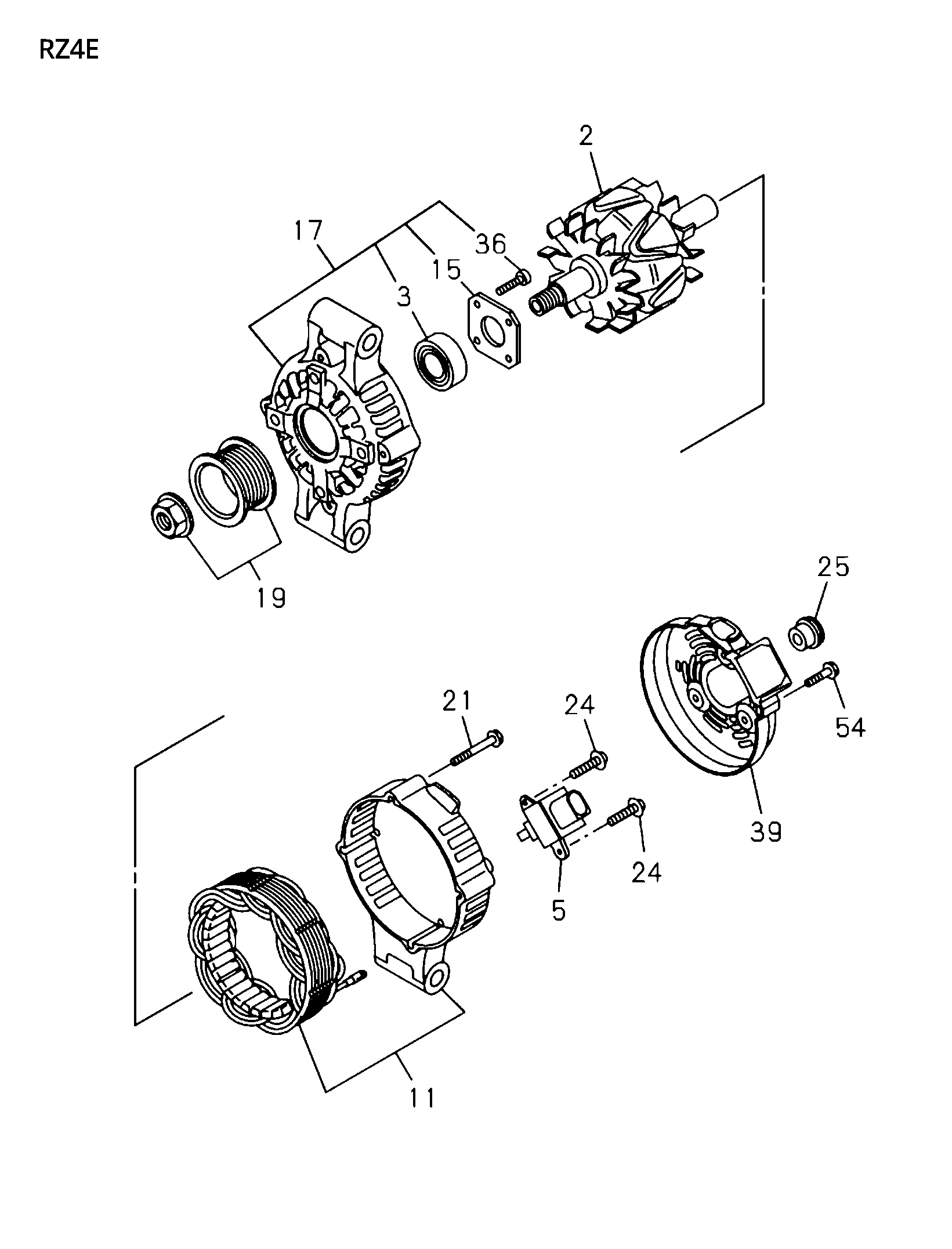

0-66 | 0-66 - GENERATOR
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 21 | I8-98231 358-0 | BOLT, THROUGH.GEN | 4 | ABC | ||||
| 3 | I8-98231 355-0 | BEARING, ROTOR.GEN | 1 | A B C | ||||
| 25 | I8-98285 771-0 | BUSHING, INSULATION TERMINAL | 2311- | |||||
| 24 | I8-97032 313-0 | SCREW, RECTIFIER,GEN | 2311- | |||||
| 2 | I8-98231 360-0 | ROTOR, GEN | 1 | A B C | ||||
| 15 | I8-94406 982-0 | RETAINER, ROTOR.GEN | 1 | ABC | ||||
| 19 | I8-98393 107-0 | PULLEY, GEN | 1 | A B C | ||||
| 54 | I8-98231 359-0 | BOLT, RECTIFIER,GEN | 2311- | |||||
| 5 | I8-98249 245-0 | HOLDER, BRUSH,GEN | 1 | A | ||||
| 17 | I8-98393 108-0 | COVER ASM, FRT.GEN | 1 | A | ||||
| 39 | I8-98292 464-0 | COVER, END,RR COVER,GEN | 2311- | |||||
| 11 | I8-98393 109-0 | COVER, RR.GEN | 1 | A | ||||
| 36 | I8-97142 562-0 | SCREW, FRT COVER | 2311- |
