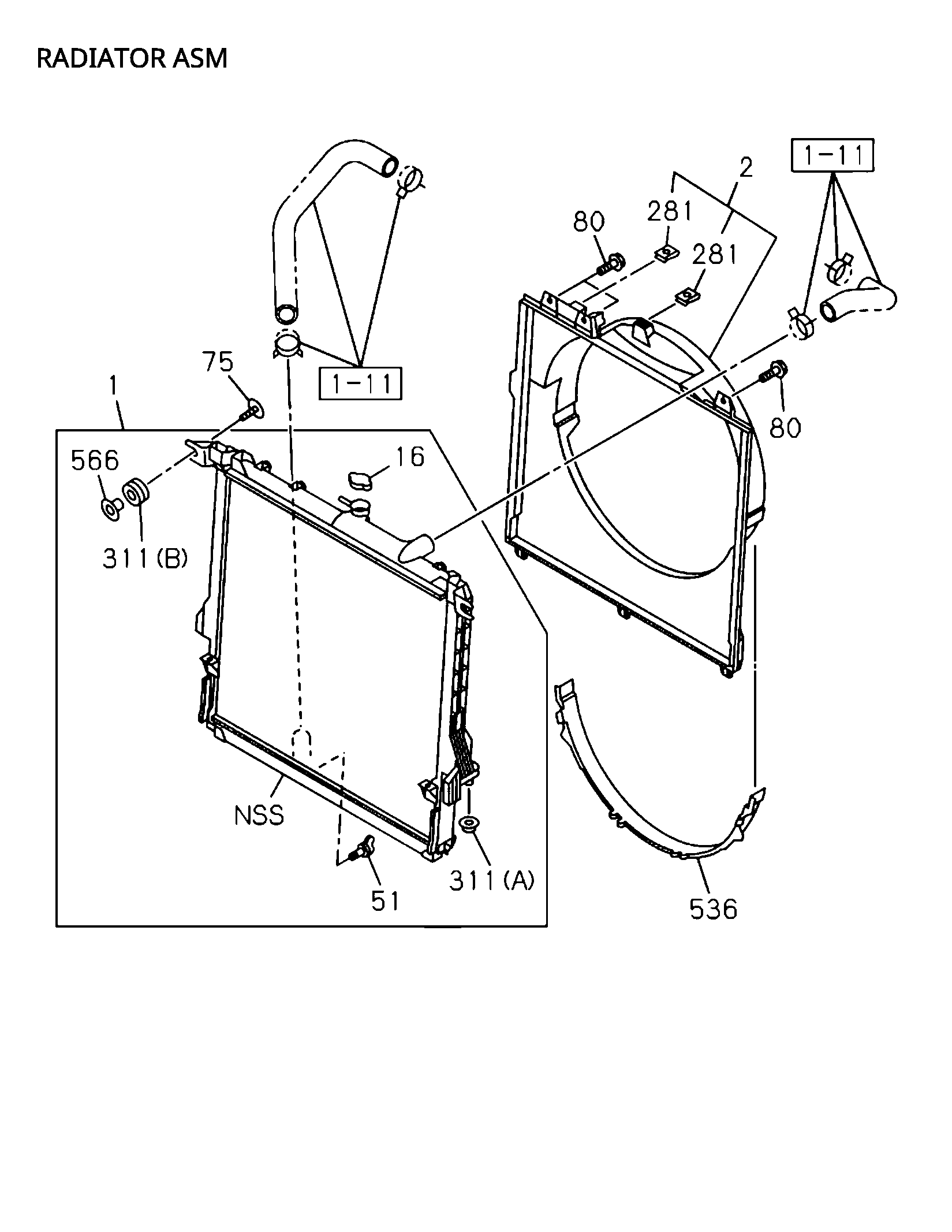

1-10 | 1-10 - RADIATOR
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 80 | I8-98189 890-0 | BOLT, FAN GUIDE | 3 | 2110- | AB | |||
| 204 | I8-97508 286-0 | GUIDE ASM, AIR | 1 | 2110- | A | |||
| 51 | I8-97171 437-0 | A | PLUG, DRAIN | 1 | 2110- | A B IW/GAS | ||
| 75 | I8-98044 006-0 | BOLT, CUSHION RUBBER,RAD MTG | 2 | 2110- | A B | M 8X41 W/WASHER | ||
| 204 | I8-97508 286-0 | GUIDE ASM, AIR | 1 | 2110- | B | EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 536 | I8-98396 412-0 | SHROUD, FAN | 2311- | |||||
| 281 | I8-98189 891-0 | NUT, FAN GUIDE | 2 | 2110- | AB | |||
| 427 | I8-97301 188-0 | CLIP, FAN GUIDE | 4 | 2110- | A B | |||
| 16 | I8-97942 268-1 | CAP, RAD | 1 | 2110- | A B | |||
| 2 | I8-97553 444-0 | GUIDE, FAN | 1 | 2110- | A | |||
| 1 | I8-97553 432-1 | RADIATOR ASM | 1 | 2110- | A | |||
| 311 | I8-97942 297-0 | RUBBER, MTG,RAD | 2 | 2110- | A B | (A) | ||
| 311 | I8-97686 481-0 | RUBBER, MTG,RAD | 2 | 2110- | AB | (B) | ||
| 566 | I8-97686 482-0 | COLLAR | 2311- |
