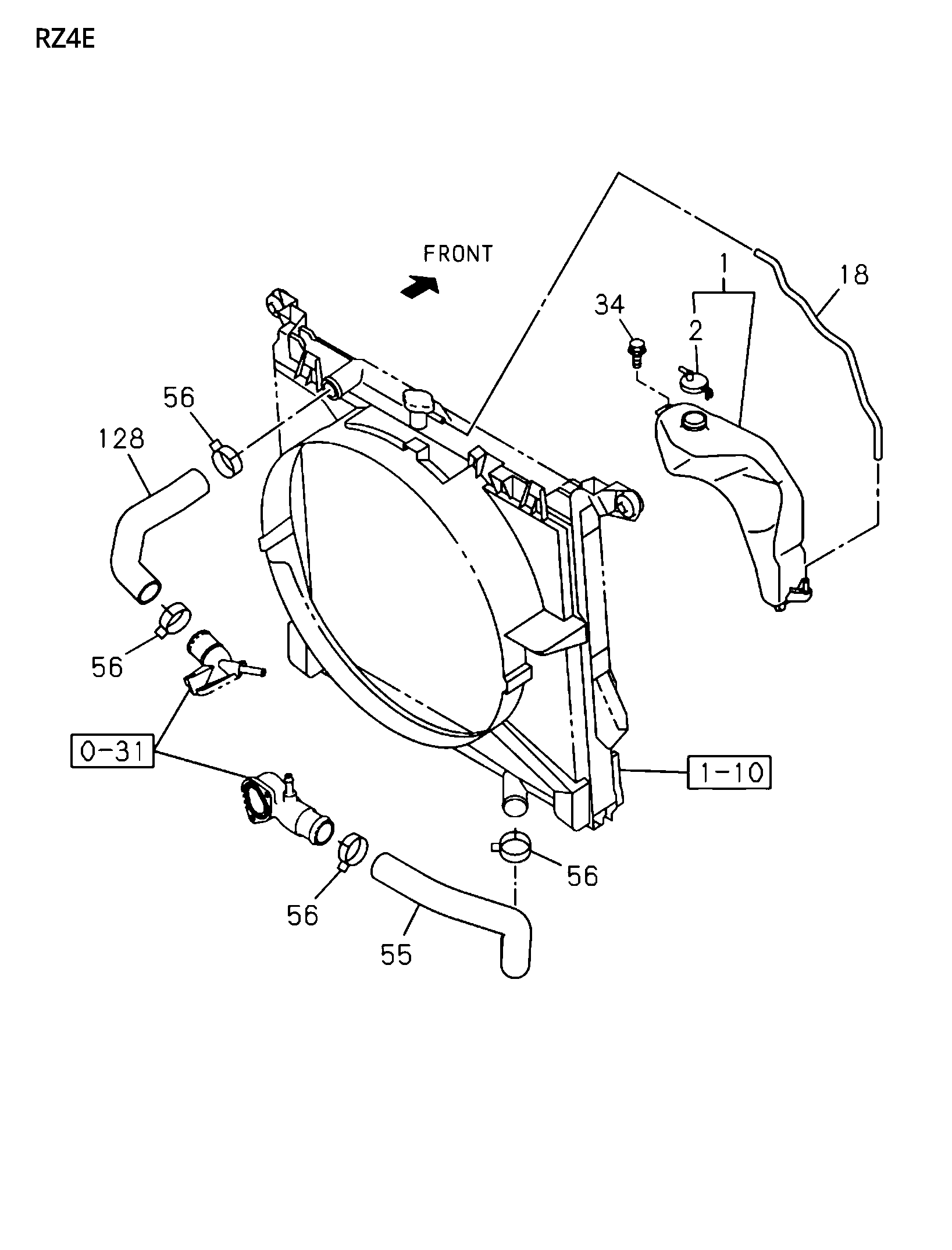

1-11 | 1-11 - RADIATOR HOSE AND SUB TANK
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97660 850-0 | TANK, SURGE,RAD | 1 | 2110- | AB | |||
| 128 | I8-98396 413-0 | HOSE, WATER,RAD INL | 1 | 2110- | A | |||
| 34 | I8-98056 282-0 | BOLT, RESERVE TANK | 2 | 2110- | AB | M 6X20 W/WASHER | ||
| 2 | I8-97661 012-0 | CAP, SURGE TANK | 1 | 2110- | A B | |||
| 56 | I8-97313 472-0 | CLIP, WATER HOSE,RAD | 4 | 2110- | AB | ID=40.5 | ||
| 18 | I8-98396 410-1 | HOSE, RAD TO SURGE TANK | 1 | 2110- | A | |||
| 55 | I8-98396 415-0 | HOSE, WATER,RAD OUTLET | 1 | 2110- | A |
