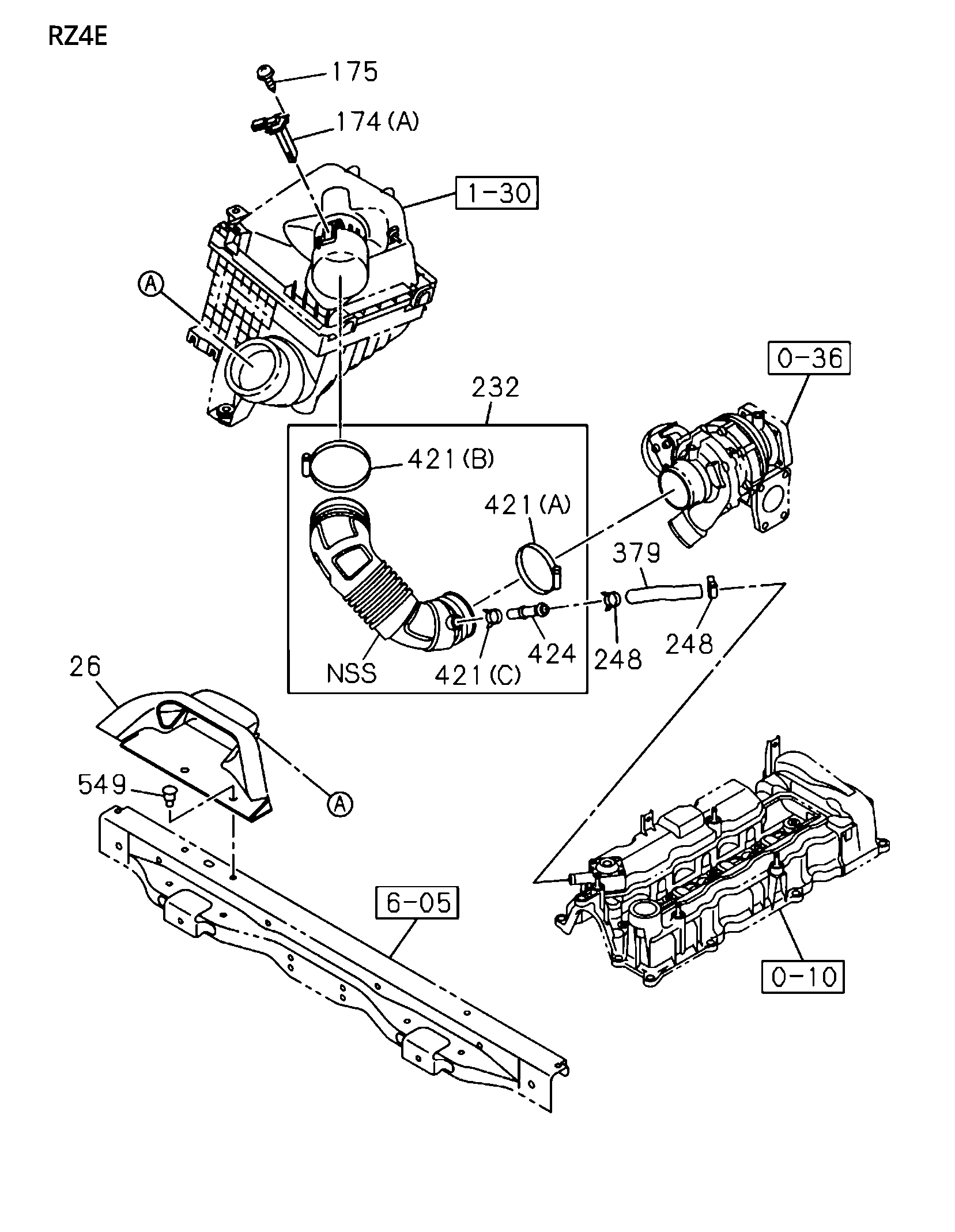

1-31 | 1-31 - AIR DUCT
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 421 | I8-97555 741-0 | CLAMP, AIR DUCT | 1 | 2110- | A | (A) | ||

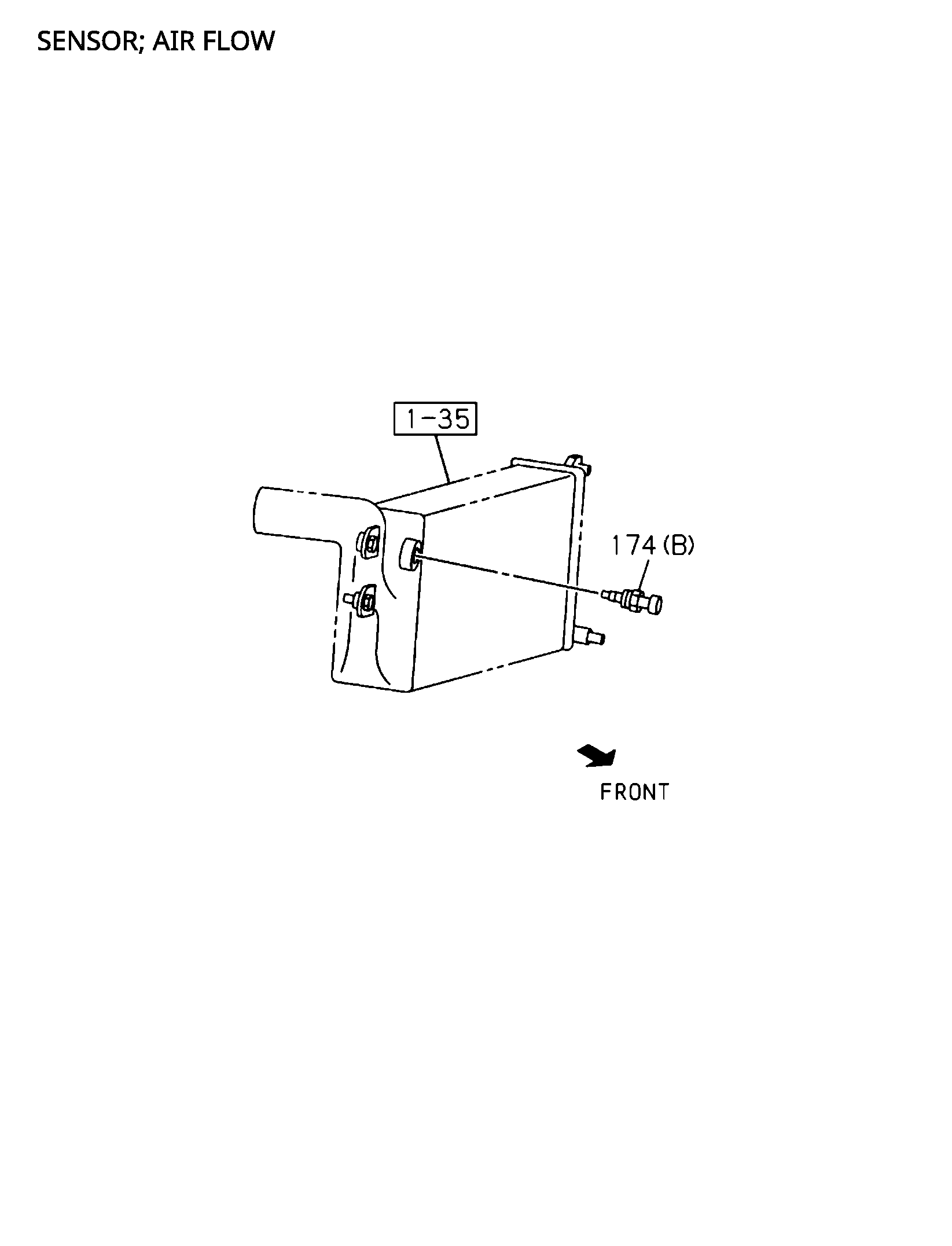

| 174 | I8-97601 967-0 | SENSOR, AIR FLOW CONT | 1 | 2110- | AB | (A) | ||
| 26 | I8-98394 377-3 | DUCT, AIR INT | 1 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 421 | I8-97555 743-0 | CLAMP, AIR DUCT | 1 | 2110- | AB | (B) | ||
| 424 | I8-98291 628-0 | PIPE, AIR,INL | 2311- | |||||
| 26 | I8-98394 377-3 | DUCT, AIR INT | 1 | 2110- | B | |||
| 175 | I0-36230 410-0 | BOLT, AIR FLOW CONT SENSOR | 2 | 2110- | A B | SCREW M4X10 W/LK&PL WASHER | ||
| 421 | I8-98291 633-0 | CLAMP, AIR DUCT | 1 | 2110- | A B | (C) | ||
| 379 | I8-98394 388-0 | HOSE, RUBBER | 1 | 2110- | A | |||
| 232 | I8-98394 381-1 | HOSE, CONN | 1 | 2110- | A | |||
| 248 | I8-94121 113-0 | CLIP, RUBBER HOSE | 2311- | |||||

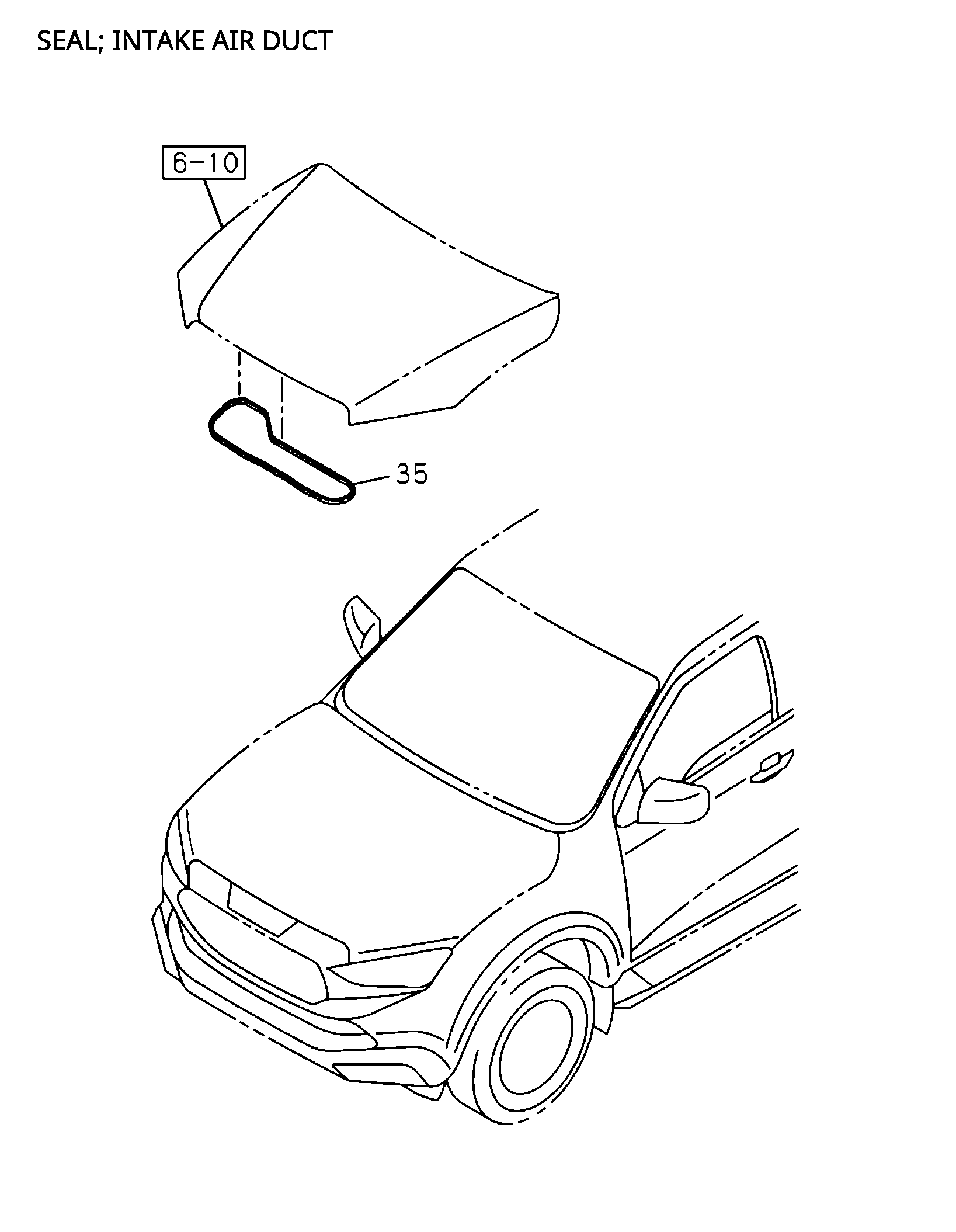

| 35 | I8-98394 378-1 | SEAL, DUCT,INT | 1 | 2110- | AB |
