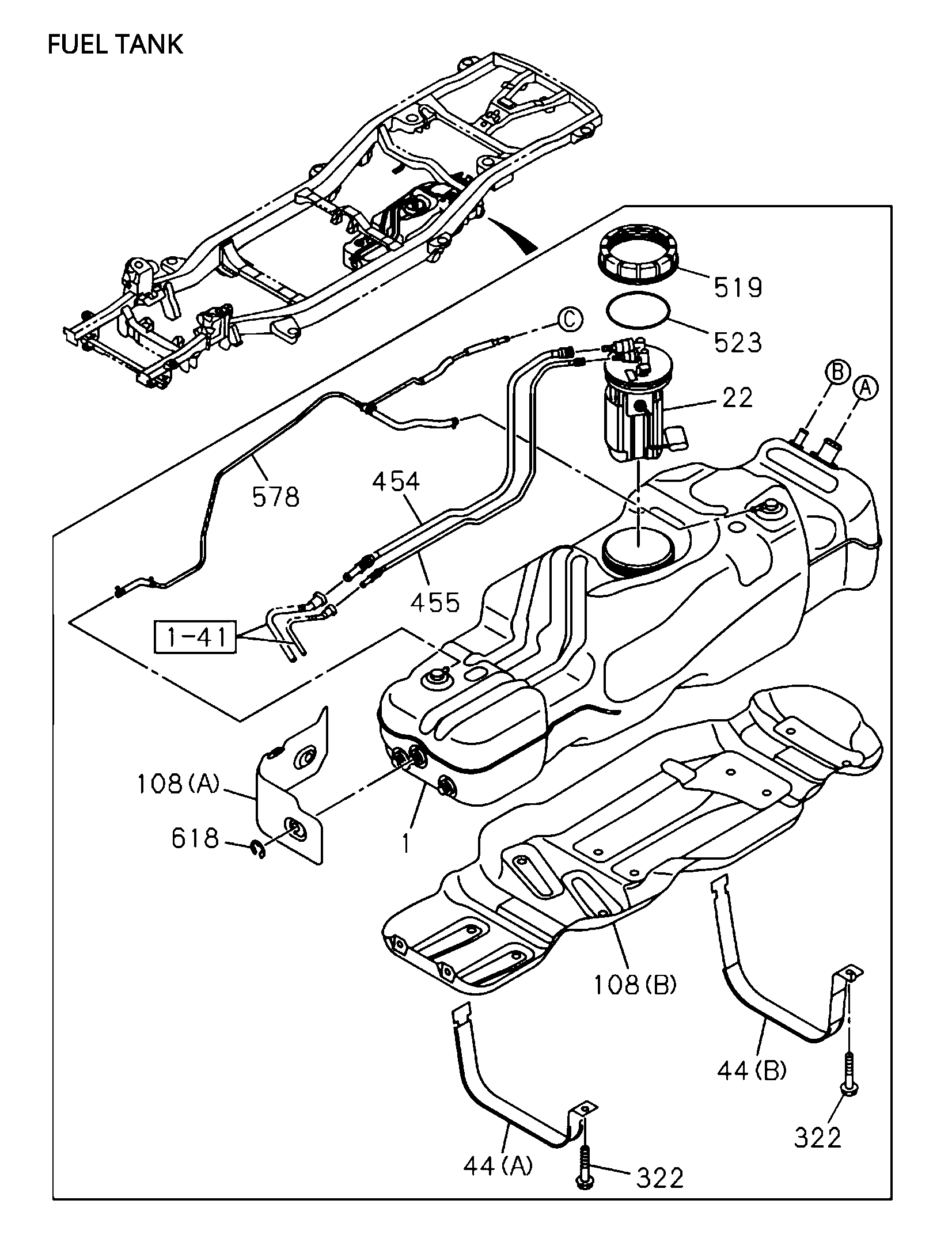

1-40 | 1-40 - FUEL TANK
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 86 | I8-97511 970-0 | HOSE, EVAP | 1 | 2110- | AB | (b) | ||
| 93 | I8-97511 962-0 | HOSE, BREATHER.FUEL TANK | 1 | 2110- | AB | (A) | ||
| 649 | I8-98051 892-0 | CLAMP, HOSE | 2311- | |||||
| 454 | I8-97558 592-0 | PIPE, FUEL.DELIVERY | 1 | 2110- | A B | |||

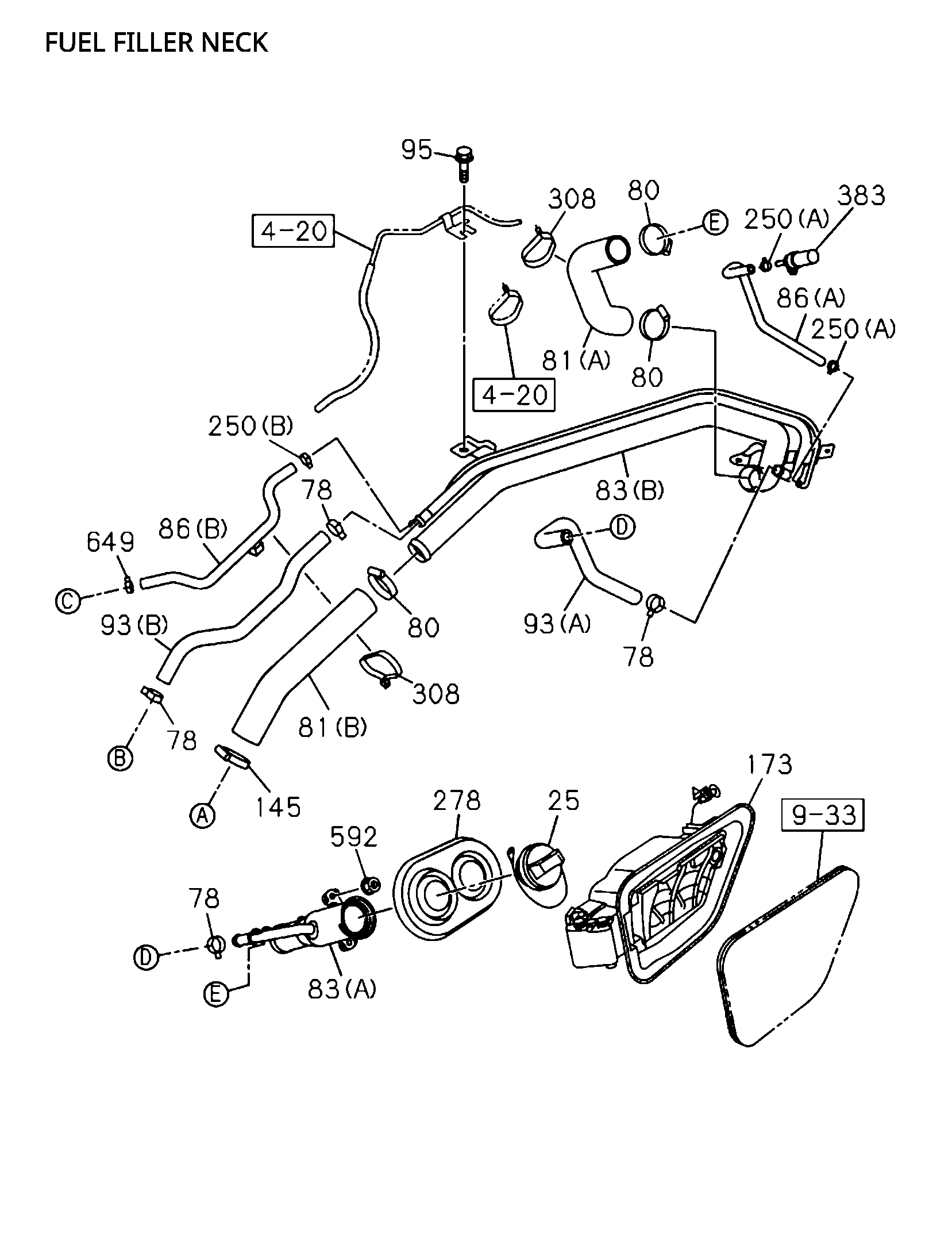

| 83 | I8-97511 964-1 | NECK, FUEL FILLER | 1 | 2110- | A B | (b) | ||

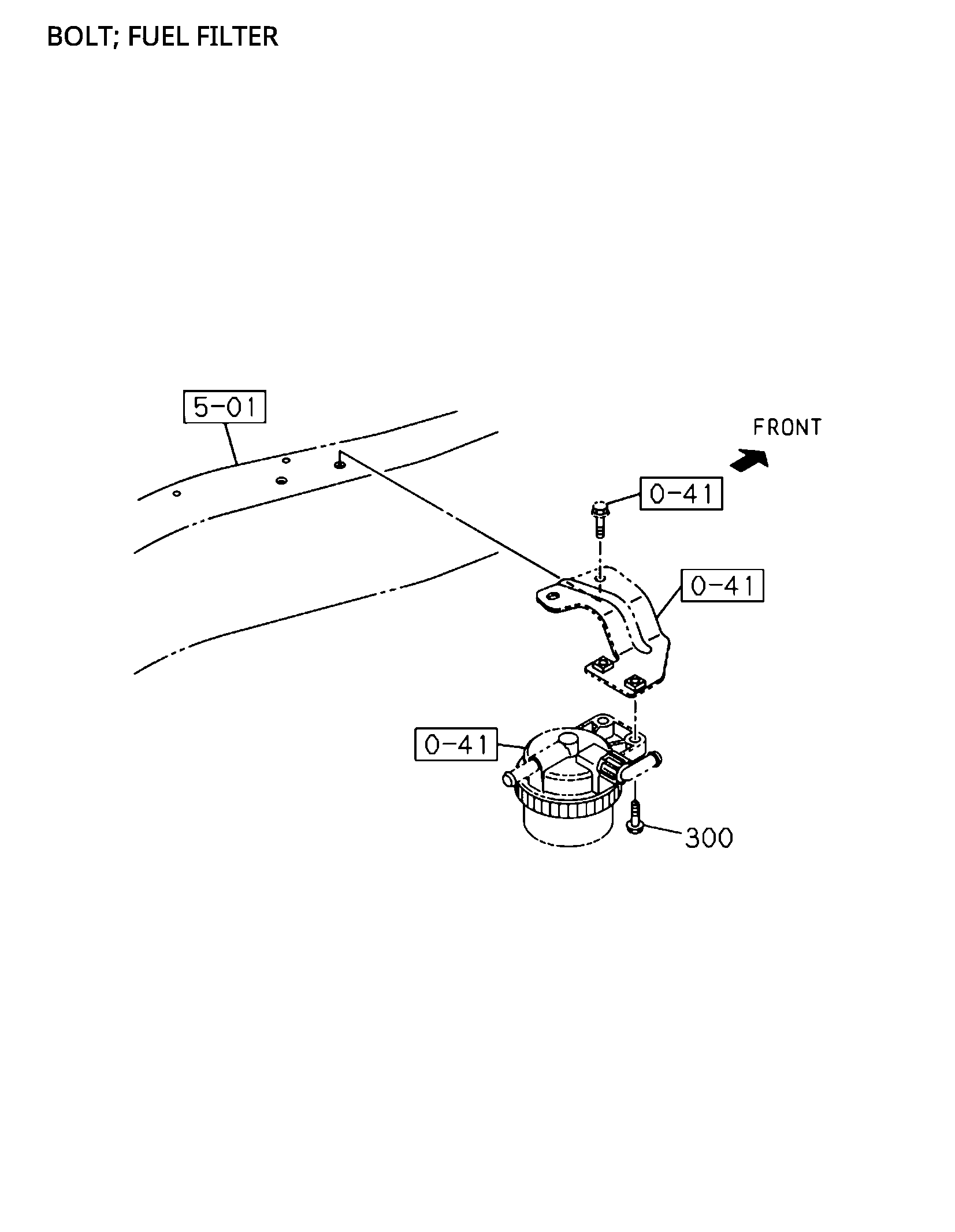

| 300 | I0-28650 830-0 | BOLT, BRKT TO BODY | 2 | 2110- | AB | PRE FUEL FILTER<KF0> M8X30 FLANGE | ||
| 519 | I8-98212 995-0 | RETAINER, FUEL PUMP | 1 | 2110- | AB | |||
| 78 | I8-97944 127-0 | CLIP, BREATHER HOSE | 4 | 2110- | AB | id=20.8 | ||
| 108 | I8-97558 594-0 | PROTECTOR, FUEL TANK | 2311- | |||||
| 44 | I8-97507 152-0 | BAND, FUEL TANK | 1 | 2110- | AB | (b) | ||
| 80 | I8-97521 704-0 | CLIP, FILLER HOSE | 3 | 2110- | A B | ID=12-18 | ||
| 81 | I8-97511 966-0 | HOSE, FUEL FILLER | 1 | 2110- | AB | (b) | ||
| 592 | I0-91180 106-0 | NUT, PIPE | 2 | 2110- | A B | M6 FLANGE | ||
| 250 | I8-98051 892-0 | CLAMP, HOSE | 2311- | |||||
| 173 | I8-98398 697-4 | COVER, FILLER NECK,FUEL TANK | 2311- | |||||
| 523 | I8-98212 994-0 | SEAL, FUEL SENSOR | 1 | 2110- | AB | |||
| 250 | I8-98232 266-0 | CLIP, BAND,EVAP HOSE | 2311- | |||||
| 81 | I8-97511 961-0 | HOSE, FUEL FILLER | 1 | 2110- | A B | (A) | ||
| 455 | I8-97558 593-0 | PIPE, FUEL,RETURN | 1 | 2110- | A B | |||
| 44 | I8-97507 151-0 | BAND, FUEL TANK | 1 | 2110- | A B | (A) | ||
| 22 | I8-97558 591-0 | UNIT, FUEL TANK | 1 | 2110- | A B | |||
| 108 | I8-97558 596-1 | PROTECTOR, FUEL TANK | 2311- | |||||
| 86 | I8-97511 963-0 | HOSE, EVAP | 1 | 2110- | A B | (A) | ||
| 1 | I8-97510 898-1 | TANK, FUEL | 1 | 2110- | AB | |||
| 618 | I8-98212 998-0 | RETAINER, FUEL TANK | 5 | 2110- | A B | |||
| 25 | I8-97679 275-0 | CAP, FILLER,FUEL TANK | 1 | 2110- | A B | |||
| 145 | I8-97947 244-0 | CLIP, HOSE,FILLER NECK | 2311- | |||||
| 578 | I8-97558 595-0 | TUBE, FUEL.EVAPO | 1 | 2110- | AB | |||
| 383 | I8-98230 130-0 | VALVE, 2 WAY | 1 | 2110- | A B | |||
| 308 | I8-98234 324-0 | CLIP, HOSE | 2 | 2110- | AB | |||
| 322 | I8-97301 165-0 | BOLT, BRKT FIX | 2 | 2110- | AB | M10X50 FLANGE | ||
| 278 | I8-97506 614-0 | GROMMET, FUEL PIPE | 1 | 2110- | AB | |||
| 83 | I8-97511 958-1 | NECK, FUEL FILLER | 1 | 2110- | AB | (A) | ||
| 93 | I8-97511 967-0 | HOSE, BREATHER.FUEL TANK | 1 | 2110- | A B | (b) |
