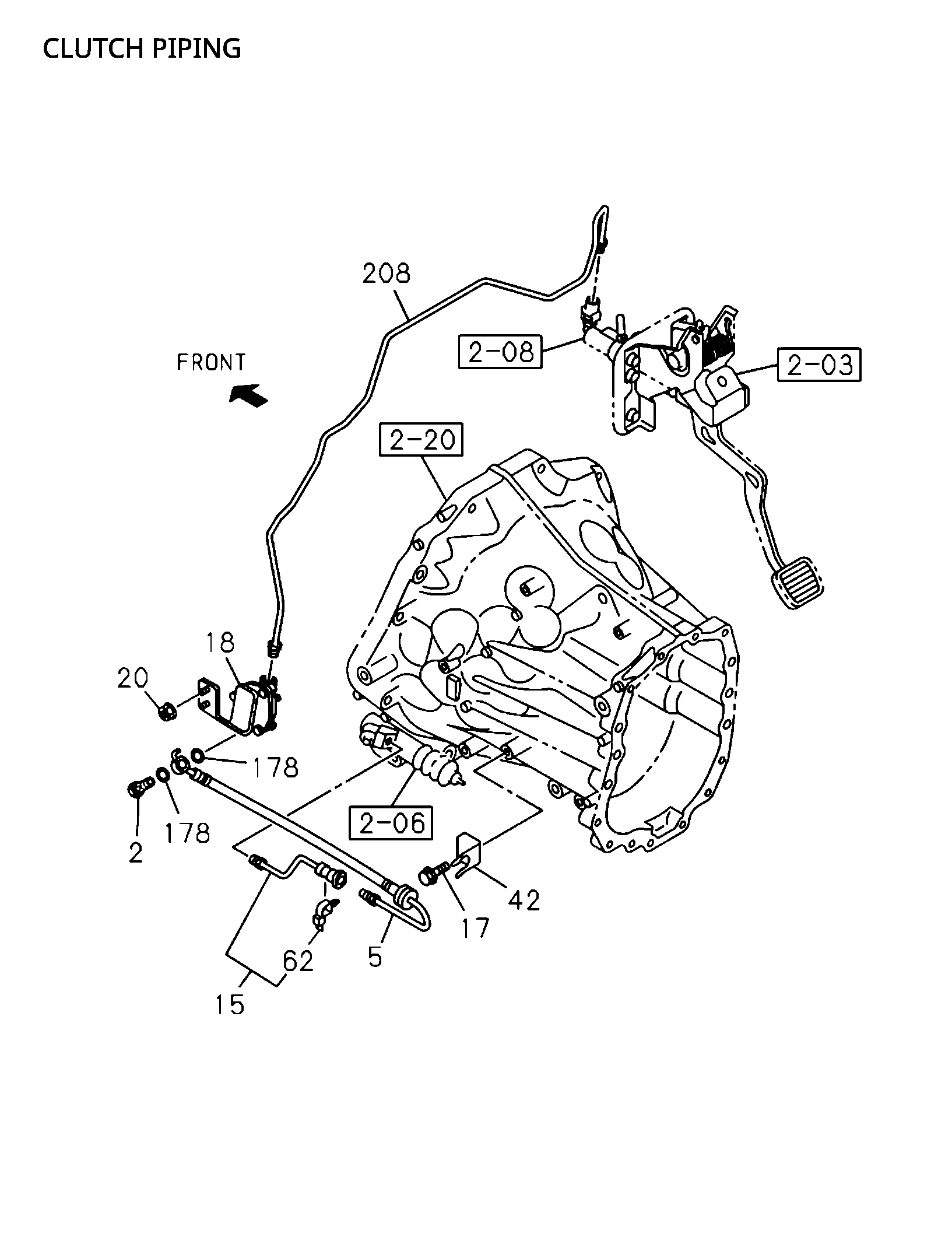

2-05 | 2-05 - CLUTCH PIPING
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 80 | I8-97947 824-0 | CLIP, HOSE | 2 | 2110- | A | ID=12 WO/PVC COATING | ||
| 17 | I0-28050 816-0 | BOLT, BRKT | 1 | 2110- | A | M8X16 FLANGE | ||
| 178 | I9-09571 410-0 | GASKET, FLEX HOSE TO M/CYL | 2 | 2110- | A | ID=10.2 0D=16.0 | ||
| 20 | I0-91180 106-0 | NUT, CLU OIL DAMPER | 2 | 2110- | A | M6 FLANGE |
