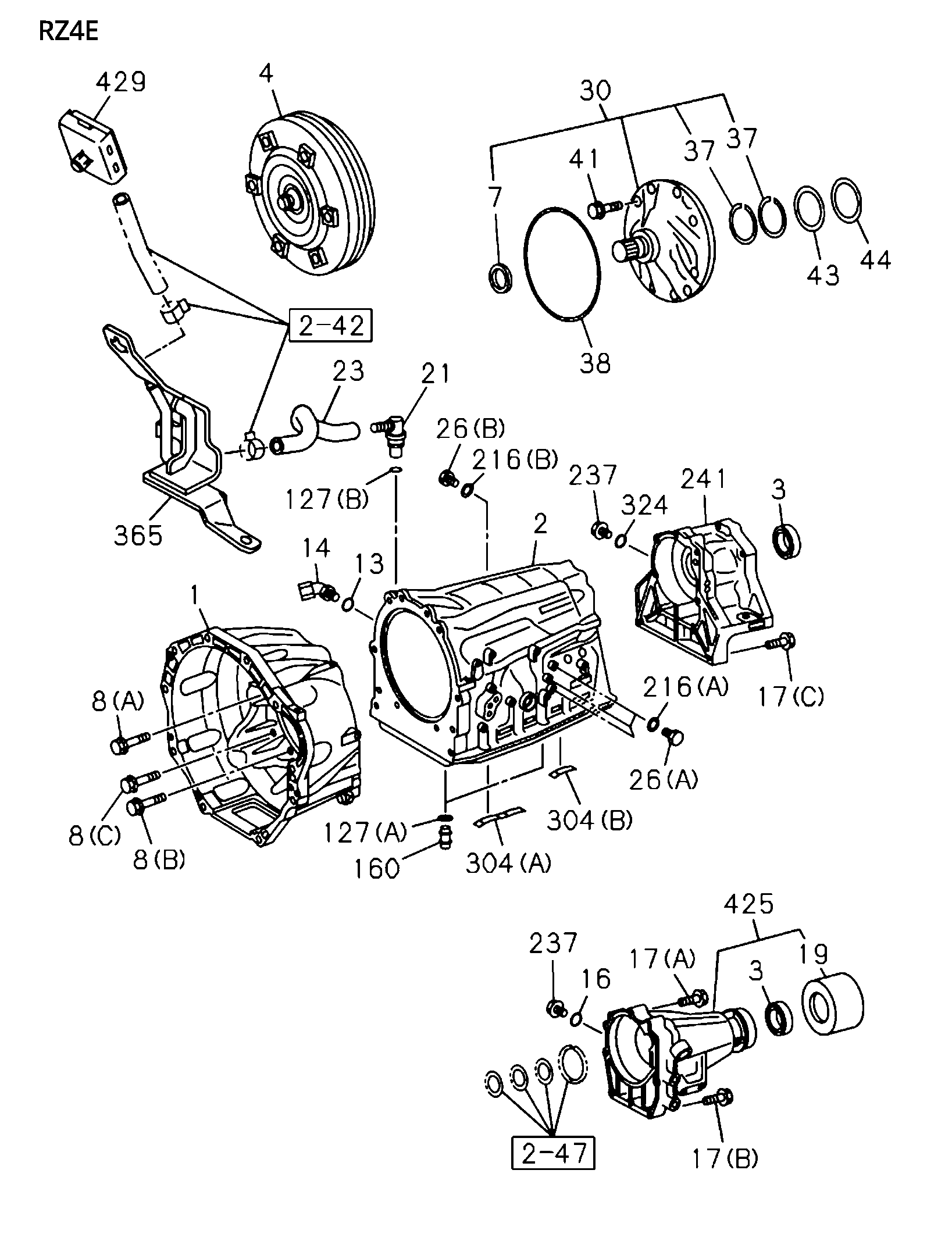

2-41 | 2-41 - AUTO TRANS CASE,CONVERTER AND OIL PUMP
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 19 | I8-98189 756-0 | COVER, DUST,REAR COVER | 1 | 2110- | B | 4X2(UCB***) | ||
| 43 | I8-98341 720-0 | RACE, THRUST BRG,OIL PUMP,A/T | 2311- | |||||
| 13 | I8-94479 936-0 | GASKET, OIL COOLER PIPE I I I | 3 | 2110- | B | 4X2(UCB***) (b) M10X40 | ||
| 17 | I8-94473 632-0 | BOLT, REAR COVER TO CASE | 2311- | |||||
| 2 | I8-98341 907-0 | CASE ASM, A/T | 1 | 2110- | B | MADE IN JAPAN TRANSMISSION<8QP> | ||
| 44 | I8-98341 744-0 | BEARING, THRUST,OIL PUMP,A/T | 1 | 2110- | B | |||
| 160 | I8-98341 911-0 | GASKET, BRKDRUM,A/T | 2 | 2110- | B | MADE IN JAPAN TRANSMISSION<8QP> | ||
| 23 | I0-02857 300-0 | HOSE, BREATHER,A/T | 1 | 2110- | B | RZ4E-TC ENG(RDZ) MADE IN JAPAN TRANSMISSION<8QP> L=220 SERVICED BY L=3000 | ||
| 216 | I5-34119 001-0 | GASKET, SOLENOID OUTER | 6 | 2110- | B | MADE IN JAPAN TRANSMISSION<8QP> (a) ID=6 | ||
| 21 | I8-98341 990-0 | PLUG, BREATHER,A/T | 1 | 2110- | B | MADE IN JAPAN TRANSMISSION<8QP> | ||
| 30 | I8-97550 325-0 | PUMP ASM, OIL,A/T | 1 | 2110- | B | RZ4E-TC ENG(RDZ) MADE IN JAPAN TRANSMISSION<8QP> | ||
| 324 | I8-98189 759-0 | GASKET, EXT HSG | 2311- | |||||
| 241 | I8-98341 901-0 | ADAPTER, A/T | 1 | 2110- | B | 4X2(UCB***) MADE IN JAPAN TRANSMISSION<8QP> | ||
| 429 | I8-98161 881-0 | CLIP, BREATHER HOSE | 1 | 2110- | B | |||
| 8 | I8-98189 487-0 | BOLT, HSG TO CASE | 2 | 2110- | B | (C) M12X38 | ||
| 365 | I8-98393 846-1 | BRACKET, BREATHER HOSE,A/T | 2311- | |||||
| 237 | I8-98189 760-0 | PLUG, COVER | 1 | 2110- | B | |||
| 26 | I8-98189 490-0 | PLUG, TRANS CASE | 1 | 2110- | B | (b) M14X12 | ||
| 304 | I8-98342 001-0 | SPRING, LEAF,A/T | 2311- | |||||
| 41 | I8-94479 749-0 | BOLT, OIL PUMP HSG,A/T | 2311- | |||||
| 4 | I8-97550 318-0 | CONVERTER ASM, TORQUE,A/T | 1 | 2110- | B | RZ4E-TC ENG(RDZ) | ||
| 3 | I8-98336 875-0 | SEAL, OIL,RR COVER,A/T | 1 | 2110- 1 | B | |||
| 38 | I8-98329 780-0 | GASKET, OIL PUMP,A/T | 2311- | |||||
| 14 | I8-97550 324-0 | UNION, OIL COOLER RETURN PIPE | 2311- | |||||
| 241 | I8-98342 209-0 | ADAPTER, A/T | 1 | 2110- | B | 4X4(UCS***) MADE IN JAPAN TRANSMISSION<8QP> | ||
| 23 | I0-02857 300-0 | HOSE, BREATHER,A/T | 1 | 2110- | B | RZ4E-TC ENG(RDZ) EXC. MADE IN JAPAN TRANSMISSION<8QP> SERVICED BY L=3000 | ||
| 1 | I8-97550 319-0 | HOUSING, CONV,A/T | 1 | 2110- | B | RZ4E-TC ENG(RDZ) MADE IN JAPAN TRANSMISSION<8QP> | ||
| 7 | I8-98341 992-0 | SEAL, OIL,LIP,A/T | 1 | 2110- 1 | B | |||
| 216 | I8-94479 724-0 | GASKET, SOLENOID OUTER | 1 | 2110- | B | MADE IN JAPAN TRANSMISSION<8QP> (b) ID=11.7 | ||
| 13 | I8-94479 935-0 | GASKET, OIL COOLER PIPE I I I | 10 | 2110- | B | 4x4(ucs***) (c) M10X50 | ||
| 127 | I8-98189 488-0 | GASKET, CASE TO COVER | 2 | 2110- | B | (a) ID=10 | ||
| 8 | I8-90257 082-0 | BOLT, HSG TO CASE | 2311- | |||||
| 127 | I8-98341 730-0 | GASKET, CASE TO COVER | 1 | 2110- | B | MADE IN JAPAN TRANSMISSION<8QP> (b) | ||
| 8 | I8-98189 486-0 | BOLT, HSG TO CASE | 2 | 2110- | B | (B) M10X35 | ||
| 26 | I5-34119 002-0 | PLUG, TRANS CASE | 6 | 2110- | B | (a) | ||
| 37 | I8-98189 492-0 | RING, SEAL,OIL PUMP,A/T | 2311- | |||||
| 16 | I8-98189 759-0 | GASKET, EXT HSG | 2311- | |||||
| 304 | I8-98342 002-0 | SPRING, LEAF,A/T | 2311- |
