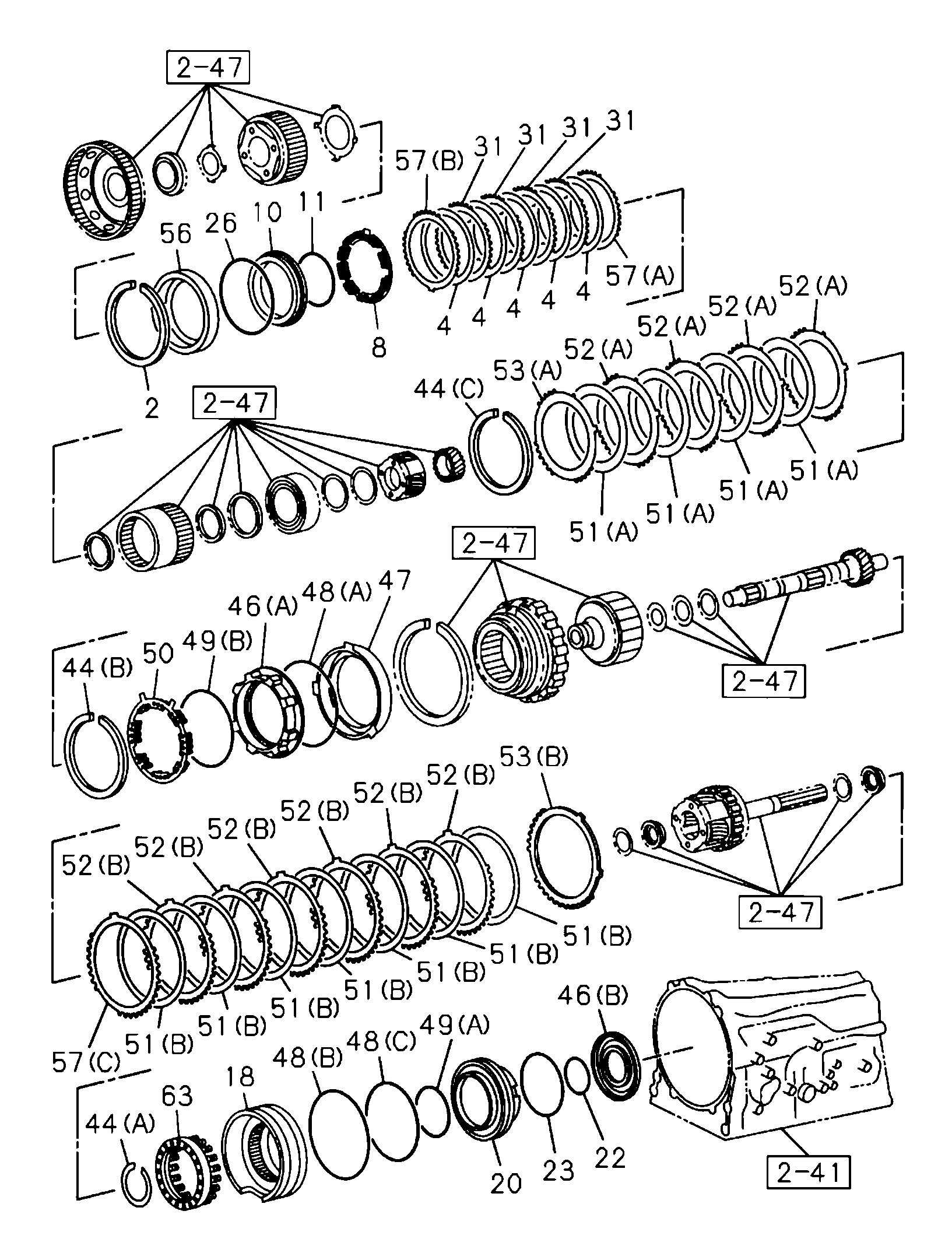

2-46 | 2-46 - AUTO TRANS SUPPORT AND PLANETARY GEAR
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 53 | I8-98341 659-0 | FLANGE, BRAKE | 2311- | |||||
| 53 | I8-98341 660-0 | FLANGE, BRAKE | 2311- | |||||
| 51 | I8-98341 867-0 | DISC, BRK | 2311- | |||||
| 10 | I8-98341 926-0 | PISTON, BRK,FRT,2ND BRK,A/T | 2311- | |||||
| 52 | I8-98341 959-0 | PLATE, BRAKE | 2311- | |||||
| 49 | I8-98341 735-0 | GASKET, BRK PISTON | 2311- | |||||
| 57 | I8-98341 638-0 | FLANGE, BRAKE | 2311- | |||||
| 8 | I8-98341 998-0 | SPRING, RETURN,FRT BRK,A/T | 2311- | |||||
| 57 | I8-98341 635-0 | FLANGE, BRAKE | 2311- | |||||
| 57 | I8-98189 668-0 | FLANGE, BRAKE | 2311- | |||||
| 50 | I8-98341 997-0 | SPRING, BRK PISTON RETURN | 2311- | |||||
| 2 | I8-98341 885-0 | RING, RET,FRT BRK,2ND BRK,A/T | 2311- | |||||
| 57 | I8-98341 641-0 | FLANGE, BRAKE | 2311- | |||||
| 44 | I8-98341 883-0 | RING, RET | 2311- | |||||
| 53 | I8-98341 652-0 | FLANGE, BRAKE | 2311- | |||||
| 47 | I8-98341 909-0 | CYLINDER, BRK | 2311- | |||||
| 57 | I8-98341 639-0 | FLANGE, BRAKE | 2311- | |||||
| 4 | I8-98341 868-0 | DISC ASM, CLU & FACING,2ND BRK,A/T | 2311- | |||||
| 53 | I8-98341 650-0 | FLANGE, BRAKE | 2311- | |||||
| 53 | I8-98341 651-0 | FLANGE, BRAKE | 2311- | |||||
| 44 | I8-98189 655-0 | RING, RET | 2311- | |||||
| 56 | I8-98341 910-0 | CYLINDER, BRAKE | 2311- | |||||
| 57 | I8-98189 664-0 | FLANGE, BRAKE | 2311- | |||||
| 22 | I8-98189 645-0 | GASKET, BRK PISTON,RR,INNER,A/T | 2311- | |||||
| 57 | I8-98189 662-0 | FLANGE, BRAKE | 2311- | |||||
| 57 | I8-98189 665-0 | FLANGE, BRAKE | 2311- | |||||
| 48 | I8-98189 650-0 | GASKET, BRK | 2311- | |||||
| 57 | I8-98189 666-0 | FLANGE, BRAKE | 2311- | |||||
| 46 | I8-98341 925-0 | PISTON, BRK | 2311- | |||||
| 48 | I8-98341 736-0 | GASKET, BRK | 2311- | |||||
| 53 | I8-98341 656-0 | FLANGE, BRAKE | 2311- | |||||
| 57 | I8-98341 634-0 | FLANGE, BRAKE | 2311- | |||||
| 53 | I8-98341 658-0 | FLANGE, BRAKE | 2311- | |||||
| 53 | I8-98341 654-0 | FLANGE, BRAKE | 2311- | |||||
| 53 | I8-98341 657-0 | FLANGE, BRAKE | 2311- | |||||
| 18 | I8-98341 924-0 | PISTON, LOW & REV BRK,A/T | 2311- | |||||
| 44 | I8-98341 884-0 | RING, RET | 2311- | |||||
| 57 | I8-98341 640-0 | FLANGE, BRAKE | 2311- | |||||
| 46 | I8-98341 927-0 | PISTON, BRK | 2311- | |||||
| 48 | I8-98189 631-0 | GASKET, BRK | 2311- | |||||
| 53 | I8-98341 653-0 | FLANGE, BRAKE | 2311- | |||||
| 63 | I8-98189 654-0 | SPRING, 1ST & REVS BRAKE RETURN | 2311- | |||||
| 57 | I8-98341 633-0 | FLANGE, BRAKE | 2311- | |||||
| 52 | I8-98189 657-0 | PLATE, BRAKE | 2311- | |||||
| 20 | I8-98341 995-0 | SLEEVE, BRK REACTION,A/T | 2311- | |||||
| 57 | I8-98189 660-0 | FLANGE, BRAKE | 2311- | |||||
| 57 | I8-98189 669-0 | FLANGE, BRAKE | 2311- | |||||
| 49 | I8-98189 647-0 | GASKET, BRK PISTON | 2311- | |||||
| 57 | I8-98341 636-0 | FLANGE, BRAKE | 2311- | |||||
| 53 | I8-98341 655-0 | FLANGE, BRAKE | 2311- | |||||
| 23 | I8-97184 353-0 | GASKET, BRK PISTON,RR,OUTER,A/T | 2311- | |||||
| 31 | I8-98341 960-0 | PLATE, CLU BACKING,2ND BRK,A/T | 2311- | |||||
| 57 | I8-98189 663-0 | FLANGE, BRAKE | 2311- | |||||
| 57 | I8-98189 661-0 | FLANGE, BRAKE | 2311- | |||||
| 26 | I8-98341 737-0 | GASKET, BRK PISTON,FRT,OUTER,A/T | 2311- | |||||
| 51 | I8-98341 869-0 | DISC, BRK | 2311- | |||||
| 57 | I8-98189 667-0 | FLANGE, BRAKE | 2311- | |||||
| 57 | I8-98341 642-0 | FLANGE, BRAKE | 2311- | |||||
| 11 | I8-98341 734-0 | GASKET, BRK PISTON,FRT,INNER,A/T | 2311- | |||||
| 57 | I8-98189 659-0 | FLANGE, BRAKE | 2311- | |||||
| 57 | I8-98341 637-0 | FLANGE, BRAKE | 2311- |
