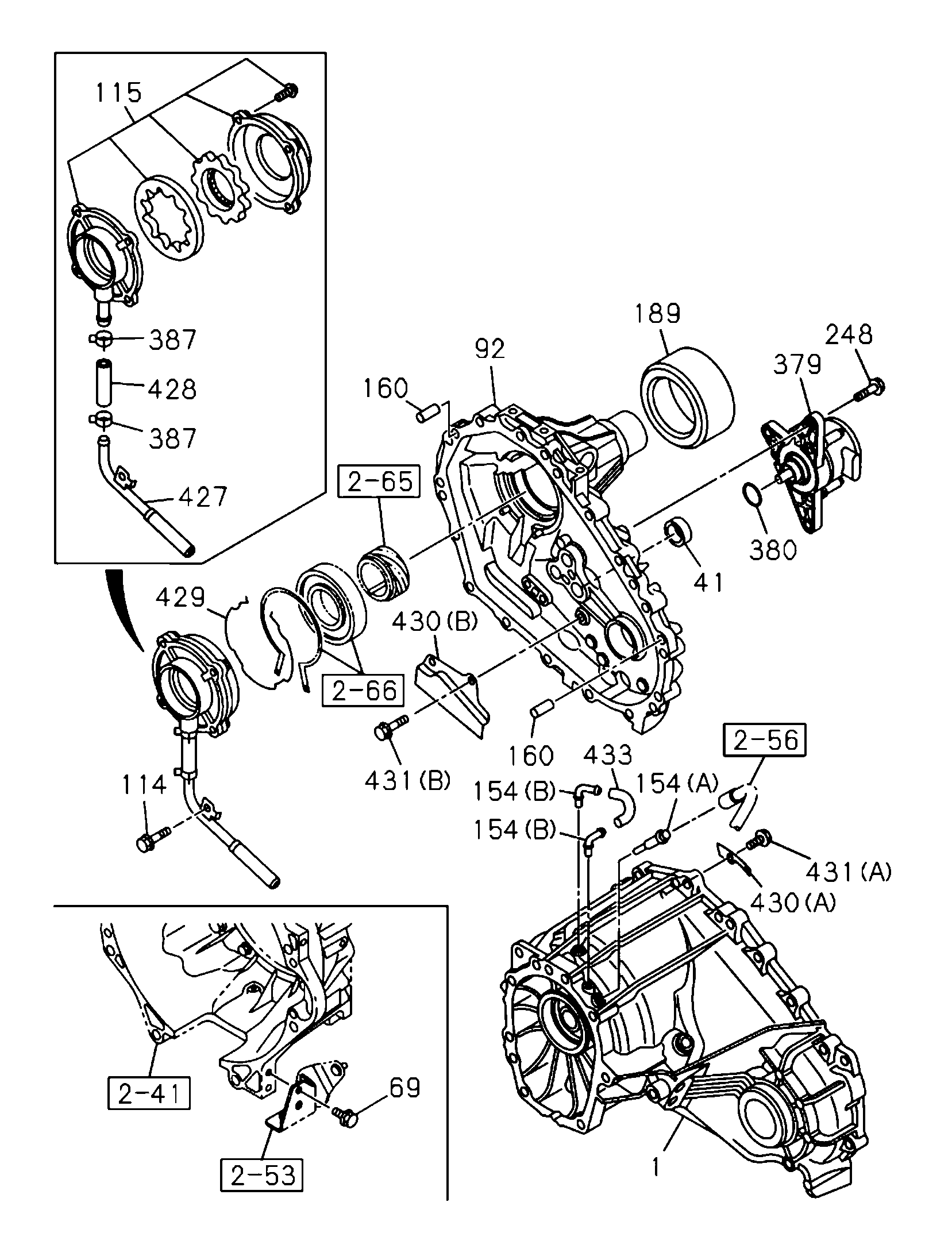

2-61 | 2-61 - TRANSFER CASE AND GEAR SHIFTER
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 115 | I8-97267 129-1 | PUMP ASM, OIL,TRANSFER | 1 | 2311- | ||||
| 160 | I8-97135 423-0 | PIN, KNOCK,SHIFT CASE | 2 | 2110- | B | OD=10 L=20 | ||
| 154 | I8-97358 318-0 | PIPE, BREATHER | 2 | 2110- | B | (B) | ||
| 429 | I8-97240 666-0 | RING, SNAP,OIL PUMP | 1 | 2311- | B | A/T 6 SPEED AISIN | ||
| 154 | I8-97358 319-0 | PIPE, BREATHER | 1 | 2110- | B | (A) | ||
| 430 | I8-97239 130-0 | PLATE, BAFFLE | 1 | 2311- | B | (A) A/T 6 SPEED AISIN | ||
| 1 | I8-97497 446-1 | CASE, TRANSFER | 1 | 2110- | B | |||
| 380 | I0-28650 616-0 | GASKET, ACTUATOR | 1 | 2110- | B | (A) M6X16 FLANGE | ||
| 189 | I8-97483 602-0 | COVER, DUST.OIL SEAL | 1 | 2110- | B | |||
| 387 | I8-98030 682-0 | CLIP, HOSE,BYPASS | 2 | 2311- | B | A/T 6 SPEED AISIN ID=16 | ||
| 380 | I0-28650 820-0 | GASKET, ACTUATOR | 2 | 2110- | B | (B) M8X20 FLANGE | ||
| 92 | I8-97497 447-0 | COVER, RRJRANSFER | 1 | 2110- | B | |||
| 427 | I8-98063 358-0 | SCREEN, OIL PUMP | 1 | 2311- | B | A/T 6 SPEED AISIN | ||
| 41 | I8-97238 998-0 | SEAL, OIL,SHIFT ROD | 1 | 2110- | B | |||
| 114 | I0-28650 820-0 | BOLT, OIL PUMPJRANSFER | 1 | 2110- | B | M8X20 FLANGE | ||
| 428 | I8-98064 220-0 | HOSE, OIL PUMP | 1 | 2311- | B | A/T 6 SPEED AISIN L=50 | ||
| 433 | I8-97236 080-0 | HOSE, AIRJRANSFER | 1 | 2110- | B | A/T 6 SPEED AISIN | ||
| 69 | I0-28051 020-0 | BOLT, BRKT | 2 | 2110- | A B | A/T 6 SPEED-AISIN(YSA) M10X20 FLANGE | ||
| 248 | I0-28650 830-0 | BOLT | 3 | 2110- | B | M8X30 FLANGE | ||
| 430 | I8-98063 360-0 | PLATE, BAFFLE | 1 | 2311- | B | (B) A/T 6 SPEED AISIN | ||
| 380 | I8-97318 475-0 | GASKET, ACTUATOR | 1 | 2110- | B | ID=29.7 OD=36.7 | ||
| 379 | I8-97244 446-0 | ACTUATOR, TRANSFER,2-4 SHIFT | 1 | 2311- |
