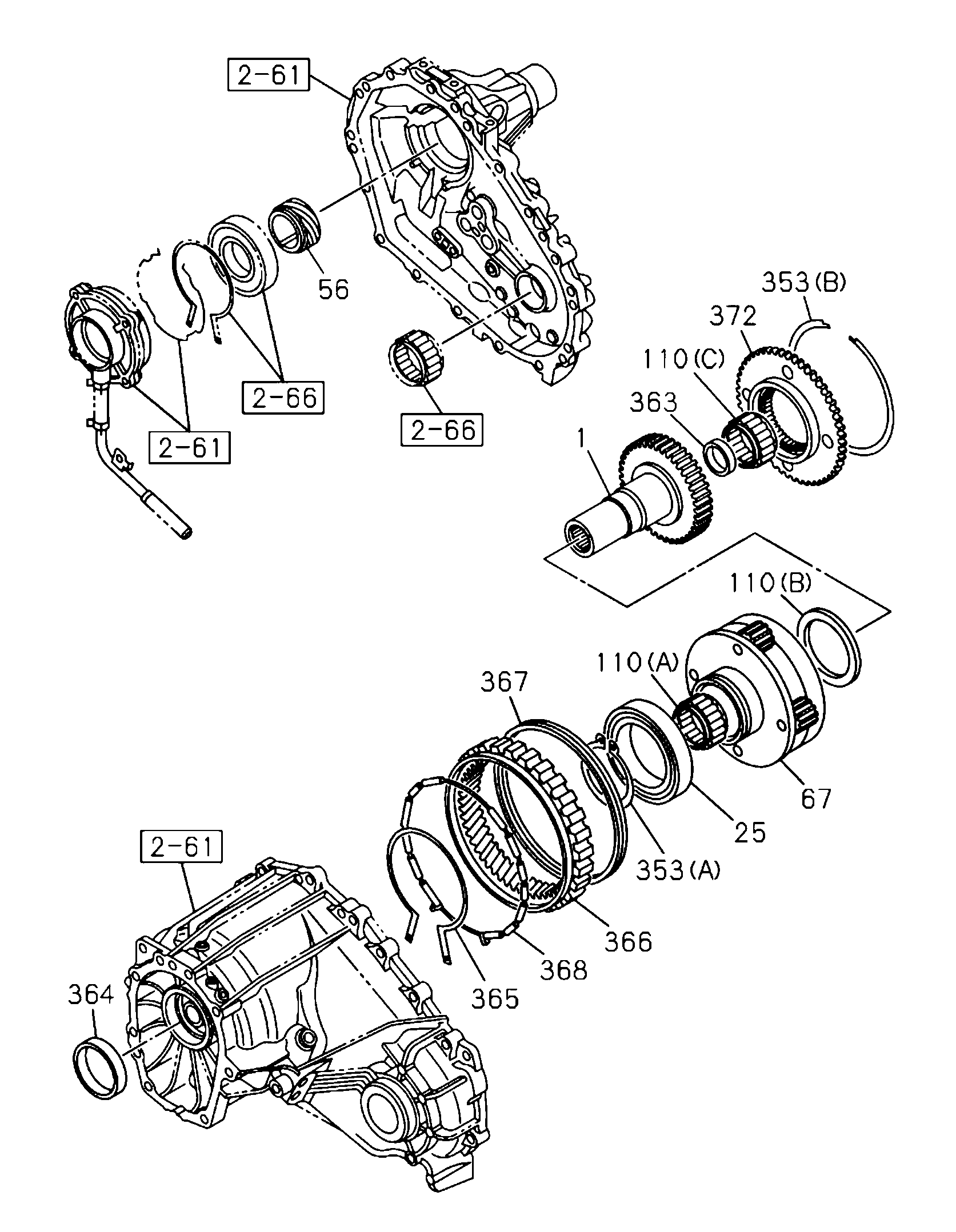

2-65 | 2-46 - AUTO TRANS SUPPORT AND PLANETARY GEAR
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 372 | I8-97358 244-0 | TEETH, DOG,PLANETARY | 2311- | |||||
| 367 | I8-97247 459-0 | RING, RETAINING,SPIRAL TYPE | 2311- | |||||
| 363 | I8-97238 725-0 | CAP, SEAL,INPUT SHAFT | 1 | 2110- | B | NOK | ||
| 25 | I8-97234 735-0 | BEARING, BALL.INPUT SHAFT | 1 | 2110- | B | NSK | ||
| 365 | I8-97305 010-1 | RING, RETAINING.OUTER INPUT | 1 | 2110- | B | ID=97 | ||
| 1 | I8-98118 924-1 | SHAFT, GEAR.INPUT | 1 | 2110- | B | |||
| 110 | I8-97234 743-0 | BEARING, NEEDLE | 1 | 2110- | B | (C) ID=32 | ||
| 110 | I6-97234 739-0 | BEARING, NEEDLE | 1 | 2110- | B | IADG (A) ID=50 | ||
| 353 | I8-97305 406-0 | RING, SNAPFCARRIER | 1 | 2110- | B | (B) ID=137 | ||
| 353 | I8-97305 403-0 | RING, SNAPFCARRIER | 1 | 2110- | B | (A) ID=65.5 | ||
| 110 | I8-97234 741-0 | BEARING, NEEDLE | 1 | 2110- | B | (B) ID=56 | ||
| 364 | I8-97238 999-0 | SEAL, OIL,COVER,INPUT | 1 | 2110- | B | NOK | ||
| 56 | I8-97499 658-0 | GEAR, SPD DRIVE/TRANSFER | 1 | 2110- | B | Z=6 | ||
| 67 | I8-98158 116-0 | CARRIER, TRANSFER | 1 | 2110- | B | |||
| 110 | I8-97234 739-0 | BEARING, NEEDLE | 1 | 2110- | B | (A) ID=50 | ||
| 366 | I8-97231 831-2 | GEAR, INTERNAL.HIGH-LOW | 1 | 2110- | B | Z=27 |
