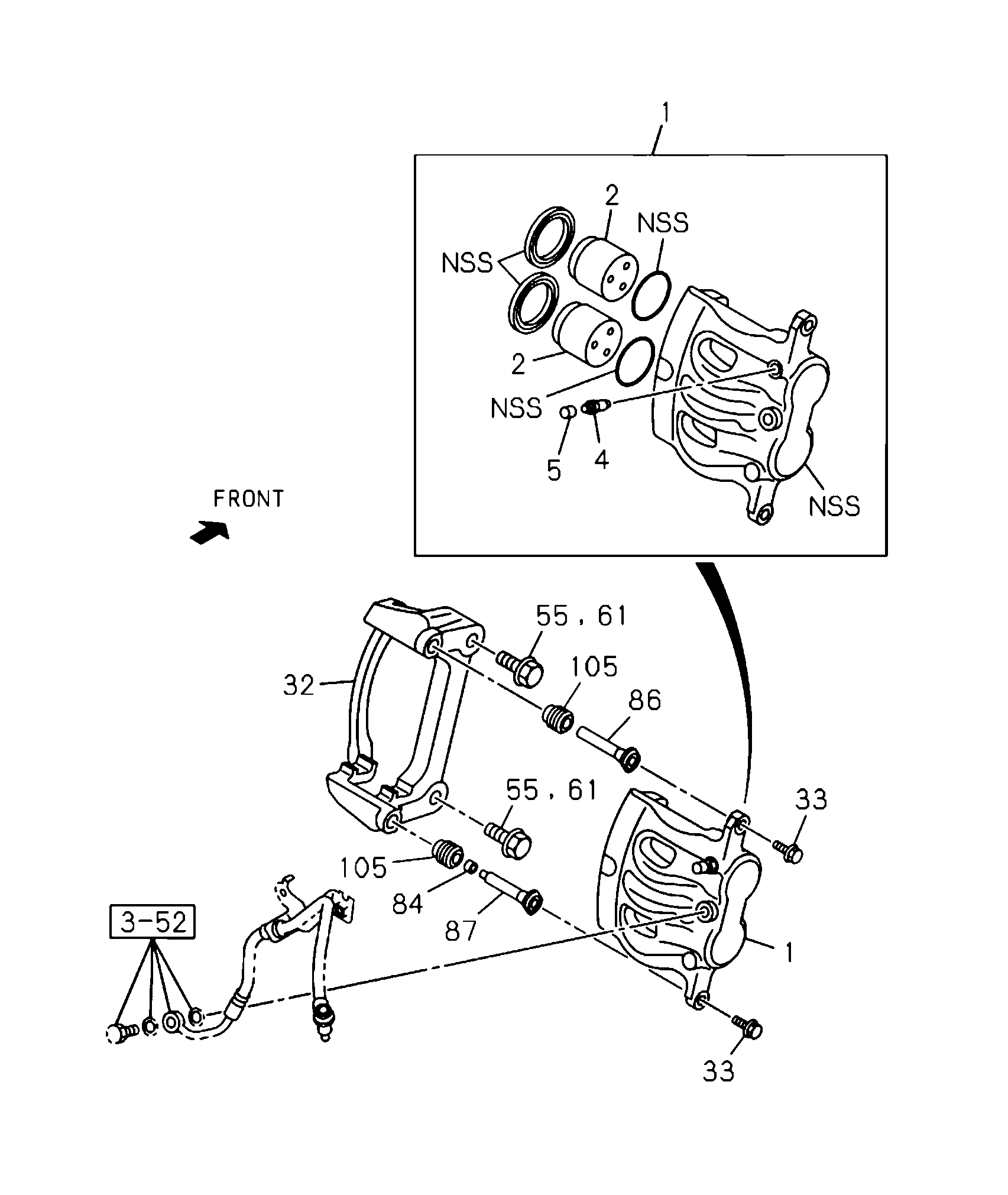

3-02 | 3-02 - FRONT DISC BRAKE CALIPER
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 33 | I8-98078 192-0 | BOLT, SUPPORT BRKT TO DISC B | 4 | 2110- | A B | |||
| 4 | I8-98050 476-0 | SCREW, BLEEDER,DISC BRK,FRT | 2 | 2110- | AB | |||

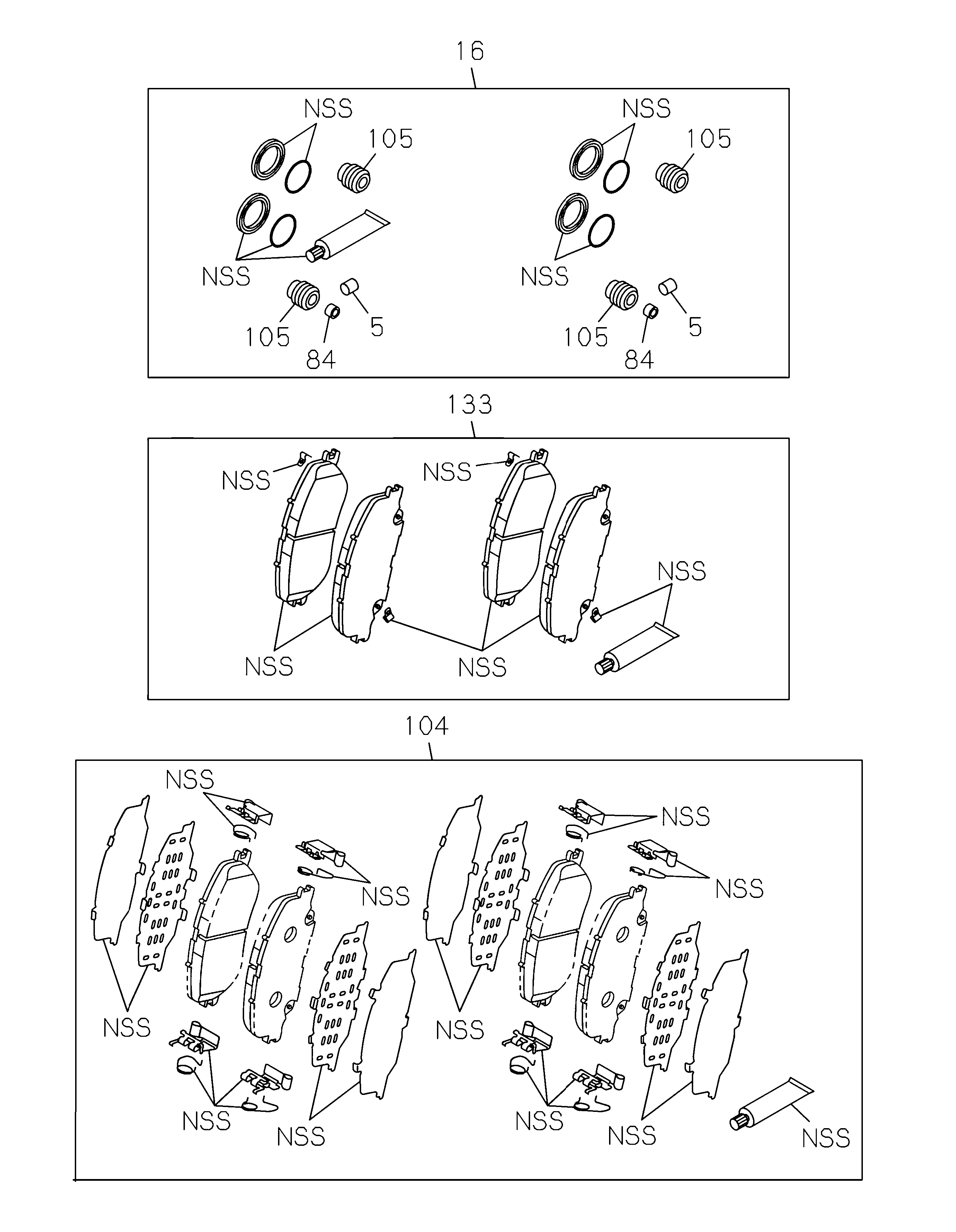

| 104 | I8-97827 962-0 | SHIM & CLIP KIT, DISC BRK,FRT | 2311- | |||||
| 87 | I8-98489 325-0 | PIN, LOCK | 2 | 2110- | A B | |||
| 1 | I8-98489 317-0 | CALIPER, FRT DISC BRK | 1 | 2110- | R | A B | ||
| 86 | I8-98489 326-0 | PIN, GUIDE | 2 | 2110- | AB | |||
| 5 | I8-98050 479-0 | CAP, BLEEDER,DISC BRK,FRT | 2 | 2110- | AB | |||
| 61 | I8-98395 588-0 | BOLT, SUPPORT BRKT TO KNUCKLE | 2 | 2110- | R | AB | ||
| 133 | I8-97827 960-1 | PAD KIT, DISC BRK,W/O SHIM & C | 2311- | |||||
| 55 | I8-98395 588-0 | BOLT, SUPPORT BRKT TO DISC B | 2 | 2110- | L | A B | ||
| 32 | I8-98489 324-0 | SUPPORT, FRT DISC BRK | 2 | 2110- | A B | |||
| 1 | I8-98489 318-0 | CALIPER, FRT DISC BRK | 1 | 2110- | L | AB | ||
| 105 | I8-98078 193-0 | BOOT, CALIPER | 2311- | |||||
| 16 | I8-97505 681-0 | REPAIR KIT, CALIPER,DISC BRK.FRT | 1 | 2110- | AB | W/GREASE | ||
| 84 | I8-97487 324-0 | BUSHING, LOCK PIN | 2 | 2110- | AB | |||
| 2 | I8-98078 000-0 | C | PISTON, CALIPER,DISC BRK,FRT | 4 | 2110- | AB |
