3-06 | 3-06 - REAR DISC BRAKE CALIPER
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

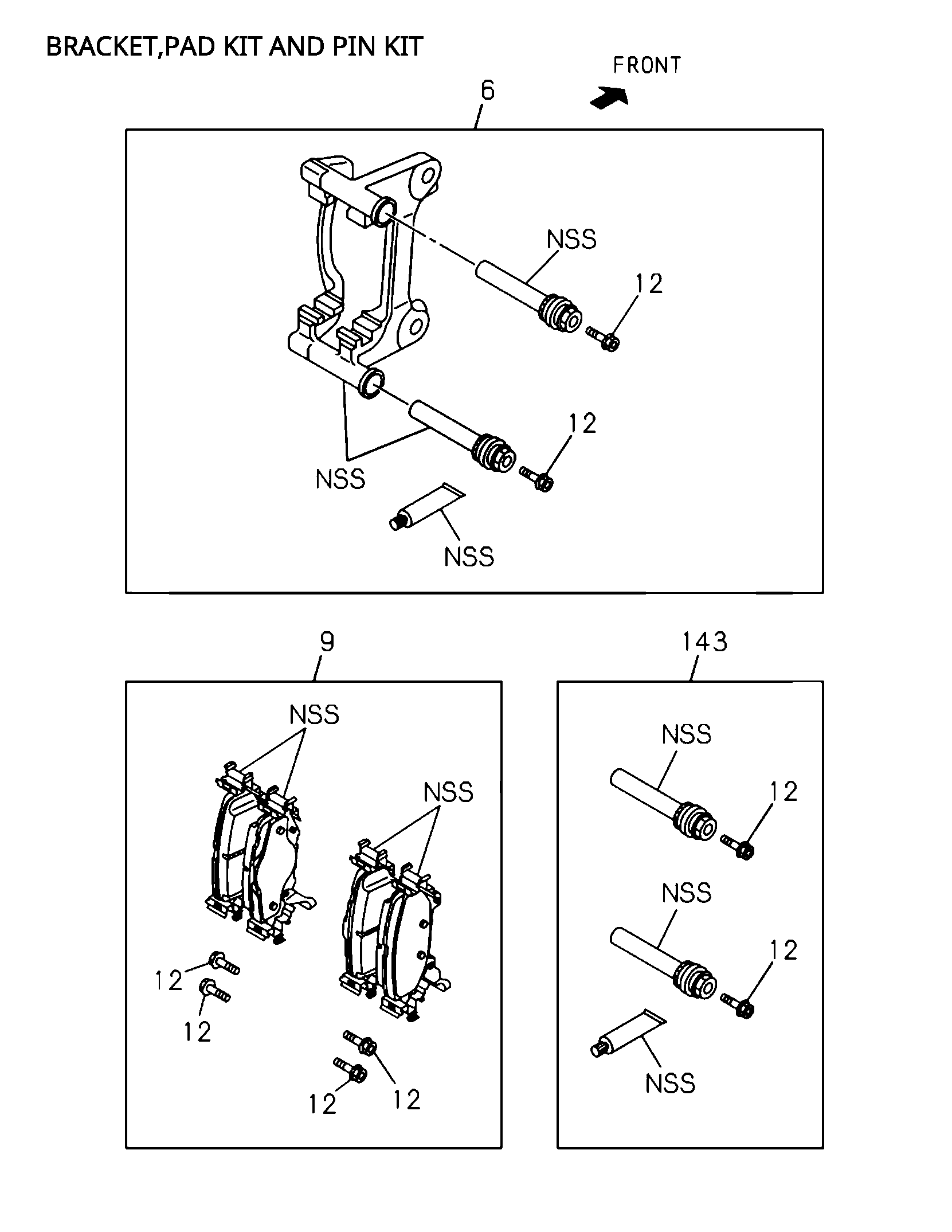

| 12 | I7-55209 142-0 | PIN, RET,CALIPER,RR DISC BRK | 4 | 2311- | ||||
| 9 | I8-97689 077-1 | PAD KIT, CALIPER,RR | 2311- | |||||
| 149 | I8-97828 574-0 | CLIP KIT, DISC BRAKE,RR | 1 | 2110- | AB | |||

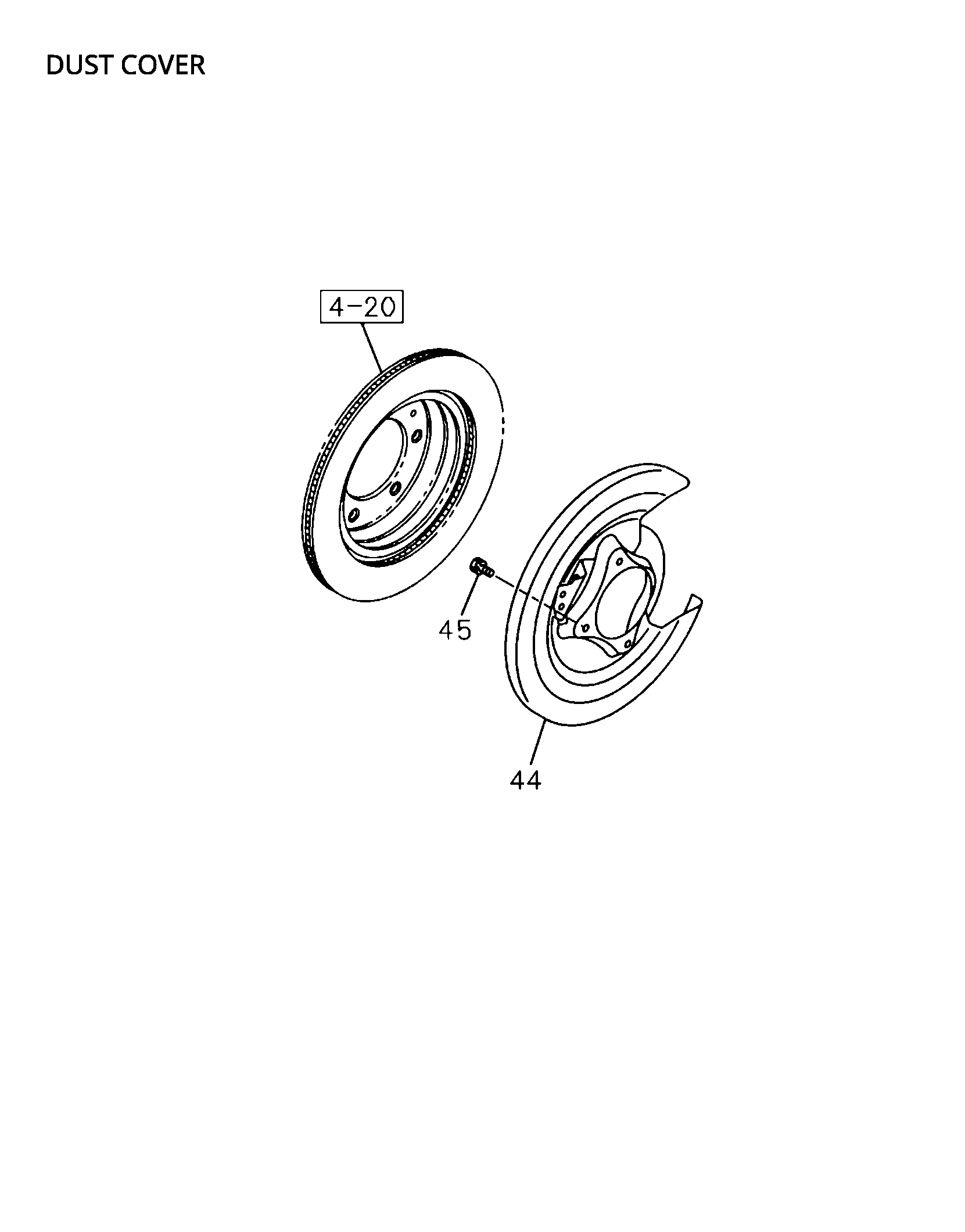

| 44 | I8-97503 584-0 | COVER, DUST | 1 | 2110- | A B | |||
| 4 | I8-97655 201-0 | CAP, BLEEDER SCREW, CALI PER, RR | 2 | 2110- | A B | |||
| 6 | I8-97655 210-1 | BRACKET, SUPPORT,RR DISC BRK | 2311- | |||||

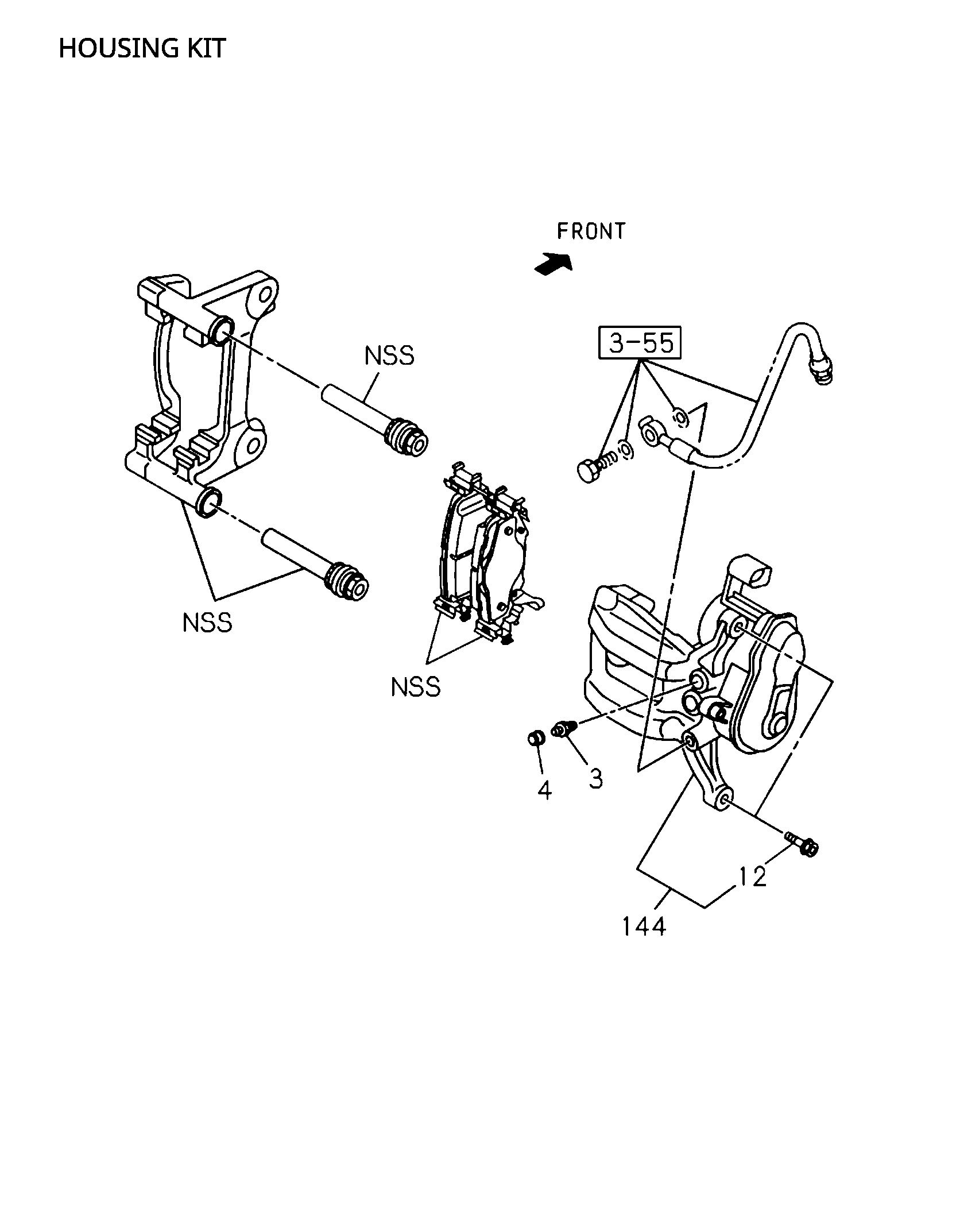

| 144 | I8-97655 205-0 | HOUSING KIT | 1 | 2110- | A B | |||
| 143 | I8-97655 200-0 | PIN KIT | 2 | 2110- | AB | W/GREASE | ||
| 144 | I8-97655 209-0 | HOUSING KIT | 1 | 2110- | AB | |||
| 44 | I8-97503 585-0 | COVER, DUST | 1 | 2110- | AB | |||
| 3 | I8-97655 202-0 | SCREW, BLEEDER,CALIPER,RR | 2 | 2110- | AB | |||
| 6 | I8-97655 204-1 | BRACKET, SUPPORT,RR DISC BRK | 2311- | |||||
| 45 | I8-97542 225-2 | BOLT, DUST COVER SET | 6 | 2110- | AB | M8X10 W/PL WASHER |
