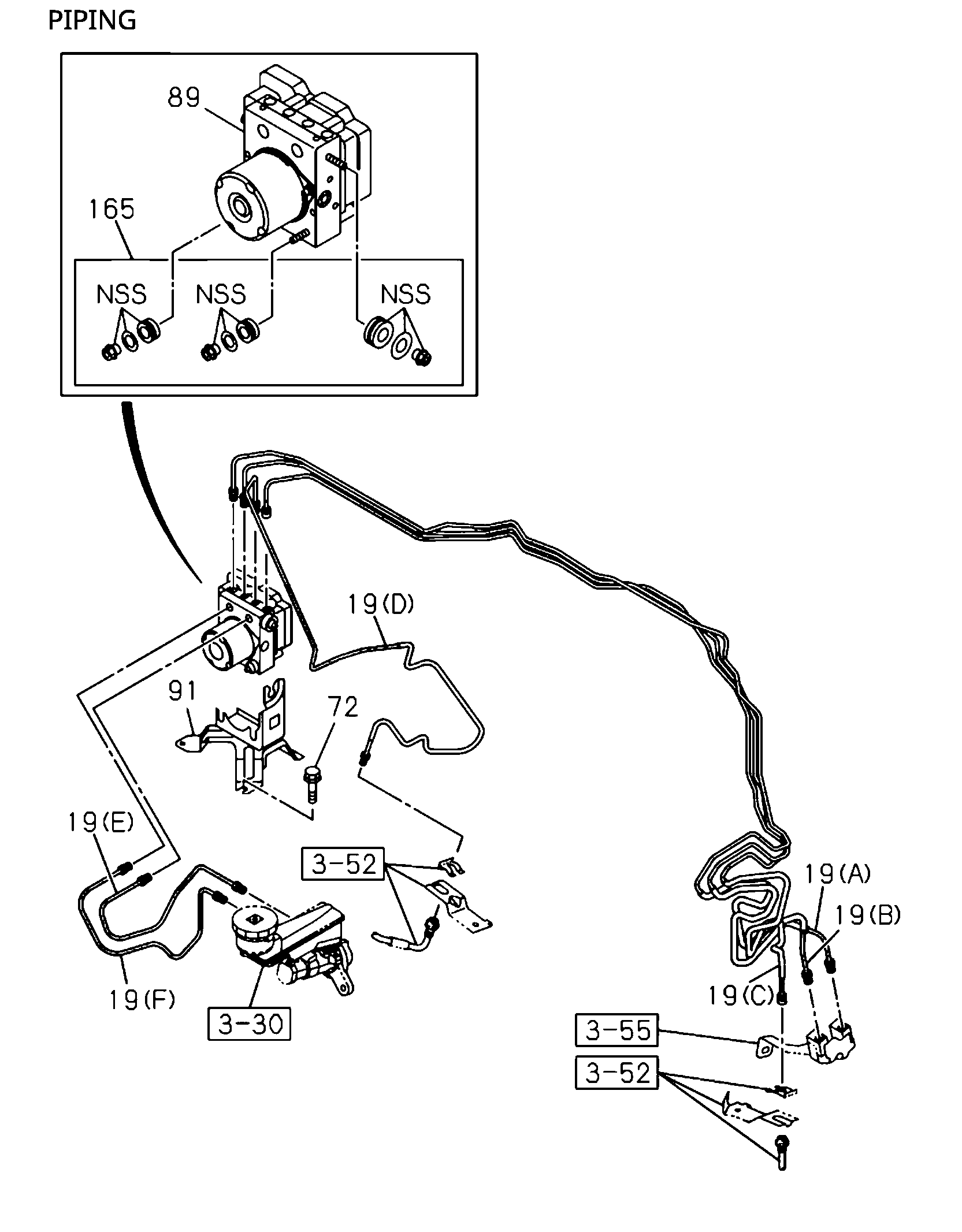

3-50 | 3-50 - BRAKE PIPING, OIL,MASTER CYLINDER
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 19 | I8-98484 280-1 | PIPE, BRK,M/CYL TO UNION | 1 | 2110- | AB | (B) | ||
| 116 | I0-28650 616-0 | NUT | 2 | 2110- | AB (A) M6 | |||
| 107 | I0-28050 612-0 | BOLT, WHEEL SPD SENSOR | 2 | 2110- | AB | M6X12 FLANGE | ||
| 130 | I8-97517 083-0 | BRACKET, SPEED SENSOR | 2311- | |||||
| 89 | I7-55181 514-0 | HYDRAULIC UNIT, ANTI LOCK BRK | 1 | 2311- | ||||
| 19 | I8-98484 279-1 | PIPE, BRK,M/CYL TO UNION | 1 | 2110- | A B | (A) | ||
| 91 | I8-98395 130-0 | BRACKET, HYDRAULIC UNIT | 1 | 2110- | A B | |||
| 96 | I8-97503 590-0 | SENSOR, SPD.RR WHEEL | 1 | 2110- | AB | |||
| 19 | I8-98395 377-1 | PIPE, BRK,M/CYL TO UNION | 1 | 2110- | A B | (f) | ||
| 19 | I8-98484 278-0 | PIPE, BRK,M/CYL TO UNION | 1 | 2110- | AB | (D) | ||
| 130 | I8-97517 084-0 | BRACKET, SPEED SENSOR | 2311- | |||||
| 130 | I8-97517 085-0 | BRACKET, SPEED SENSOR | 2311- | |||||
| 89 | I7-55181 511-0 | HYDRAULIC UNIT, ANTI LOCK BRK | 1 | 2311- | ||||
| 72 | I0-28650 616-0 | BOLT, BRKT TO BODY | 3 | 2110- | A B | M6X16 FLANGE | ||
| 165 | I8-97536 877-0 | RUBBER KIT, HYDRAULIC UNIT | 2311- | |||||
| 130 | I8-97517 086-0 | BRACKET, SPEED SENSOR | 2311- | |||||
| 95 | I8-98371 293-1 | SENSOR, SPD,FRT WHEEL | 1 | 2110- | AB | |||
| 96 | I8-97503 591-0 | SENSOR, SPD.RR WHEEL | 1 | 2110- | A B | |||
| 19 | I8-98484 281-1 | PIPE, BRK,M/CYL TO UNION | 1 | 2110- | AB | (C) | ||
| 95 | I8-98371 294-1 | SENSOR, SPD,FRT WHEEL | 1 | 2110- | A B | |||
| 19 | I8-98395 375-1 | PIPE, BRK,M/CYL TO UNION | 1 | 2110- | AB | (E) |
