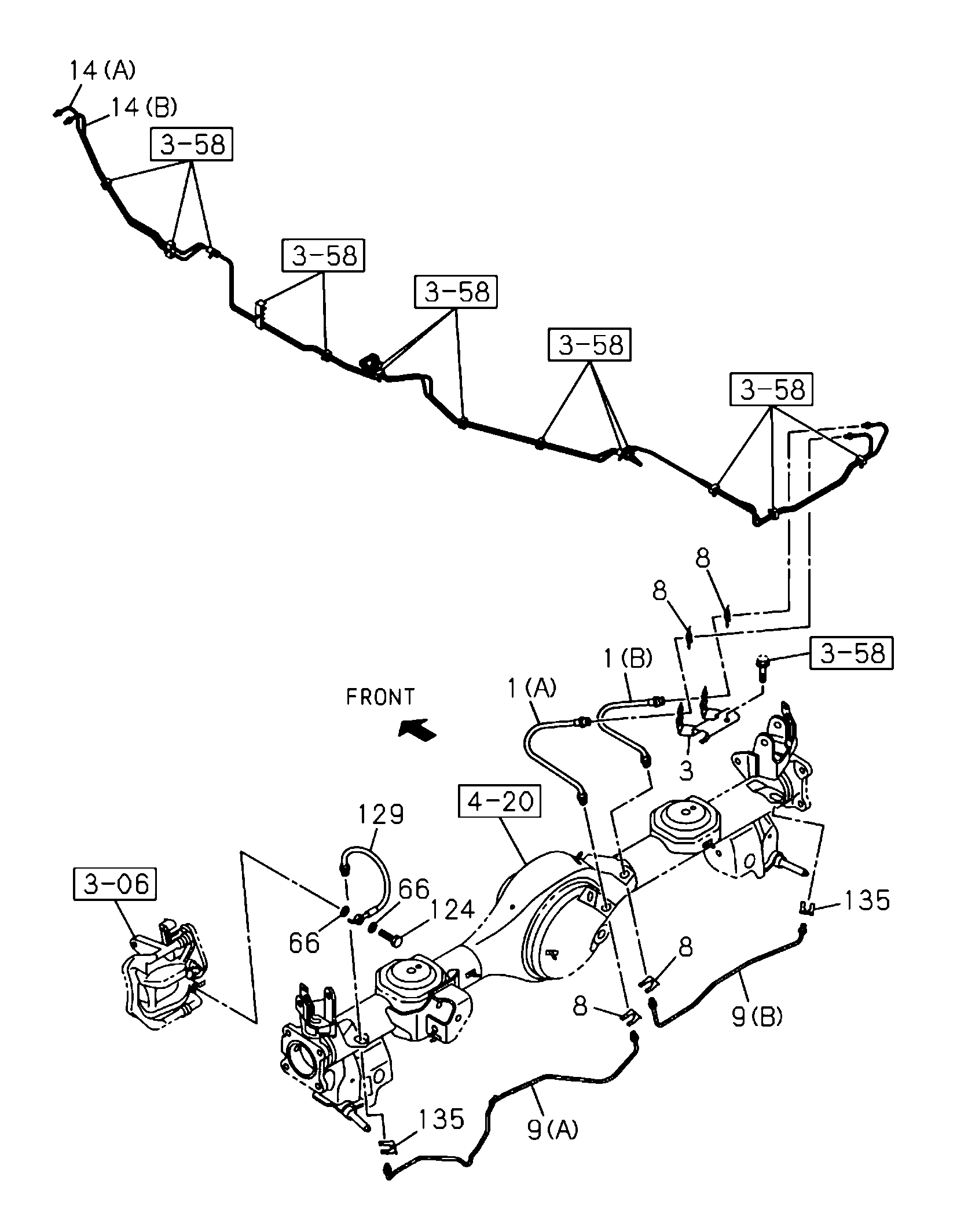

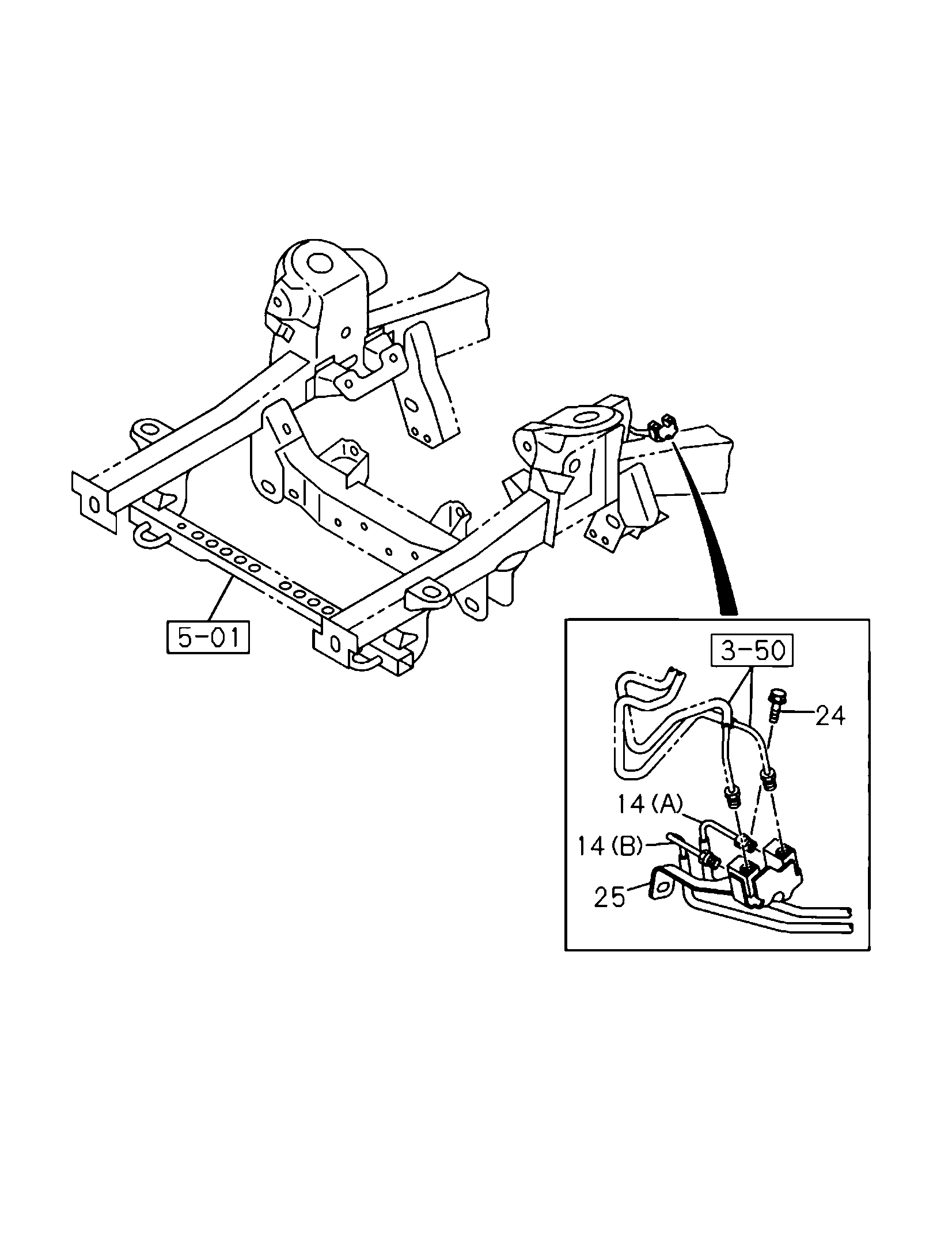

3-55 | 3-55 - BRAKE PIPING, OIL,REAR
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 8 | I8-97360 054-0 | CLIP, RR BRK | 4 | 2110- | A B | |||
| 9 | I8-97507 474-0 | PIPE, BRK,RR AXLE | 1 | 2110- | AB | (B) | ||
| 129 | I8-97507 483-0 | HOSE, F LEX, RR DISC | 2 | 2110- | A B | L=293 | ||
| 14 | I8-97507 199-0 | PIPE, BRK,FLEX HOSE TO WHEEL | 1 | 2110- | A B | (B) | ||
| 9 | I8-97507 473-1 | PIPE, BRK,RR AXLE | 1 | 2110- | A B | (A) | ||
| 8 | I8-97360 054-0 | CLIP, RR BRK | 4 | 2110- | A B | |||
| 24 | I0-28650 820-0 | BOLT, UNION | 1 | 2110- | A B | M8X20 FLANGE | ||
| 25 | I8-98395 367-0 | CONNECTOR | 1 | 2110- | AB | |||
| 135 | I8-97360 054-0 | CLIP, FLEX HOSE | 2 | 2110- | A B | |||
| 1 | I8-97507 482-0 | HOSE, F LEX, RR BRK | 1 | 2110- | A B | (B) L=386 | ||
| 9 | I8-97507 473-1 | PIPE, BRK,RR AXLE | 1 | 2110- | A B | (A) | ||
| 25 | I8-98395 367-0 | CONNECTOR | 1 | 2110- | AB | |||
| 66 | I9-09571 410-0 | GASKET, BRK HOSE | 4 | 2110- | AB | ID=10.2 0D=16.0 | ||
| 124 | I8-98014 005-0 | BOLT, EYE.FLEX HOSE.RR BRK | 2 | 2110- | AB | M10X22 EYE-BOLT | ||
| 66 | I9-09571 410-0 | GASKET, BRK HOSE | 4 | 2110- | AB | ID=10.2 0D=16.0 | ||
| 129 | I8-97507 483-0 | HOSE, F LEX, RR DISC | 2 | 2110- | A B | L=293 | ||
| 124 | I8-98014 005-0 | BOLT, EYE.FLEX HOSE.RR BRK | 2 | 2110- | AB | M10X22 EYE-BOLT | ||
| 1 | I8-97507 482-0 | HOSE, F LEX, RR BRK | 1 | 2110- | A B | (B) L=386 | ||
| 14 | I8-97507 199-0 | PIPE, BRK,FLEX HOSE TO WHEEL | 1 | 2110- | A B | (B) | ||
| 1 | I8-97507 481-0 | HOSE, F LEX, RR BRK | 1 | 2110- | AB | (A) L=370 | ||
| 3 | I8-97507 480-0 | BRACKET, FLEX HOSE,RR BRK | 1 | 2110- | AB | |||
| 9 | I8-97507 474-0 | PIPE, BRK,RR AXLE | 1 | 2110- | AB | (B) | ||
| 24 | I0-28650 820-0 | BOLT, UNION | 1 | 2110- | A B | M8X20 FLANGE | ||
| 14 | I8-97507 198-0 | PIPE, BRK,FLEX HOSE TO WHEEL | 1 | 2110- | AB | (A) | ||
| 135 | I8-97360 054-0 | CLIP, FLEX HOSE | 2 | 2110- | A B | |||
| 1 | I8-97507 481-0 | HOSE, F LEX, RR BRK | 1 | 2110- | AB | (A) L=370 | ||
| 14 | I8-97507 198-0 | PIPE, BRK,FLEX HOSE TO WHEEL | 1 | 2110- | AB | (A) | ||
| 3 | I8-97507 480-0 | BRACKET, FLEX HOSE,RR BRK | 1 | 2110- | AB |
