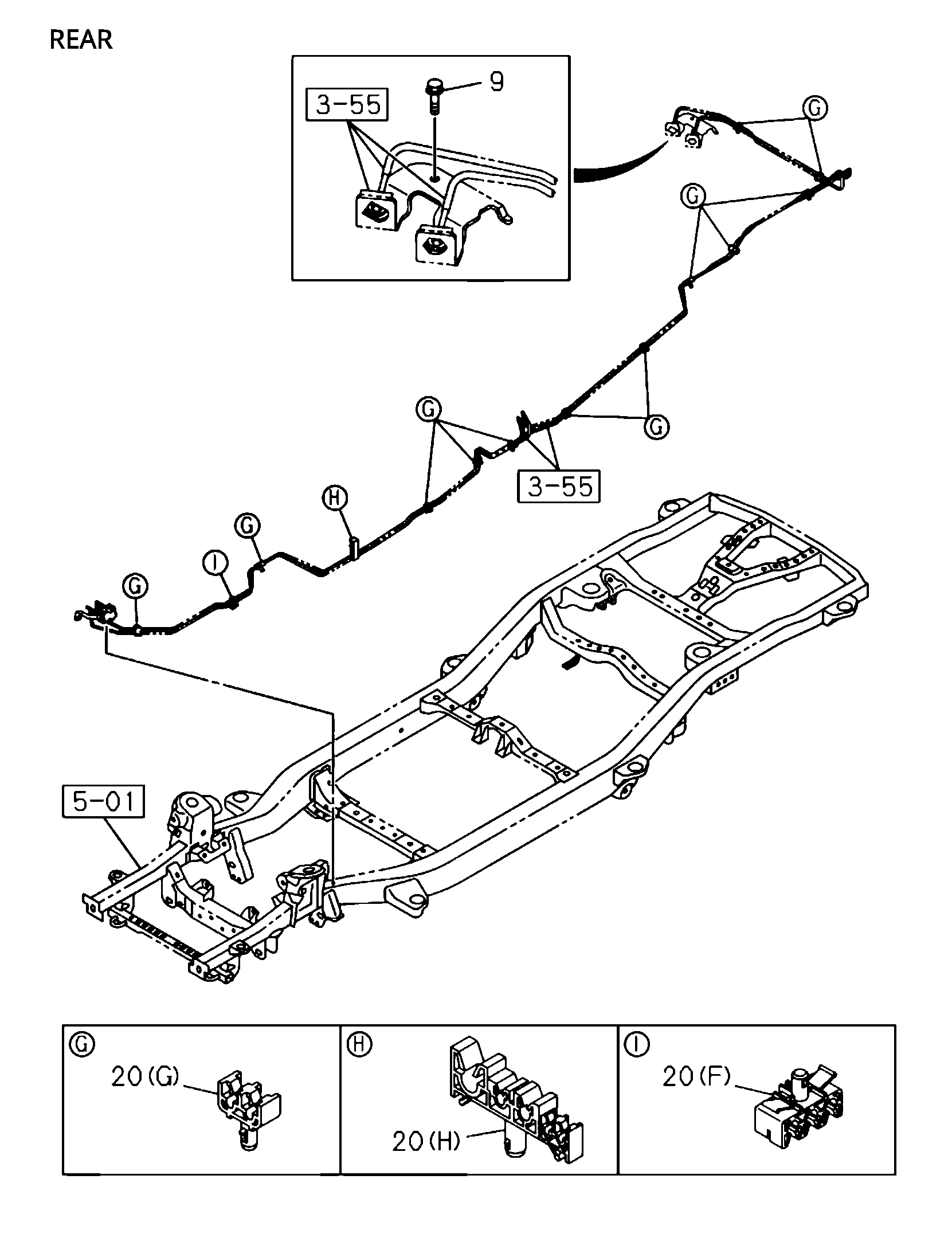

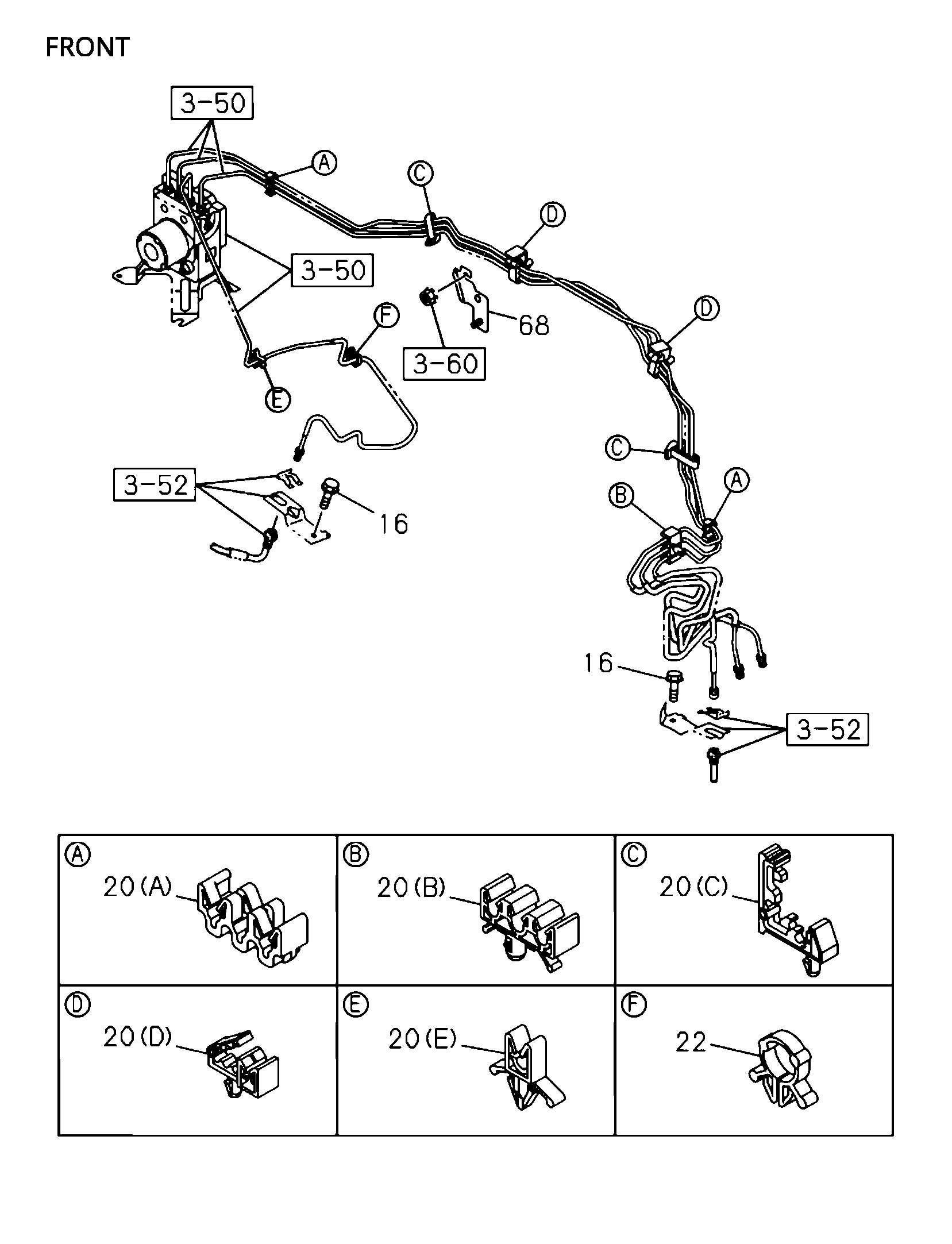

3-58 | 3-58 - FIXING PARTS, OIL PIPING
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 22 | I5-09707 027-0 | CLIP, PIPE TO FRAME | 1 | 2110- | AB | ID=9 | ||
| 20 | I8-97300 443-0 | CLIP, BRK PIPE | 1 | 2110- | AB | (E) ID=4.76 | ||
| 16 | I0-28650 820-0 | BOLT, BRKT TO FRAME | 2 | 2110- | A B | M8X20 FLANGE | ||
| 20 | I8-98113 394-0 | CLIP, BRK PIPE | 1 | 2110- | A B | (H) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 | ||
| 20 | I8-97249 906-1 | CLIP, BRK PIPE | 1 | 2110- | AB | (F) ID=10 8t 6.8X2 OR 8.4X3 | ||
| 20 | I8-98113 389-0 | CLIP, BRK PIPE | 2 | 2110- | AB | (D) ID=4.76X3 & 6.35X1 OR 10X1 | ||
| 68 | I8-97507 126-0 | BRACKET, CLIP | 1 | 2110- | A B | |||
| 20 | I8-97216 721-1 | CLIP, BRK PIPE | 1 | 2110- | A B | (B) ID=4.76X3 | ||
| 20 | I8-97251 124-0 | CLIP, BRK PIPE | 12 | 2110- | AB | (G) ID=6.8X2 | ||
| 20 | I8-98113 388-0 | CLIP, BRK PIPE | 2 | 2110- | AB | (C) ID=4.76X3 | ||
| 9 | I0-28650 820-0 | BOLT, BRKT | 1 | 2110- | AB | M8X20 FLANGE | ||
| 20 | I8-94487 369-0 | CLIP, BRK PIPE | 2 | 2110- | A B | (A) ID=4.8X3 |
