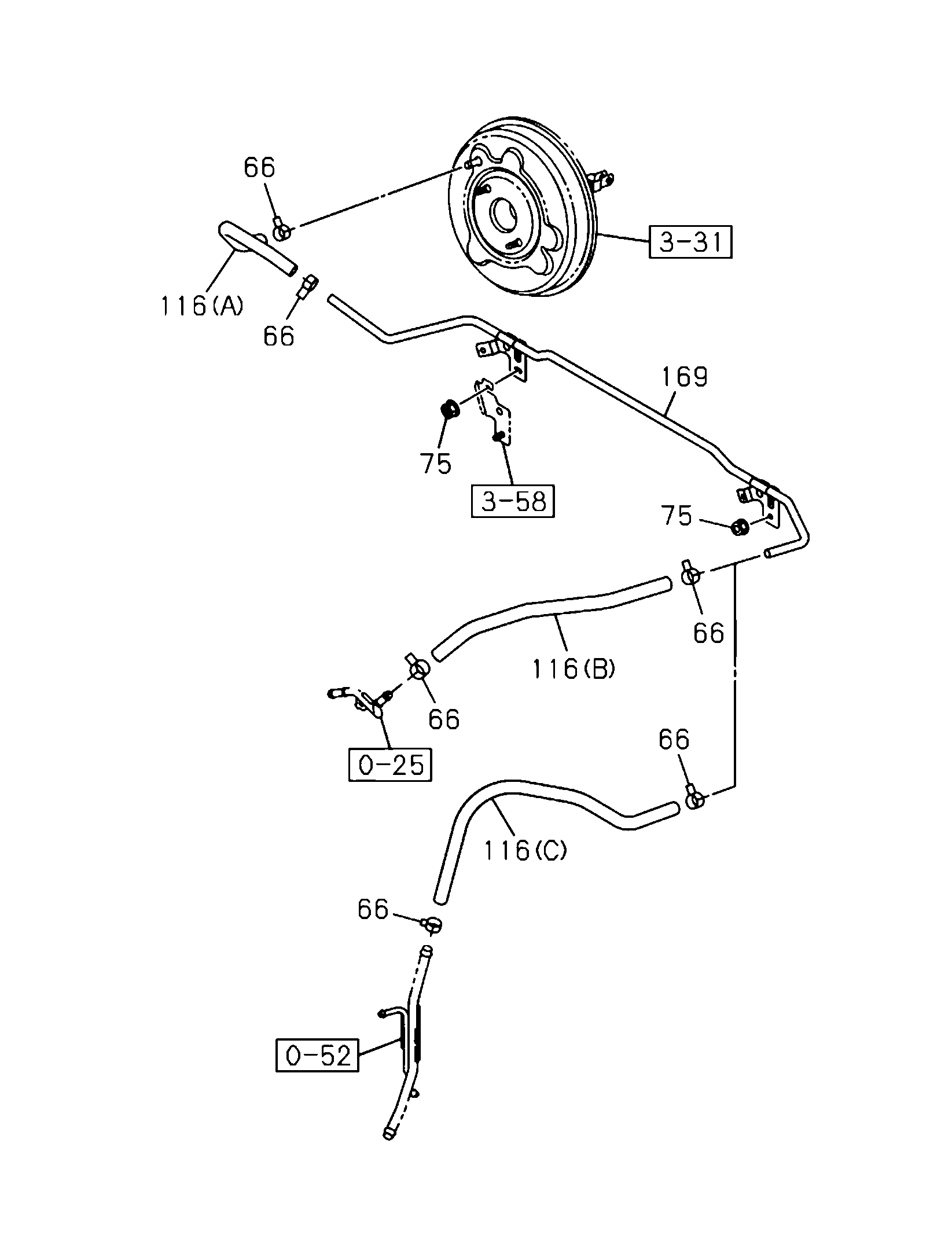

3-60 | 3-60 - BRAKE PIPING, VACUUM
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 116 | I8-98395 380-0 | HOSE, VAC,M/VAC | 1 | 2110- | A B | (A) | ||
| 116 | I8-98274 256-1 | HOSE, VAC,M/VAC | 1 | 2110- | B | RZ4E-TC ENG(RDZ) EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (B) | ||
| 116 | I8-98274 256-1 | HOSE, VAC,M/VAC | 1 | 2110- | A | RZ4E-TC ENG(RDZ) EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (B) | ||
| 169 | I8-98395 384-0 | PIPE, VAC,BOOSTER SIDE | 1 | 2110- | AB | |||
| 66 | I8-98036 539-0 | CLIP, VAC HOSE.M/VAC | 4 | 2110- | A B | ID=16 | ||
| 75 | I0-91180 106-0 | NUT, CLIP,VAC HOSE | 2 | 2110- | A B | M6FLANGE |
