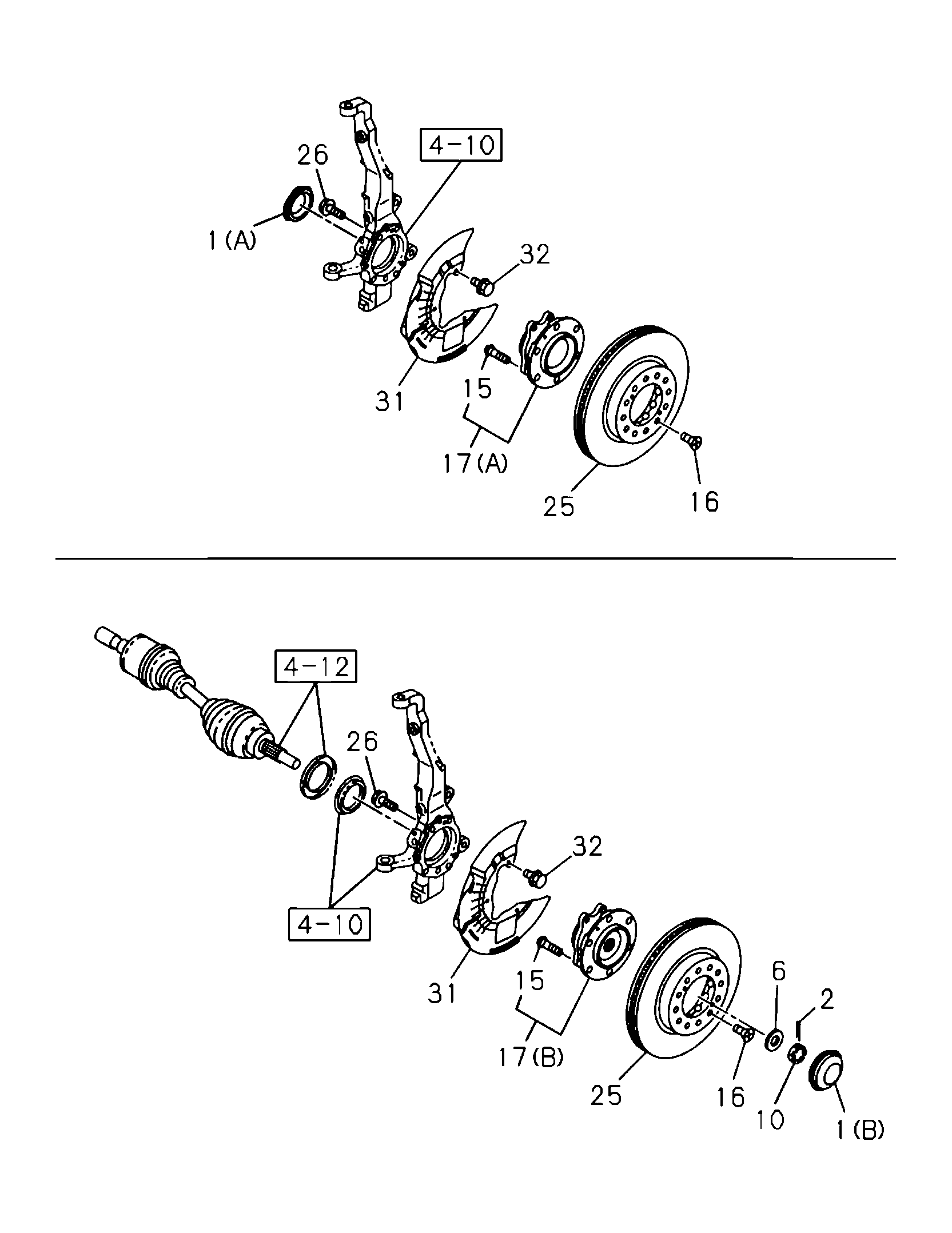

4-11 | 4-11 - FRONT HUB AND DRUM OR ROTOR
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 31 | I8-98376 763-0 | COVER, DUST,FRT BRAKE | 1 | 2110- | AB | |||
| 17 | I8-98395 194-0 | HUB, FRT AXLE | 2 | 2110- | B | (B) | ||
| 15 | I8-97944 831-1 | PIN, WHEEL,FRT AXLE | 12 | 2110- | AB | M 12X42.5 RH THREAD | ||
| 6 | I8-97509 779-0 | WASHER, LK,FRT HUB | 2 | 2110- | B | |||
| 1 | I8-98392 644-0 | CAP, HUB,FRT AXLE | 2 | 2110- | A | (A) | ||
| 10 | I1-09442 028-0 | NUT, FRT HUB BRG | 2 | 2110- | B | M24 SLOTTED | ||
| 16 | I0-36410 616-0 | SCREW, DRUM TO HUB | 2 | 2110- | A B | M6X16 CK-HEAD | ||
| 25 | I8-98376 754-0 | ROTOR, DISC BRK,FRT | 2 | 2110- | A B | INDONESIA EQUIPMENT(BOO),SOUTH AFRICA EQUIPMENT(B02),CONGO EQUIPMENT(CDF),CENTRAL AMERICA EQUIPMENT(E03),GENERAL EXPORT EQUIPMENT(TAA) | ||
| 2 | I0-81124 040-0 | PIN, SPLIT.HUB TO AXLE SHAFT | 2 | 2110- | B | |||
| 1 | I8-98393 291-0 | CAP, HUB,FRT AXLE | 2 | 2110- | B | (B) | ||
| 31 | I8-98376 762-0 | COVER, DUST,FRT BRAKE | 1 | 2110- | A B | |||
| 17 | I8-98395 193-0 | HUB, FRT AXLE | 2 | 2110- | A | (A) | ||
| 26 | I0-28061 240-0 | BOLT, BRK,DISC TO HUB | 8 | 2110- | AB | M12X40 FLANGE |
