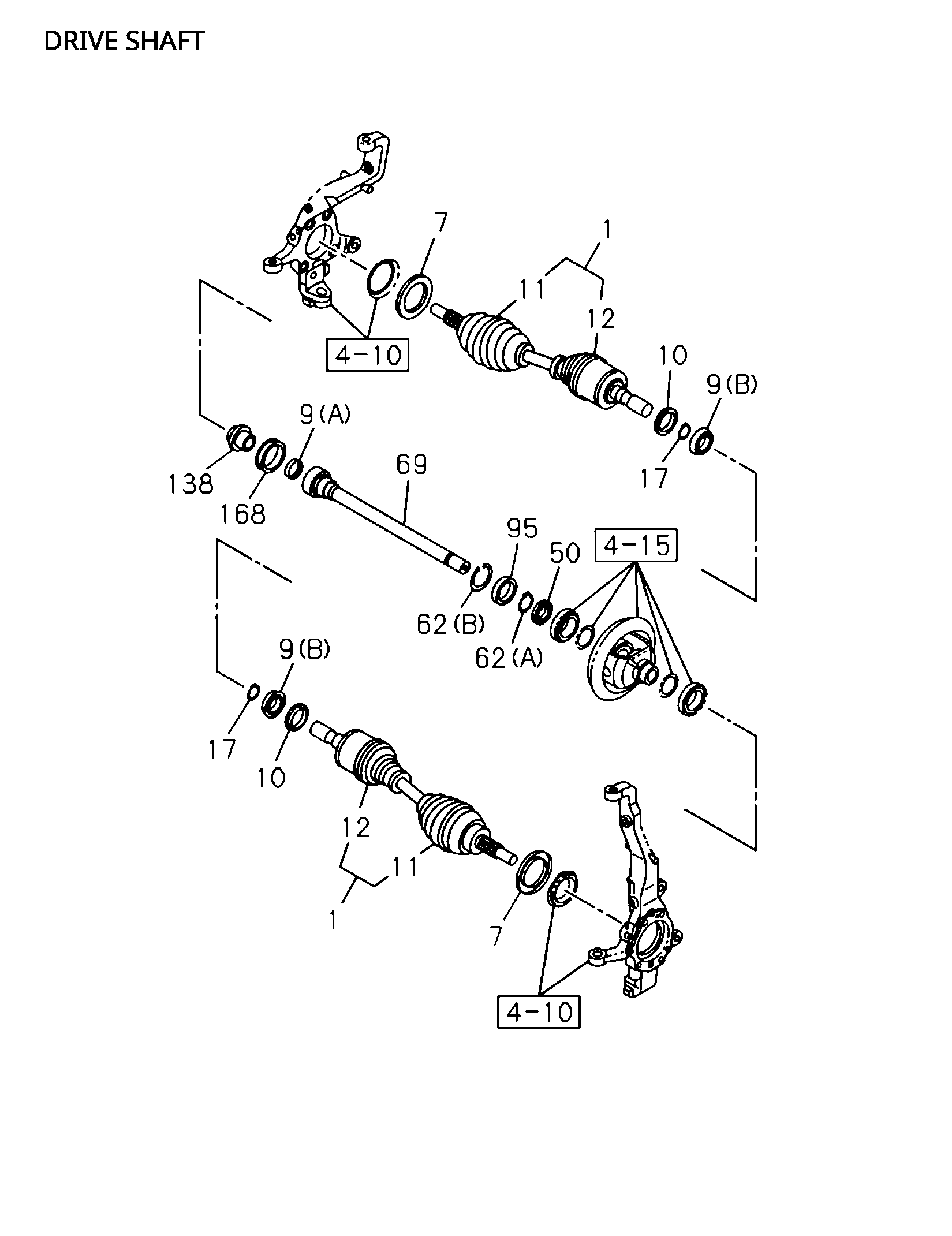

4-12 | 4-12 - FRONT DRIVE SHAFT
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 49 | I9-09571 416-0 | GASKET, DRAIN PLUG | 1 | 2110- | B | ID=16.2 OD=24 | ||
| 138 | I8-98393 022-0 | GEAR, CLUTCH | 2311- | |||||
| 183 | I8-98392 994-0 | PIPE, BREATHER | 2311- | |||||
| 19 | I0-28051 230-0 | BOLT, FRT AXLE | 2311- | |||||
| 11 | I8-97528 981-0 | JOINT ASM, C | 2 | 2110- | B | |||
| 186 | I8-98116 079-0 | CLIP, HOSE,BREATHER | 1 | 2110- | B | (A) L=145 | ||
| 35 | I8-94368 493-0 | WASHER, FRTAXLE MTG I I | 1 | 2110- | B | (A) L=129.5 | ||
| 183 | I8-98392 997-0 | PIPE, BREATHER | 2311- | |||||
| 214 | I8-97509 233-0 | COVER, BREATHER | 1 | 2110- | B | |||
| 44 | I8-97509 461-0 | CLIP, AIR BREATHER HOSE | 2311- | |||||
| 30 | I0-91180 214-0 | NUT, FRTAXLE MTG | 1 | 2110- | B | M14 FLANGE | ||
| 186 | I8-98393 636-0 | CLIP, HOSE,BREATHER | 1 | 2110- | B | (B) L=181.2 | ||
| 13 | I8-97947 581-0 | BOOT KIT, OL | 2 | 2110- | B | (E) M8X95W/SP WASHER | ||
| 43 | I8-98393 115-0 | HOSE, RUBBER,AIR BREATHER | 2311- | |||||
| 36 | I8-97364 323-0 | BUSHING, RUBBER,FRT AXLE MTG | 2311- | |||||
| 12 | I8-97528 980-0 | JOINT ASM | 2 | 2110- | B | |||
| 36 | I8-97364 319-0 | BUSHING, RUBBER,FRT AXLE MTG | 2311- | |||||
| 13 | I8-97528 979-0 | BOOT KIT, OL | 2 | 2110- | B | |||
| 14 | I8-97528 978-0 | BOOT KIT, IN SIDE,FRT DRIVE SH | 2311- | |||||
| 27 | I8-98392 981-3 | BRACKET, AXLE CASE | 1 | 2110- | B | (C) | ||
| 3 | I8-97508 102-0 | "BAND, ""B'SFF" | 2 | 2110- | B | |||
| 1 | I8-98392 965-0 | SHAFT ASM, F | 2 | 2110- | B | |||
| 48 | I8-97307 060-0 | PLUG, DRAIN,AXLE CASE | 1 | 2110- | B | (A) M 16X12.5 | ||
| 10 | I8-98392 977-0 | SEAL, OIL,AX | 2 | 2110- | B | |||
| 18 | I8-98393 017-0 | CASE, FRT AXLE | 2311- | |||||
| 5 | I8-97131 402-0 | RING, RET,FR | 2 | 2110- | B | |||
| 34 | I8-97259 306-0 | BOLT, FRTAXLE MTG | 2 | 2110- | B | M14X85 FLANGE | ||
| 62 | I9-09180 162-0 | RING, SNAP,AXLE SHAFT | 1 | 2110- | B | (B) ID=57.9 | ||
| 9 | I8-97101 878-0 | BEARING, AXI | 1 | 2110- | B | (A) | ||
| 45 | I5-09709 108-0 | CLIP | 2 | 2110- | B | (A) OD=14 HOLE ID=6.5 | ||
| 35 | I8-98008 020-0 | WASHER, FRT AXLE MTG | 2311- | |||||
| 23 | I0-91110 508-0 | NUT, FRTAXLE | 2 | 2110- | B | M8 | ||
| 28 | I0-28061 240-0 | BOLT, BRKT TO AXLE CASE | 1 | 2110- | B | (C) M12X40 FLANGE | ||
| 69 | I8-98393 021-0 | SHAFT, AXLE,FRT INNER | 1 | 2110- | B | |||
| 37 | I8-94226 943-0 | BREATHER, FRT AXLE CASE | 2311- | |||||
| 48 | I8-98009 333-0 | PLUG, DRAIN,AXLE CASE | 1 | 2110- | B | (B) M20X10.5 | ||
| 43 | I8-97503 261-0 | HOSE, RUBBER,AIR BREATHER | 2311- | |||||
| 18 | I8-98486 069-1 | CASE, FRT AXLE | 2311- | |||||
| 26 | I0-91510 808-0 | WASHER, LK,CASE,FRTAXLE | 2 | 2110- | B | ID=8.2 | ||
| 28 | I8-98270 578-0 | BOLT, BRKT TO AXLE CASE | 8 | 2110- | B | (A) M12X22 FLANGE | ||
| 4 | I8-97508 099-0 | "BAND, ""C'JFF" | 2 | 2110- | B | (A) | ||
| 183 | I8-98392 998-0 | PIPE, BREATHER | 2311- | |||||
| 184 | I8-98393 000-0 | HOSE, BREATHER | 1 | 2110- | B | (B) | ||
| 4 | I8-97508 101-0 | "BAND, ""C'JFF" | 2 | 2110- | B | (B) | ||
| 28 | I0-28061 230-0 | BOLT, BRKT TO AXLE CASE | 1 | 2110- | B | (B) M12X30 FLANGE | ||
| 13 | I8-97947 579-0 | BOOT KIT, OL | 3 | 2110- | B | (C) M8X28.5W/SP WASHER | ||
| 184 | I8-98393 001-0 | HOSE, BREATHER | 1 | 2110- | B | (C) | ||
| 45 | I8-97031 632-0 | CLIP, COVER | 2311- | |||||
| 7 | I8-98392 966-0 | SEAL, DUST,[ | 2 | 2110- | B | |||
| 27 | I8-98486 702-1 | BRACKET, AXLE CASE | 1 | 2110- | B | (A) | ||
| 95 | I8-97103 392-A | BEARING, AXLE SHAFT,FRT | 1 | 2110- | B | |||
| 50 | I8-97084 507-0 | SEAL, OIL,SHAFT,FRT AXLE | 1 | 2110- | B | |||
| 17 | I8-97508 171-0 | RING, SNAP,DRIVE SHAFT TO TRANS AXLE | 2311- | |||||
| 157 | I8-97509 337-0 | BOLT, COVER | 2311- | |||||
| 24 | I0-40210 825-0 | STUD, CASE,FRTAXLE | 2 | 2110- | B | M8X25L=41 | ||
| 84 | I8-94462 734-0 | GASKET, PLUG,OIL FILLER | 1 | 2110- | B | ID=20 0D=30 | ||
| 9 | I8-98392 974-0 | BEARING, AXI | 2 | 2110- | B | (B) | ||
| 168 | I8-97130 567-1 | SLEEVE, FRT AXLE | 2311- | |||||
| 183 | I8-98392 996-0 | PIPE, BREATHER | 2311- | |||||
| 62 | I9-09180 040-0 | RING, SNAP,AXLE SHAFT | 1 | 2110- | B | (A) ID=37.0 | ||
| 184 | I8-98392 990-0 | HOSE, BREATHER | 1 | 2110- | B | (A) | ||
| 137 | I8-97481 449-2 | ACTUATOR, AXLE | 2311- | |||||
| 221 | I8-98009 333-0 | PLUG, FILLER | 1 | 2110- | B | M20X10.5 | ||
| 222 | I8-94462 734-0 | GASKET, FILLER PLUG | 1 | 2110- | B | ID=20 OD=30 | ||
| 45 | I5-09709 108-0 | CLIP | 4 | 2110- | B | (B) OD=14 HOLE ID=6 | ||
| 13 | I8-97947 580-0 | BOOT KIT, OL | 5 | 2110- | B | (D) M8X40W/SP WASHER | ||
| 2 | I8-97508 100-0 | "BAND, ""A"",FF" | 2 | 2110- | B | |||
| 27 | I8-98486 703-1 | BRACKET, AXLE CASE | 1 | 2110- | B | (B) |
