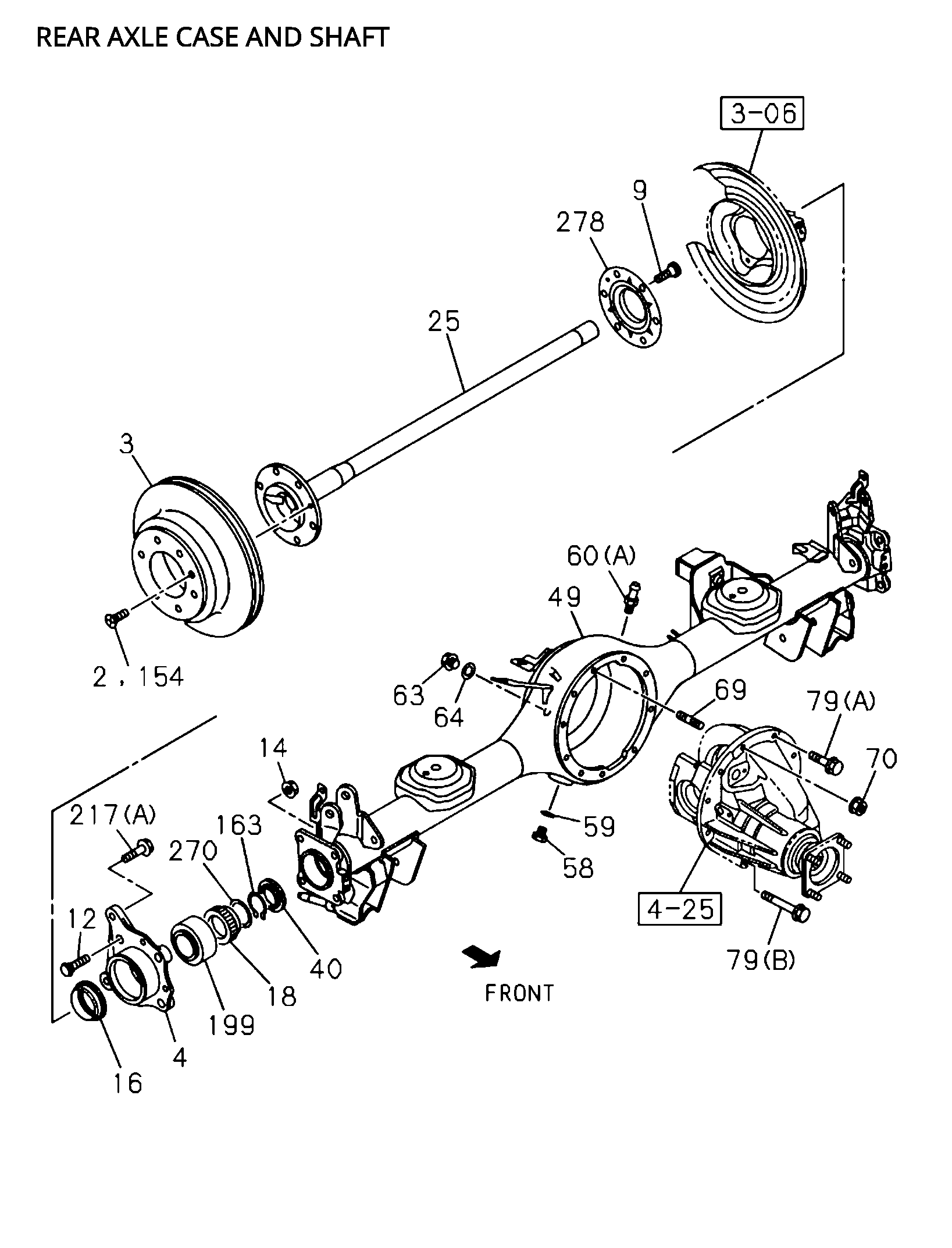

4-20 | 4-20 - REAR AXLE CASE AND SHAFT
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 25 | I8-98080 678-2 | SHAFT, AXLE,RR | 2 | 2110- | A B | EXC. REAR AXLE DIFF LOCK<8CL> | ||
| 154 | I0-36410 616-0 | SCREW, SLOTTED | 1 | 2110- | AB | M6X16 CK-HEAD | ||
| 2 | I0-36410 616-0 | BOLT, BRK DRUM | 1 | 2110- | AB | M6X16 CK-HEAD | ||
| 49 | I8-97528 150-1 | CASE, RR AXLE | 1 | 2110- | A B | EXC. REAR AXLE DIFF LOCK<8CL> | ||
| 278 | I8-98103 447-2 | CATCHER, OIL | 2311- | |||||
| 70 | I0-91180 210-0 | NUT, GEN | 2311- | |||||
| 9 | I8-97944 831-1 | PIN, WHEEL, RR AXLE | 12 | 2110- | AB | M 12X42.5 RH THREAD | ||
| 63 | I8-97307 059-1 | PLUG, OIL FILLER,AXLE CASE | 1 | 2110- | A B | M20X17 | ||
| 163 | I9-09180 042-0 | RING, SNAP,AXLE SHAFT | AR | 2110- | A B | ID=38.5 T=1.75 | ||
| 12 | I8-97529 514-0 | BOLT, BRG HOLDER TO CASE | 8 | 2110- | AB | |||

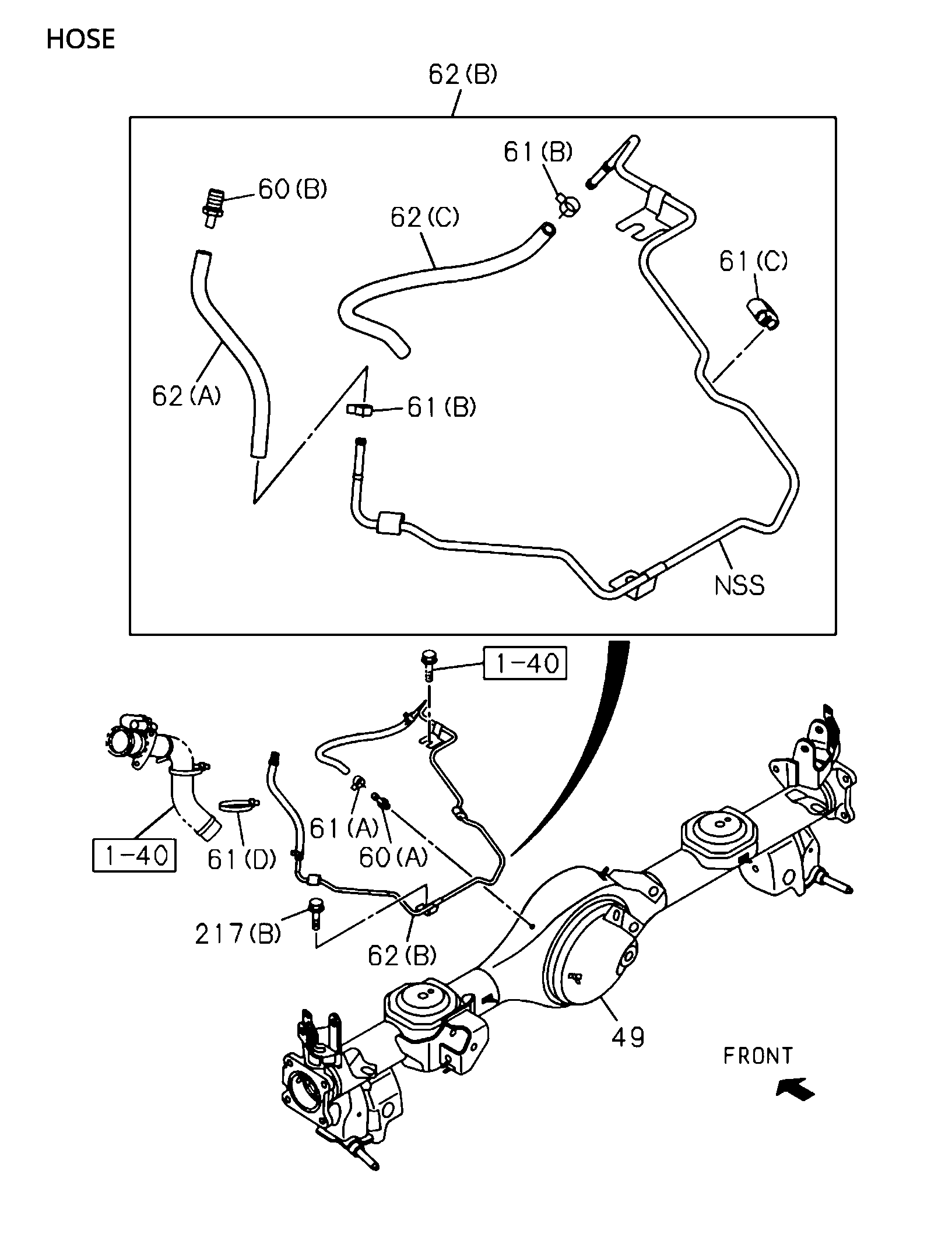

| 62 | I0-04750 300-0 | HOSE, RUBBER,BREATHER,RR AXLE | 1 | 2110- | AB | (A) L=190 SERVICED BY L=3000 | ||
| 60 | I8-98396 031-0 | BREATHER, RR AXLE CASE | 2311- | |||||
| 61 | I8-94151 373-0 | CLIP, BREATHER HOSE,RR AXLE | 2311- | |||||
| 62 | I0-04750 300-0 | HOSE, RUBBER,BREATHER,RR AXLE | 1 | 2110- | AB | (C) L=320 SERVICED BY L=3000 | ||
| 40 | I6-97323 297-0 | SEAL, OIL,REAR AXLE | 2 | 2110- | AB | IADG | ||
| 16 | I6-98134 394-0 | SEAL, OIL,RR HUB.OUTER | 2 | 2110- | A B | IADG | ||
| 163 | I9-09952 253-0 | RING, SNAP,AXLE SHAFT | AR | 2110- | A B | ID=38.5 T=2.00 | ||
| 16 | I8-98134 394-0 | SEAL, OIL,RR HUB.OUTER | 2 | 2110- | A B | |||
| 61 | I8-94238 570-0 | CLIP, BREATHER HOSE,RR AXLE | 2311- | |||||
| 4 | I8-97528 299-0 | HOLDER, BRG,AXLE SHAFT | 1 | 2110- | A B | |||
| 18 | I8-98009 341-0 | RETAINER, RR AXLE | 2 | 2110- | A B | |||
| 3 | I8-97503 571-0 | ROTOR, DISC BRK,RR | 2 | 2110- | A B | |||
| 58 | I8-94474 113-0 | PLUG DRAIN AXLE CASE | 1 | 2110- | AB | (C) ID=6.35 & 6.35 | ||
| 58 | I8-97944 126-0 | PLUG DRAIN AXLE CASE | 2 | 2110- | A B | (B) ID=10.5 | ||
| 79 | I0-28061 030-0 | BOLT, COVER TO CASE | 7 | 2110- | AB | (A) M10X30 FLANGE | ||
| 79 | I0-28061 090-0 | BOLT, COVER TO CASE | 1 | 2110- | AB | (B) M10X90 | ||
| 62 | I8-97507 475-1 | HOSE, RUBBER,BREATHER,RR AXLE | 1 | 2110- | A B | (B) | ||
| 4 | I8-97528 300-0 | HOLDER, BRG,AXLE SHAFT | 1 | 2110- | AB | |||
| 199 | I8-97216 797-2 | BEARING, RR AXLE | 2311- | |||||
| 64 | I8-94462 734-0 | GASKET, OIL FILLER,AXLE CASE | 1 | 2110- | A B | ID=20 OD=30 | ||
| 69 | I8-98022 413-0 | STUD, AXLE CASE | 2 | 2110- | AB | M10X31 L=43 | ||
| 217 | I8-98033 645-0 | BOLT, BRKT TO AXLE CASE | 2311- | |||||
| 14 | I0-91180 212-0 | NUT, BRG HOLDER TO CASE | 8 | 2110- | A B | M12 FLANGE | ||
| 40 | I8-97323 297-0 | SEAL, OIL,REAR AXLE | 2 | 2110- | AB | |||
| 60 | I8-98018 796-0 | BREATHER, RR AXLE CASE | 2311- |
