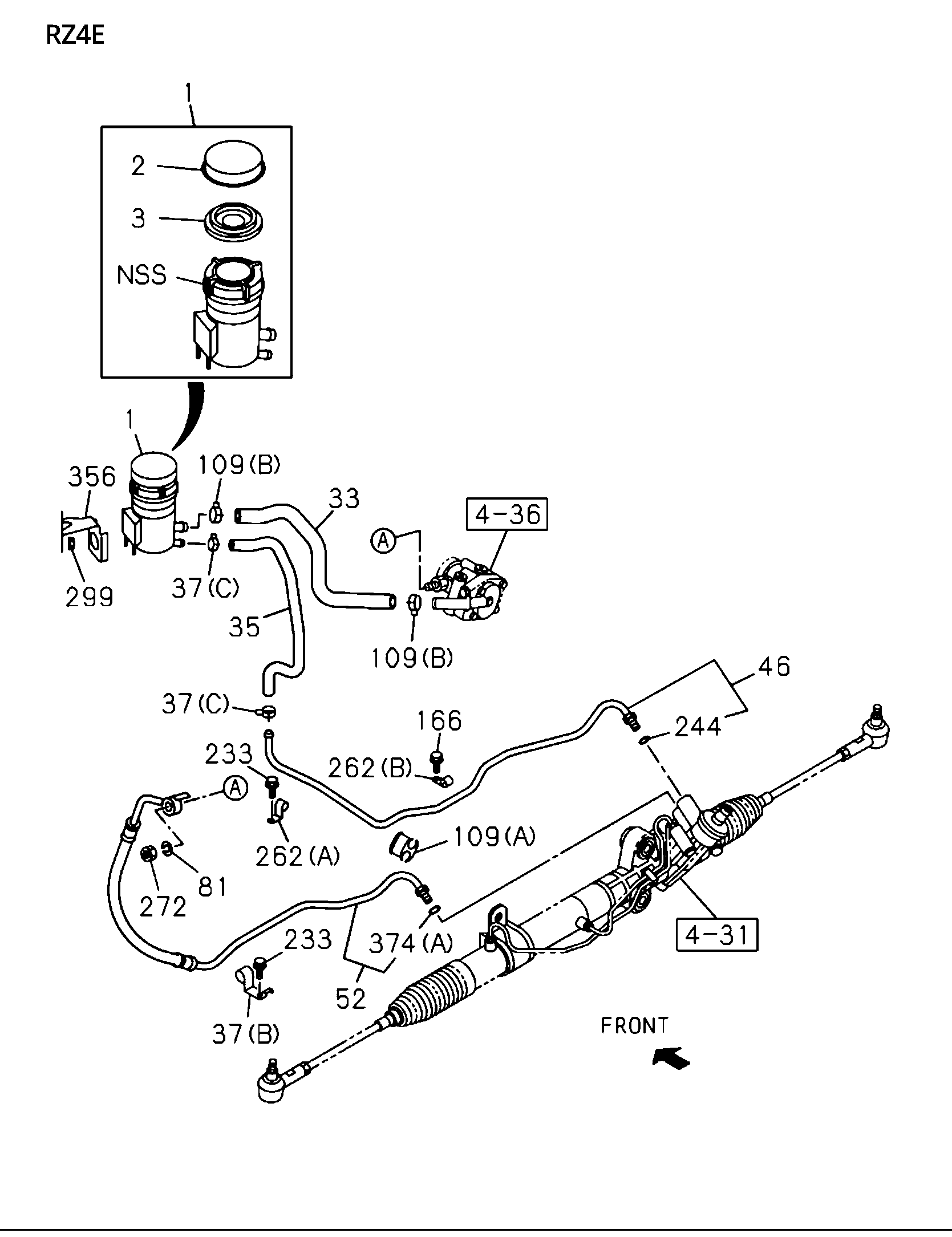

4-35 | 4-35 - POWER STEERING CONTROL, CHASSIS SIDE
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 262 | I0-95235 032-0 | CLIP, P/S PIPE | 1 | 2110- | A B | EXC. POWER STEERING ELECTRIC<NV9> (B) ID=11 L=20 | ||
| 262 | I0-95207 310-0 | CLIP, P/S PIPE | 1 | 2110- | AB | EXC. POWER STEERING ELECTRIC<NV9> (A) ID=11 H=20 L=20 | ||
| 37 | I8-98395 349-0 | CLIP, HOSE,P/S | 1 | 2110- | A B | EXC. POWER STEERING ELECTRIC<NV9> (B) ID=21.5 | ||
| 356 | I8-98395 350-2 | BRACKET, P/S.RESERVOIR | 1 | 2110- | AB | EXC. POWER STEERING ELECTRIC<NV9> | ||
| 2 | I8-97349 476-0 | CAP, OIL TANK,P/S | 1 | 2110- | A B | EXC. POWER STEERING ELECTRIC<NV9> | ||
| 374 | I8-97557 810-0 | GASKET, HOSE.P/S | 1 | 2110-2110 | A B | EXC. POWER STEERING ELECTRIC<NV9> (A) | ||
| 1 | I8-97234 350-0 | TANK ASM, OIL.P/S | 1 | 2110- | AB | EXC. POWER STEERING ELECTRIC<NV9> | ||
| 272 | I0-91111 512-0 | NUT, P/S OIL PIPE FIX | 1 | 2110- | AB | RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9> M12 | ||
| 33 | I8-98395 019-1 | HOSE, RUBBER.POWER STRG | 1 | 2110- | A B | RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9> | ||
| 37 | I8-98030 682-0 | CLIP, HOSE,P/S | 2 | 2110- | AB | EXC. POWER STEERING ELECTRIC<NV9> (C) ID=16 | ||
| 109 | I8-94252 455-2 | CLAMP, PIPE,RETURN | 2311- | |||||
| 52 | I8-98395 009-3 | HOSE, F LEX, P/S CONT VLV | 1 | 2110- | A B | RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9> | ||
| 3 | I8-97349 477-0 | GASKET, OIL TANK,P/S | 1 | 2110- | A B | EXC. POWER STEERING ELECTRIC<NV9> | ||
| 244 | I8-97557 813-0 | GASKET, OIL PIPE.P/S | 1 | 2111- | AB | EXC. POWER STEERING ELECTRIC<NV9> ID=7.5 | ||
| 46 | I8-98395 016-2 | PIPE, OIL,P/S UNIT TO OIL TANK | 1 | 2110- | A B | EXC. POWER STEERING ELECTRIC<NV9> L=966 | ||
| 233 | I0-28650 616-0 | BOLT, PIPE CLIPFP/S | 2 | 2110- | AB | EXC. POWER STEERING ELECTRIC<NV9> M6X16 FLANGE | ||
| 244 | I8-97557 813-0 | GASKET, OIL PIPE.P/S | 1 | 2110-2110 | AB | EXC. POWER STEERING ELECTRIC<NV9> ID=7.5 | ||
| 299 | I0-91180 106-0 | NUT, OIL TANK BRKT | 2 | 2110- | A B | EXC. POWER STEERING ELECTRIC<NV9> M6 FLANGE | ||
| 35 | I8-98395 020-1 | HOSE, RETURN,P/S TANK | 1 | 2110- | A B | EXC. POWER STEERING ELECTRIC<NV9> | ||
| 271 | I0-28650 616-0 | BOLT, P/S OIL PIPE FIX | 2 | 2110- | AB | 4JJ3 ENG(LNG) EXC. POWER STEERING ELECTRIC<NV9> M6X16 FLANGE | ||
| 52 | I0-28650 616-0 | HOSE, F LEX, P/S CONT VLV | 1 | 2110- | AB | EXC. POWER STEERING ELECTRIC<NV9> M6X16 FLANGE |
