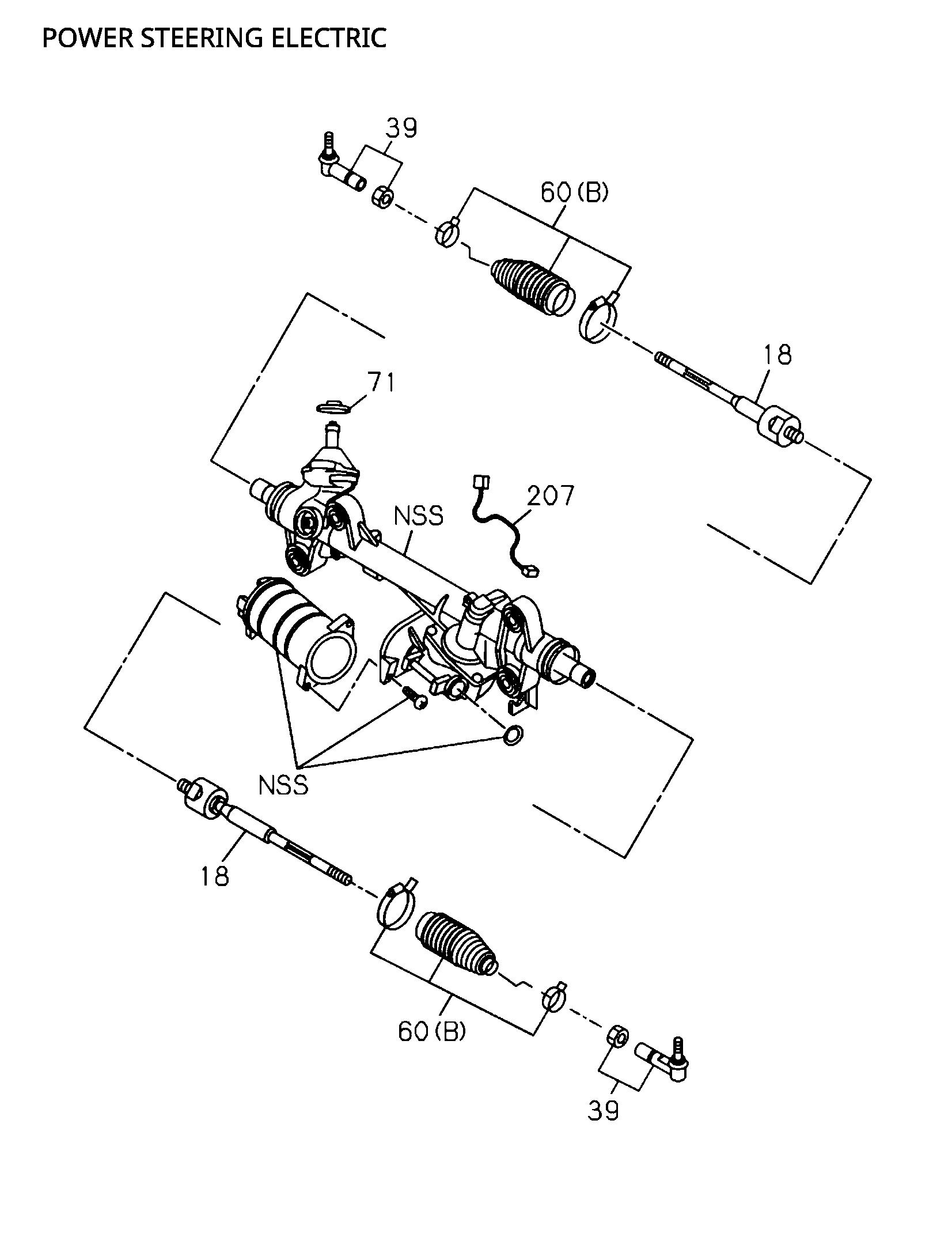

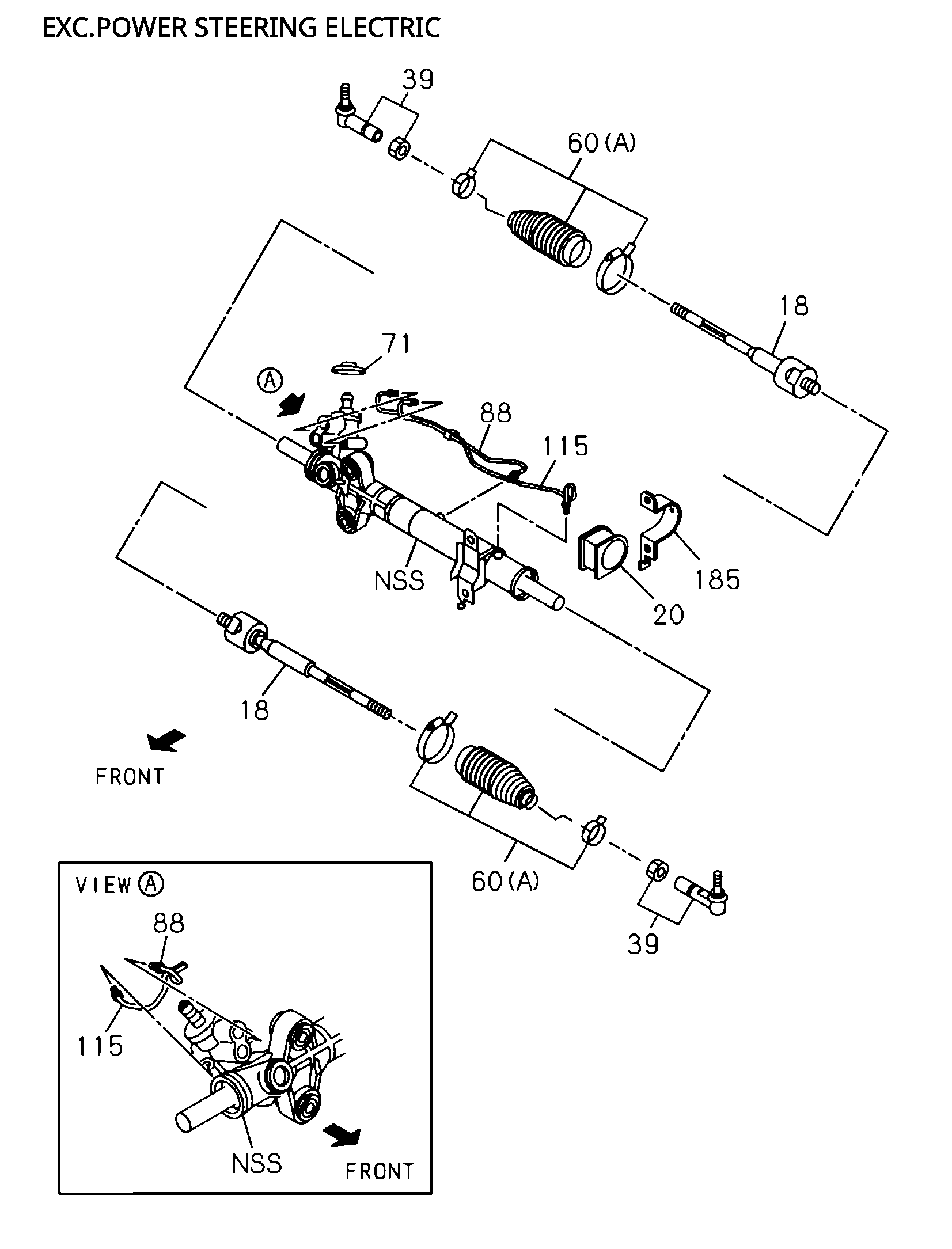

4-40 | 4-40 - STEERING UNIT
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 39 | I8-98056 551-0 | ROD END ASM, OUTER | 2 | A | ||||
| 185 | I8-97503 134-0 | BRACKET, P/S | 1 | A | ||||
| 88 | I8-97503 138-0 | PIPE, HSG TOIPE, HSG TO VLV | 1 | A | ||||
| 20 | I8-97503 135-0 | RUBBER, MTC | 1 | A | ||||
| 115 | I8-97503 137-0 | PIPE, HSG TO VLV | 1 | A | ||||
| 18 | I8-97503 139-0 | ROD ASM, INNER | 2 | A | ||||
| 60 | I8-97945 423-1 | A | ROD END ASM, OUTER | 2 | A | (A) | ||
| 71 | I8-98164 972-0 | COVER, DUST.STRG UNIT | 1 | A |
