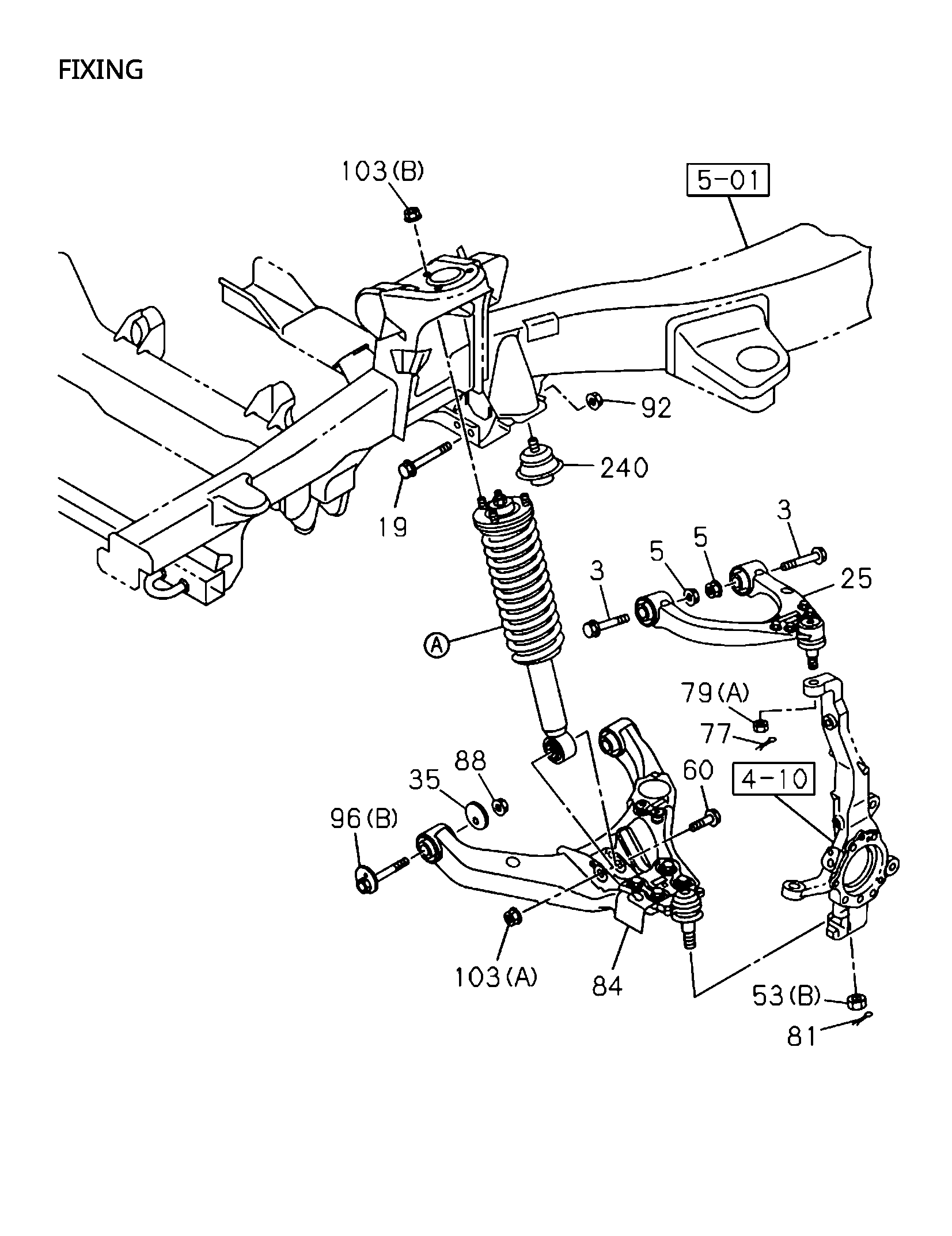

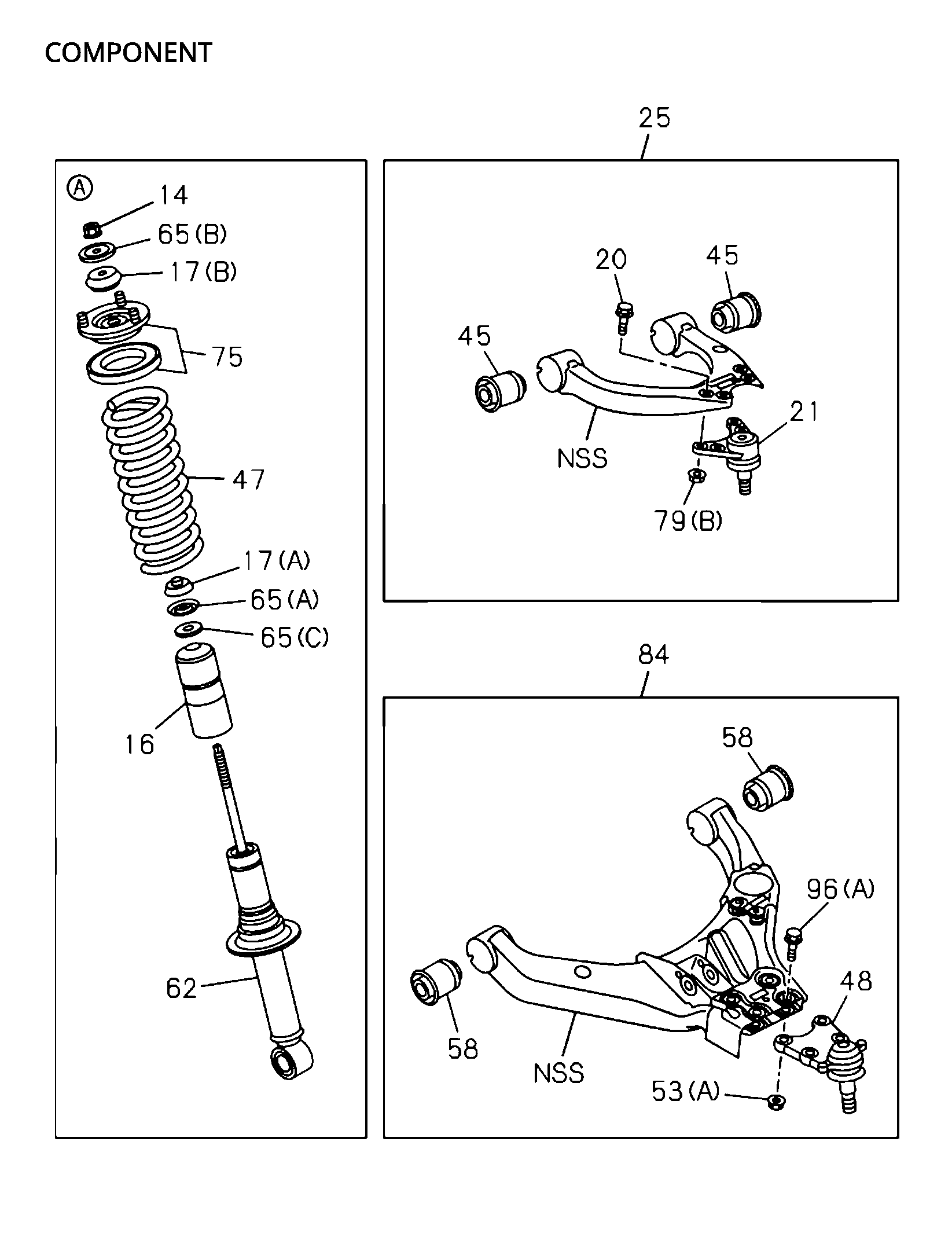

4-50 | 4-50 - FRONT SUSPENSION
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 79 | I0-91110 514-0 | NUT, UPR LINK END TO KNUCKLE | 2 | 2110- | AB | (A) M14 | ||
| 103 | I8-97245 637-0 | NUT, S/ABS TO LWR LINK | 6 | 2110- | AB | (B) M10 FLANGE | ||
| 62 | I8-97653 845-0 | ABSORBER ASM, SHOCK,FRT | 2 | 2110- | AB | |||
| 3 | I0-29261 490-0 | BOLT, UPR LINK TO FRAME | 4 | 2110- | AB | M14X90 | ||
| 88 | I8-97245 631-0 | NUT, LWR LINK | 4 | 2110- | AB | M16 FLANGE | ||
| 65 | I8-98005 972-0 | WASHER, S/ABS | 2 | 2110- | AB | (B) | ||
| 47 | I8-97653 846-0 | SPRING, COIL,FRT SUSP | 2 | 2110- | A | RZ4E-TC ENG(RDZ) | ||
| 79 | I0-91180 208-0 | NUT, UPR LINK END TO KNUCKLE | 8 | 2110- | AB | (B) M8 FLANGE | ||
| 103 | I8-97245 635-0 | NUT, S/ABS TO LWR LINK | 2 | 2110- | AB | (A) M14 FLANGE | ||
| 20 | I0-28060 825-0 | BOLT, UPR LINK END TO UPR LINK | 8 | 2110- | AB | M8X25 FLANGE | ||
| 16 | I8-97947 100-0 | COVER, DUST.FRT S/ABS | 2 | 2110- | AB | |||
| 77 | I0-81123 028-0 | PIN, SPLIT.LINK END TO KNUCKLE | 2 | 2110- | AB | OD=2.8 L=28 | ||
| 5 | I8-97245 635-0 | NUT, UPR LINK TO FRAME | 4 | 2110- | AB | M14 FLANGE | ||
| 84 | I8-98389 434-1 | ARM, LWR CONT | 1 | 2110- | AB | |||
| 58 | I8-98389 670-0 | BUSHING, LWR LINK | 4 | 2110- | AB | |||
| 53 | I0-91110 518-0 | NUT, LWR LINK | 2 | 2110- | AB | (B) M18 | ||
| 25 | I8-98389 432-1 | ARM, UPRCONT | 1 | 2110- | AB | |||
| 19 | I0-28061 000-0 | BOLT, FRT SUSP TO C/MBR | 4 | 2110- | AB | M10X100 | ||
| 17 | I8-97264 184-0 | BUSHING, RUBBER.S/ABS | 2 | 2110- | AB | (A) | ||
| 35 | I8-97214 814-0 | PLATE, BUSHING SUPPORT | 4 | 2110- | AB | |||
| 17 | I8-97236 303-0 | BUSHING, RUBBER.S/ABS | 2 | 2110- | AB | (B) | ||
| 240 | I8-97946 180-0 | BUMPER, LWR CONT ARM | 2 | 2110- | AB | |||
| 48 | I6-98005 875-0 | JOINT ASM, BALL,LWR CONT ARM | 2 | 2110- | AB | IADG | ||
| 81 | I0-81123 028-0 | PIN, SPLIT,LWR LINK TO KNUCKLE | 2 | 2110- | AB | OD=2.8 L=28 | ||
| 53 | I0-91180 212-0 | NUT, LWR LINK | 8 | 2110- | AB | (A) M12 FLANGE | ||
| 14 | I8-97236 304-0 | NUT, S/ABS,UPR | 2 | 2110- | AB | M12 FLANGE | ||
| 92 | I0-91180 210-0 | NUT, GEN | 2311- | |||||
| 65 | I8-98005 971-0 | WASHER, S/ABS | 2 | 2110- | AB | (A) | ||
| 48 | I8-98005 875-0 | JOINT ASM, BALL,LWR CONT ARM | 2 | 2110- | AB | |||
| 65 | I8-97944 892-0 | WASHER, S/ABS | 2 | 2110- | AB | (C) | ||
| 75 | I8-98177 899-1 | BRACKET, FRT S/ABS | 2 | 2110- | AB | |||
| 47 | I8-98394 075-1 | SPRING, COIL,FRT SUSP | 2 | 2110- | B | RZ4E-TC ENG(RDZ) | ||
| 96 | I8-98186 404-0 | BOLT, LWR LINK | 4 | 2110- | AB | (B) M16X102W/PLATE | ||
| 21 | I8-98480 997-0 | JOINT ASM, BALL,UPR CONT ARM | 2 | 2110- | AB | |||
| 60 | I8-97947 455-0 | BOLT, S/ABS TO LWR LINK | 2 | 2110- | AB | M14X74 | ||
| 45 | I8-98389 666-1 | BUSHING, UPR LINK.FRT | 4 | 2110- | AB | |||
| 84 | I8-98389 433-1 | ARM, LWR CONT | 1 | 2110- | AB | |||
| 25 | I8-98389 431-1 | ARM, UPRCONT | 1 | 2110- | AB | |||
| 96 | I8-97245 639-0 | BOLT, LWR LINK | 8 | 2110- | AB | (A) M12X37 FLANGE |
