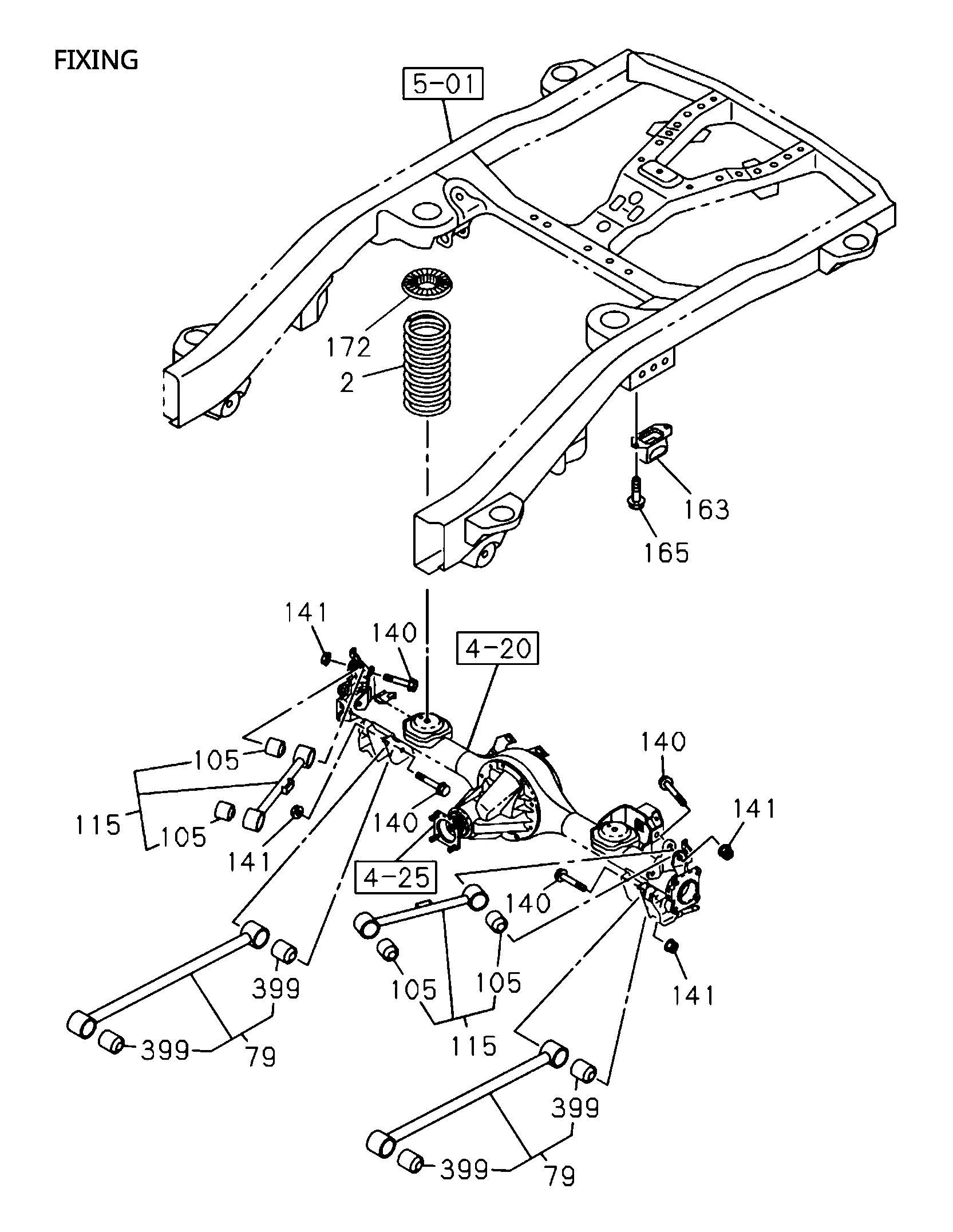

4-60 | 4-60 - REAR SUSPENSION
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 115 | I8-97947 367-1 | LINK, UPR.W/BUSHING | 2 | 2110- | AB | |||
| 165 | I0-28661 025-0 | BOLT, HELPER RUBBER | 4 | 2110- | AB | M10X25 FLANGE | ||
| 399 | I8-97947 788-0 | BUSHING, TRAILING ROD | 4 | 2110- | AB | |||
| 172 | I8-97947 789-0 | INSULATOR, | 2 | 2110- | AB | |||
| 25 | I8-97843 045-0 | BAR ASM, STAB,RR SUSP | 1 | 2311- | ||||
| 79 | I8-97506 916-0 | LINK, TRAILING.RR SUSP | 2 | 2110- | AB | |||
| 429 | I8-98395 346-0 | NUT, LINK | 2 | 2202- | AB | M12 FLANGE | ||
| 105 | I8-97947 787-0 | BUSHING, UPR LINK | 4 | 2110- | AB | |||
| 330 | I0-91180 208-0 | NUT, STAB | 4 | 2110-2201 | AB | M8 FLANGE | ||
| 200 | I0-29261 490-0 | BOLT, BRKT | 1 | 2110- | AB | M14X90 | ||
| 2 | I8-97506 772-2 | SPRING, COIL,RR SUSP | 2 | 2110- | AB | |||
| 520 | I0-29261 490-0 | BOLT, ROD | 1 | 2110- | AB | M14X90 | ||
| 163 | I8-97947 790-0 | RUBBER, HELPER,RRSPR | 2 | 2110- | AB | |||
| 330 | I0-91180 208-0 | NUT, STAB | 4 | 2202- | AB | EXC. PROVISIONAL PACKAGE PREVIOUS PARTS<C1 H> M8 FLANGE | ||
| 87 | I8-97506 917-0 | LINK, LATERAL,RR SUSP | 1 | 2110- | AB | |||
| 141 | I8-98217 474-0 | NUT, CONT ARM TO BODY | 8 | 2110- | AB | M14 | ||
| 277 | I8-97559 026-0 | BUSHING, STAB,RR UPR | 2 | 2110- | AB | |||
| 429 | I8-98395 346-0 | NUT, LINK | 2 | 2202- | AB | M12 FLANGE | ||
| 516 | I8-98217 474-0 | NUT, ROD | 1 | 2110- | AB | M14 | ||
| 330 | I8-97245 637-0 | NUT, STAB | 4 | 2202- | AB | PROVISIONAL PACKAGE PREVIOUS PARTS<C1H> M10 FLANGE | ||
| 429 | I8-98395 346-0 | NUT, LINK | 4 | 2110-2201 | AB | M12 FLANGE | ||
| 428 | I8-97559 024-0 | LINK, RR STABILIZER | 1 | 2110- | AB | |||
| 428 | I8-97559 025-0 | LINK, RR STABILIZER | 1 | 2110- | AB | |||
| 140 | I8-97947 834-0 | BOLT, CONT ARM TO BODY | 8 | 2110- | AB | |||
| 73 | I8-97947 786-0 | BUSHING, LATERAL ROD,RR SUSP | 2 | 2110- | AB | |||
| 297 | I8-97844 530-0 | CAP, STAB BAR | 2 | 2311- |
