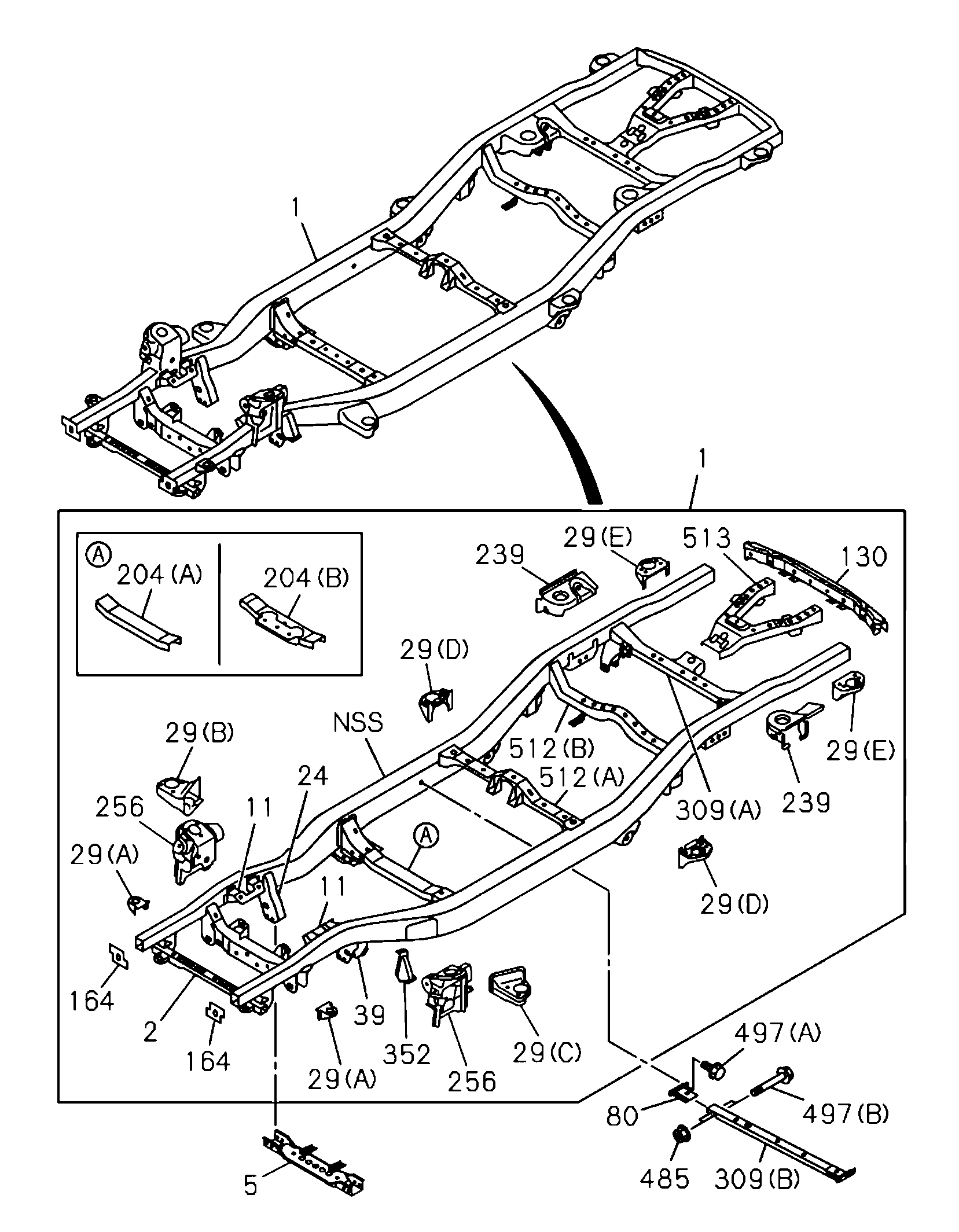

5-01 | 5-01 - FRAME AND OTHER PARTS
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 497 | I0-28651 020-0 | BOLT, C/MBR | 4 | 2110- | A | AUSTRALIA EQUIPMENT(B13) (A) M10X20 FLANGE | ||
| 485 | I0-91180 210-0 | NUT, GEN | 2311- | |||||
| 309 | I8-98394 497-2 | MEMBER, CROSS | 1 | 2110- | B | (B) | ||
| 204 | I8-97797 291-0 | MEMBER, CROSSJRANS MTG | 1 | 2110- | B | RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) INDONESIA EQUIPMENT(BOO),SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),CENTRAL AMERICA EQUIPMENT(E03),GENERAL EXPORT EQUIPMENT(TAA) EUR02 S P ECIFICATIO N (NT2), E U R04 SPECIFICATION(NT4) EXC. POWER STEERING ELECTRIC<NV9> (B) | ||
| 5 | I8-98394 544-3 | MEMBER, CROSS.SUSPENSION | 1 | 2110- | AB | |||
| 80 | I8-98394 492-1 | BRACKET, C/MBR | 1 | 2110- | A | AUSTRALIA EQUIPMENT(B13) | ||
| 512 | I8-97497 407-0 | MEMBER, CROSS,FUEL TANK | 1 | 2110- | B | (A) | ||
| 29 | I8-97497 430-2 | BRACKET, CAB MTG | 2 | 2110- | AB | (E) | ||
| 497 | I0-28061 080-0 | BOLT, C/MBR | 2 | 2110- | B | (b) M10X80 FLANGE | ||
| 1 | I8-97845 277-0 | FRAME ASM | 1 | 2311- | ||||
| 309 | I8-98394 497-2 | MEMBER, CROSS | 1 | 2110- | A | AUSTRALIA EQUIPMENT(B13) (B) | ||
| 164 | I8-98392 790-2 | PLATE, FRT | 1 | 2110- | AB | |||
| 11 | I8-98392 823-0 | BRACKET, ENG MTG | 1 | 2110- | AB | |||
| 39 | I8-98392 874-0 | BRACKET, FRT SPR.RR | 1 | 2110- | AB | |||
| 29 | I8-98392 797-0 | BRACKET, CAB MTG | 2 | 2110- | AB | (A) | ||
| 29 | I8-98392 840-3 | BRACKET, CAB MTG | 1 | 2110- | AB | (B) | ||
| 512 | I8-97497 406-0 | MEMBER, CROSS,FUEL TANK | 1 | 2110- | A | (A) | ||
| 352 | I8-98392 835-2 | BRACKET, BUMPER RUBBER | 1 | 2110- | AB | |||
| 1 | I8-97845 280-0 | FRAME ASM | 1 | 2311- | ||||
| 164 | I8-98392 791-2 | PLATE, FRT | 1 | 2110- | AB | |||
| 130 | I8-97497 420-2 | MEMBER, CROSS.END | 1 | 2110- | AB | |||
| 256 | I8-97678 799-0 | BRACKET, S/ABS | 1 | 2110- | AB | |||
| 29 | I8-98392 841-2 | BRACKET, CAB MTG | 1 | 2110- | AB | (c) | ||
| 239 | I8-97497 416-2 | BRACKET, COIL SPR | 1 | 2110- | AB | |||
| 512 | I8-97497 409-2 | MEMBER, CROSS,FUEL TANK | 1 | 2110- | AB | (b) | ||
| 352 | I8-98392 834-2 | BRACKET, BUMPER RUBBER | 1 | 2110- | AB | |||
| 239 | I8-97497 417-2 | BRACKET, COIL SPR | 1 | 2110- | AB | |||
| 204 | I8-97797 286-0 | MEMBER, CROSSJRANS MTG | 1 | 2110- | A | A/T 6 SPEED-AISIN(Y6A) (A) | ||
| 29 | I8-97497 421-1 | BRACKET, CAB MTG | 2 | 2110- | AB | (D) | ||
| 24 | I8-98392 873-0 | BRACKET, FRT SPR,FRT | 1 | 2110- | AB | |||
| 513 | I8-97497 419-1 | MEMBER, CROSS.SPEAR TIRE | 1 | 2110- | AB | |||
| 2 | I8-97497 405-0 | MEMBER, CROSS, 1ST | 1 | 2110- | AB | |||
| 256 | I8-98392 818-1 | BRACKET, S/ABS | 1 | 2110- | AB | |||
| 497 | I0-28061 080-0 | BOLT, C/MBR | 2 | 2110- | A | AUSTRALIA EQUIPMENT(B13) (B) M10X80 FLANGE | ||
| 80 | I8-98394 492-1 | BRACKET, C/MBR | 1 | 2110- | B | |||
| 497 | I0-28651 020-0 | BOLT, C/MBR | 4 | 2110- | B | (A) M10X20 FLANGE | ||
| 309 | I8-97842 130-0 | MEMBER, CROSS | 2311- | |||||
| 11 | I8-98392 824-0 | BRACKET, ENG MTG | 1 | 2110- | AB |
