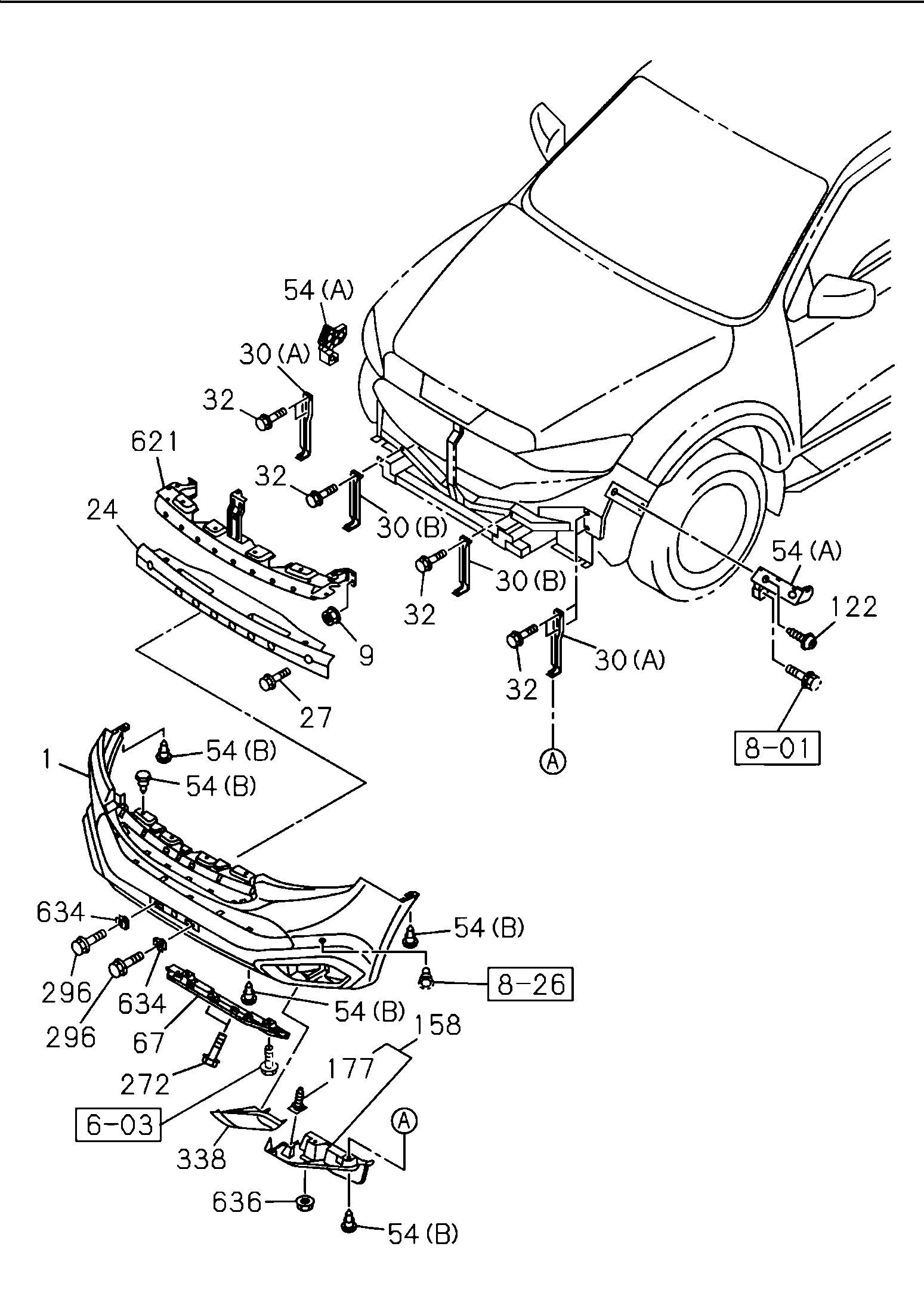

6-01 | 6-01 - FRONT BUMPER
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 54 | I8-97824 519-0 | RETAINER, FRT BUMPER | 1 | 2110- | AB | (A) | ||
| 158 | I8-97506 861-1 | EXTENSION, | 1 | 2110- | AB | |||
| 122 | I0-74160 616-0 | BOLT, RET,FRT BUMPER | 2 | 2110- | AB | SCREW M6X16 TAPPING W/PL WASHER | ||
| 32 | I0-28650 616-0 | BOLT, BRKT.BUMPER | 6 | 2110- | AB | M6X16 FLANGE | ||
| 30 | I8-98370 356-0 | BRACKET, FRT BUMPER | 2 | 2110- | AB | (A) | ||
| 27 | I0-28661 025-0 | BOLT, BUMPER TO BACK BAR | 4 | 2110- | AB | M10X25 FLANGE | ||
| 177 | I8-97688 310-0 | BOLT | 8 | 2110- | AB | |||
| 9 | I0-91180 106-0 | NUT, REINF.FRT BUMPER | 6 | 2110- | AB | M6 FLANGE | ||
| 54 | I8-97301 188-0 | RETAINER, FRT BUMPER | 10 | 2110- | AB | (B) | ||
| 54 | I8-97824 520-0 | RETAINER, FRT BUMPER | 1 | 2110- | AB | (A) | ||
| 1 | I8-97824 508-0 | BUMPER ASM, FRT | 1 | 2311- | ||||
| 296 | I0-28050 616-0 | BOLT, LICENSE PLATE.FRT | 2 | 2110- | AB | SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF) M6X16 FLANGE | ||
| 338 | I8-97506 950-3 | BEZEL, FOG LAMP | 1 | 2110- | AB | EXC. FOG LAMP<T96> | ||
| 67 | I8-97552 090-1 | DEFLECTOR, AIR | 1 | 2110- | AB | |||
| 636 | I8-98049 368-0 | NUT, EXT, F RT BUMPER | 8 | 2110- | AB | M6W/DISHED WASHER | ||
| 158 | I8-97506 860-1 | EXTENSION, | 1 | 2110- | AB | |||
| 338 | I8-97909 549-0 | BEZEL, FOG LAMP | 1 | 2311- | ||||
| 272 | I8-98136 077-0 | BOLT, BUMPER TO EXT | 2 | 2110- | AB | M8X32.5 W/PL WASHER | ||
| 338 | I8-97909 548-0 | BEZEL, FOG LAMP | 1 | 2311- | ||||
| 30 | I8-98370 359-0 | BRACKET, FRT BUMPER | 2 | 2110- | AB | (B) | ||
| 1 | I8-97824 512-0 | BUMPER ASM, FRT | 1 | 2311- | ||||
| 338 | I8-97506 951-3 | BEZEL, FOG LAMP | 1 | 2110- | AB | EXC. FOG LAMP<T96> | ||
| 24 | I8-97653 834-0 | BAR, FRT BUMPER | 1 | 2110- | AB | |||
| 621 | I8-97506 955-0 | SUPPORT, F RT BUMPER | 1 | 2110- | AB |
