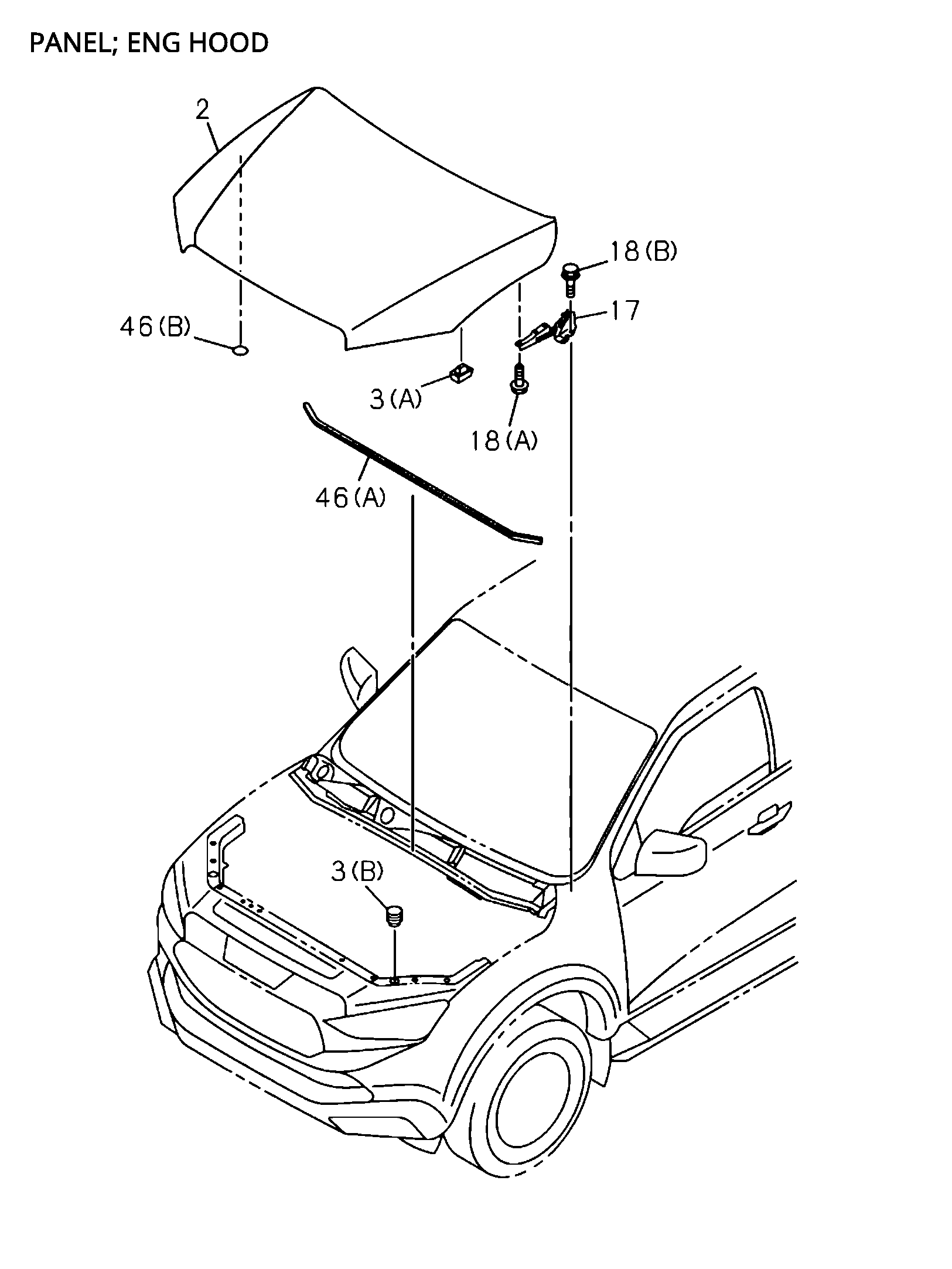

6-10 | 6-10 - ENGINE HOOD AND LOCK
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 26 | I8-98393 091-0 | CABLE, ENG HOOD CONT | 1 | 2110- | AB | |||
| 31 | I8-98363 571-1 | LOCK, ENG HOOD | 1 | 2110- | AB | EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||
| 17 | I8-98386 268-1 | HINGE, ENG HOOD | 1 | 2110- | AB | |||
| 3 | I8-98312 732-0 | BUFFER, ENG HOOD.FRT | 4 | 2110- | AB | (A) | ||
| 32 | I8-97370 668-0 | BOLT, HOOD LK | 2 | 2110- | AB | M6X20 W/PL WASHER | ||
| 31 | I8-98363 569-1 | LOCK, ENG HOOD | 1 | 2110- | AB | REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||
| 31 | I8-98363 569-1 | LOCK, ENG HOOD | 1 | 2110- | AB | PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||
| 18 | I8-98208 786-0 | BOLT, HINGE | 4 | 2110- | AB | (B) M8X27 | ||
| 2 | I8-97684 458-1 | PANEL, ENG HOOD | 1 | 2110- | AB | |||
| 44 | I8-97370 668-0 | BOLT, STAY,HOOD | 1 | 2110- | AB | (B) M6X20 W/PL WASHER | ||
| 43 | I8-97507 212-0 | STAY, ENG HOOD.FRT END | 1 | 2110- | AB | |||
| 50 | I8-98391 469-1 | ROD, SUPPORTING HOOD | 1 | 2110- | AB | |||
| 44 | I0-28660 820-0 | BOLT, STAY,HOOD | 2 | 2110- | AB | (A) M8X20 FLANGE | ||
| 24 | I8-97182 405-0 | CLIP, CONT CABLE | 4 | 2110- | AB | |||
| 46 | I8-98394 032-3 | SEAL, ENG HOOD | 1 | 2110- | AB | (A) | ||
| 46 | I8-97826 301-0 | SEAL, ENG HOOD | 2 | 2110- | AB | (B) OD=25 BLACK | ||
| 48 | I8-97555 705-0 | LEVER, ENG HOOD | 1 | 2110- | AB | |||
| 17 | I8-98386 276-1 | HINGE, ENG HOOD | 1 | 2110- | AB | |||
| 18 | I8-98056 122-0 | BOLT, HINGE | 4 | 2110- | AB | (A) M8X16 | ||
| 30 | I8-98391 471-0 | CLIP, SUPPORT ROD.HOOD | 1 | 2110- | AB | |||
| 130 | I0-28650 616-0 | BOLT, SUPPORT ROD.HOOD | 1 | 2110- | AB | M6X16 FLANGE | ||
| 3 | I8-98195 454-0 | BUFFER, ENG HOOD.FRT | 2 | 2110- | AB | (B) |
