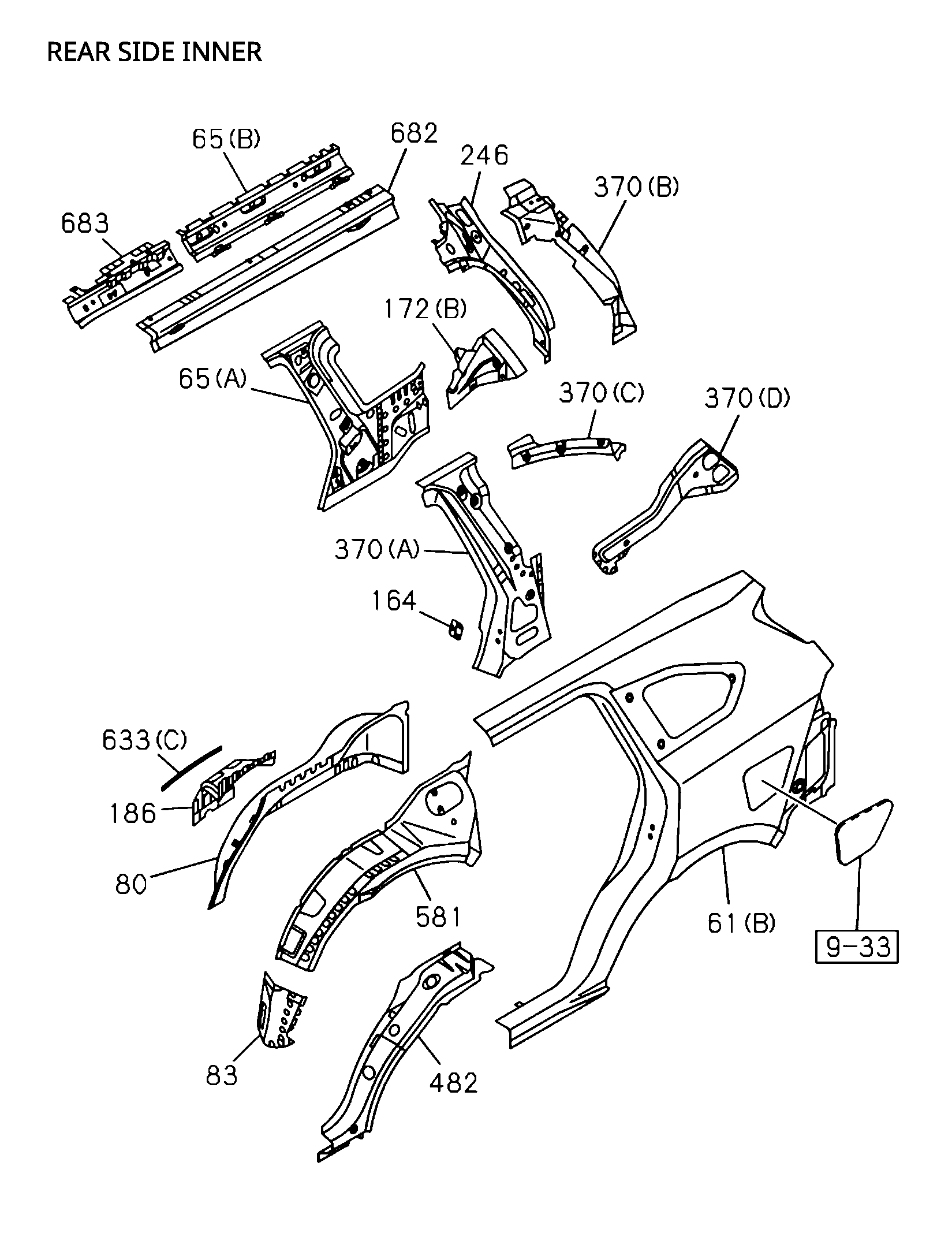

| 65 |
I8-97504 379-1 |
|
PANEL, QUARTER.INNER |
1 |
2110-2203 |
|
AB |
(B) |
| 486 |
I8-97687 586-0 |
|
SEAL, BODY SIDE |
AR |
2110- |
|
AB |
(B) L=100X40 T=15 |
| 370 |
I8-97504 331-0 |
|
REINFORCEMENT, QUARTER PILLAR |
1 |
2110- |
|
AB |
(C) |
| 164 |
I8-98385 927-0 |
|
PLATE, SIDE PNL OUTER |
2 |
2110- |
|
AB |
|
| 107 |
I8-98251 460-0 |
|
BOLT, SIDE STEP |
12 |
2110- |
|
B |
SIDE STEP<6TC> EXC. POWER STEERING ELECTRIC<NV9> (A) |
| 633 |
I8-97506 767-3 |
|
SEALER |
2 |
2110- |
|
AB |
(B) |
| 581 |
I8-97504 397-2 |
|
PANEL, WHEEL HOUSE.OUTER |
1 |
2110- |
|
AB |
|
| 288 |
I8-97677 352-0 |
|
NUT, STEP |
4 |
2110- |
|
AB |
SIDE STEP<6TC> (A) |
| 633 |
I8-97679 874-0 |
|
SEALER |
1 |
2110- |
|
AB |
(C) |
| 638 |
I8-97822 444-0 |
|
PANEL, DASH SIDE INNER |
1 |
2204- |
|
AB |
AIR BAG DRIVER & PASSENGER(AKS) |
| 288 |
I0-91180 208-0 |
|
NUT, STEP |
4 |
2110- |
|
AB |
SIDE STEP<6TC> (C) M8 FLANGE |
| 634 |
I8-98370 608-2 |
|
REINFORCEMENT, BODY SIDE INNER |
1 |
2110- |
|
AB |
|
| 341 |
I0-91614 608-0 |
|
WASHER, PL,STEP |
12 |
2110- |
|
A |
SIDE STEP<6TC> ID=8.4 OD=18 |
| 690 |
I8-97554 162-0 |
|
TAPE, ADHESIVE |
1 |
2110- |
|
AB |
(B) |
| 288 |
I8-97677 352-0 |
|
NUT, STEP |
4 |
2110- |
|
AB |
SIDE STEP<6TC> (A) |
| 695 |
I8-97683 956-0 |
|
BOLT, DEFLECTOR |
4 |
2110- |
|
AB |
|
| 61 |
I8-97684 806-0 |
|
PANEL, SIDE |
1 |
2110- |
|
AB |
(A) |
| 370 |
I8-97504 059-0 |
|
REINFORCEMENT, QUARTER PILLAR |
1 |
2110- |
|
AB |
(D) |
| 682 |
I8-97495 517-0 |
|
REINFORCEMENT, ROOF SIDE |
1 |
2110- |
|
AB |
|
| 288 |
I8-97677 353-0 |
|
NUT, STEP |
12 |
2110- |
|
B |
SIDE STEP<6TC> EXC. POWER STEERING ELECTRIC<NV9> (B) |
| 103 |
I7-55201 319-0 |
|
PLATE, STEP |
1 |
2311- |
|
|
|
| 676 |
I8-97685 958-0 |
|
SEAL |
2 |
2110- |
|
AB |
(C) |
| 341 |
I0-91614 608-0 |
|
WASHER, PL,STEP |
12 |
2110- |
|
B |
SIDE STEP<6TC> EXC. POWER STEERING ELECTRIC<NV9> ID=8.4 OD=18 |
| 172 |
I8-97540 705-1 |
|
EXTENSION, QUARTER PANEL |
1 |
2110- |
|
AB |
(B) |
| 446 |
I8-97938 007-0 |
|
FINISHER, STEP |
1 |
2311- |
|
|
|
| 636 |
I8-97822 492-0 |
|
PANEL, FRONT PILLAR INNER |
1 |
2204- |
|
AB |
AIR BAG DRIVER & PASSENGER(AK5) |
| 65 |
I8-97504 380-1 |
|
PANEL, QUARTER.INNER |
1 |
2110-2203 |
|
AB |
(B) |
| 633 |
I8-97554 134-0 |
|
SEALER |
AR |
2110- |
|
AB |
(A) |

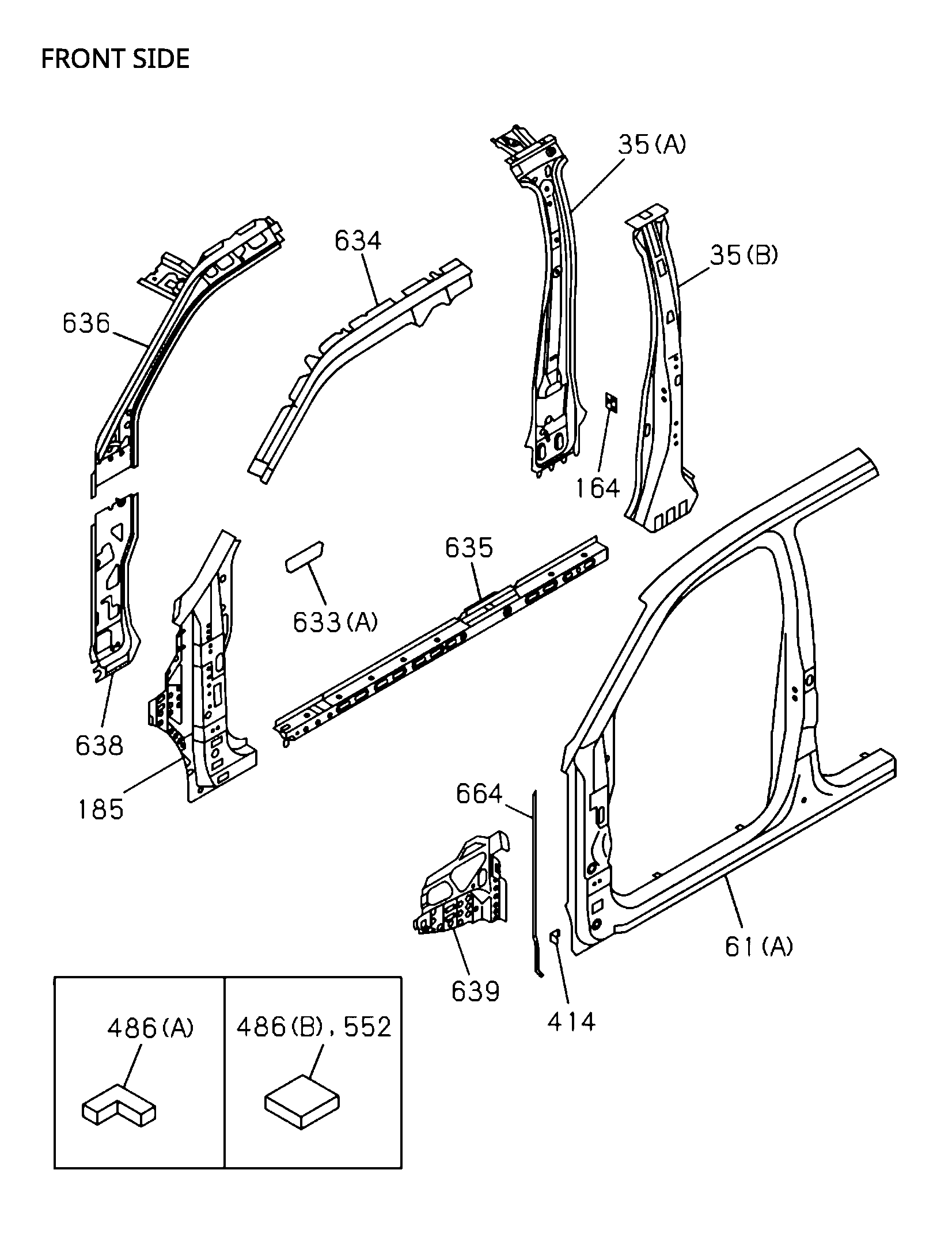

| 35 |
I8-98386 100-3 |
|
PANEL, CENTER PILLAR.INNER |
1 |
2110- |
|
AB |
(B) |
| 486 |
I8-97687 584-0 |
|
SEAL, BODY SIDE |
AR |
2110- |
|
AB |
(B) L=60X60T=15 |
| 341 |
I0-91614 608-0 |
|
WASHER, PL,STEP |
14 |
2110- |
|
B |
POWER STEERING ELECTRIC<NV9> SIDE STEP<6TC> ID=8.4 OD=18 |
| 690 |
I8-97515 669-0 |
|
TAPE, ADHESIVE |
1 |
2110- |
|
AB |
(A) |
| 636 |
I8-98386 140-4 |
|
PANEL, FRONT PILLAR INNER |
1 |
2204- |
|
AB |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(87Y) |
| 107 |
I8-98251 460-0 |
|
BOLT, SIDE STEP |
12 |
2110- |
|
A |
SIDE STEP<6TC> (A) |
| 186 |
I8-97504 115-1 |
|
REINFORCEMENT, WHEEL HOUSE.RR |
1 |
2110- |
|
AB |
|
| 664 |
I8-98386 627-2 |
|
SEAL, TAPE |
1 |
2110- |
|
AB |
|
| 690 |
I8-97515 669-0 |
|
TAPE, ADHESIVE |
1 |
2110- |
|
AB |
(A) |
| 492 |
I8-97506 977-0 |
|
EXTENSION, WHL,RR |
1 |
2110- |
|
AB |
|
| 83 |
I8-97504 102-0 |
|
COVER, ROCKER RR |
1 |
2110- |
|
AB |
|
| 683 |
I8-97846 247-0 |
|
PANEL, HEADER |
1 |
2204- |
|
AB |
AIR BAG DRIVER & PASSENGER(AK5) |
| 635 |
I8-97553 206-0 |
|
REINFORCEMENT, ROCKER |
1 |
2110- |
|
AB |
|
| 676 |
I8-97685 956-0 |
|
SEAL |
1 |
2110- |
|
AB |
(B) |
| 694 |
I8-97474 596-2 |
|
DEFLECTOR, PNL |
1 |
2110- |
|
AB |
BLACK |
| 638 |
I8-97822 440-0 |
|
PANEL, DASH SIDE INNER |
1 |
2204- |
|
AB |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) |
| 370 |
I8-97504 332-0 |
|
REINFORCEMENT, QUARTER PILLAR |
1 |
2110- |
|
AB |
(C) |
| 581 |
I8-97504 398-1 |
|
PANEL, WHEEL HOUSE.OUTER |
1 |
2110- |
|
AB |
|

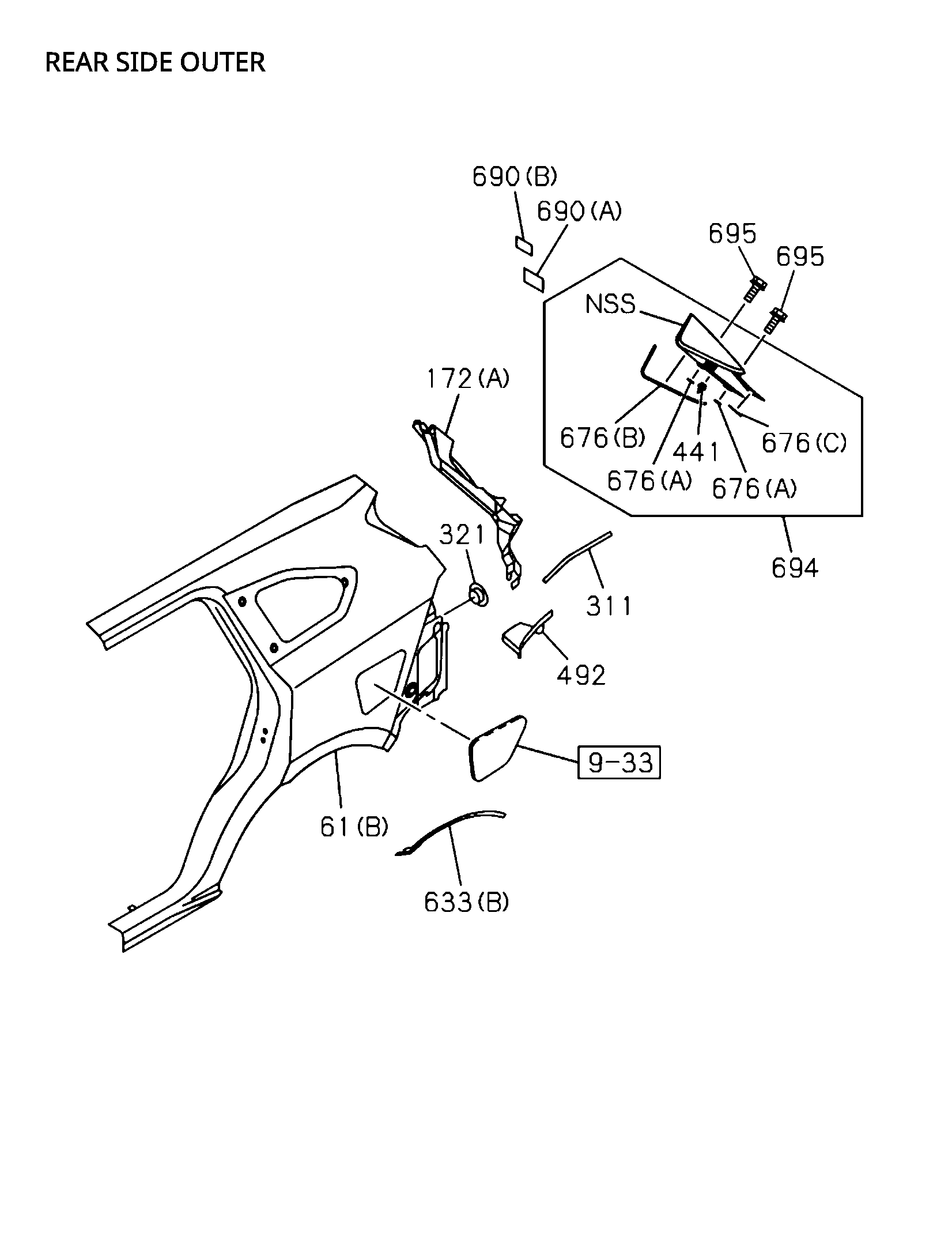

| 61 |
I8-97684 838-1 |
|
PANEL, SIDE |
1 |
2110- |
|
AB |
(B) |
| 164 |
I8-98385 927-0 |
|
PLATE, SIDE PNL OUTER |
2 |
2110- |
|
AB |
|
| 683 |
I8-97504 463-1 |
|
PANEL, HEADER |
1 |
2204- |
|
AB |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) |
| 172 |
I8-97504 303-0 |
|
EXTENSION, QUARTER PANEL |
1 |
2110- |
|
AB |
POWER TAIL GATE<E61 > (A) |
| 441 |
I8-97117 942-0 |
|
CLIP |
4 |
2110- |
|
AB |
|
| 636 |
I8-97822 491-0 |
|
PANEL, FRONT PILLAR INNER |
1 |
2204- |
|
AB |
AIR BAG DRIVER & PASSENGER(AK5) |
| 80 |
I8-97504 412-1 |
|
PANEL, WHEEL HOUSE |
1 |
2110- |
|
AB |
|
| 370 |
I8-97504 373-1 |
|
REINFORCEMENT, QUARTER PILLAR |
1 |
2110- |
|
AB |
(A) |
| 311 |
I8-97679 875-0 |
|
SEAL, WHEEL HOUSE |
1 |
2110- |
|
AB |
|
| 341 |
I0-91614 608-0 |
|
WASHER, PL,STEP |
12 |
2110- |
|
A |
SIDE STEP<6TC> ID=8.4 OD=18 |
| 298 |
I8-98073 081-0 |
|
SCREW, SIDE STEP |
2 |
2110- |
|
AB |
SIDE STEP<6TC> M5X16 |
| 172 |
I8-97504 043-1 |
|
EXTENSION, QUARTER PANEL |
1 |
2110- |
|
AB |
(B) |
| 370 |
I8-97504 374-1 |
|
REINFORCEMENT, QUARTER PILLAR |
1 |
2110- |
|
AB |
(A) |
| 370 |
I8-97504 058-0 |
|
REINFORCEMENT, QUARTER PILLAR |
1 |
2110- |
|
AB |
(D) |
| 683 |
I8-97846 249-0 |
|
PANEL, HEADER |
1 |
2204- |
|
AB |
AIR BAG DRIVER & PASSENGER(AK5) |
| 107 |
I8-98251 460-0 |
|
BOLT, SIDE STEP |
14 |
2110- |
|
B |
POWER STEERING ELECTRIC<NV9> SIDE STEP<6TC> (A) |
| 639 |
I8-98487 321-0 |
|
REINFORCEMENT, COWL |
1 |
2110- |
|
AB |
|
| 683 |
I8-97504 462-1 |
|
PANEL, HEADER |
1 |
2204- |
|
AB |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVE R&D RIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) |
| 35 |
I8-98386 272-2 |
|
PANEL, CENTER PILLAR.INNER |
1 |
2110- |
|
AB |
(A) |
| 65 |
I8-97504 416-1 |
|
PANEL, QUARTER.INNER |
1 |
2110- |
|
AB |
(A) |
| 486 |
I8-97687 587-0 |
|
SEAL, BODY SIDE |
AR |
2110- |
|
AB |
(B) L=140X120 T=15 |
| 288 |
I8-97677 353-0 |
|
NUT, STEP |
14 |
2110- |
|
B |
POWER STEERING ELECTRIC<NV9> SIDE STEP<6TC> (B) |
| 172 |
I8-97540 701-0 |
|
EXTENSION, QUARTER PANEL |
1 |
2110- |
|
AB |
EXC. POWER TAIL GATE<E61 > (A) |
| 422 |
I8-97685 950-0 |
|
COVER, SIDE STEP |
1 |
2110- |
|
AB |
SIDE STEP<6TC> (C) |
| 638 |
I8-97822 454-0 |
|
PANEL, DASH SIDE INNER |
1 |
2204- |
|
AB |
AIR BAG DRIVER & PASSENGER(AK5) |
| 370 |
I8-97515 647-2 |
|
REINFORCEMENT, QUARTER PILLAR |
1 |
2110- |
|
AB |
(B) |
| 414 |
I8-98390 324-0 |
|
BRACKET, FENDER |
1 |
2110- |
|
AB |
|
| 65 |
I8-97504 380-1 |
|
PANEL, QUARTER.INNER |
1 |
2204- |
|
AB |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(87Y) (B) |
| 446 |
I8-97938 010-0 |
|
FINISHER, STEP |
1 |
2311- |
|
|
|
| 664 |
I8-98386 627-2 |
|
SEAL, TAPE |
1 |
2110- |
|
AB |
|
| 288 |
I8-97677 353-0 |
|
NUT, STEP |
14 |
2110- |
|
B |
POWER STEERING ELECTRIC<NV9> SIDE STEP<6TC> (B) |

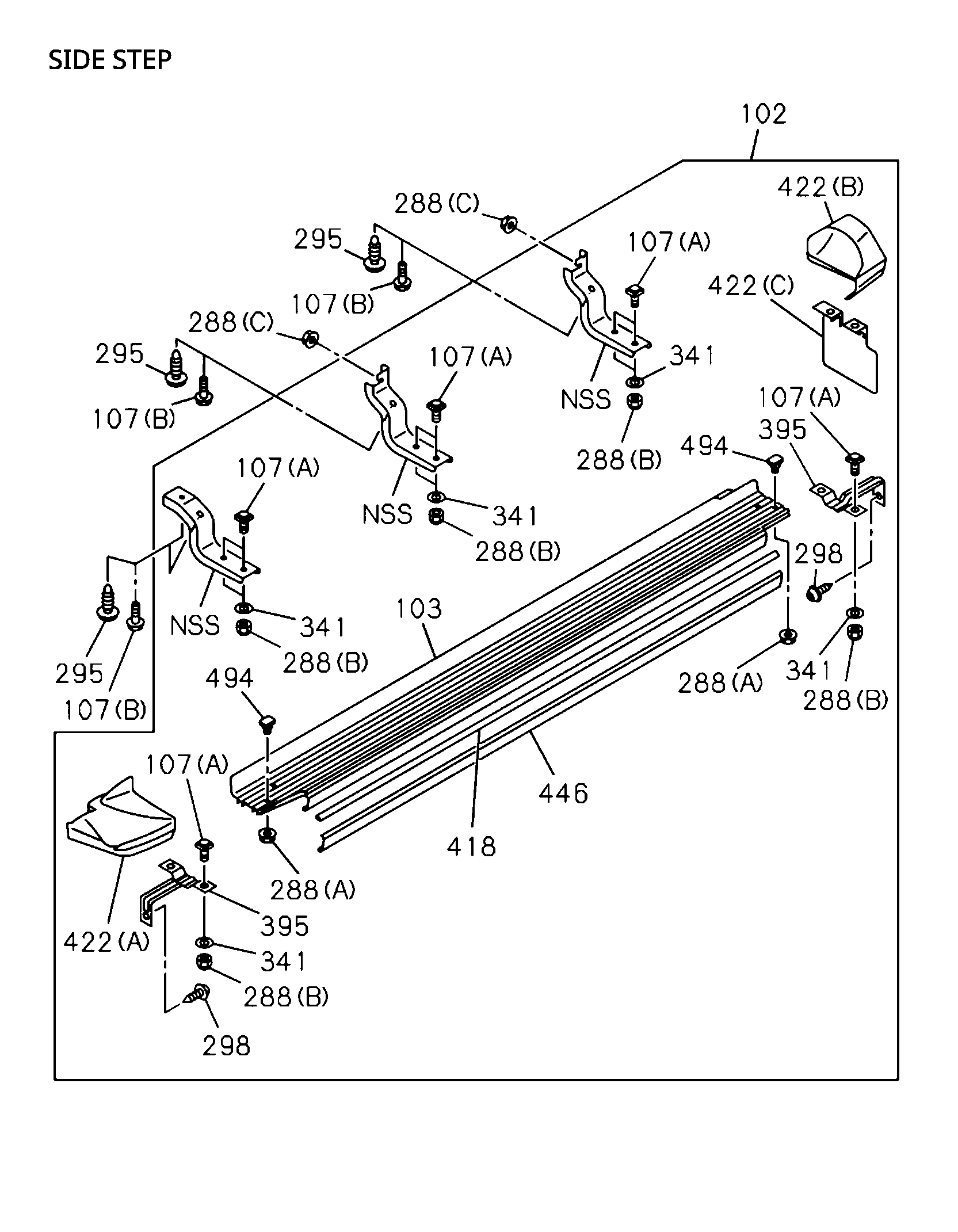

| 102 |
I7-47506 551-0 |
|
STEP, BODY SIDE |
1 |
2311- |
|
|
|
| 65 |
I8-97504 417-1 |
|
PANEL, QUARTER.INNER |
1 |
2110- |
|
AB |
(A) |
| 107 |
I8-98251 460-0 |
|
BOLT, SIDE STEP |
12 |
2110- |
|
A |
SIDE STEP<6TC> (A) |
| 492 |
I8-97504 310-0 |
|
EXTENSION, WHL,RR |
1 |
2110- |
|
AB |
|
| 298 |
I8-98073 081-0 |
|
SCREW, SIDE STEP |
2 |
2110- |
|
AB |
SIDE STEP<6TC> M5X16 |
| 636 |
I8-98386 140-3 |
|
PANEL, FRONT PILLAR INNER |
1 |
2110-2203 |
|
AB |
|
| 634 |
I8-98370 607-2 |
|
REINFORCEMENT, BODY SIDE INNER |
1 |
2110- |
|
AB |
|
| 65 |
I8-97504 379-1 |
|
PANEL, QUARTER.INNER |
1 |
2204- |
|
AB |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (B) |
| 288 |
I8-97677 353-0 |
|
NUT, STEP |
12 |
2110- |
|
A |
SIDE STEP<6TC> (B) |
| 61 |
I8-97684 808-0 |
|
PANEL, SIDE |
1 |
2110- |
|
AB |
(A) |
| 636 |
I8-98386 141-2 |
|
PANEL, FRONT PILLAR INNER |
1 |
2110-2203 |
|
AB |
|
| 185 |
I8-98386 618-0 |
|
REINFORCEMENT, SIDE INNER LWR |
1 |
2110- |
|
AB |
|
| 107 |
I8-98048 998-0 |
|
BOLT, SIDE STEP |
8 |
2110- |
|
AB |
SIDE STEP<6TC> (B) M8X25 FLANGE |
| 638 |
I8-97822 452-0 |
|
PANEL, DASH SIDE INNER |
1 |
2204- |
|
AB |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) |
| 690 |
I8-97554 162-0 |
|
TAPE, ADHESIVE |
1 |
2110- |
|
AB |
(B) |
| 639 |
I8-98386 111-0 |
|
REINFORCEMENT, COWL |
1 |
2110- |
|
AB |
|
| 65 |
I8-97846 251-0 |
|
PANEL, QUARTER,INNER |
|
2311- |
|
|
|
| 103 |
I7-55201 318-0 |
|
PLATE, STEP |
1 |
2311- |
|
|
|
| 676 |
I8-97685 955-0 |
|
SEAL |
4 |
2110- |
|
AB |
(A) |
| 422 |
I8-97685 949-0 |
|
COVER, SIDE STEP |
1 |
2110- |
|
AB |
SIDE STEP<6TC> (C) |
| 395 |
I8-97685 929-0 |
|
BRACKET, SIDE STEP |
2 |
2110- |
|
AB |
SIDE STEP<6TC> |
| 288 |
I8-97677 353-0 |
|
NUT, STEP |
12 |
2110- |
|
B |
SIDE STEP<6TC> EXC. POWER STEERING ELECTRIC<NV9> (B) |
| 107 |
I8-98251 460-0 |
|
BOLT, SIDE STEP |
14 |
2110- |
|
B |
POWER STEERING ELECTRIC<NV9> SIDE STEP<6TC> (A) |
| 311 |
I8-97679 875-0 |
|
SEAL, WHEEL HOUSE |
1 |
2110- |
|
AB |
|
| 172 |
I8-97540 700-0 |
|
EXTENSION, QUARTER PANEL |
1 |
2110- |
|
AB |
EXC. POWER TAIL GATE<E61 > (A) |
| 172 |
I8-97504 302-0 |
|
EXTENSION, QUARTER PANEL |
1 |
2110- |
|
AB |
POWER TAIL GATE<E61 > (A) |
| 494 |
I8-97677 351-0 |
|
STUD, BRKT |
4 |
2110- |
|
AB |
SIDE STEP<6TC> |
| 422 |
I8-97938 009-0 |
|
COVER, SIDE STEP |
|
2311- |
|
|
|
| 676 |
I8-97685 957-0 |
|
SEAL |
1 |
2110- |
|
AB |
(B) |
| 186 |
I8-97504 116-1 |
|
REINFORCEMENT, WHEEL HOUSE.RR |
1 |
2110- |
|
AB |
|
| 683 |
I8-97504 462-0 |
|
PANEL, HEADER |
1 |
2110-2203 |
|
AB |
|
| 414 |
I8-98390 324-0 |
|
BRACKET, FENDER |
1 |
2110- |
|
AB |
|
| 418 |
I8-97685 948-0 |
|
RUBBER, STEP |
1 |
2110- |
|
AB |
SIDE STEP<6TC> |
| 246 |
I8-97515 649-1 |
|
PANEL, RR PILLAR,INNER |
1 |
2110- |
|
AB |
|
| 83 |
I8-97504 101-0 |
|
COVER, ROCKER RR |
1 |
2110- |
|
AB |
|
| 633 |
I8-97679 874-0 |
|
SEALER |
1 |
2110- |
|
AB |
(C) |
| 35 |
I8-98386 099-3 |
|
PANEL, CENTER PILLAR.INNER |
1 |
2110- |
|
AB |
(B) |
| 552 |
I8-97687 585-0 |
|
SEAL, C POST |
AR |
2110- |
|
AB |
L=250X40 T=15 |
| 633 |
I8-97506 767-3 |
|
SEALER |
2 |
2110- |
|
AB |
(B) |
| 482 |
I8-97687 580-0 |
|
PANEL, SIDE RR PILLAR |
1 |
2110- |
|
AB |
|
| 494 |
I8-97677 351-0 |
|
STUD, BRKT |
4 |
2110- |
|
AB |
SIDE STEP<6TC> |
| 80 |
I8-97504 413-1 |
|
PANEL, WHEEL HOUSE |
1 |
2110- |
|
AB |
|
| 246 |
I8-97515 651-1 |
|
PANEL, RR PILLAR,INNER |
1 |
2110- |
|
AB |
|
| 288 |
I8-97677 353-0 |
|
NUT, STEP |
12 |
2110- |
|
A |
SIDE STEP<6TC> (B) |
| 418 |
I8-97685 948-0 |
|
RUBBER, STEP |
1 |
2110- |
|
AB |
SIDE STEP<6TC> |
| 341 |
I0-91614 608-0 |
|
WASHER, PL,STEP |
12 |
2110- |
|
B |
SIDE STEP<6TC> EXC. POWER STEERING ELECTRIC<NV9> ID=8.4 OD=18 |
| 185 |
I8-97504 318-0 |
|
REINFORCEMENT, SIDE INNER LWR |
1 |
2110- |
|
AB |
|
| 35 |
I8-98386 270-2 |
|
PANEL, CENTER PILLAR.INNER |
1 |
2110- |
|
AB |
(A) |
| 422 |
I8-97938 008-0 |
|
COVER, SIDE STEP |
|
2311- |
|
|
|
| 635 |
I8-97553 207-0 |
|
REINFORCEMENT, ROCKER |
1 |
2110- |
|
AB |
|
| 395 |
I8-97685 929-0 |
|
BRACKET, SIDE STEP |
2 |
2110- |
|
AB |
SIDE STEP<6TC> |
| 102 |
I7-47506 550-0 |
|
STEP, BODY SIDE |
1 |
2311- |
|
|
|
| 107 |
I8-98251 460-0 |
|
BOLT, SIDE STEP |
12 |
2110- |
|
B |
SIDE STEP<6TC> EXC. POWER STEERING ELECTRIC<NV9> (A) |
| 422 |
I8-97938 005-0 |
|
COVER, SIDE STEP |
|
2311- |
|
|
|
| 636 |
I8-98386 141-3 |
|
PANEL, FRONT PILLAR INNER |
1 |
2204- |
|
AB |
AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) |
| 422 |
I8-97938 006-0 |
|
COVER, SIDE STEP |
|
2311- |
|
|
|
| 486 |
I8-97687 583-0 |
|
SEAL, BODY SIDE |
AR |
2110- |
|
AB |
(A) L=90X30X100X45 T=15 |
| 61 |
I8-97684 839-1 |
|
PANEL, SIDE |
1 |
2110- |
|
AB |
(B) |
| 486 |
I8-97687 582-0 |
|
SEAL, BODY SIDE |
AR |
2110- |
|
AB |
(A) L=55X30X65X25 T=15 |
| 370 |
I8-97515 648-2 |
|
REINFORCEMENT, QUARTER PILLAR |
1 |
2110- |
|
AB |
(B) |
| 682 |
I8-97495 516-0 |
|
REINFORCEMENT, ROOF SIDE |
1 |
2110- |
|
AB |
|
| 341 |
I0-91614 608-0 |
|
WASHER, PL,STEP |
14 |
2110- |
|
B |
POWER STEERING ELECTRIC<NV9> SIDE STEP<6TC> ID=8.4 OD=18 |
| 482 |
I8-97687 581-0 |
|
PANEL, SIDE RR PILLAR |
1 |
2110- |
|
AB |
|
| 65 |
I8-97846 252-0 |
|
PANEL, QUARTER,INNER |
|
2311- |
|
|
|
| 694 |
I8-97474 597-2 |
|
DEFLECTOR, PNL |
1 |
2110- |
|
AB |
BLACK |
| 683 |
I8-97504 463-0 |
|
PANEL, HEADER |
1 |
2110-2203 |
|
AB |
|
| 295 |
I8-94269 290-0 |
|
CLIP, BODY SIDE STEP |
8 |
2110- |
|
AB |
EXC. SIDE STEP<6TC> OD=18 |
