6-30 | 6-30 - FRONT DOOR AND HINGE
MUX
MU-X 2024

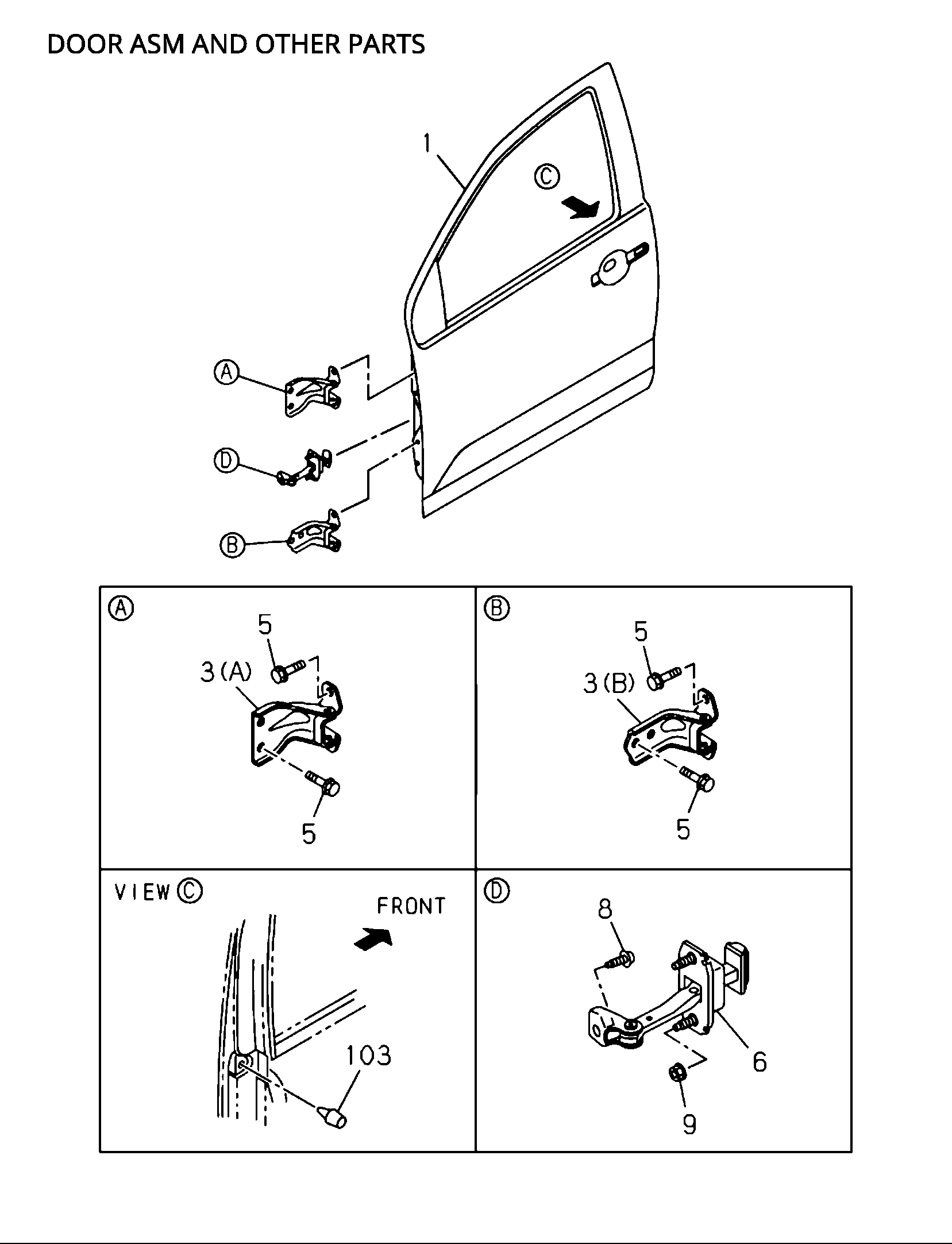

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 103 | I8-98202 864-0 | PROTECTOR, FRT DOOR | 2 | 2110- | AB | |||
| 1 | I8-97820 936-0 | DOOR ASM, FRT,WO/TRIM | 1 | 2110- | AB | |||
| 5 | I8-98005 842-0 | BOLT, HINGE | 16 | 2110- | AB | M8X23 FLANGE | ||
| 8 | I8-98166 694-0 | BOLT, CHECK ARM | 2 | 2110- | AB | M 8X23 | ||
| 9 | I8-98049 362-0 | NUT, CHECK ARM | 4 | 2110- | AB | M6FLANGE | ||
| 1 | I8-97820 935-0 | DOOR ASM, FRT,WO/TRIM | 1 | 2110- | AB | |||
| 3 | I8-98398 909-0 | HINGE, DOOR FRT | 2 | 2110- | AB | (B) LOWER | ||
| 3 | I8-98398 908-0 | HINGE, DOOR FRT | 2 | 2110- | AB | (A) UPPER | ||
| 6 | I8-97798 557-0 | ARM, CHECK.FRT DOOR | 2 | 2110- | AB |
