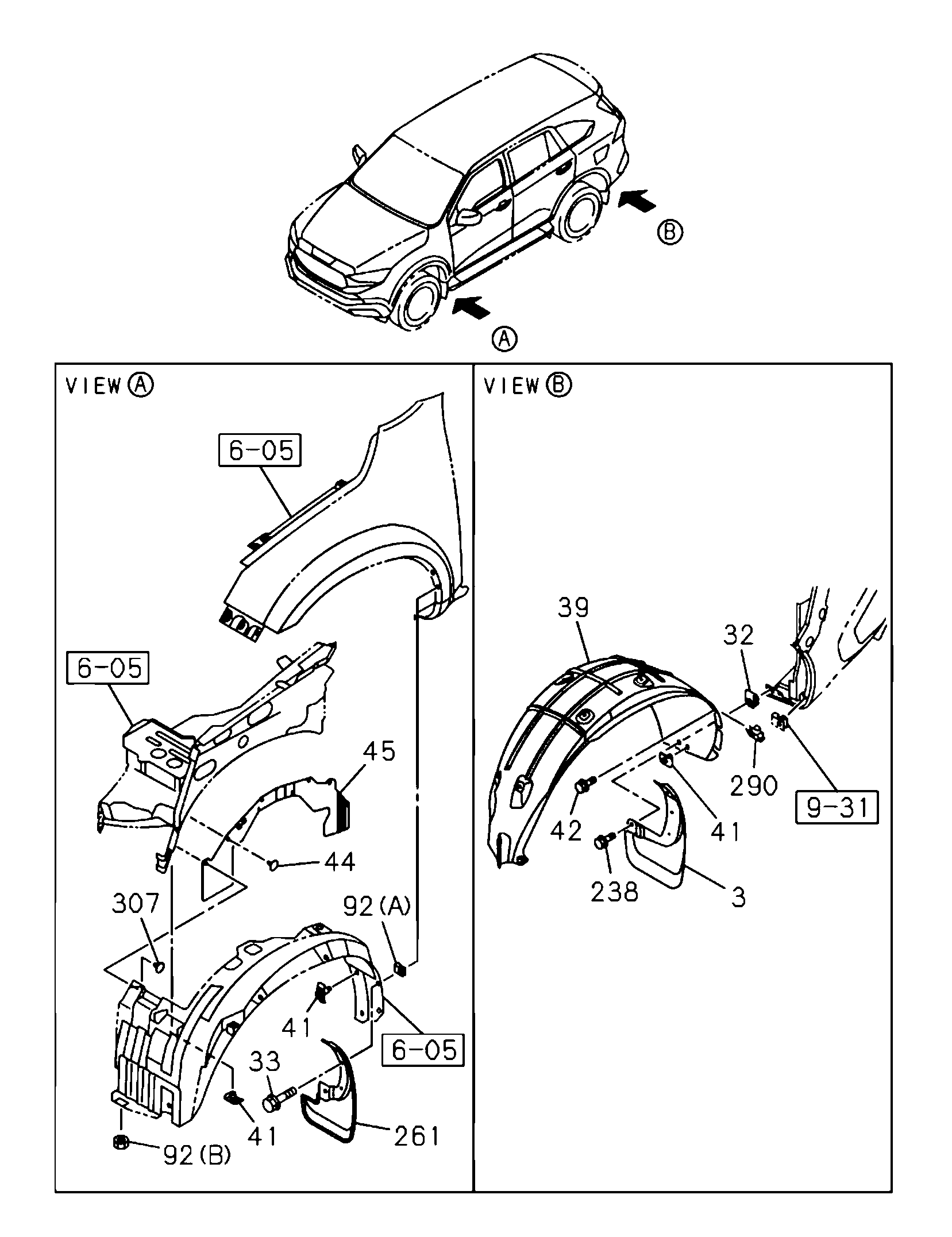

6-47 | 6-47 - MUD GUARD AND INSULATOR
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 39 | I8-98363 214-2 | LINER, FENDER | 1 | 2110- | AB | |||
| 238 | I8-98167 444-0 | SCREW, MUD GUARD | 10 | 2110- | AB | FORMED MUD FLAP FRT & RR<Q8H> M6X20 TAPPING W/PL WASHER | ||
| 42 | I8-98167 444-0 | BOLT, INNER LINER TO FENDER | 4 | 2110- | AB | EXC. FORMED MUD FLAP FRT & RR<Q8H> SCREW M6X20 TAPPING W/PL WASHER | ||
| 3 | I8-98363 232-1 | GUARD, MUD,RR | 1 | 2110- | AB | FORMED MUD FLAP FRT & RR<Q8H> | ||
| 45 | I8-98393 944-1 | COVER, MUD.FENDER SKIRT | 1 | 2110- | AB | |||
| 307 | I8-98050 462-0 | RETAINER | 6 | 2110- | AB | |||
| 41 | I8-94221 150-0 | RIVET, INNER LINER | 40 | 2110- | AB | EXC. FORMED MUD FLAP FRT & RR<Q8H> | ||
| 44 | I8-94215 211-0 | CLIP, ANCHOR | 10 | 2110- | AB | OD=22 L=10.7 | ||
| 92 | I8-98049 368-0 | NUT, MUD COVER | 2 | 2110- | AB | (B) M6W/DISHED WASHER | ||
| 39 | I8-98363 215-2 | LINER, FENDER | 1 | 2110- | AB | |||
| 3 | I8-98363 231-1 | GUARD, MUD,RR | 1 | 2110- | AB | FORMED MUD FLAP FRT & RR<Q8H> | ||
| 33 | I8-98167 444-0 | BOLT, MUD COVER | 8 | 2110- | AB | FORMED MUD FLAP FRT 8t RR<Q8H> SCREW M6X20 TAPPING W/PL WASHER | ||
| 92 | I8-97125 519-0 | NUT, MUD COVER | 8 | 2110- | AB | FORMED MUD FLAP FRT & RR<Q8H> (A) | ||
| 261 | I8-98356 195-0 | RUBBER, FRT.MUD GUARD | 1 | 2110- | AB | FORMED MUD FLAP FRT & RR<Q8H> | ||
| 45 | I8-98393 945-1 | COVER, MUD.FENDER SKIRT | 1 | 2110- | AB | |||
| 290 | I8-98245 063-0 | NUT, LINER | 2 | 2110- | AB | |||
| 261 | I8-98356 196-0 | RUBBER, FRT.MUD GUARD | 1 | 2110- | AB | FORMED MUD FLAP FRT & RR<Q8H> | ||
| 41 | I8-94221 150-0 | RIVET, INNER LINER | 30 | 2110- | AB | FORMED MUD FLAP FRT &. RR<Q8H> | ||
| 32 | I8-97125 519-0 | NUT, MUD GUARD | 2 | 2110- | AB | FORMED MUD FLAP FRT & RR<Q8H> |
