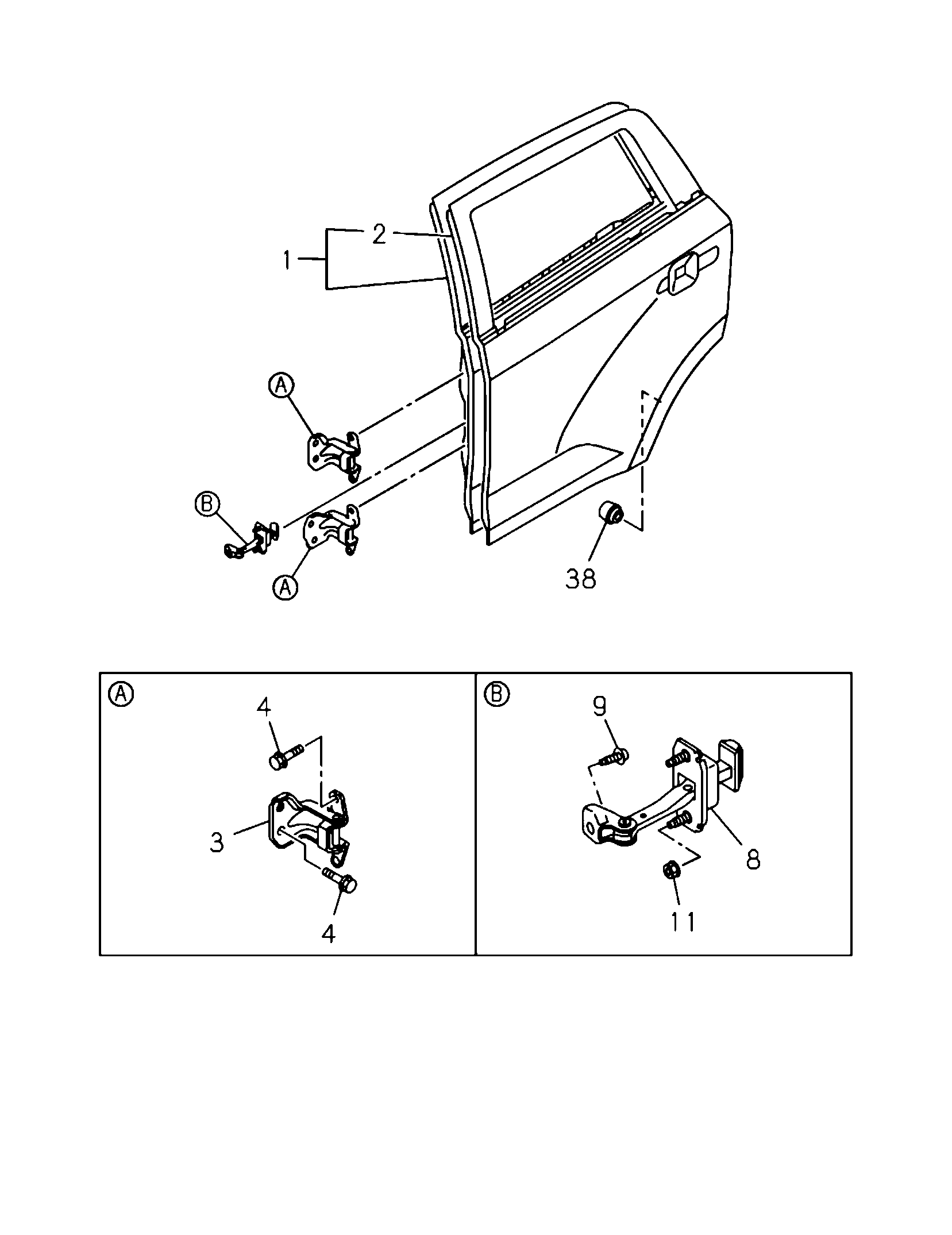

6-50 | 6-50 - REAR DOOR AND HINGE
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 9 | I8-98166 694-0 | BOLT, CHECK ARM | 2 | 2110- | AB | M 8X23 | ||
| 3 | I8-97490 840-1 | HINGE, RR DOOR | 1 | 2110- | AB | LOWER | ||
| 4 | I8-98005 842-0 | BOLT, HINGE | 16 | 2110- | AB | M8X23 FLANGE | ||
| 38 | I8-98202 864-0 | PROTECTOR, | 2 | 2110- | AB | |||
| 8 | I8-97798 558-0 | ARM, CHECK,RR DOOR | 2 | 2110- | AB | |||
| 3 | I8-97490 841-1 | HINGE, RR DOOR | 1 | 2110- | AB | LOWER | ||
| 2 | I8-97503 520-3 | PANEL, RR DOOR OUTER | 1 | 2110- | AB | |||
| 11 | I8-98049 362-0 | NUT | 4 | 2110- | AB | M6 FLANGE | ||
| 1 | I8-97503 517-5 | DOOR ASM, REAR | 1 | 2110- | AB | |||
| 3 | I8-98398 784-1 | HINGE, RR DOOR | 1 | 2110- | AB | UPPER | ||
| 1 | I8-97503 518-5 | DOOR ASM, REAR | 1 | 2110- | AB | |||
| 2 | I8-97503 521-3 | PANEL, RR DOOR OUTER | 1 | 2110- | AB | |||
| 3 | I8-98398 783-1 | HINGE, RR DOOR | 1 | 2110- | AB | UPPER |
