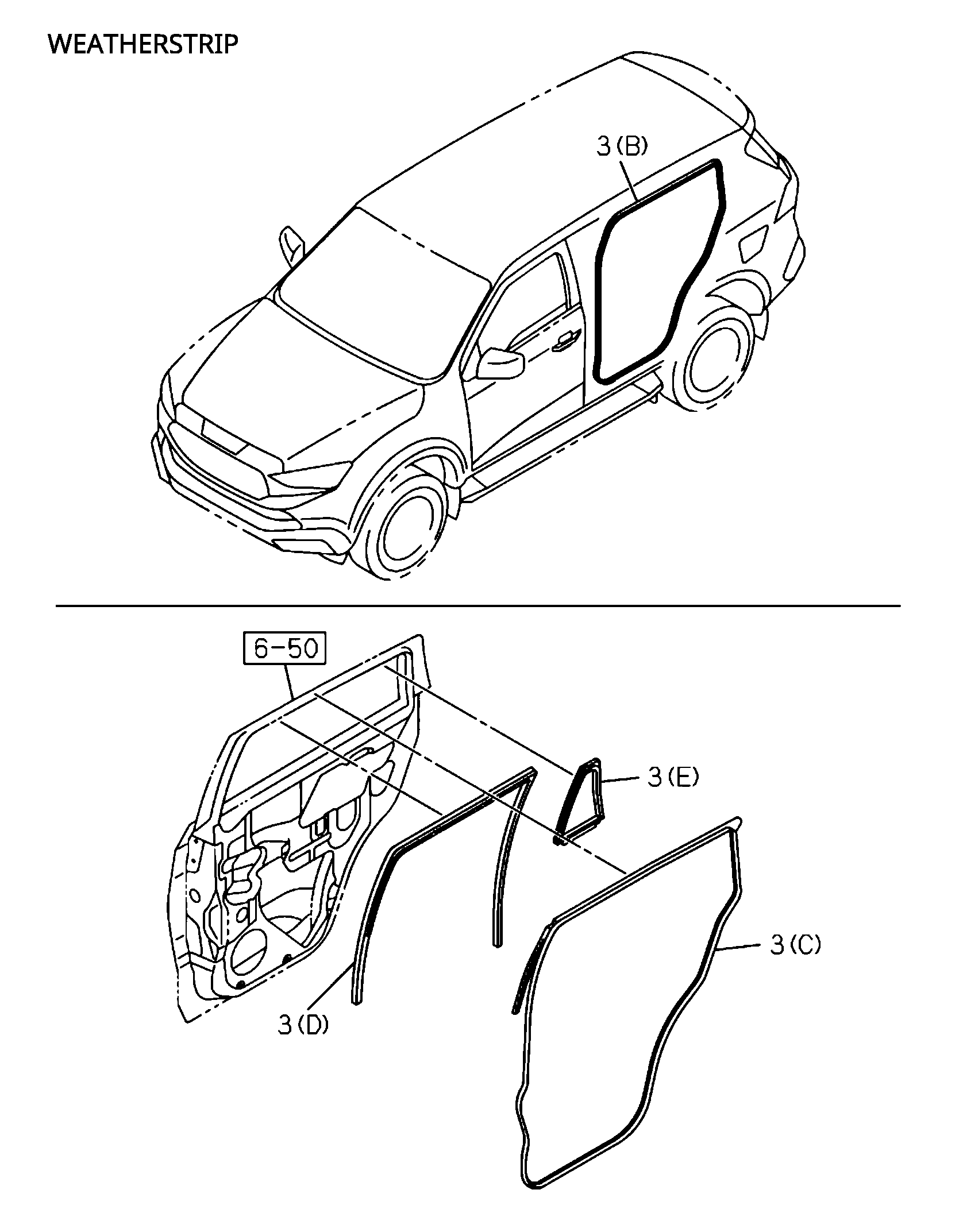

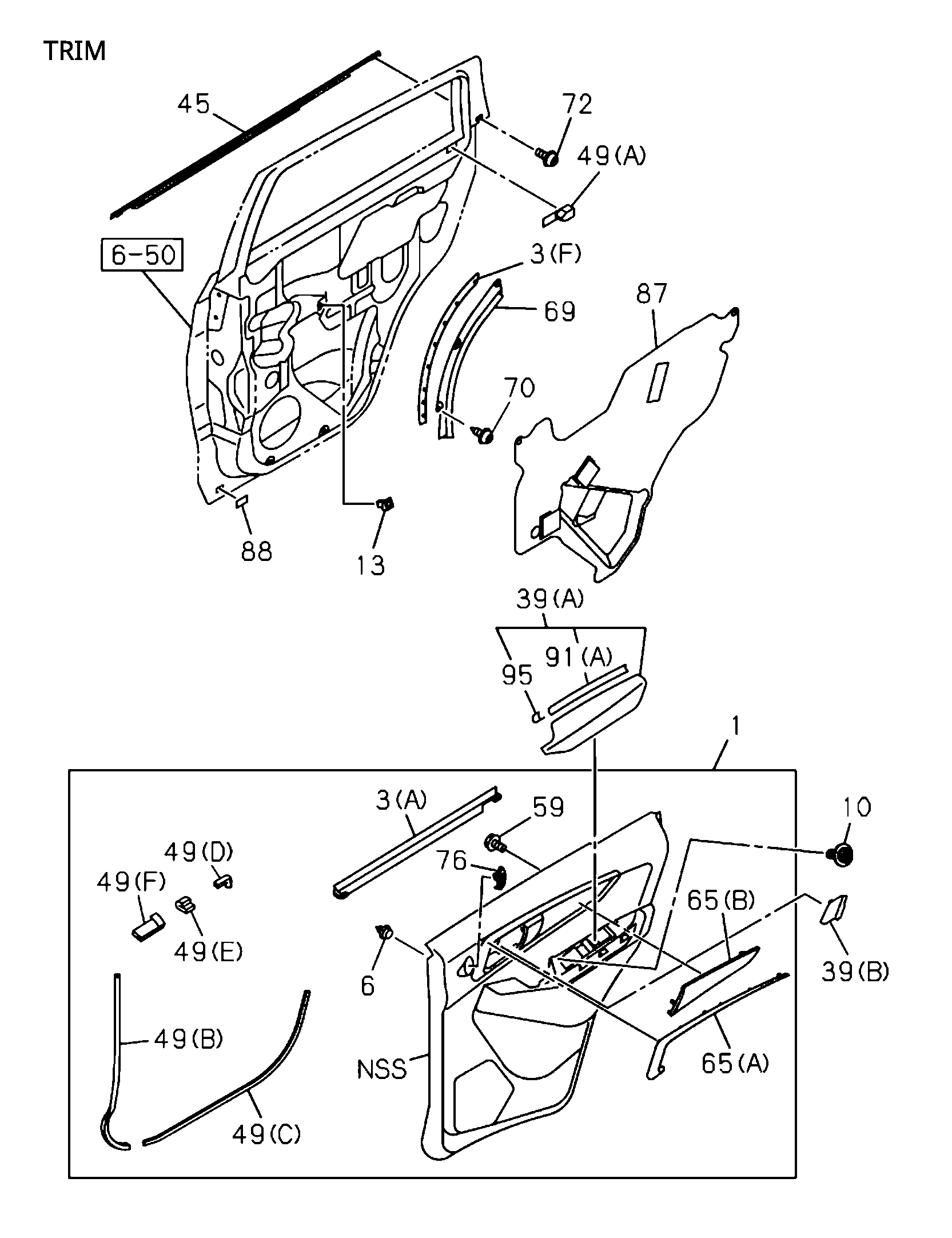

6-55 | 6-55 - REAR DOOR TRIM
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 87 | I8-97491 298-1 | DEFLECTOR, RR DOOR | 1 | 2110- | AB | |||
| 49 | I8-97682 796-0 | SEAL, DOOR | 2 | 2110- | AB | (D) | ||
| 91 | I8-97656 867-1 | TAPE | 1 | 2110- | AB | EXC. SIDE STEP<6TC> (B) | ||
| 3 | I8-98335 615-1 | WEATHERSTRIP, RR DOOR | 1 | 2110- | AB | (F) | ||
| 6 | I8-98160 729-0 | CLIP, DOOR PAD | 16 | 2110- | AB | |||
| 3 | I8-98335 620-4 | WEATHERSTRIP, RR DOOR | 1 | 2110- | AB | (D) | ||
| 13 | I8-97543 556-0 | G ROM MET, SCREW.ARM REST | 4 | 2110- | AB | |||
| 65 | I8-97907 415-0 | GARNISH, RR DOOR | 1 | 2110- | AB | GRADE CUSTOM(RBD) (A) BLACK | ||
| 1 | I8-97909 438-5 | PAD, TRIM,RR DOOR | 1 | 2311- | ||||
| 39 | I8-97477 861-2 | COVER, DOOR TRIM | 1 | 2110- | AB | SEAT TRIM LEATHER<6TB> (A) BLACK | ||
| 1 | I8-97909 444-5 | PAD, TRIM,RR DOOR | 1 | 2311- | ||||
| 3 | I8-98335 616-0 | WEATHERSTRIP, RR DOOR | 2 | 2110- | AB | (B) | ||
| 1 | I8-97477 745-4 | PAD, TRIM.RR DOOR | 1 | 2110- | AB | SEAT TRIM BASE CLOTH<8LK> GRADE LUXURY(RBC) EXC. LAMP DOOR TRIM ILLUMINATED&ROOF CONSOLE DOWN<8UZ> BLACK | ||
| 95 | I8-98164 677-0 | CLIP, DOOR TRIM | 16 | 2110- | AB | |||
| 3 | I8-98335 619-4 | WEATHERSTRIP, RR DOOR | 1 | 2110- | AB | (D) | ||
| 91 | I8-97682 791-0 | TAPE | 2 | 2110- | AB | SEAT TRIM LEATHER<6TB> (A) | ||
| 49 | I8-97682 798-0 | SEAL, DOOR | 2 | 2110- | AB | (f) | ||
| 88 | I8-98395 606-0 | PLUG, DOOR | 4 | 2110- | AB | |||
| 39 | I8-97474 695-2 | COVER, DOOR TRIM | 1 | 2110- | AB | SEAT TRIM BASE CLOTH<8LK> (A) BLACK | ||
| 49 | I8-97682 795-0 | SEAL, DOOR | 2 | 2110- | AB | (C) | ||
| 3 | I8-98335 612-2 | WEATHERSTRIP, RR DOOR | 1 | 2110- | AB | (C) | ||
| 3 | I8-98335 623-2 | WEATHERSTRIP, RR DOOR | 1 | 2110- | AB | (A) | ||
| 45 | I8-98395 605-4 | FINISHER, RR DOOR | 1 | 2110- | AB | BODY SIDE MOLDING<B85> | ||
| 39 | I8-97472 038-1 | COVER, DOOR TRIM | 1 | 2110- | AB | (B) BLACK | ||
| 39 | I8-97477 862-2 | COVER, DOOR TRIM | 1 | 2110- | AB | SEAT TRIM LEATHER<6TB> (A) BLACK | ||
| 3 | I8-98335 622-6 | WEATHERSTRIP, RR DOOR | 1 | 2110- | AB | (E) | ||
| 69 | I8-97496 103-3 | COVER, WHEEL ARCH | 1 | 2110- | AB | |||
| 3 | I8-98335 624-2 | WEATHERSTRIP, RR DOOR | 1 | 2110- | AB | (A) | ||
| 39 | I8-97472 037-1 | COVER, DOOR TRIM | 1 | 2110- | AB | (B) BLACK | ||
| 1 | I8-97909 442-5 | PAD, TRIM,RR DOOR | 1 | 2311- | ||||
| 45 | I8-98335 618-2 | FINISHER, RR DOOR | 1 | 2110- | AB | EXC. BODY SIDE MOLDING<B85> | ||
| 96 | I8-97496 489-1 | DECAL, DOOR FRAME | 1 | 2110- | AB | (B) | ||
| 65 | I8-97938 097-0 | GARNISH, RR DOOR | 2311- | |||||
| 65 | I8-97907 414-0 | GARNISH, RR DOOR | 1 | 2110- | AB | GRADE CUSTOM(RBD) (A) BLACK | ||
| 96 | I8-98488 773-3 | DECAL, DOOR FRAME | 1 | 2110- | AB | (A) | ||
| 49 | I8-97682 797-0 | SEAL, DOOR | 2 | 2110- | AB | (E) | ||
| 65 | I8-97907 413-0 | GARNISH, RR DOOR | 1 | 2110- | AB | GRADE LUXURY(RBC) (A) BLACK | ||
| 1 | I8-97477 733-4 | PAD, TRIM.RR DOOR | 1 | 2110- | AB | SEAT TRIM BASE CLOTH<8LK> GRADE LUXURY(RBC) EXC. LAMP DOOR TRIM ILLUMINATED&ROOF CONSOLE DOWN<8UZ> BLACK | ||
| 45 | I8-98335 617-2 | FINISHER, RR DOOR | 1 | 2110- | AB | EXC. BODY SIDE MOLDING<B85> | ||
| 65 | I8-97938 094-0 | GARNISH, RR DOOR | 2311- | |||||
| 59 | I8-97554 307-0 | SCREW, PANEL | 20 | 2110- | AB | EXC. LAMP DOOR TRIM ILLUMINATED&ROOF CONSOLE DOWN<8UZ> M4X10 TAPPING | ||
| 76 | I8-97907 396-0 | COVER, RR DOOR | 1 | 2110- | AB | BLACK | ||
| 91 | I8-97656 868-1 | TAPE | 1 | 2110- | AB | EXC. SIDE STEP<6TC> (B) | ||
| 39 | I8-97474 692-2 | COVER, DOOR TRIM | 1 | 2110- | AB | SEAT TRIM BASE CLOTH<8LK> (A) BLACK | ||
| 76 | I8-97907 395-0 | COVER, RR DOOR | 1 | 2110- | AB | BLACK | ||
| 3 | I8-98335 613-2 | WEATHERSTRIP, RR DOOR | 1 | 2110- | AB | (C) | ||
| 59 | I8-97554 307-0 | SCREW, PANEL | 26 | 2110- | AB | LAMP DOOR TRIM ILLUMINATED&ROOF CONSOLE DOWN<8UZ> M4X10 TAPPING | ||
| 65 | I8-97907 417-0 | GARNISH, RR DOOR | 1 | 2110- | AB | GRADE LUXURY(RBC) (B) GRAY | ||
| 49 | I8-97660 938-1 | SEAL, DOOR | 2 | 2110- | AB | (A) | ||
| 69 | I8-97496 104-3 | COVER, WHEEL ARCH | 1 | 2110- | AB | |||
| 70 | I8-97679 579-0 | SCREW, COVER | 6 | 2110- | AB | M5X8 TAPPING | ||
| 87 | I8-97491 299-1 | DEFLECTOR, RR DOOR | 1 | 2110- | AB | |||
| 72 | I0-74160 510-0 | SCREW, WEATHER STRIP | 2 | 2110- | AB | M5X10 TAPPING W/PL WASHER | ||
| 3 | I8-98335 621-6 | WEATHERSTRIP, RR DOOR | 1 | 2110- | AB | (E) | ||
| 49 | I8-97682 794-0 | SEAL, DOOR | 2 | 2110- | AB | (B) | ||
| 65 | I8-97907 420-0 | GARNISH, RR DOOR | 1 | 2110- | AB | GRADE LUXURY(RBC) (B) GRAY | ||
| 45 | I8-98395 604-4 | FINISHER, RR DOOR | 1 | 2110- | AB | BODY SIDE MOLDING<B85> | ||
| 96 | I8-98488 774-3 | DECAL, DOOR FRAME | 1 | 2110- | AB | (A) | ||
| 96 | I8-97496 488-1 | DECAL, DOOR FRAME | 1 | 2110- | AB | (B) | ||
| 1 | I8-97909 436-5 | PAD, TRIM,RR DOOR | 1 | 2311- | ||||
| 3 | I8-98335 614-1 | WEATHERSTRIP, RR DOOR | 1 | 2110- | AB | (F) | ||
| 65 | I8-97907 416-0 | GARNISH, RR DOOR | 1 | 2110- | AB | GRADE LUXURY(RBC) (A) BLACK | ||
| 10 | I0-74365 516-0 | SCREW, ARM REST | 4 | 2110- | AB | M5X16 TAPPING W/PL WASHER |
