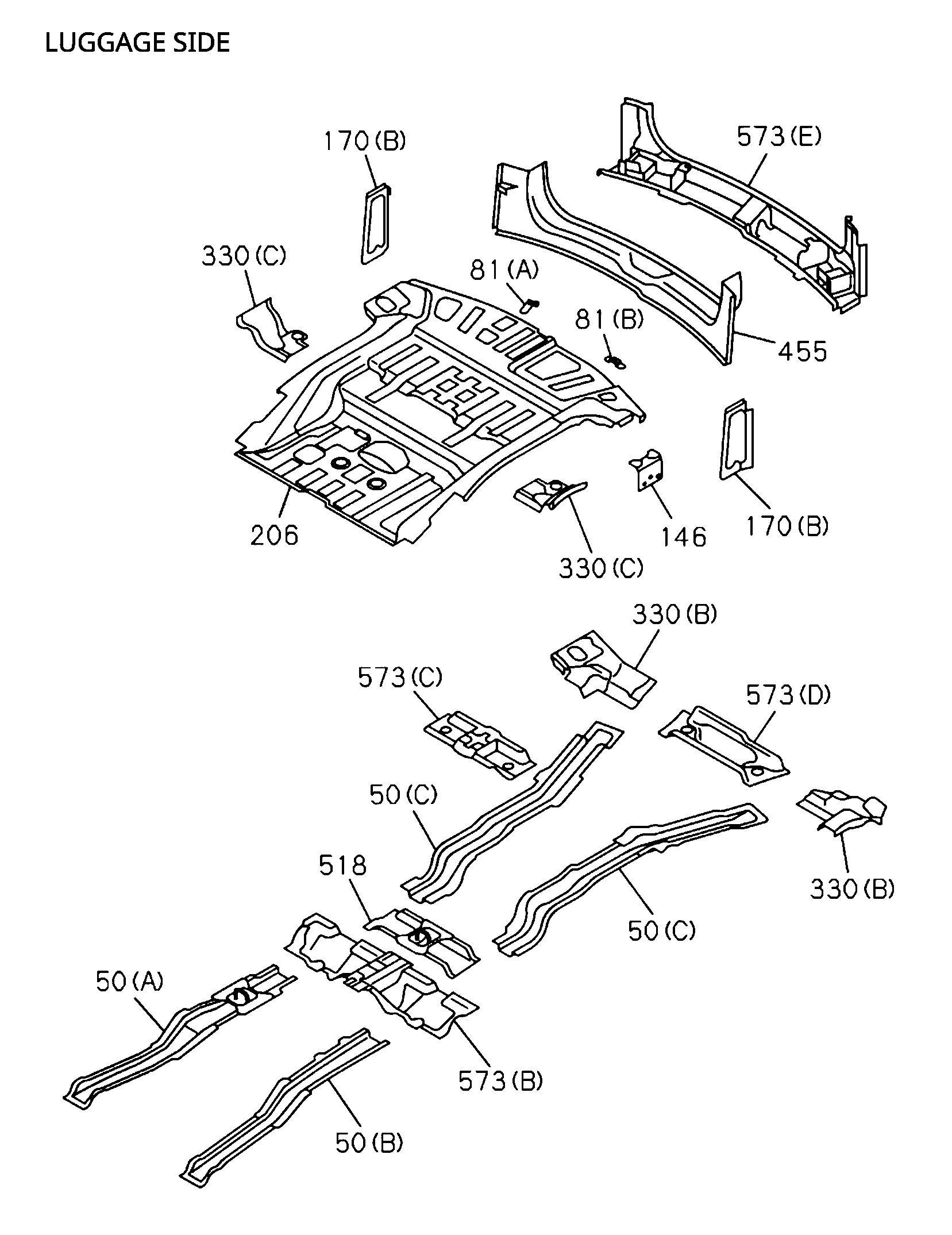

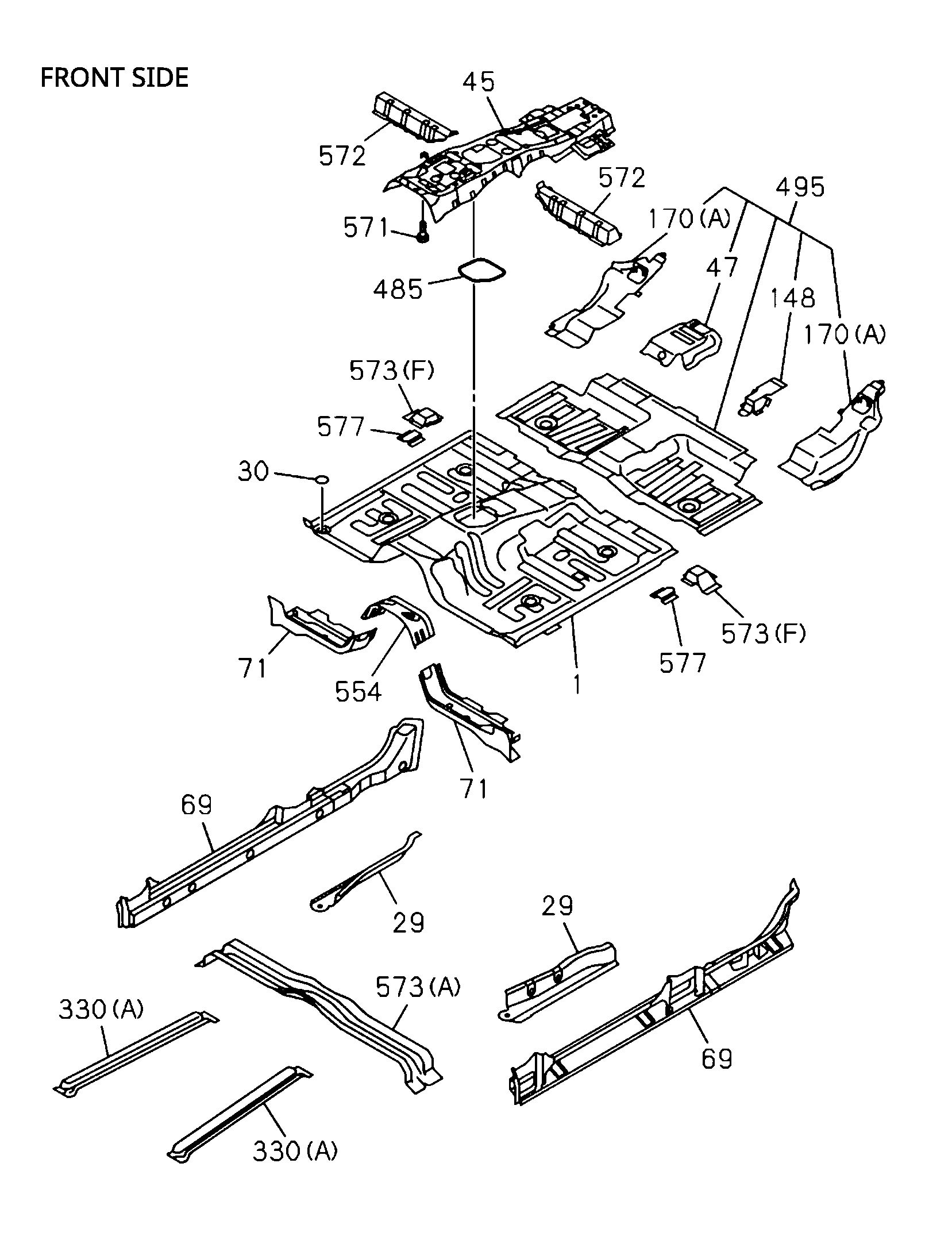

6-70 | 6-70 - FLOOR PANEL
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 71 | I8-97503 869-1 | BRACKET, CAB MTG.CENTER | 1 | 2110- | AB | |||
| 573 | I8-97504 181-0 | SILL, FLOOR,RR | 1 | 2110- | AB | (D) | ||
| 573 | I8-98385 471-2 | SILL, FLOOR,RR | 1 | 2110- | AB | (F) | ||
| 573 | I8-97504 120-0 | SILL, FLOOR,RR | 1 | 2110- | AB | (B) | ||
| 330 | I8-97504 159-1 | REINFORCEMENT, FLOOR | 1 | 2110- | AB | (C) | ||
| 50 | I8-97504 125-1 | RAIL, FLOOR PANEL | 1 | 2110- | AB | (A) | ||
| 572 | I8-98385 462-2 | SILL, FLOOR,FRT | 1 | 2110- | AB | |||
| 330 | I8-97503 990-0 | REINFORCEMENT, FLOOR | 1 | 2110- | AB | (B) | ||
| 518 | I8-97503 933-0 | SILL, FLOOR | 1 | 2110- | AB | |||
| 170 | I8-97515 118-3 | EXTENSION, | 1 | 2110- | AB | (A) | ||
| 573 | I8-97687 579-0 | SILL, FLOOR,RR | 1 | 2110- | AB | (E) | ||
| 29 | I8-98385 700-0 | GUSSET | 1 | 2110- | AB | |||
| 148 | I8-97504 150-0 | BRACKET, SEAT | 3 | 2110- | AB | |||
| 47 | I8-97505 406-0 | REINFORCEMENT, TUNNEL,RR | 1 | 2110- | AB | |||
| 170 | I8-97503 984-1 | EXTENSION, | 1 | 2110- | AB | (B) | ||
| 330 | I8-97503 901-1 | REINFORCEMENT, FLOOR | 1 | 2110- | AB | (A) | ||
| 485 | I8-98385 817-1 | SEAL, TAPE TYPE | 1 | 2110- | AB | |||
| 81 | I8-97524 105-0 | BRACKET, HARNESS SUPPORT | 1 | 2110- | AB | (A) | ||
| 554 | I8-98385 704-0 | REINFORCEMENT, FLOOR CENTER | 1 | 2110- | AB | |||
| 330 | I8-97504 160-1 | REINFORCEMENT, FLOOR | 1 | 2110- | AB | (C) | ||
| 71 | I8-98385 705-1 | BRACKET, CAB MTG.CENTER | 1 | 2110- | AB | |||
| 29 | I8-98385 697-0 | GUSSET | 1 | 2110- | AB | |||
| 577 | I8-98385 473-0 | BRACKET, SENSOR,YAW | 2 | 2110- | AB | |||
| 573 | I8-98385 469-2 | SILL, FLOOR,RR | 1 | 2110- | AB | (F) | ||
| 1 | I8-98385 447-1 | LINING, HD | 1 | 2110- | AB | |||
| 69 | I8-97504 127-3 | PANEL, ROCKER INNER | 1 | 2110- | AB | |||
| 50 | I8-97503 921-1 | RAIL, FLOOR PANEL | 1 | 2110- | AB | (A) | ||
| 50 | I8-97504 177-0 | RAIL, FLOOR PANEL | 1 | 2110- | AB | (B) | ||
| 573 | I8-97504 172-0 | SILL, FLOOR,RR | 1 | 2110- | AB | (C) | ||
| 81 | I8-97503 981-0 | BRACKET, HARNESS SUPPORT | 1 | 2110- | AB | (B) | ||
| 69 | I8-97504 128-3 | PANEL, ROCKER INNER | 1 | 2110- | AB | |||
| 573 | I8-97503 918-1 | SILL, FLOOR,RR | 1 | 2110- | AB | (A) | ||
| 330 | I8-97503 900-1 | REINFORCEMENT, FLOOR | 1 | 2110- | AB | (A) | ||
| 30 | I8-98202 803-0 | GROMMET, CAB MTG RAIL | 2 | 2110- | AB | OD=59 T=9 | ||
| 45 | I8-98385 448-3 | REINFORCEMENT, TUNNEL.FRT | 1 | 2110- | AB | |||
| 571 | I8-98154 159-0 | STUD | 6 | 2110- | AB | M6X18 | ||
| 206 | I8-97504 154-0 | PANEL, FLOOR BOARD RR | 1 | 2110- | AB | |||
| 50 | I8-97504 178-1 | RAIL, FLOOR PANEL | 1 | 2110- | AB | (B) | ||
| 495 | I8-97503 944-3 | PANEL, FLOOR,CTR | 1 | 2110- | AB | |||
| 146 | I8-97503 980-1 | BRACKET, RR BUMPER,RR FLOOR | 1 | 2110- | AB | |||
| 455 | I8-97504 163-2 | BAR, RR FLOOR | 1 | 2110- | AB | |||
| 330 | I8-97503 989-0 | REINFORCEMENT, FLOOR | 1 | 2110- | AB | (B) | ||
| 170 | I8-97515 119-3 | EXTENSION, | 1 | 2110- | AB | (A) | ||
| 572 | I8-98385 459-2 | SILL, FLOOR,FRT | 1 | 2110- | AB | |||
| 170 | I8-97503 983-1 | EXTENSION, | 1 | 2110- | AB | (B) |
