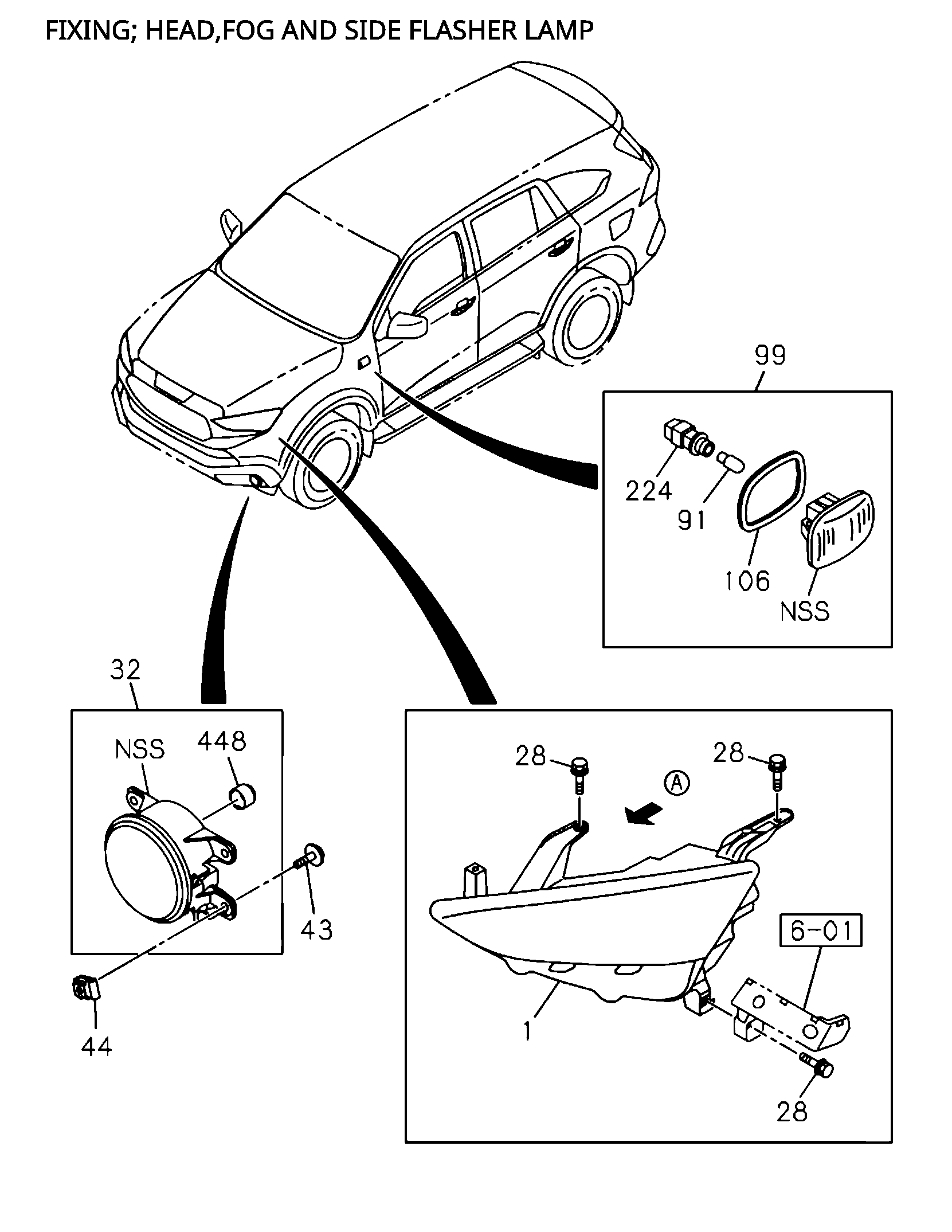

8-01 | 8-01 - LAMP, FRONT AND FRONT SIDE
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 32 | I8-97822 099-0 | LAMP ASM, FOG | 1 | 2110- | AB | FOG LAMP<T96> | ||
| 32 | I8-97822 098-0 | LAMP ASM, FOG | 1 | 2110- | AB | FOG LAMP<T96> | ||
| 1 | I8-98328 770-2 | LAMP ASM, HEAD | 1 | 2110- | AB | |||
| 99 | I8-98395 031-0 | LAMP, SIDE FLASHER | 2 | 2110- | AB | DOOR MIRROR HEATED MATERIAL BLACK<DL8>,DOOR MIRROR POWER ADJUST MATERIAL BLACK<D22>,DOOR MIRROR MATERIAL BLACK<RT9> | ||
| 91 | I8-97310 952-0 | BULB, SIDE TURN SIGNAL | 2 | 2110- | AB | DOOR MIRROR HEATED MATERIAL BLACK<DL8>,DOOR MIRROR POWER ADJUST MATERIAL BLACK<D22>,DOOR MIRROR MATERIAL BLACK<RT9> 12V 5W | ||
| 224 | I8-97310 953-0 | SOCKET, SIDE FLASHER LAMP | 2 | 2110- | AB | DOOR MIRROR HEATED MATERIAL BLACK<DL8>,DOOR MIRROR POWER ADJUST MATERIAL BLACK<D22>,DOOR MIRROR MATERIAL BLACK<RT9> | ||

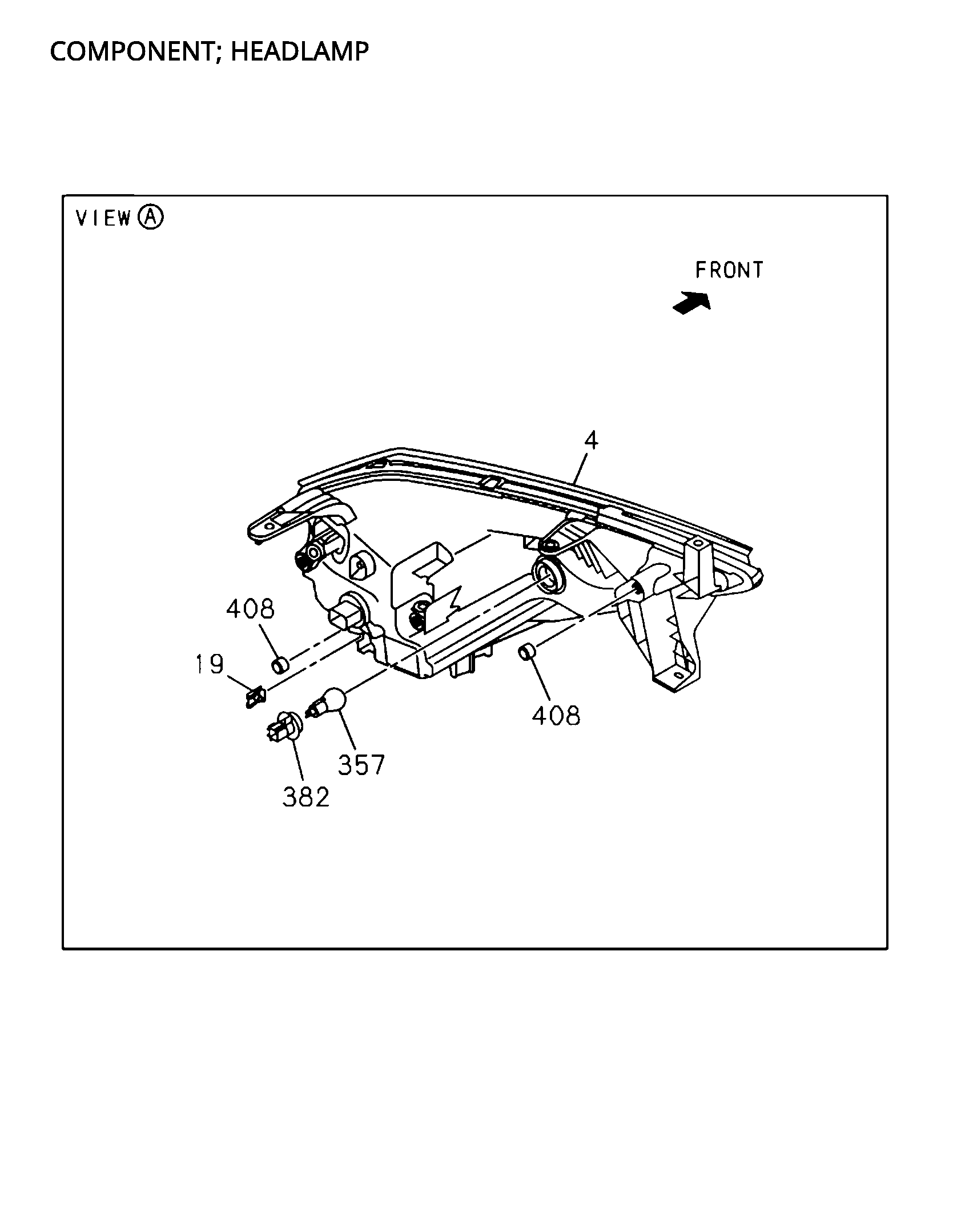

| 4 | I8-97684 395-0 | HEADLAMP UNIT | 1 | 2110- | AB | |||
| 44 | I8-97502 880-1 | NUT, FOG LAMP | 4 | 2110- | AB | FOG LAMP<T96> | ||
| 4 | I8-97684 396-0 | HEADLAMP UNIT | 1 | 2110- | AB | |||
| 382 | I8-97684 107-0 | PLUG, SOCKET.HEADLAMP | 2 | 2110- | AB | |||
| 357 | I8-97678 940-0 | BULB, TURN SIGNAL | 2 | 2110- | AB | 12V 21W | ||
| 1 | I8-98328 769-2 | LAMP ASM, HEAD | 1 | 2110- | AB | |||
| 43 | I8-98167 444-0 | BOLT, FOG LAMP | 4 | 2110- | AB | FOG LAMP<T96> M6X20 TAPPING W/PL WASHER | ||
| 106 | I8-97333 420-0 | GASKET, SIDE TURN SIGNAL | 2 | 2110- | AB | DOOR MIRROR HEATED MATERIAL BLACK<DL8>,DOOR MIRROR POWER ADJUST MATERIAL BLACK<D22>,DOOR MIRROR MATERIAL BLACK<RT9> | ||
| 408 | I8-97684 111-0 | CAP, B RE ATH E R, H E AD LAM P | 4 | 2110- | AB | |||
| 19 | I8-97684 110-0 | NUT, HEADLAMP | 2 | 2110- | AB | |||
| 448 | I8-97515 122-0 | CAP ASM, LAMP | 2 | 2110- | AB | FOG LAMP<T96> | ||
| 28 | I8-98062 140-0 | BOLT, HEADLAMP | 8 | 2110- | AB | M6X18 TAPPING W/LK&PL WASHER |
