8-10 | 2-46 - AUTO TRANS SUPPORT AND PLANETARY GEAR
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

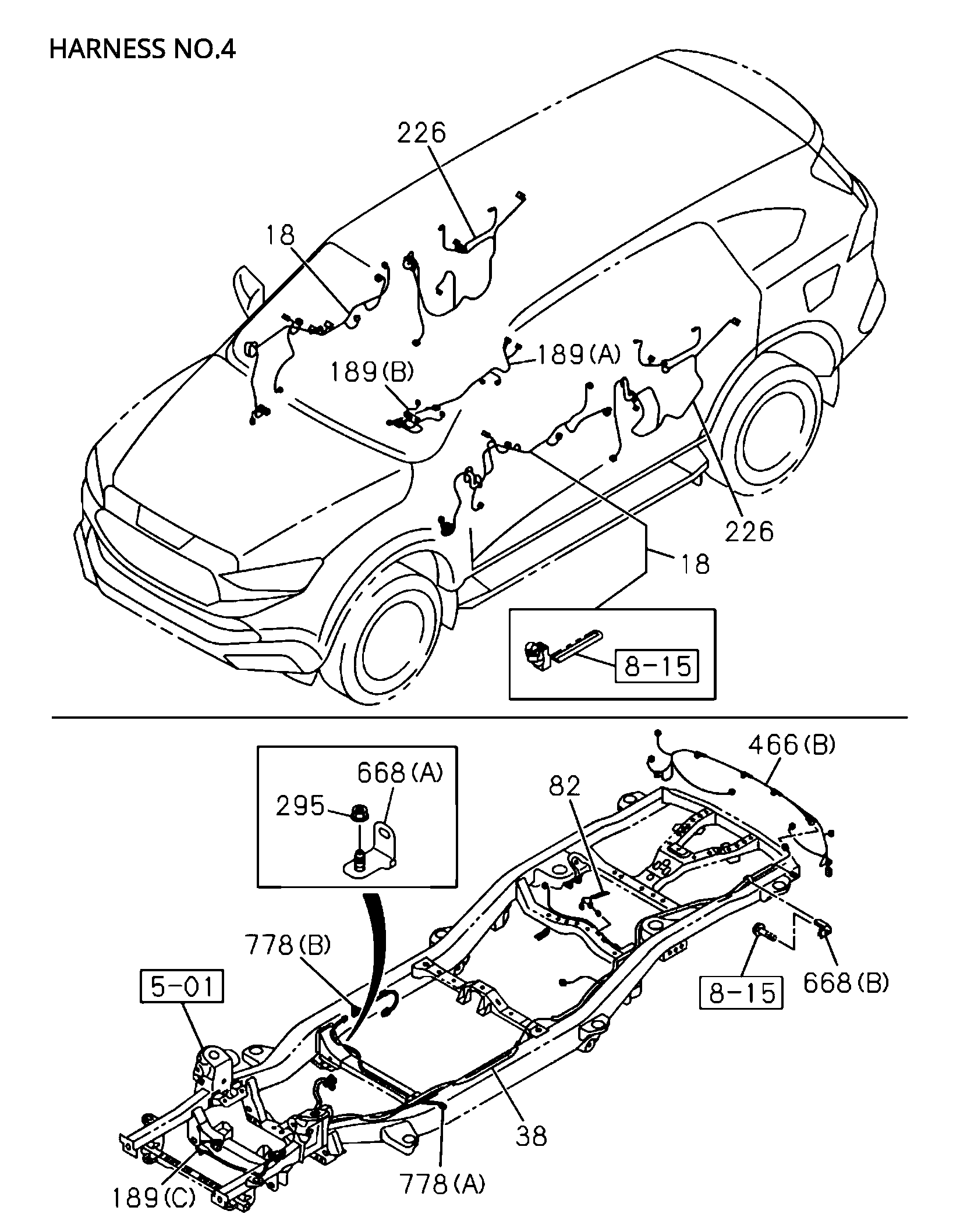

| 18 | I8-97541 020-0 | HARNESS, DOOR | 2311- | |||||
| 226 | I8-97550 993-1 | HARNESS, RR DOOR | 2311- | |||||
| 2 | I8-97556 567-0 | DIODE, CABLE HARNESS | 2311- | |||||
| 746 | I8-97512 894-0 | RELAY, HEATER | 2311- | |||||

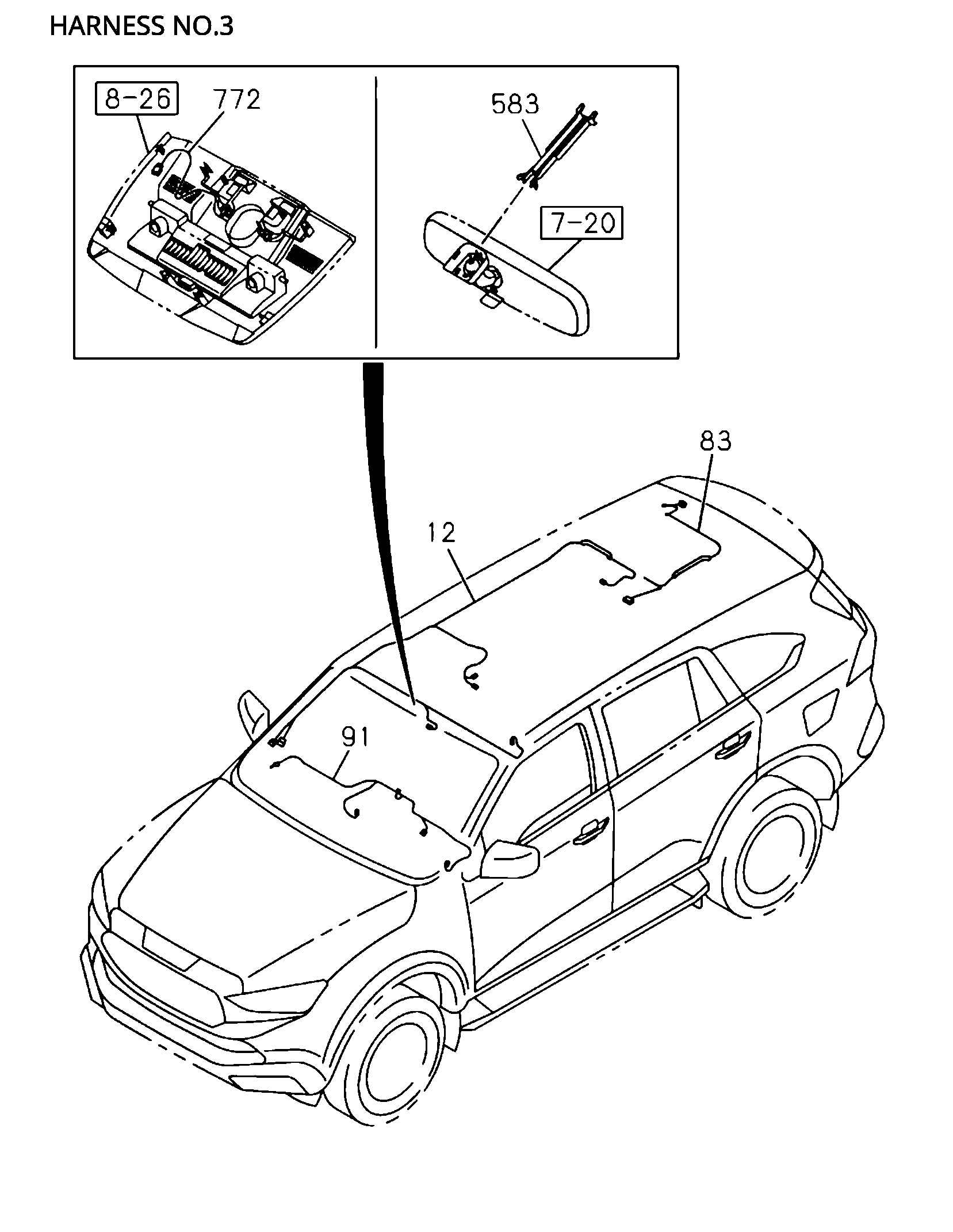

| 12 | I8-97550 591-1 | HARNESS, ROOF | 2311- | |||||
| 41 | I8-98054 260-0 | PULLER, FUSE | 2311- | |||||
| 91 | I8-97549 484-1 | HARNESS, INST | 2311- | |||||
| 18 | I8-97540 975-0 | HARNESS, DOOR | 2311- | |||||
| 38 | I8-97557 837-2 | HARNESS, CHAS | 2311- | |||||

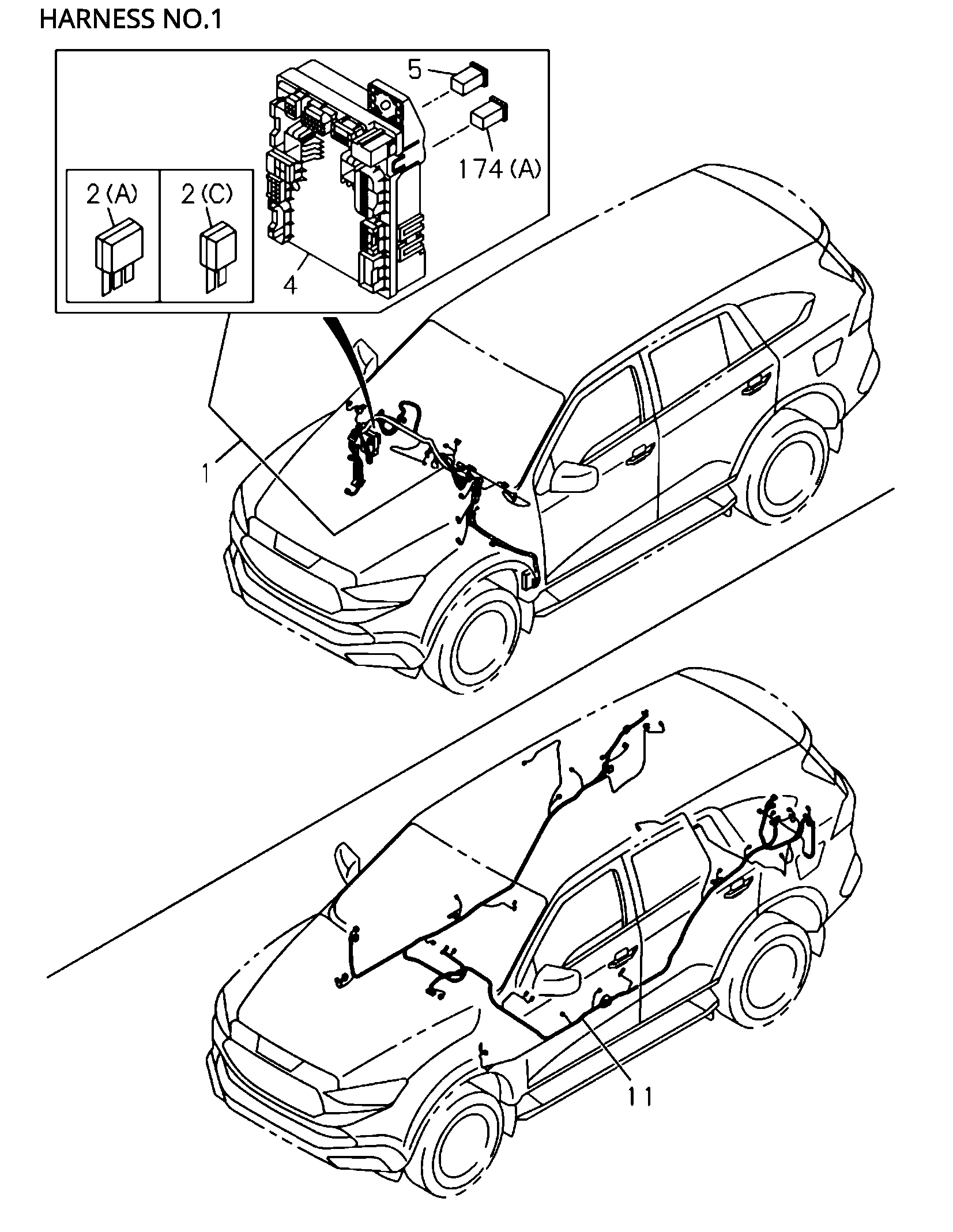

| 1 | I8-97541 583-1 | HARNESS, CAB | 2311- | |||||
| 91 | I8-97549 479-1 | HARNESS, INST | 2311- | |||||

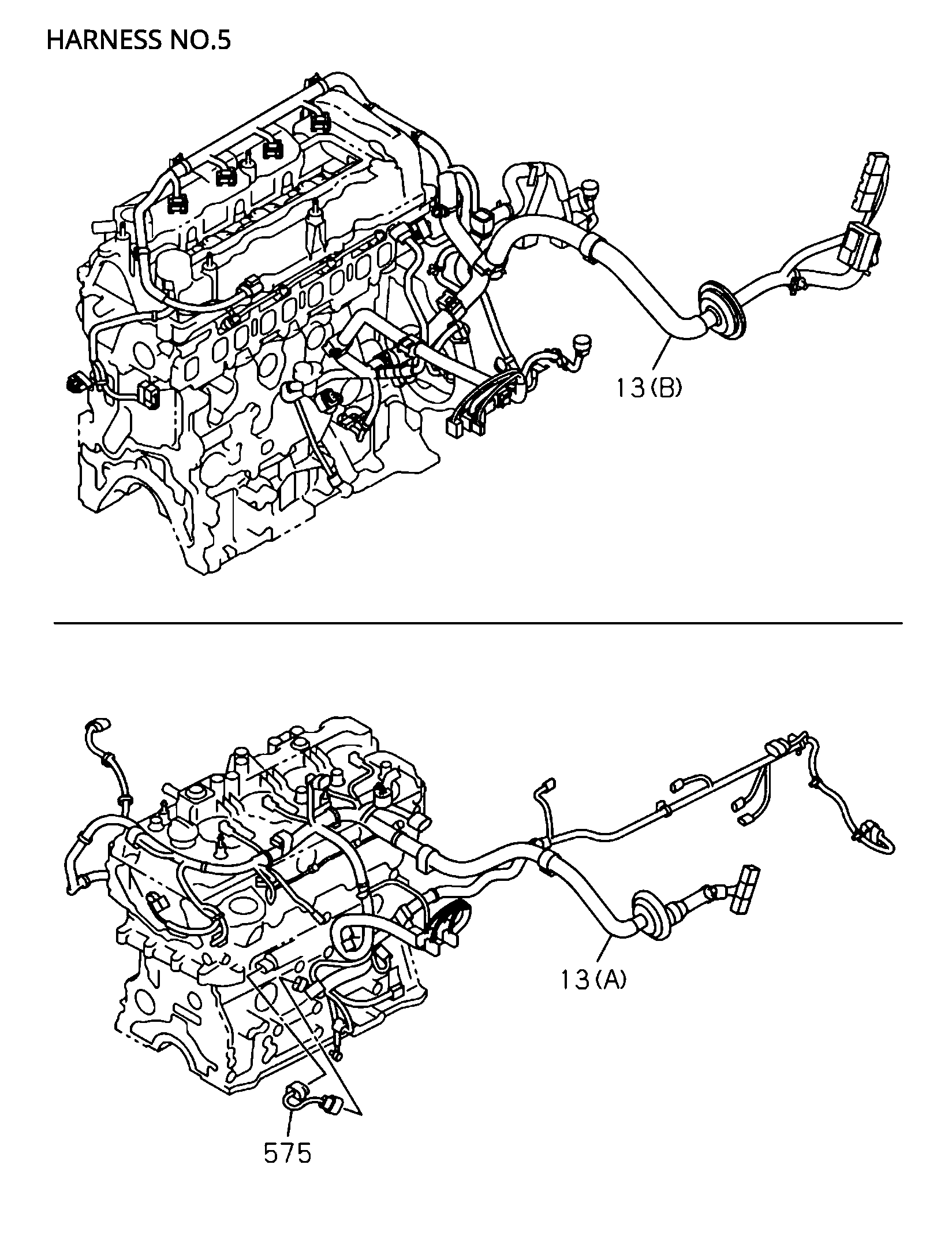

| 13 | I8-97826 479-0 | HARNESS, ENG | 2311- | |||||
| 91 | I8-97549 480-1 | HARNESS, INST | 2311- | |||||
| 174 | I8-98487 977-0 | FUSE, SLOW BLOW | 2311- | |||||
| 1 | I7-55203 304-0 | HARNESS, CAB | 2311- | |||||
| 2 | I8-94422 639-1 | DIODE, CABLE HARNESS | 2311- | |||||

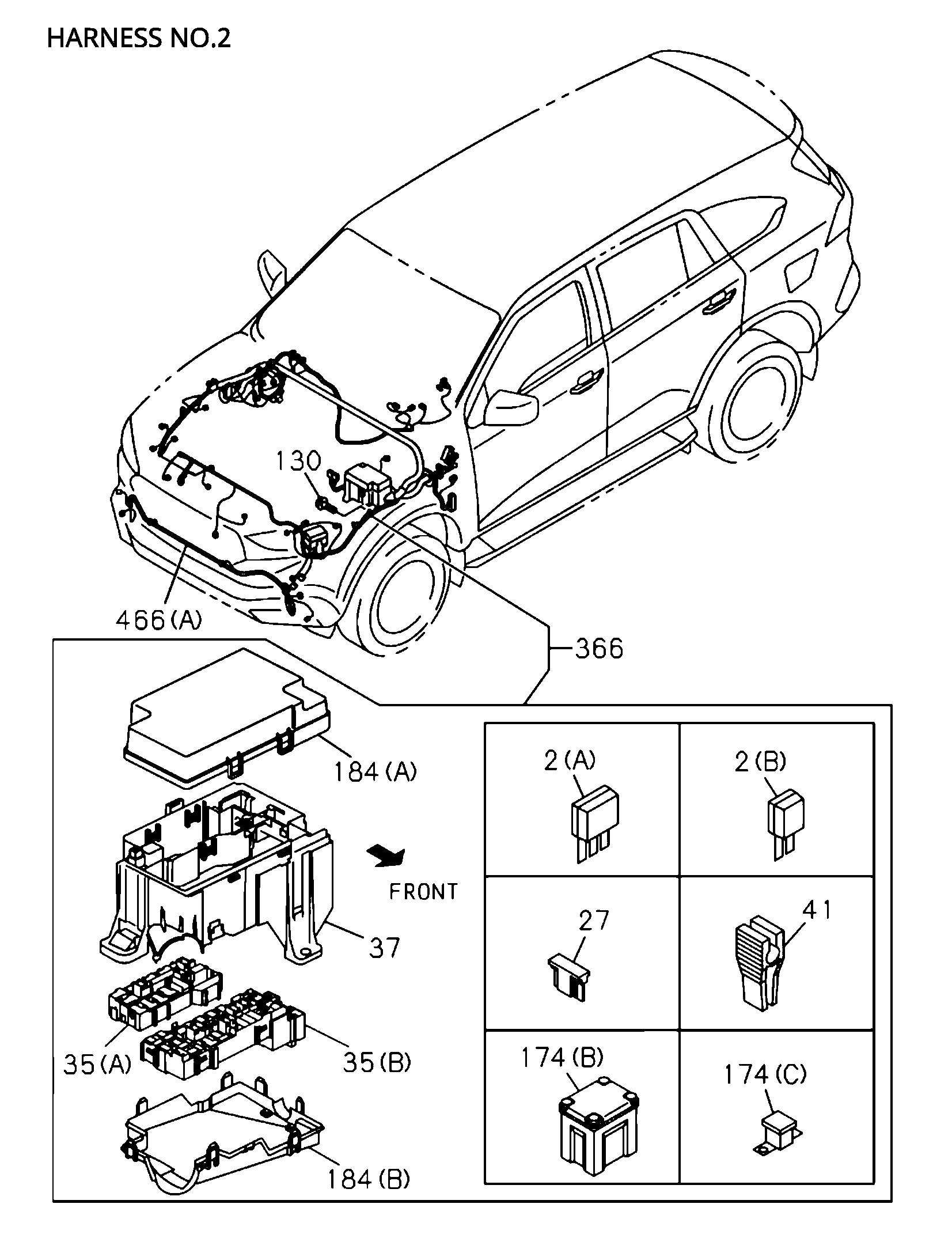

| 35 | I8-97511 976-0 | BOX, RELAY & FUSE | 2311- | |||||
| 226 | I8-97540 995-1 | HARNESS, RR DOOR | 2311- | |||||
| 13 | I8-97826 478-0 | HARNESS, ENG | 2311- | |||||
| 736 | I8-97309 292-0 | RELAY, DIMMER & PASSING | 2311- | |||||
| 189 | I8-97540 776-1 | HARNESS, EXT | 2311- | |||||
| 1 | I8-97669 544-1 | HARNESS, CAB | 2311- | |||||
| 466 | I8-97540 780-0 | HARNESS, BUMPER | 2311- | |||||
| 27 | I8-98487 973-0 | FUSE UNIT | 2311- | |||||
| 11 | I8-97541 146-3 | HARNESS, BODY | 2311- | |||||
| 189 | I8-97540 773-3 | HARNESS, EXT | 2311- | |||||
| 18 | I8-97540 973-0 | HARNESS, DOOR | 2311- | |||||
| 4 | I8-97555 091-0 | BOX ASM, FUSE,HARNESS | 2311- | |||||
| 27 | I8-98487 975-0 | FUSE UNIT | 2311- | |||||
| 745 | I8-97512 894-0 | RELAY, HEATER | 2311- | |||||
| 37 | I8-97511 975-0 | COVER, FUSE,RELAY & FUSE BOX | 2311- | |||||
| 184 | I8-97511 980-0 | COVER, RELAY & FUSE BOX | 2311- | |||||
| 5 | I8-97556 560-0 | FUSE, FACIA HARNESS | 2311- | |||||
| 533 | I8-97648 477-0 | CLIP, HARNESS | 2311- | |||||
| 189 | I8-97826 357-0 | HARNESS, EXT | 2311- | |||||
| 189 | I8-97540 777-1 | HARNESS, EXT | 2311- | |||||

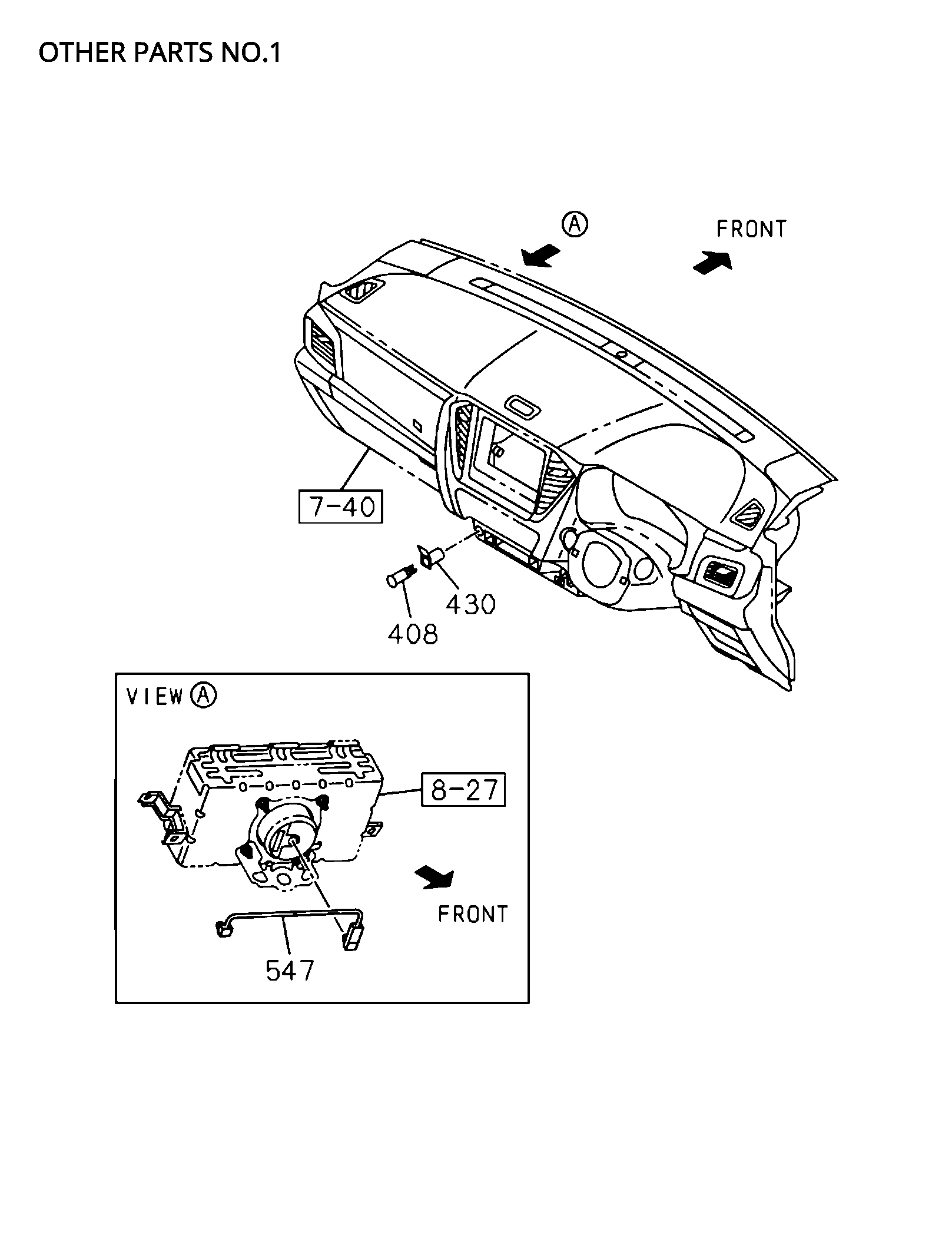

| 547 | I8-97492 244-5 | HARNESS, CABLE,SRS | 2311- | |||||
| 226 | I8-97540 997-1 | HARNESS, RR DOOR | 2311- | |||||
| 189 | I8-97540 774-1 | HARNESS, EXT | 2311- | |||||
| 453 | I8-94452 553-0 | PROTECTOR, HARNESS | 2311- | |||||
| 27 | I8-98487 976-0 | FUSE UNIT | 2311- | |||||
| 2 | I8-94422 640-1 | DIODE, CABLE HARNESS | 2311- | |||||
| 5 | I8-97556 557-0 | FUSE, FACIA HARNESS | 2311- | |||||
| 774 | I8-97309 292-0 | RELAY, DIMMER & PASSING | 2311- | |||||
| 35 | I8-97511 978-0 | BOX, RELAY & FUSE | 2311- | |||||
| 747 | I8-97512 894-0 | RELAY, HEATER | 2311- | |||||
| 174 | I8-98487 978-0 | FUSE, SLOW BLOW | 2311- | |||||
| 12 | I8-97540 938-1 | HARNESS, ROOF | 2311- | |||||
| 533 | I8-97811 150-1 | CLIP | 2311- | |||||
| 5 | I8-97556 556-0 | FUSE, FACIA HARNESS | 2311- | |||||
| 38 | I8-97557 839-2 | HARNESS, CHAS | 2311- | |||||
| 5 | I8-97556 559-0 | FUSE, FACIA HARNESS | 2311- | |||||
| 83 | I8-97540 772-1 | HARNESS, AIR CONDITIONER | 2311- | |||||
| 748 | I8-97512 894-0 | RELAY, HEATER | 2311- | |||||
| 668 | I8-97541 934-0 | BRACKET, HARNESS | 2311- | |||||
| 189 | I8-97826 358-0 | HARNESS, EXT | 2311- | |||||
| 27 | I8-98487 974-0 | FUSE UNIT | 2311- | |||||
| 4 | I8-97555 092-0 | BOX ASM, FUSE,HARNESS | 2311- | |||||
| 174 | I8-97497 198-0 | FUSE, SLOW BLOW | 2311- | |||||
| 533 | I8-94232 620-0 | CLIP, BAND | 2311- | |||||
| 18 | I8-97541 023-0 | HARNESS, DOOR | 2311- | |||||
| 174 | I8-98487 979-0 | FUSE, SLOW BLOW | 2311- | |||||
| 366 | I8-97845 131-0 | HARNESS, CABLE,ENG ROOM | 2311- | |||||
| 226 | I8-97540 994-1 | HARNESS, RR DOOR | 2311- | |||||
| 466 | I8-97540 783-1 | HARNESS, BUMPER | 2311- | |||||
| 772 | I8-97492 245-1 | HARNESS, CAMERA | 2311- | |||||
| 1 | I7-55203 360-0 | HARNESS, CAB | 2311- | |||||
| 466 | I8-97540 779-0 | HARNESS, BUMPER | 2311- | |||||
| 38 | I8-97557 843-2 | HARNESS, CHAS | 2311- | |||||
| 466 | I8-97540 781-1 | HARNESS, BUMPER | 2311- | |||||
| 366 | I8-97845 133-0 | HARNESS, CABLE,ENG ROOM | 2311- | |||||
| 5 | I8-97556 558-0 | FUSE, FACIA HARNESS | 2311- | |||||
| 11 | I8-97844 484-2 | HARNESS, BODY | 2311- | |||||
| 226 | I8-97540 996-1 | HARNESS, RR DOOR | 2311- | |||||
| 764 | I8-97309 292-0 | RELAY, DIMMER & PASSING | 2311- | |||||
| 174 | I8-94388 306-1 | FUSE, 100A | 2311- | |||||
| 12 | I8-97550 583-1 | HARNESS, ROOF | 2311- | |||||
| 174 | I8-97556 563-0 | FUSE, SLOW BLOW | 2311- | |||||
| 366 | I8-97845 129-0 | HARNESS, CABLE,ENG ROOM | 2311- | |||||
| 174 | I8-97556 562-0 | FUSE, SLOW BLOW | 2311- | |||||
| 174 | I8-98487 980-0 | FUSE, SLOW BLOW | 2311- | |||||

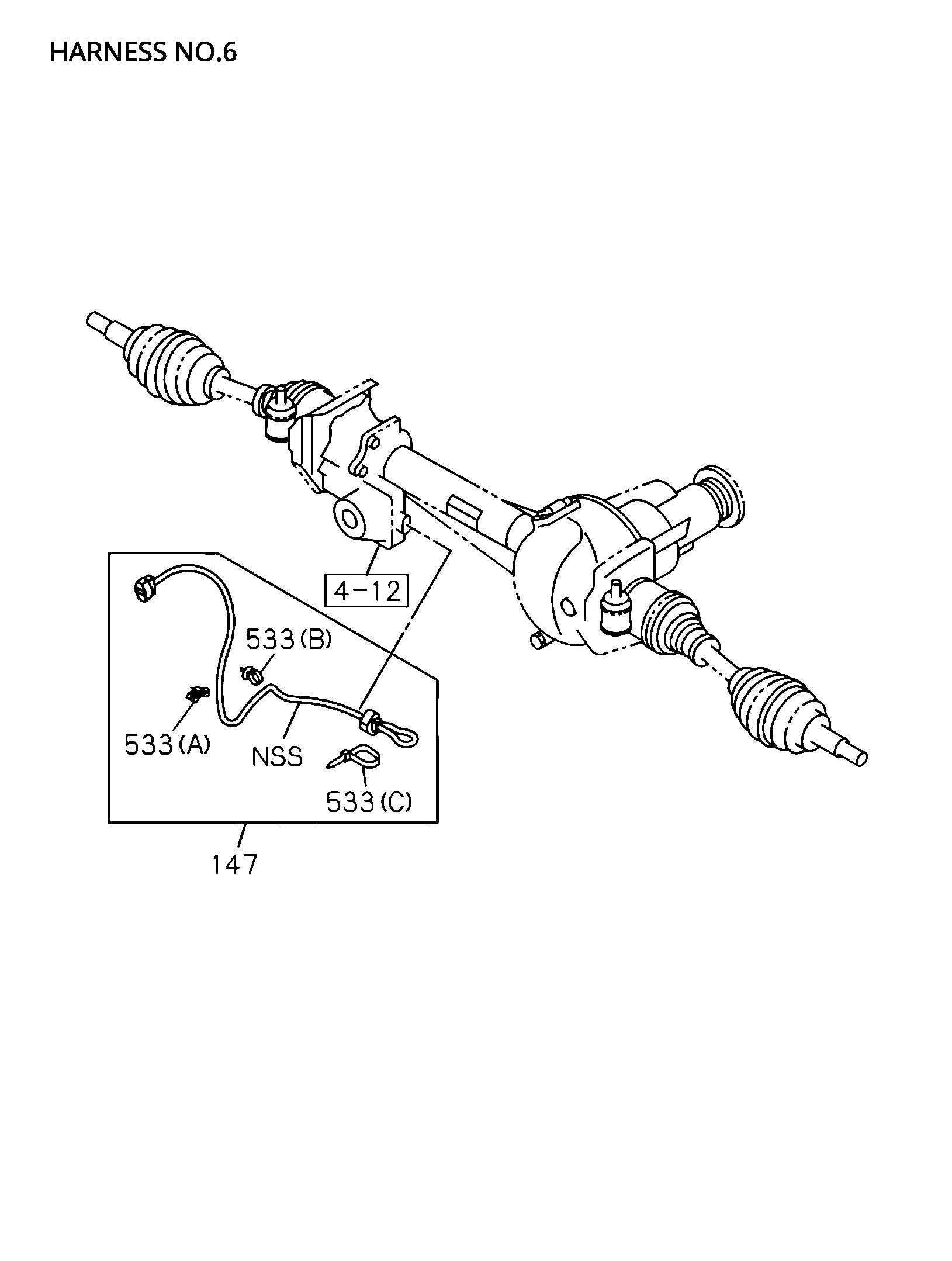

| 147 | I8-97492 299-2 | HARNESS, ACCEL SW | 2311- | |||||
| 466 | I8-97845 137-2 | HARNESS, BUMPER | 2311- | |||||
| 226 | I8-97550 989-1 | HARNESS, RR DOOR | 2311- | |||||
| 466 | I8-97550 952-0 | HARNESS, BUMPER | 2311- | |||||
| 184 | I8-97511 973-4 | COVER, RELAY & FUSE BOX | 2311- | |||||
| 11 | I8-97541 136-3 | HARNESS, BODY | 2311- | |||||
| 5 | I8-97556 561-0 | FUSE, FACIA HARNESS | 2311- | |||||
| 12 | I8-97540 935-1 | HARNESS, ROOF | 2311- |
