8-28 | 8-28 - CHASSIS ELECTRICAL
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

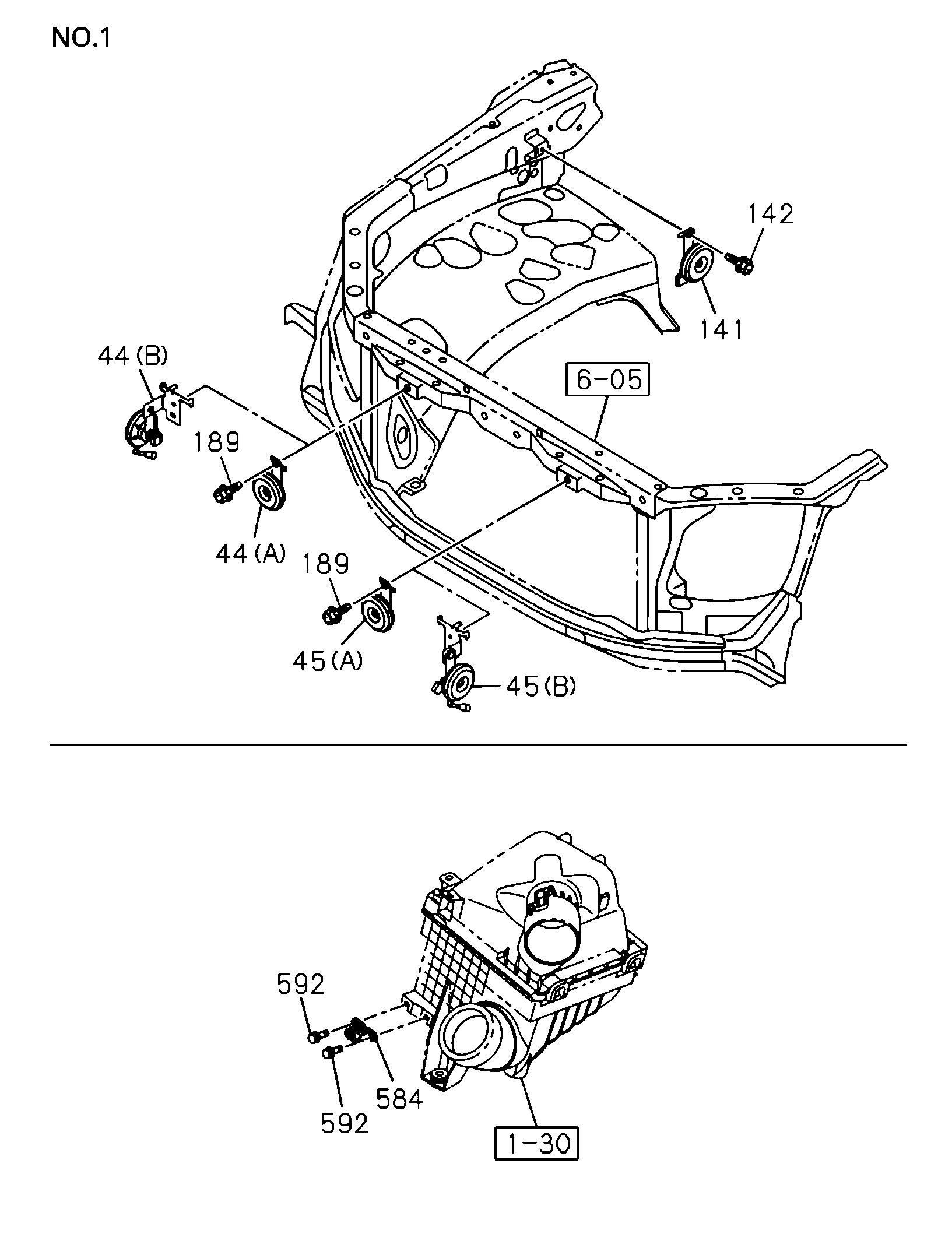

| 189 | I8-98164 836-0 | BOLT, HORN | 2 | 2110- | AB | M6X14W/PL WASHER | ||
| 734 | I8-98192 897-0 | ALARM, MULTI | 1 | 2110- | AB | PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR>,PASSIVE ENTRY W/PUSH START<8WY> | ||
| 592 | I0-28650 616-0 | BOLT, SENSOR | 2 | 2110- | AB | RZ4E-TC ENG(RDZ) EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M6X16 FLANGE | ||

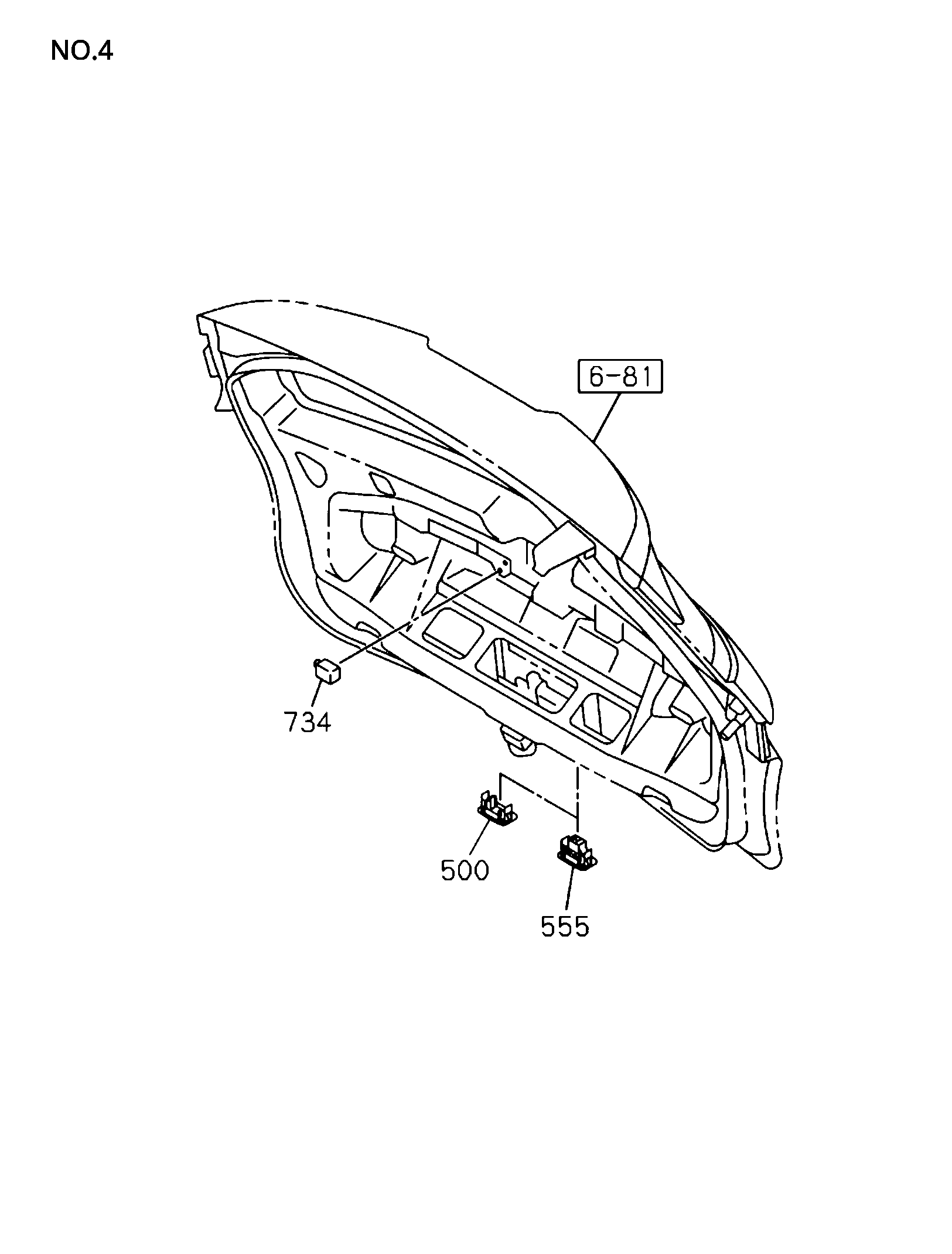

| 555 | I8-97524 409-0 | SWITCH, TAIL GATE | 1 | 2110- | AB | POWER TAIL GATE<E61> | ||
| 500 | I8-97539 329-0 | COVER, HOLE.SWITCH | 1 | 2110- | AB | EXC. POWER TAIL GATE<E61 > | ||
| 45 | I8-97656 713-0 | HORN, LOW NOTE | 1 | 2110- | AB | INDONESIA EQUIPMENT(BOO) (B) | ||
| 142 | I8-98164 836-0 | BOLT, HORN.ANTI THEFT | 1 | 2110- | AB | REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14W/PL WASHER | ||
| 44 | I8-97656 712-0 | HORN, HIGH NOTE | 1 | 2110- | AB | INDONESIA EQUIPMENT(BOO) (B) | ||
| 141 | I8-98164 588-0 | HORN, ANTI THEFT | 1 | 2110- | AB | REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> | ||

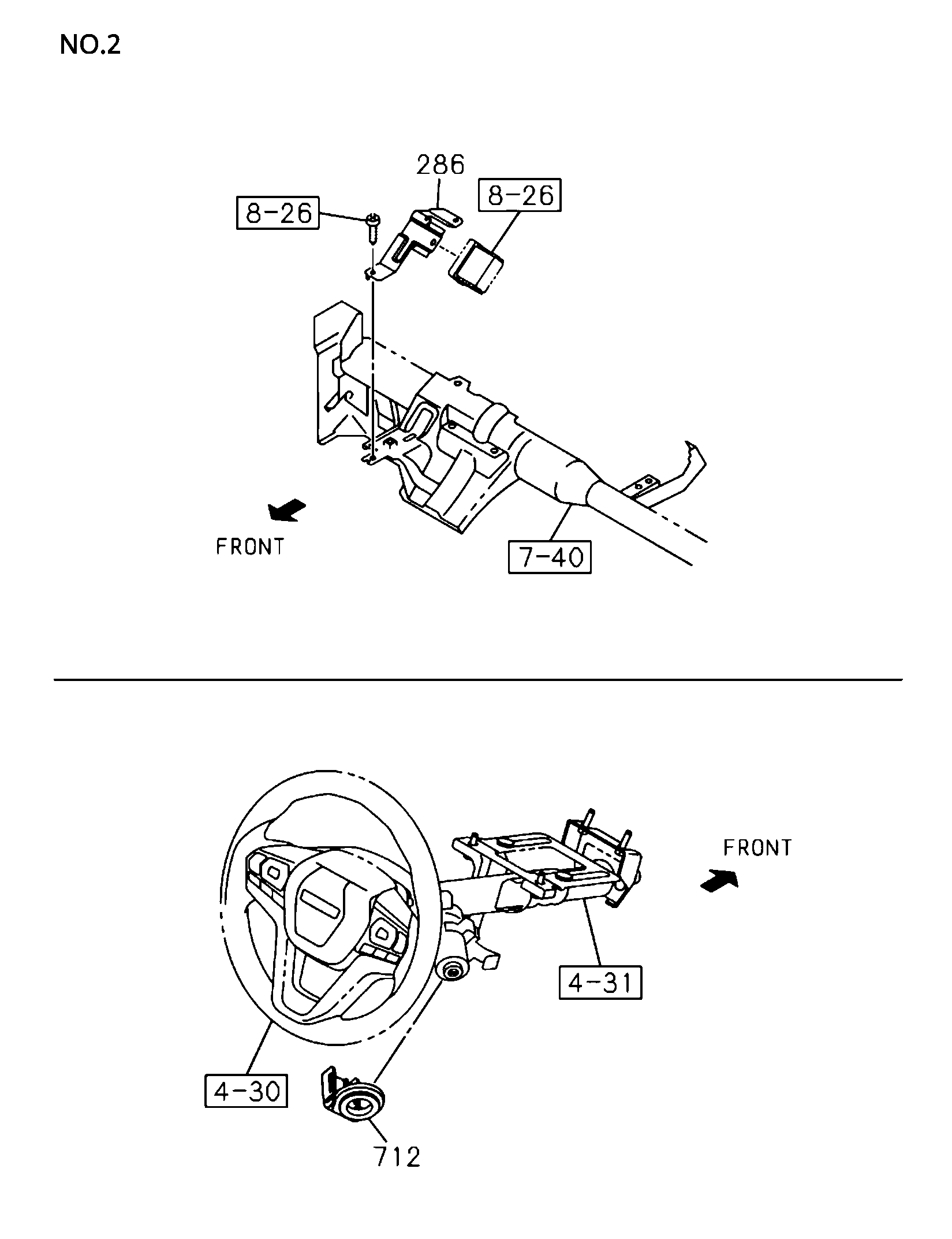

| 712 | I8-98394 787-0 | CONTROL UNIT, ANTI THEFT | 1 | 2110- | AB | REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> | ||

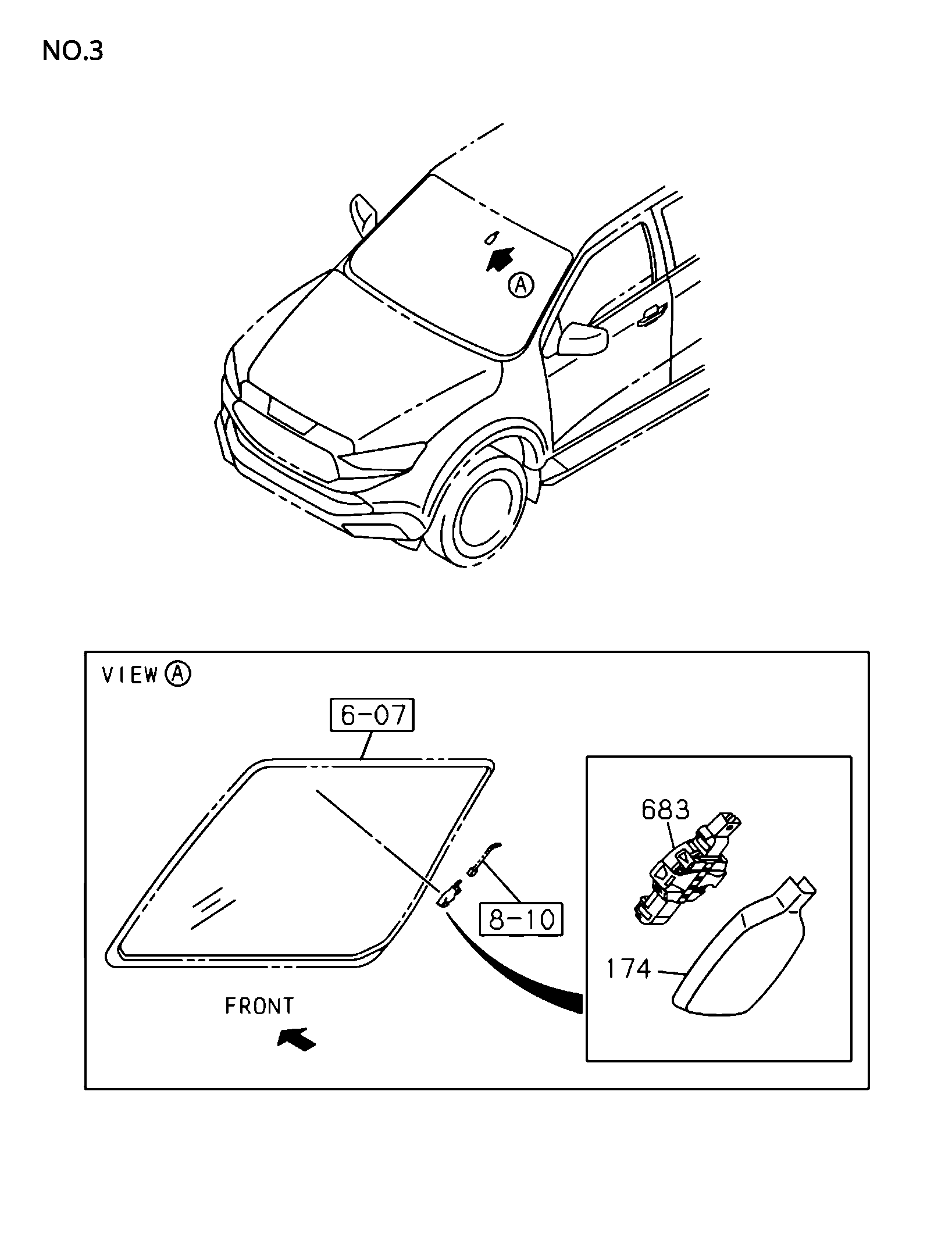

| 683 | I8-98395 347-2 | SENSOR, SUN | 1 | 2110- | AB | AUTO LIGHT 8. AUTOMATIC HIGH BEAM<T80>,AUTO LIGHT<T82> AUTO WIPER<8SN> | ||
| 734 | I8-98192 897-0 | ALARM, MULTI | 1 | 2110- | AB | POWER TAIL GATE<E61 > | ||
| 286 | I8-97516 345-0 | BRACKET | 1 | 2110- | AB |
