8-40 | 8-40 - HEATER SYSTEM
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

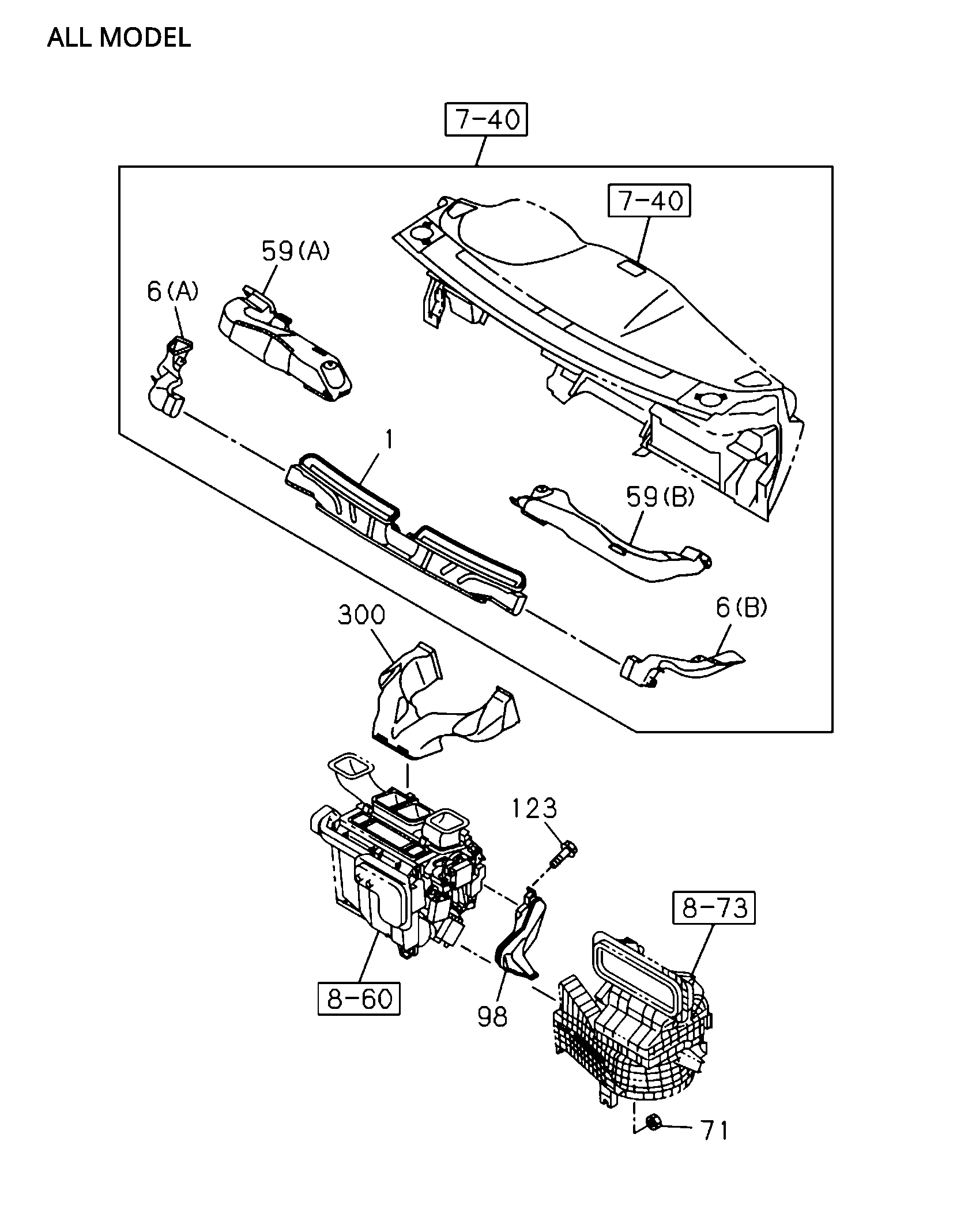

| 59 | I8-97553 766-0 | DUCT, VENT.ASSIST SIDE | 1 | 2110- | AB | (A) | ||
| 300 | I8-98398 503-0 | DUCT, VENT.CENTER | 1 | 2110- | AB | |||
| 1 | I8-97553 763-1 | NOZZLE, DEFROSTER.INST PNL | 1 | 2110- | AB | AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61 ) | ||
| 71 | I8-94279 514-0 | NUT, BLOWER UNIT TO DASH | 1 | 2110- | AB | M6FLANGE | ||
| 6 | I8-97553 764-0 | DUCT, SIDE DEFROSTER | 1 | 2110- | AB | AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61 ) (A) | ||
| 59 | I8-97553 767-0 | DUCT, VENT.ASSIST SIDE | 1 | 2110- | AB | (B) | ||

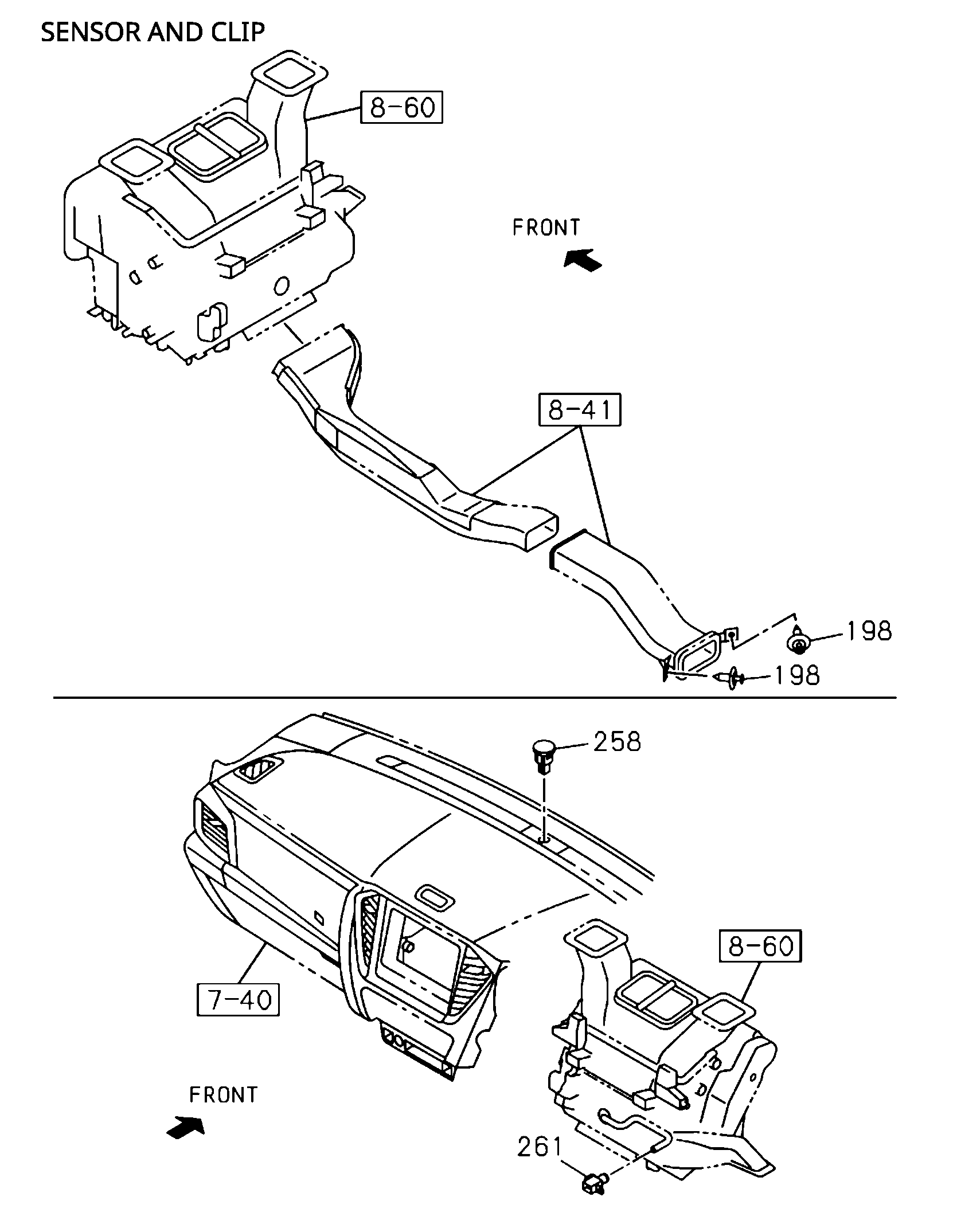

| 198 | I8-97360 070-0 | CLIP, DUCT | 2 | 2110- | AB | REAR HEATER DUCT<S8C> BLACK | ||
| 6 | I8-97553 765-0 | DUCT, SIDE DEFROSTER | 1 | 2110- | AB | AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61 ) (B) | ||
| 123 | I8-98167 449-0 | SCREW, DUCT | 1 | 2110- | AB | AIR CONDITIONER AUTOMATIC CONT(C61) M5X16 TAPPING | ||
| 98 | I8-97491 446-1 | DUCT, BLOWER UNIT TO HTR UNIT | 1 | 2110- | AB | AIR CONDITIONER AUTOMATIC CONT(C61) | ||
| 261 | I8-98394 853-0 | SENSOR, IN CAR | 1 | 2110- | AB | AIR CONDITIONER AUTOMATIC CONT(C61) | ||
| 258 | I8-98394 854-0 | SENSOR, SUN | 1 | 2110- | AB | AIR CONDITIONER AUTOMATIC CONT(C61) |
