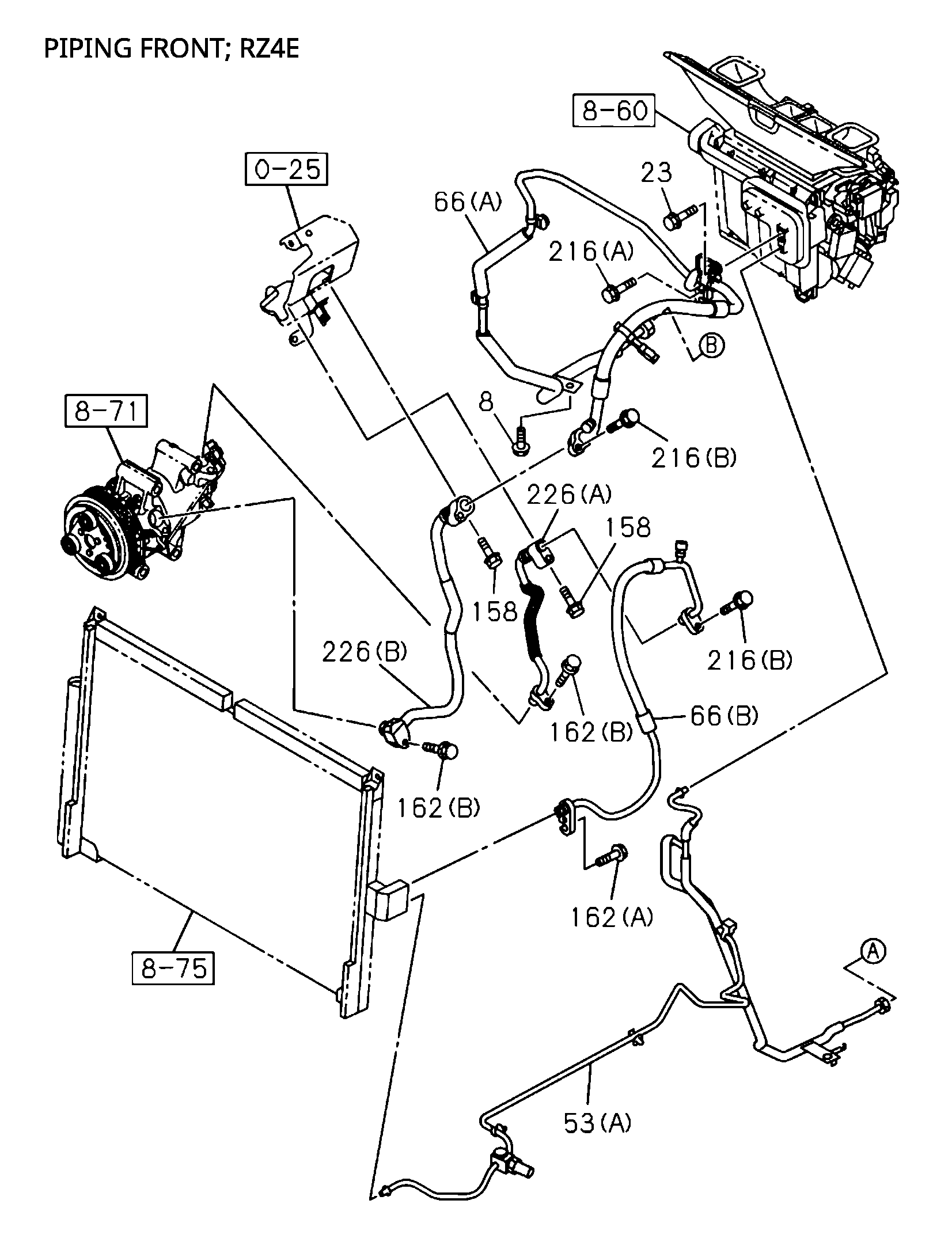

8-52 | 8-52 - PIPING, AIR CONDITIONING
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 67 | I8-97512 040-0 | GASKET, FLEX HOSE | 1 | 2110- | AB | (C) | ||
| 192 | I8-97686 930-0 | PLATE, COOLER HOSE | 1 | 2110- | AB | RZ4E-TC ENG(RDZ) EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N{NT2),EUR04 SPECIFICATION(NT4) | ||
| 226 | I8-97844 540-0 | TUBE, A/C | 2311- | |||||
| 8 | I0-28650 620-0 | BOLT, CLIP | 10 | 2110- | AB | M6X20 FLANGE | ||

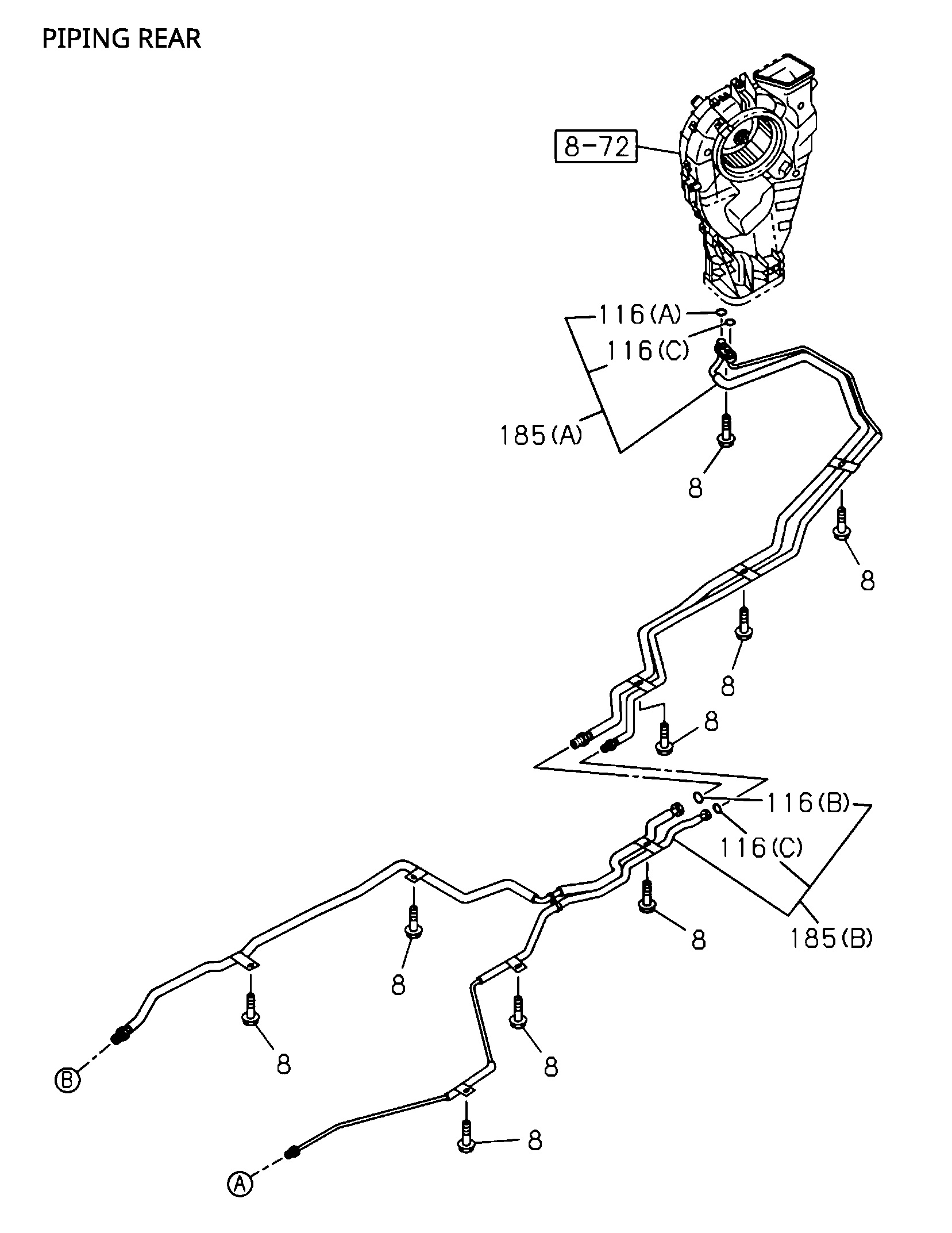

| 185 | I8-97507 117-0 | PIPE, EVAP TO FLEX HOSE,PRESS LO | 1 | 2110- | AB | (B) | ||
| 49 | I8-97686 928-0 | CLAMP, FLEX HOSE | 1 | 2110- | AB | RZ4E-TC ENG(RDZ) EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (A) | ||
| 147 | I8-97512 045-0 | CAP, FLEX HOSE | 1 | 2110- | AB | (A) | ||
| 67 | I8-97512 041-0 | GASKET, FLEX HOSE | 4 | 2110- | AB | RZ4E-TC ENG(RDZ) (B) | ||
| 116 | I8-97512 039-0 | GASKET, PIPE | 1 | 2110- | AB | (A) | ||
| 162 | I0-28650 825-0 | BOLT, FLEX HOSE | 2 | 2110- | AB | 4JJ3 ENG(LNG) (A) M8X25 FLANGE | ||
| 216 | I0-28650 825-0 | BOLT, HOSE FIX | 2 | 2110- | AB | RZ4E-TC ENG(RDZ) (B) M8X25 FLANGE | ||
| 23 | I8-97383 407-0 | BOLT, BRKT | 1 | 2110- | AB | M6X30 W/PL WASHER | ||
| 67 | I8-97512 039-0 | GASKET, FLEX HOSE | 2 | 2110- | AB | RZ4E-TC ENG(RDZ) (A) | ||
| 66 | I8-97491 399-2 | HOSE, FLEX.A/C | 1 | 2110- | AB | RZ4E-TC ENG(RDZ) EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N{NT2),EUR04 SPECIFICATION(NT4) (B) | ||
| 122 | I8-97512 043-0 | GASKET | 1 | 2110- | AB | |||
| 116 | I8-97512 041-0 | GASKET, PIPE | 1 | 2110- | AB | (B) | ||
| 147 | I8-97512 044-0 | CAP, FLEX HOSE | 1 | 2110- | AB | (B) | ||
| 116 | I8-97512 042-0 | GASKET, PIPE | 2 | 2110- | AB | (C) | ||
| 185 | I8-97507 116-0 | PIPE, EVAP TO FLEX HOSE,PRESS LO | 1 | 2110- | AB | (A) | ||
| 214 | I8-97686 931-0 | RUBBER, CUSHION | 1 | 2110- | AB | 4JJ3 ENG(LNG) | ||
| 214 | I8-97686 931-0 | RUBBER, CUSHION | 1 | 2110- | AB | RZ4E-TC ENG(RDZ) EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 49 | I8-97683 078-0 | CLAMP, FLEX HOSE | 1 | 2110- | AB | "RZ4E-TC ENG(RDZ) EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICA""n0N(NT2),EUR04 SPECIFICATION(NT4) (B)" | ||
| 192 | I8-97686 930-0 | PLATE, COOLER HOSE | 1 | 2110- | AB | 4JJ3 ENG(LNG) | ||
| 158 | I0-52000 616-0 | BOLT, PIPE FIX | 2 | 2110- | AB | RZ4E-TC ENG(RDZ) M6X16 | ||
| 226 | I8-97844 542-0 | TUBE, A/C | 2311- | |||||
| 162 | I0-28650 835-0 | BOLT, FLEX HOSE | 2 | 2110- | AB | RZ4E-TC ENG(RDZ) (B) M8X35 FLANGE | ||
| 67 | I8-97512 041-0 | GASKET, FLEX HOSE | 3 | 2110- | AB | 4JJ3 ENG(LNG) (B) | ||
| 216 | I0-28650 620-0 | BOLT, HOSE FIX | 1 | 2110- | AB | (A) M6X20 FLANGE | ||
| 146 | I8-97512 046-0 | CLIP, RECEIVER PIPE | 2 | 2110- | AB | (A) | ||
| 66 | I8-97507 094-1 | HOSE, FLEX.A/C | 1 | 2110- | AB | RZ4E-TC ENG(RDZ) EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (A) | ||
| 146 | I8-97512 047-0 | CLIP, RECEIVER PIPE | 1 | 2110- | AB | (B) | ||
| 162 | I0-28650 825-0 | BOLT, FLEX HOSE | 1 | 2110- | AB | (A) M8X25 FLANGE | ||
| 202 | I8-97512 048-0 | SWITCH, PRESSURE | 1 | 2110- | AB | |||

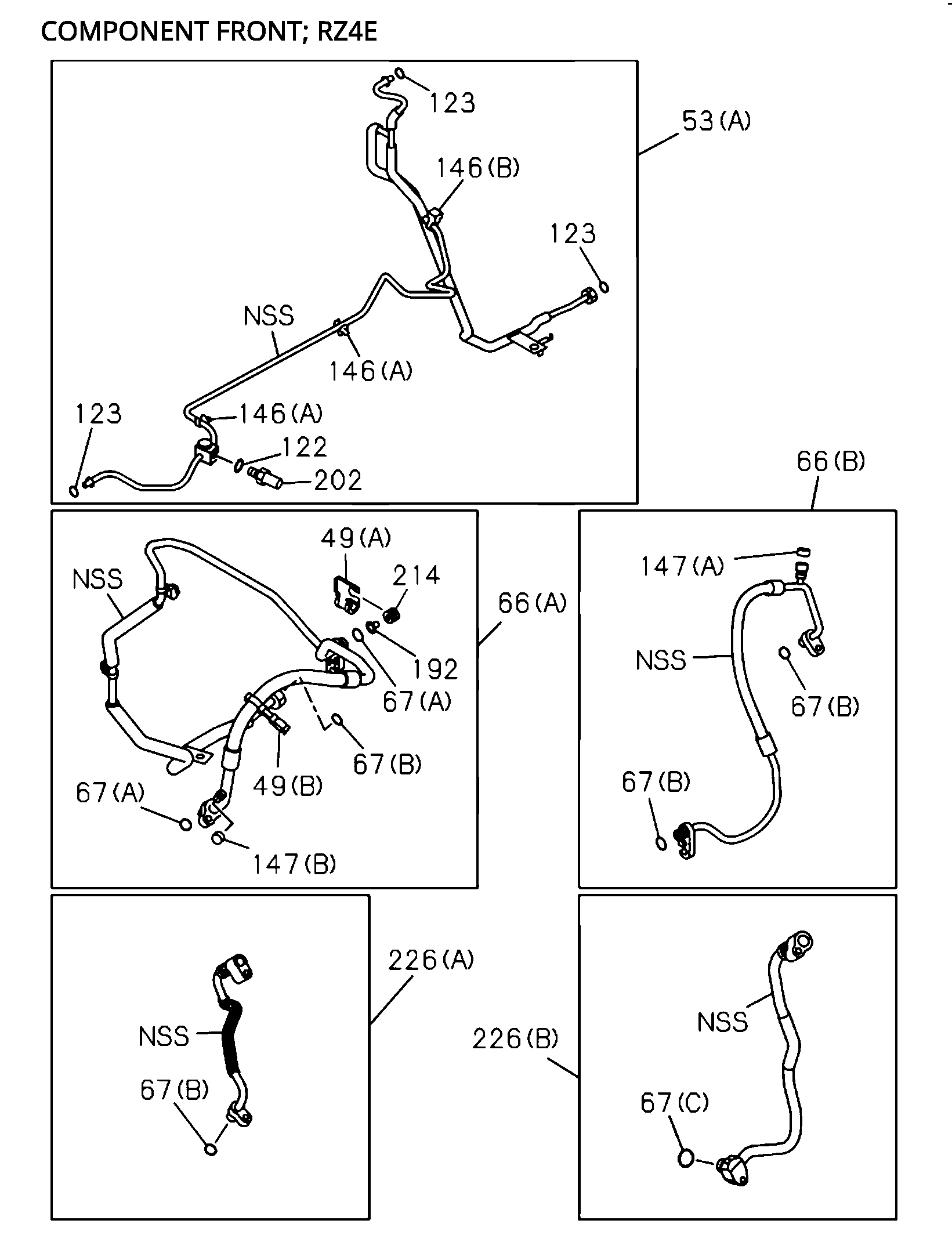

| 53 | I8-97507 115-0 | PIPE, RECEIVER TANK TO EVAP | 1 | 2110- | AB | RZ4E-TC ENG(RDZ) (A) | ||
| 49 | I8-97686 928-0 | CLAMP, FLEX HOSE | 1 | 2110- | AB | 4JJ3 ENG(LNG) (A) | ||
| 67 | I8-97512 039-0 | GASKET, FLEX HOSE | 1 | 2110- | AB | 4JJ3 ENG(LNG) (A) | ||
| 123 | I8-97512 042-0 | GASKET, RECEIVER PIPE | 3 | 2110- | AB |
