8-73 | 2-46 - AUTO TRANS SUPPORT AND PLANETARY GEAR
MUX
MU-X 2024

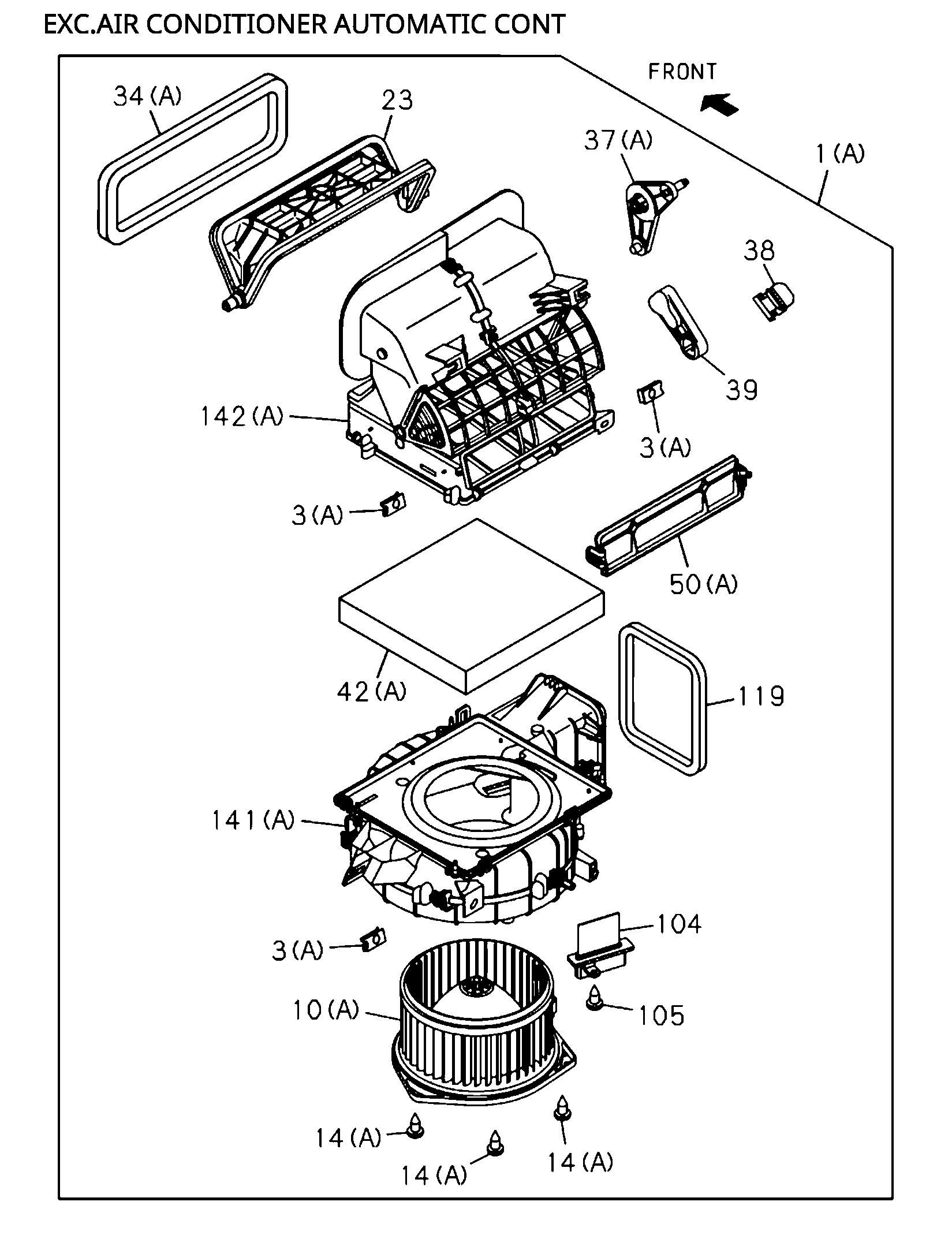

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 50 | I8-97555 454-0 | COVER, BLOWER UNIT | 2311- | |||||
| 141 | I8-97553 721-0 | CASE ASM, BLOWER UNIT | 2311- | |||||
| 23 | I8-97829 094-0 | SHUTTER, BLOWER UNIT | 2311- | |||||
| 42 | I8-97555 450-0 | FILTER, BLOWER UNIT | 2311- | |||||
| 37 | I8-97555 449-0 | LEVER, MODE LEVER | 2311- | |||||
| 34 | I8-97553 731-0 | LINING, BLOWER UNIT | 2311- | |||||
| 50 | I8-97553 735-0 | COVER, BLOWER UNIT | 2311- | |||||
| 42 | I8-97548 842-0 | FILTER, BLOWER UNIT | 2311- | |||||
| 1 | I8-97553 696-1 | BLOWER ASM | 2311- | |||||
| 38 | I8-98139 422-1 | CLIP, BLOWER UNIT | 2311- | |||||
| 14 | I8-97555 457-0 | SCREW, COVER TO CASE | 2311- | |||||
| 10 | I8-97555 458-0 | MOTOR ASM, FAN,BLOWER UNIT | 2311- | |||||
| 39 | I8-97654 251-0 | LEVER, SHUTTER,BLOWER UNIT | 2311- | |||||
| 142 | I8-97553 722-0 | CASE ASM | 2311- | |||||
| 1 | I8-97556 139-0 | BLOWER ASM | 2311- | |||||
| 142 | I8-97555 444-0 | CASE ASM | 2311- | |||||
| 26 | I8-97555 455-0 | TRANSISTOR, BLOWER UNIT | 2311- | |||||
| 141 | I8-97555 567-0 | CASE ASM, BLOWER UNIT | 2311- | |||||
| 34 | I8-97555 460-0 | LINING, BLOWER UNIT | 2311- | |||||
| 37 | I8-97553 727-0 | LEVER, MODE LEVER | 2311- | |||||
| 119 | I8-97553 730-0 | LINING, CASE | 2311- | |||||
| 10 | I8-97553 732-1 | MOTOR ASM, FAN,BLOWER UNIT | 2311- | |||||
| 92 | I8-97555 447-0 | MOTOR ASM, SERVO | 2311- |
