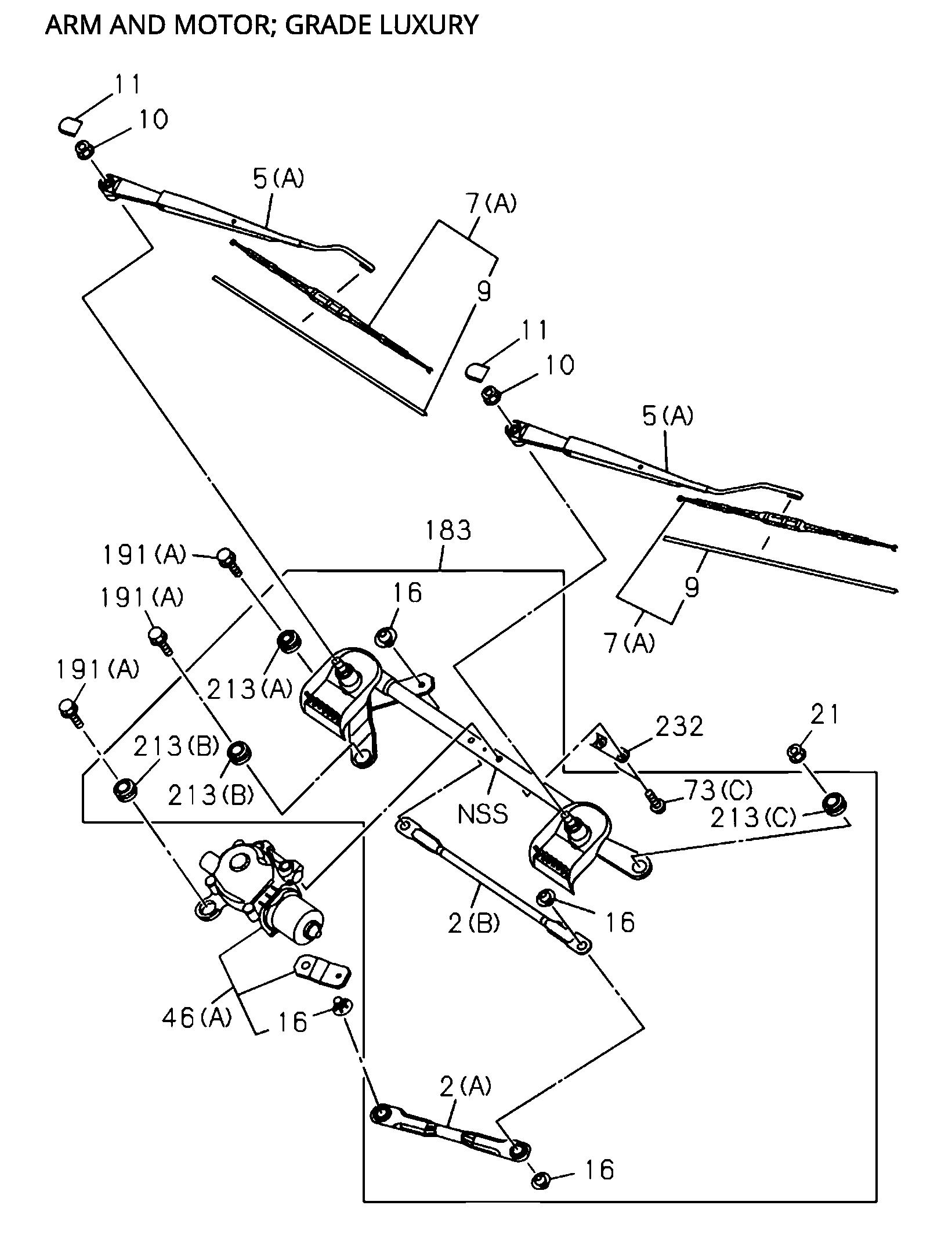

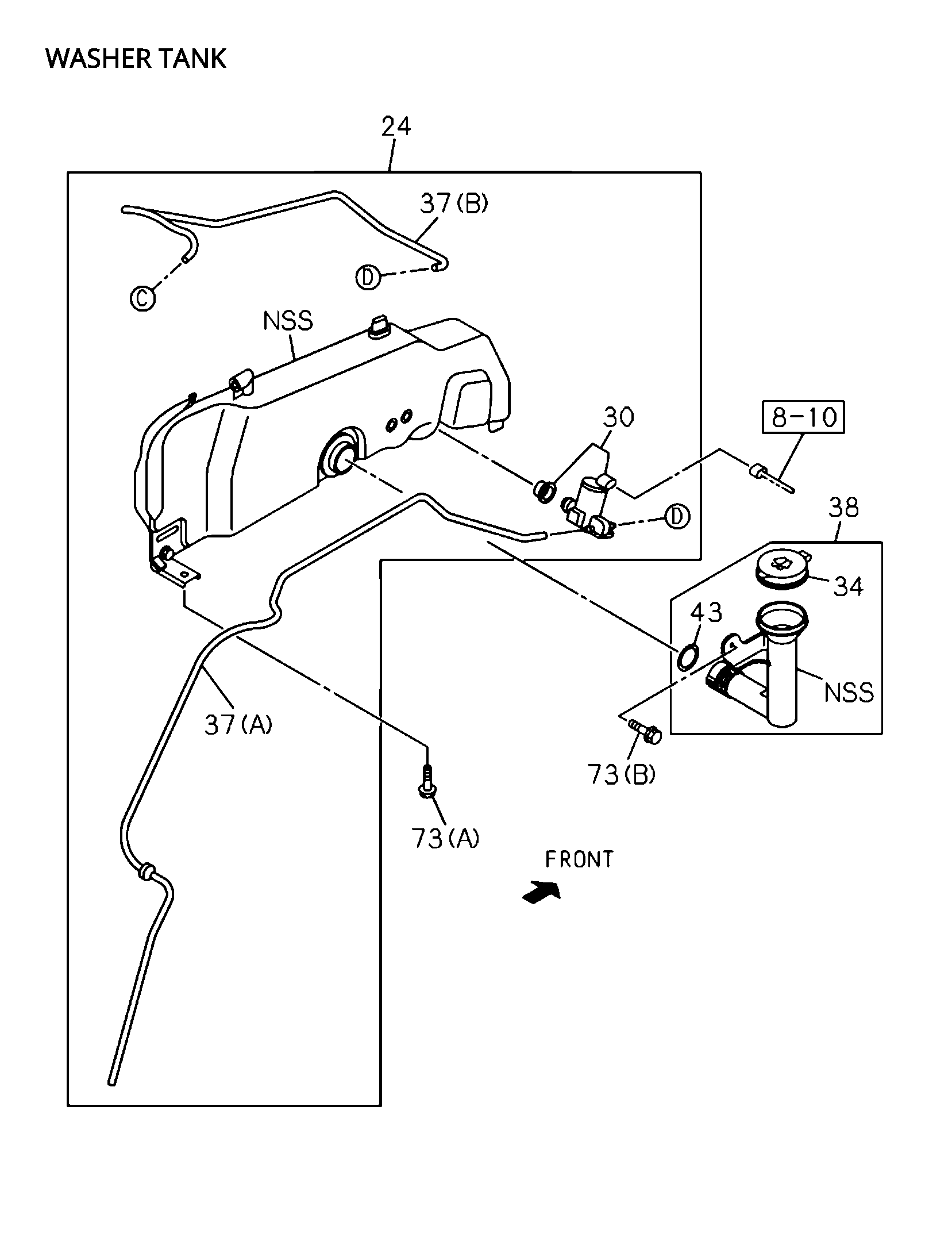

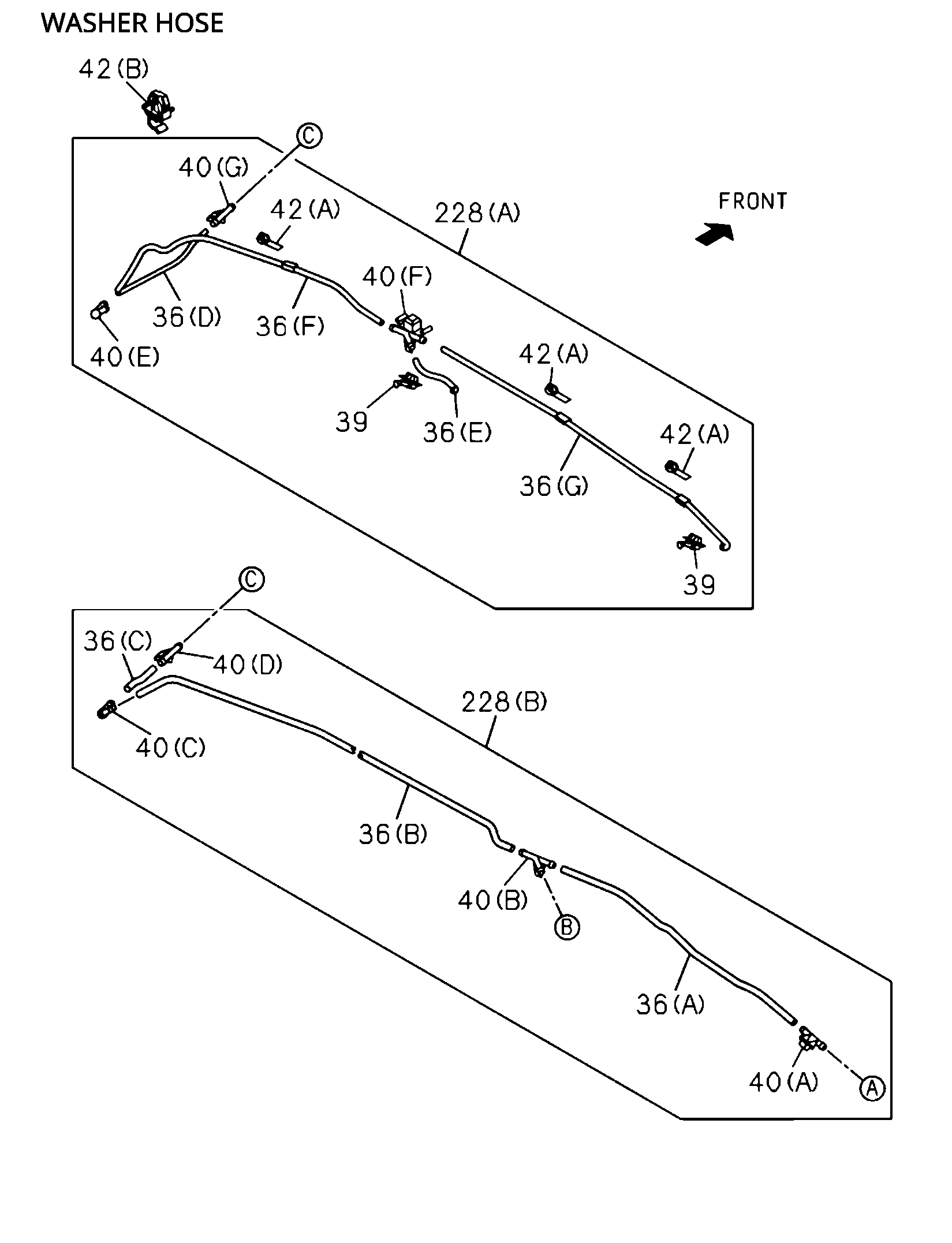

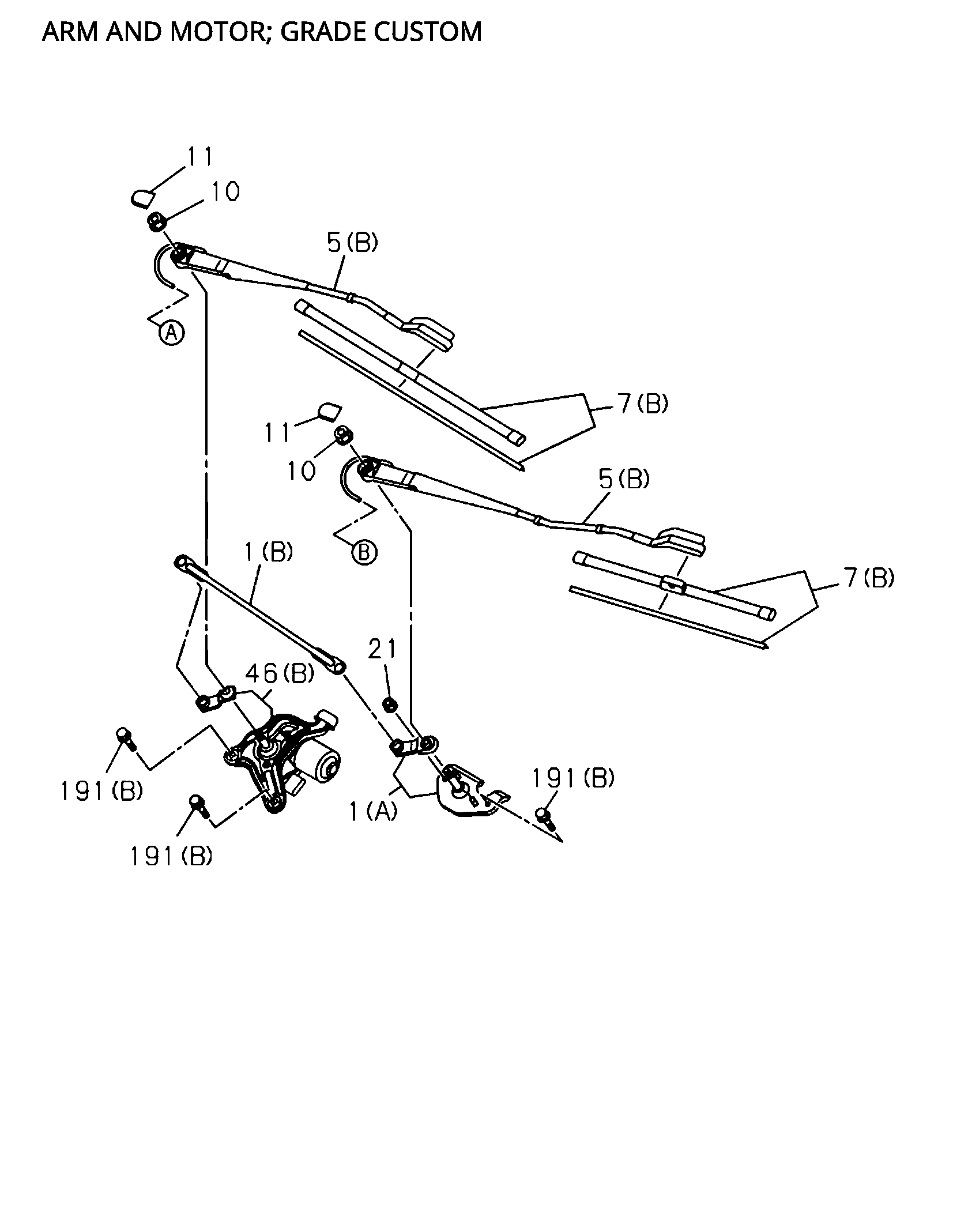

8-80 | 8-80 - WINDSHIELD WIPER AND WASHER
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-97556 024-0 | LINK, FRT WIPER | 1 | 2110- | AB | GRADE LUXURY(RBC) (A) | ||
| 34 | I8-97555 986-0 | CAP, WASHER TANK | 1 | 2110- | AB | |||
| 43 | I8-97555 987-0 | RUBBER, GASKET.TANK | 1 | 2110- | AB | |||
| 38 | I8-98335 252-0 | HOSE, JOINT, TANK | 1 | 2110- | AB | |||
| 7 | I8-97556 805-0 | BLADE, WIPER | 1 | 2110- | AB | GRADE CUSTOM(RBD) (B) | ||
| 37 | I8-97556 380-0 | TUBE ASM, WASHER TANK | 1 | 2110- | AB | (A) | ||
| 228 | I8-97872 397-0 | HOSE ASM, WASHER | 2311- | |||||
| 40 | I8-97556 219-0 | JOINT, WASHER HOSE | 1 | 2110- | AB | GRADE LUXURY(RBC) (E) | ||
| 1 | I8-98335 250-0 | LINK ASM, FRT WIPER | 1 | 2110- | AB | GRADE CUSTOM(RBD) (A) | ||
| 39 | I8-97556 225-0 | NOZZLE, WINDSHIELD WASHER | 2 | 2110- | AB | GRADE LUXURY(RBC) | ||
| 213 | I8-97556 032-0 | RUBBER, MTG | 2 | 2110- | AB | GRADE LUXURY(RBC) (B) | ||
| 5 | I8-97556 809-0 | ARM, WIPER | 1 | 2110- | AB | GRADE CUSTOM(RBD) (B) | ||
| 213 | I8-97556 031-0 | RUBBER, MTG | 1 | 2110- | AB | GRADE LUXURY(RBC) (A) | ||
| 36 | I8-97556 224-0 | HOSE, WASHER | 1 | 2110- | AB | GRADE LUXURY(RBC) (E) | ||
| 7 | I8-97556 804-0 | BLADE, WIPER | 1 | 2110- | AB | GRADE CUSTOM(RBD) (B) | ||
| 1 | I8-98394 052-1 | LINK ASM, FRT WIPER | 1 | 2110- | AB | GRADE CUSTOM(RBD) (B) | ||
| 40 | I8-97556 218-0 | JOINT, WASHER HOSE | 1 | 2110- | AB | GRADE LUXURY(RBC) (G) | ||
| 36 | I8-97556 223-0 | HOSE, WASHER | 1 | 2110- | AB | GRADE LUXURY(RBC) (G) | ||
| 36 | I8-97872 398-0 | HOSE, WASHER | 2311- | |||||
| 7 | I8-97556 040-0 | BLADE, WIPER | 1 | 2110- | AB | GRADE LUXURY(RBC) (A) | ||
| 191 | I8-97383 407-0 | BOLT, WIPER LINK | 3 | 2110- | AB | GRADE CUSTOM(RBD) (B) M6X30W/PL WASHER | ||
| 183 | I8-97556 036-0 | LINK, WIPER | 1 | 2110- | AB | GRADE LUXURY(RBC) | ||
| 46 | I8-98394 046-1 | MOTOR ASM, FRT WINDSHIELD WIPER | 1 | 2110- | AB | GRADE CUSTOM(RBD) (B) | ||
| 40 | I8-97556 055-0 | JOINT, WASHER HOSE | 1 | 2110- | AB | GRADE CUSTOM(RBD) (A) | ||
| 73 | I8-97556 028-0 | BOLT | 2 | 2110- | AB | GRADE LUXURY(RBC) (C) M6X32 | ||
| 73 | I8-98049 357-0 | BOLT | 1 | 2110- | AB | (A) M6X16 FLANGE | ||
| 36 | I8-97556 222-0 | HOSE, WASHER | 1 | 2110- | AB | GRADE LUXURY(RBC) (f) | ||
| 9 | I8-97556 204-0 | RUBBER, FRT WIPER BLADE | 1 | 2110- | AB | GRADE LUXURY(RBC) | ||
| 191 | I8-98048 997-0 | BOLT, WIPER LINK | 3 | 2110- | AB | GRADE LUXURY(RBC) (A) M6X33W/PL WASHER | ||
| 16 | I8-97556 029-0 | SEAL, BALL JOINT | 4 | 2110- | AB | GRADE LUXURY(RBC) | ||
| 73 | I8-98062 140-0 | BOLT | 1 | 2110- | AB | (B) M6X18 TAPPING W/LK&PL WASHER | ||
| 36 | I8-97556 221-0 | HOSE, WASHER | 1 | 2110- | AB | GRADE LUXURY(RBC) (D) | ||
| 232 | I8-97556 034-0 | PLATE, FIXING | 1 | 2110- | AB | GRADE LUXURY(RBC) | ||
| 36 | I8-97556 052-0 | HOSE, WASHER | 1 | 2110- | AB | GRADE CUSTOM(RBD) (A) | ||
| 5 | I8-97556 039-0 | ARM, WIPER | 1 | 2110- | AB | GRADE LUXURY(RBC) (A) | ||
| 40 | I8-97556 057-0 | JOINT, WASHER HOSE | 1 | 2110- | AB | GRADE CUSTOM(RBD) (D) | ||
| 40 | I8-97556 056-0 | JOINT, WASHER HOSE | 1 | 2110- | AB | GRADE CUSTOM(RBD) (B) | ||
| 5 | I8-97556 038-0 | ARM, WIPER | 1 | 2110- | AB | GRADE LUXURY(RBC) (A) | ||
| 46 | I8-97556 035-0 | MOTOR ASM, FRT WINDSHIELD WIPER | 1 | 2110- | AB | GRADE LUXURY(RBC) (A) | ||
| 7 | I8-97556 041-0 | BLADE, WIPER | 1 | 2110- | AB | GRADE LUXURY(RBC) (A) | ||
| 40 | I8-97556 217-0 | JOINT, WASHER HOSE | 1 | 2110- | AB | GRADE LUXURY(RBC) (f) | ||
| 213 | I8-97556 033-0 | RUBBER, MTG | 1 | 2110- | AB | GRADE LUXURY(RBC) (C) | ||
| 37 | I8-97556 381-0 | TUBE ASM, WASHER TANK | 1 | 2110- | AB | (B) | ||
| 11 | I8-98101 104-0 | COVER, WIPER ARM | 2 | 2110- | AB | |||
| 10 | I8-98049 367-0 | NUT, WIPER ARM TO WIPER PIVOT | 2 | 2110- | AB | M10 FLANGE | ||
| 2 | I8-97556 025-0 | LINK, FRT WIPER | 1 | 2110- | AB | GRADE LUXURY(RBC) (B) | ||
| 30 | I8-97556 379-0 | MOTOR ASM, | 1 | 2110- | AB | |||
| 228 | I8-98335 260-0 | HOSE ASM, WASHER | 1 | 2110- | AB | GRADE LUXURY(RBC) (A) | ||
| 42 | I8-97556 220-0 | CLIP, WASHER HOSE | 3 | 2110- | AB | GRADE LUXURY(RBC) (A) | ||
| 24 | I8-98335 253-1 | TANK ASM, WASHER | 1 | 2110- | AB | |||
| 21 | I8-98049 368-0 | NUT, WIPER LINK PIVOT | 1 | 2110- | AB | M6W/DISHED WASHER | ||
| 9 | I8-97556 205-0 | RUBBER, FRT WIPER BLADE | 1 | 2110- | AB | GRADE LUXURY(RBC) | ||
| 5 | I8-97556 808-0 | ARM, WIPER | 1 | 2110- | AB | GRADE CUSTOM(RBD) (B) | ||
| 42 | I8-97492 646-0 | CLIP, WASHER HOSE | 1 | 2110- | AB | GRADE LUXURY(RBC) (B) |
