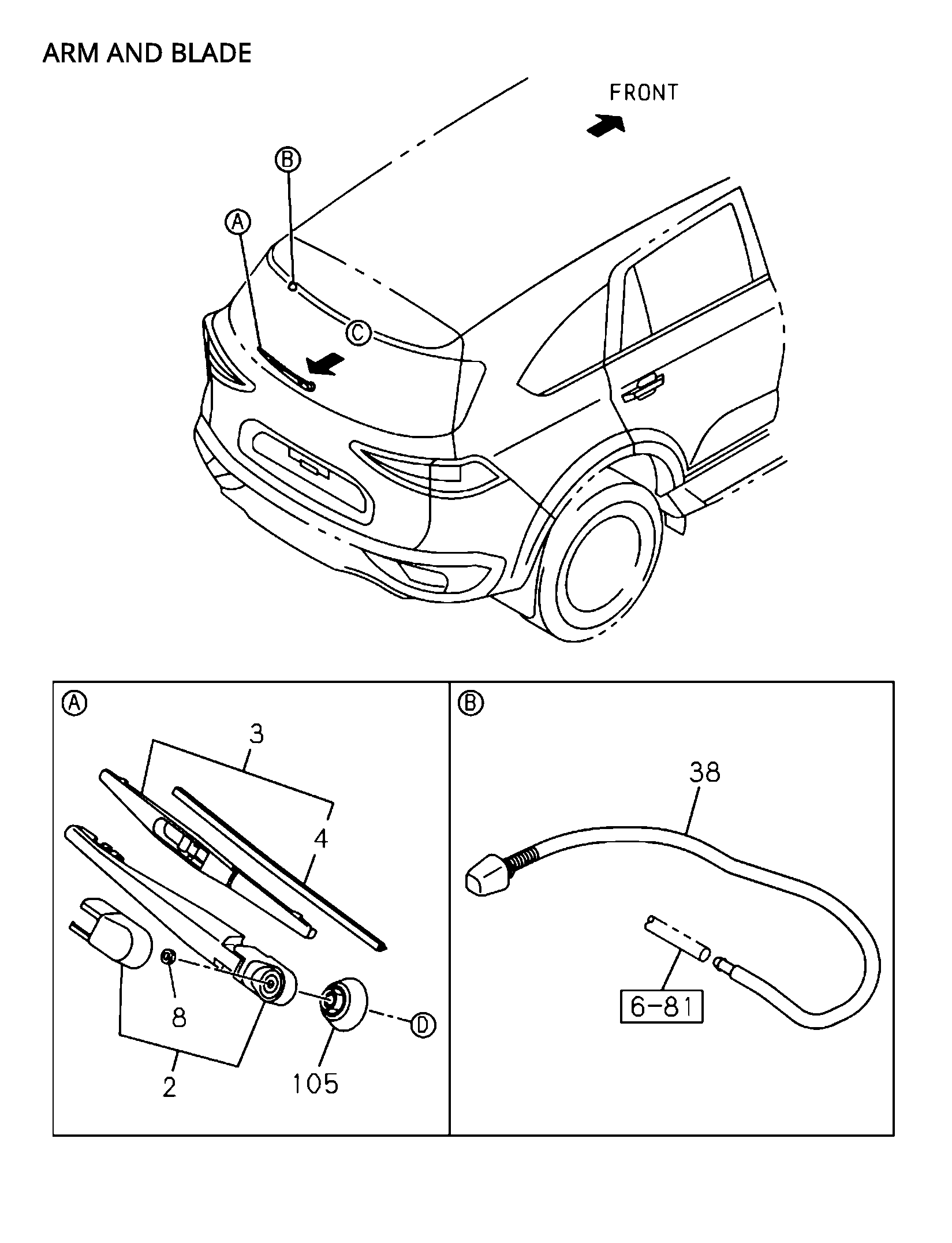

8-85 | 8-85 - REAR WIPER AND WASHER
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 38 | I8-98335 258-0 | NOZZLE ASM, RR WASHER | 1 | 2110- | AB | REMOTE CO NT DOOR LOCK<AP5>,PASSIVE ENTRY W/PUSH START<8WY> EXC. POWER TAIL GATE<E61 > | ||
| 3 | I8-97678 911-0 | BLADE ASM, REAR WIPER | 1 | 2110- | AB | |||
| 8 | I0-91111 506-0 | NUT, RR WIPER ARM TO WIPER MOTOR | 1 | 2110- | AB | M6 | ||
| 4 | I8-97682 346-0 | RUBBER, BLADE.RR WIPER | 1 | 2110- | AB | |||
| 2 | I8-97678 910-0 | ARM ASM, REAR WIPER | 1 | 2110- | AB | |||
| 105 | I8-98210 508-0 | GROMMET, RR WIPER MOTOR | 1 | 2110- | AB | |||
| 99 | I8-98164 723-0 | BOLT, WIPER MOTOR | 3 | 2110- | AB | M6X23.5 W/LK&PL WASHER | ||
| 38 | I8-98335 258-0 | NOZZLE ASM, RR WASHER | 1 | 2110- | AB | PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||

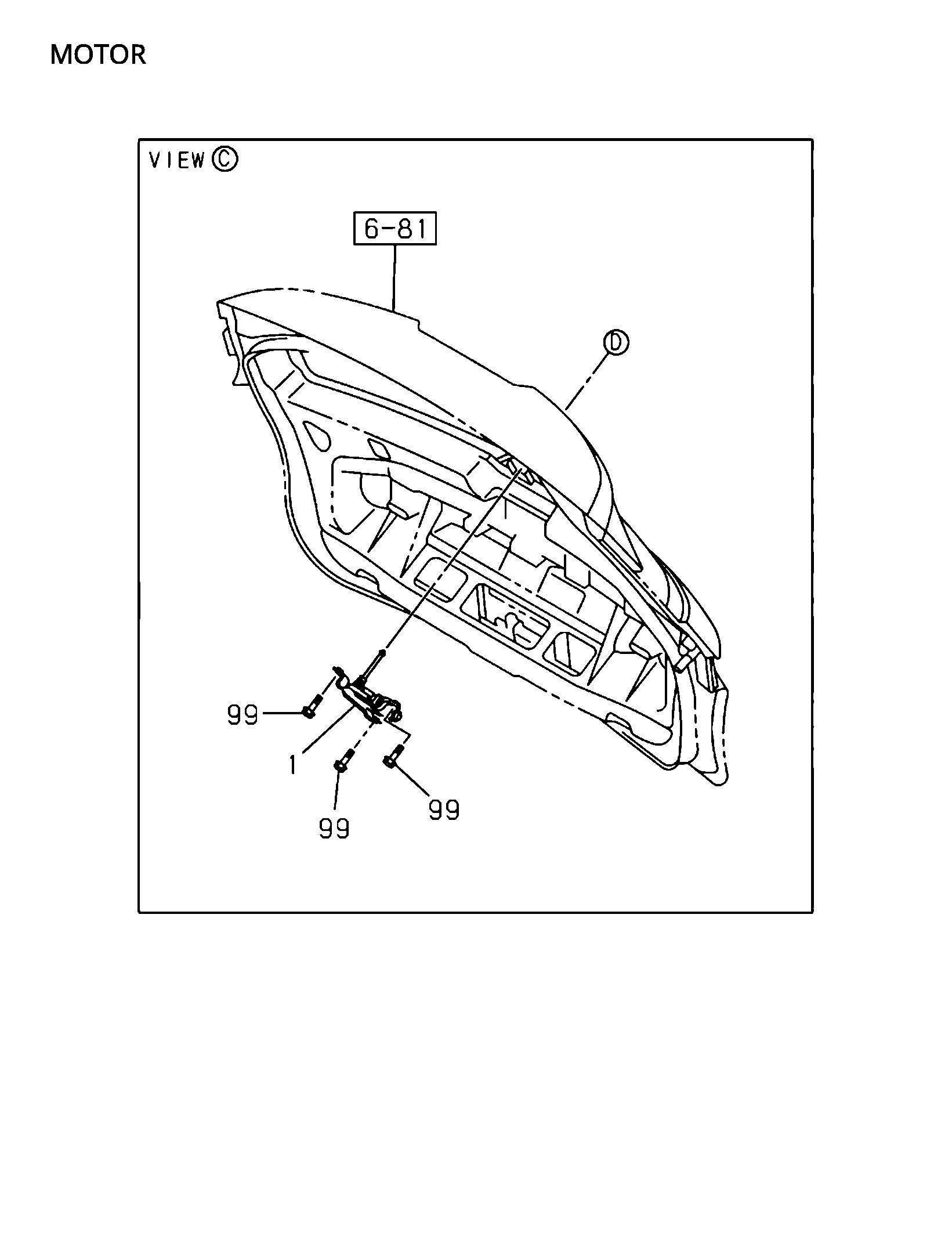

| 1 | I8-98335 256-0 | MOTOR ASM, RR WIPER | 1 | 2110- | AB |
