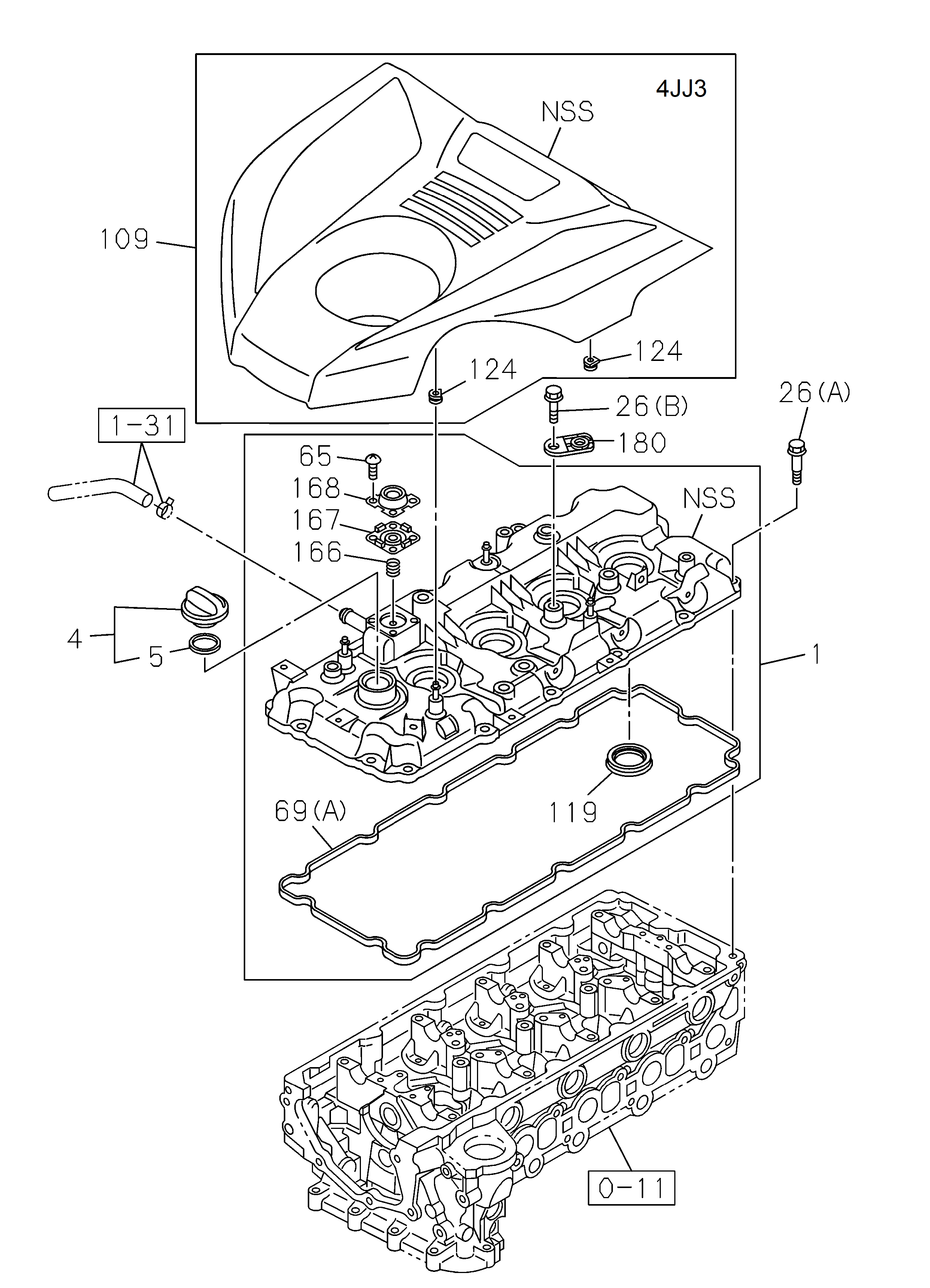

0-10 | 0-10A CYLINDER HEAD COVER
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 109 | I8-98328 041-1 | COVER; ENG | 1 | 2410- | A | EURO5 SPECIFICATION(NT5) | ||
| 069 | I8-98336 419-0 | GASKET; HD TO COVER | 1 | 2410- | A | (E) | ||
| 005 | I8-97918 298-0 | GASKET; OIL FILLER | 1 | 2410- | AB | ID=32 OD=40 | ||
| 069 | I8-98304 025-0 | GASKET; HD TO COVER | 1 | 2410- | A | (C) | ||
| 026 | I8-98228 370-0 | BOLT; CYL HD COVER | 15 | 2410- | B | (A) M6X25.7 FLANGE | ||
| 001 | I8-98350 871-0 | COVER; CYL HD | 1 | 2410- | A | |||
| 166 | I8-97088 445-0 | SPRING; VENTILATOR | 1 | 2410- | AB | |||
| 180 | I8-98244 154-0 | DAMPENER; CYL HEAD | 1 | 2410- | B | |||
| 069 | I8-98228 369-0 | GASKET; HD TO COVER | 1 | 2410- | B | (A) | ||
| 146 | I0-91180 108-0 | NUT; BRKT | 2 | 2410- | A | EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) M8 FLANGE | ||
| 124 | I8-98269 869-0 | RUBBER; MTG,COVER | 4 | 2410- | AB | |||
| 168 | I8-98234 092-0 | COVER; VENTILATOR | 1 | 2410- | AB | |||
| 109 | I8-97510 808-0 | COVER; ENG | 1 | 2410- | B | |||
| 156 | I8-97679 832-1 | BRACKET; ENGINE COVER | 1 | 2410- | A | EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) | ||
| 002 | I0-91180 106-0 | NUT; COVER,HD | 1 | 2410- | A | M6 FLANGE | ||
| 065 | I8-98209 387-0 | SCREW; ADAPTER | 4 | 2410- | AB | M4X10 | ||
| 109 | I8-98328 041-1 | COVER; ENG | 1 | 2410- | A | EURO4 SPECIFICATION(NT4) HIGH ALTITUDE COMPENSATOR<EE2> | ||
| 109 | I8-97796 785-0 | COVER; ENG | 1 | 2410- | A | EURO0 SPECIFICATION(K75),EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. HIGH ALTITUDE COMPENSATOR<EE2> | ||
| 001 | I8-98480 975-0 | COVER; CYL HD | 1 | 2410- | B | |||
| 119 | I8-98228 371-0 | COVER; SEAL,NOZZLE | 4 | 2410- | B | |||
| 026 | I0-28050 820-0 | BOLT; CYL HD COVER | 1 | 2410- | B | (B) M8X20 FLANGE | ||
| 119 | I8-98304 024-0 | COVER; SEAL,NOZZLE | 4 | 2410- | A | |||
| 027 | I8-97662 434-0 | GASKET; HD COVER | 4 | 2410- | A | |||
| 079 | I8-98228 370-0 | BOLT; COVER | 12 | 2410- | A | M6X25.7 FLANGE | ||
| 069 | I8-98336 418-0 | GASKET; HD TO COVER | 1 | 2410- | A | (D) | ||
| 069 | I8-98336 417-0 | GASKET; HD TO COVER | 4 | 2410- | A | (B) | ||
| 167 | I8-98226 101-1 | DIAPHRAGM; VENTILATOR | 1 | 2410- | AB | |||
| 004 | I8-98026 084-0 | CAP; OIL FILLER | 1 | 2410- | AB |
