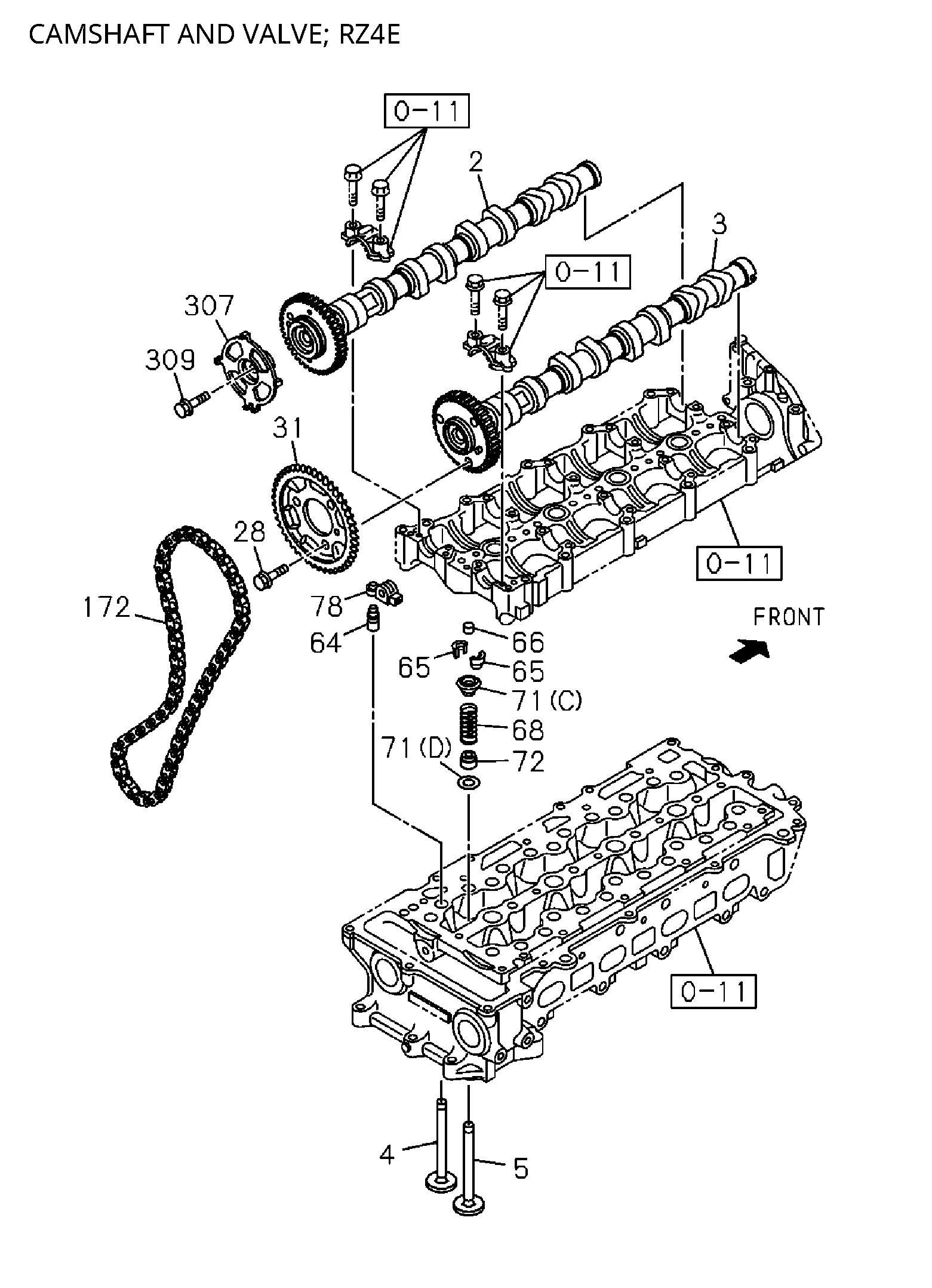

0-14 | 0-14A CAMSHAFT AND VALVE
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 072 | I8-98250 249-0 | SEAL; VLV GUIDE | 16 | 2410- | A | |||
| 185 | I8-98258 885-0 | TENSIONER; CHAIN | 1 | 2410- | B | |||
| 068 | I8-98306 921-1 | SPRING; VLV | 8 | 2410- | A | EXHAUST H=57 | ||
| 252 | I7-55185 453-0 | FLANGE; IDLE SHAFT | 2 | 2410- | A | (C) | ||
| 162 | I8-97312 331-1 | SPROCKET; IDLE | 1 | 2410- | B | |||
| 005 | I8-97309 677-1 | VALVE; EXH | 8 | 2410- | B | |||
| 003 | I8-98228 493-2 | CAMSHAFT; EXH | 1 | 2410- | B | |||
| 300 | I8-98351 831-1 | LEVER; TENSION,TIMING CHAIN | 1 | 2410- | A | |||
| 071 | I8-98250 252-0 | SEAT; SPR | 16 | 2410- | A | (D) LOWER OD=22.6 | ||
| 329 | I8-97679 824-0 | GEAR; INJ PUMP | 1 | 2410- | A | EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) Z=57 | ||
| 065 | I8-94239 501-0 | COLLAR; SPLIT | 32 | 2410- | B | |||
| 362 | I8-98233 620-1 | PLATE | 6 | 2410- 1 | B | |||
| 348 | I8-98486 075-0 | NUT; SPROCKET | 1 | 2410- 1 | B | |||
| 198 | I8-97495 394-0 | GUIDE; TIMING CHAIN | 1 | 2410- | B | |||
| 112 | I8-97490 753-2 | GEAR; IDLE | 1 | 2410- | B | EXC. POWER STEERING ELECTRIC<NV9> (C) Z=34 | ||
| 101 | I0-28161 060-0 | BOLT; THRUST COLLAR | 2 | 2410- | A | M10X60 FLANGE | ||
| 078 | I8-98247 698-0 | ARM; ROCKER | 16 | 2410- | A | |||
| 199 | I8-97356 061-1 | JET; OIL,TIMING CHAIN | 1 | 2410- | B | |||
| 112 | I8-97490 745-1 | GEAR; IDLE | 1 | 2410- | B | (B) Z=80 | ||
| 349 | I8-97312 328-0 | PIVOT; CHAIN LEVER | 1 | 2410- | B | |||
| 322 | I8-98377 692-2 | PULLEY; IDLE | 1 | 2410- 1 | A | |||
| 196 | I1-09587 002-1 | RING; SNAP | 1 | 2410- | A | |||
| 031 | I8-98247 667-1 | SPROCKET; CM/SHF | 1 | 2410- | A | Z=38 | ||
| 109 | I8-97312 319-1 | SHAFT; IDLE GEAR | 1 | 2410- | B | EXC. POWER STEERING ELECTRIC<NV9> | ||
| 226 | I8-98204 889-0 | SPRING; CMPR,ROCKER ARM | 8 | 2410- | B | |||
| 119 | I0-91180 114-0 | NUT; PULLEY | 1 | 2410- | A | EURO0 SPECIFICATION(K75),EURO2 SPECIFICATION(NT2) | ||
| 071 | I8-98250 251-0 | SEAT; SPR | 16 | 2410- | A | (C) UPPER OD=17.6 | ||
| 114 | I0-28161 225-0 | BOLT; IDLE GEAR | 1 | 2410- | B | POWER STEERING ELECTRIC<NV9> (A) M12X25 FLANGE | ||
| 112 | I8-98351 801-1 | GEAR; IDLE | 1 | 2410- | A | (D) Z=66 | ||
| 200 | I8-98351 646-0 | BOLT; CHAIN GUIDE,LWR | 1 | 2410- | A | (B) | ||
| 071 | I8-97144 584-0 | SEAT; SPR | 16 | 2410- | B | (B) LOWER OD=31 | ||
| 133 | I8-97312 336-0 | GASKET; CHAIN TENSIONER | 1 | 2410- | B | |||
| 066 | I8-98147 945-0 | CAP; VLV STEM END | 16 | 2410- | B | |||
| 107 | I8-98245 905-0 | SHAFT; IDLE GEAR | 1 | 2410- | B | (B) | ||
| 346 | I0-41010 618-0 | STUD; CHAIN | 2 | 2410- I | B | M6X18 L=27 | ||
| 166 | I0-58330 616-0 | BOLT; SPROCKET TO LAYSHAFT | 6 | 2410- | B | M6X16 HEX SOCKET | ||
| 004 | I8-97490 215-1 | VALVE; INL | 8 | 2410- | A | |||
| 081 | I8-98029 893-0 | SCREW; ADJ,ROCKER ARM | 16 | 2410- | B | M8 L=22 | ||
| 004 | I8-97309 675-1 | VALVE; INL | 8 | 2410- | B | |||
| 307 | I8-98351 820-0 | ROTOR; CAM ANGLE SENSOR | 1 | 2410- | A | |||
| 064 | I8-98248 261-0 | ADJUSTER; VLV LASH | 16 | 2410- | A | |||
| 198 | I8-98351 830-1 | GUIDE; TIMING CHAIN | 1 | 2410- | A | |||
| 119 | I8-97141 154-0 | NUT; PULLEY | 1 | 2410- | A | EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) M18 | ||
| 002 | I8-98331 641-1 | CAMSHAFT; INL | 1 | 2410- | A | |||
| 172 | I8-98247 668-0 | CHAIN; TIMING,CM/SHF | 1 | 2410- | A | |||
| 071 | I8-97311 668-0 | SEAT; SPR | 16 | 2410- | B | (A) UPPER OD=29.5 | ||
| 065 | I8-98250 250-0 | COLLAR; SPLIT | 32 | 2410- | A | |||
| 172 | I8-98119 279-1 | CHAIN; TIMING,CM/SHF | 1 | 2410- | B | |||
| 133 | I9-09571 422-0 | GASKET; CHAIN TENSIONER | 1 | 2410- | A | ID=22.5 | ||
| 252 | I8-97312 316-1 | FLANGE; IDLE SHAFT | 1 | 2410- | B | (A) | ||
| 185 | I8-98248 163-2 | TENSIONER; CHAIN | 1 | 2410- | A | |||
| 068 | I8-98250 115-1 | SPRING; VLV | 8 | 2410- | A | INLET H=51 | ||
| 359 | I8-97947 983-0 | SLEEVE; GEAR | 1 | 2410- 1 | B | |||
| 107 | I8-97312 315-2 | SHAFT; IDLE GEAR | 1 | 2410- | B | (A) | ||
| 044 | I8-97178 704-0 | BOLT | 1 | 2410- | A | M5X15 HEX SOCKET | ||
| 053 | I8-98244 914-0 | SHAFT; ROCKER ARM | 2 | 2410- | B | |||
| 002 | I8-98228 490-2 | CAMSHAFT; INL | 1 | 2410- | B | |||
| 114 | I0-28161 260-0 | BOLT; IDLE GEAR | 1 | 2410- | B | EXC. POWER STEERING ELECTRIC<NV9> (A) M12X60 FLANGE | ||
| 252 | I8-97556 736-0 | FLANGE; IDLE SHAFT | 1 | 2410- | B | (B) | ||
| 200 | I1-09070 120-1 | BOLT; CHAIN GUIDE,LWR | 2 | 2410- | B | (A) M8X20 FLANGE | ||
| 028 | I0-28050 820-0 | BOLT; CAM PULLEY | 3 | 2410- | A | M8X20 FLANGE | ||
| 309 | I0-28050 840-0 | BOLT; ROTOR | 1 | 2410- 1 | A | M8X40 FLANGE | ||
| 200 | I8-98351 647-0 | BOLT; CHAIN GUIDE,LWR | 1 | 2410- | A | (C) | ||
| 300 | I8-97495 395-0 | LEVER; TENSION,TIMING CHAIN | 1 | 2410- | B | |||
| 347 | I8-98486 074-0 | SPROCKET; I/PUMP | 1 | 2410- 1 | B | |||
| 104 | I0-28151 020-0 | BOLT; SHAFT IDLE | 2 | 2410- | A | M10X20 FLANGE | ||
| 066 | I8-98299 554-0 | CAP; VLV STEM END | 16 | 2410- | A | |||
| 072 | I8-97328 647-0 | SEAL; VLV GUIDE | 16 | 2410- | B | |||
| 078 | I8-98204 885-1 | ARM; ROCKER | 16 | 2410- | B | |||
| 114 | I0-28061 060-0 | BOLT; IDLE GEAR | 2 | 2410- | B | (B) M10X60 FLANGE | ||
| 329 | I8-98486 076-2 | GEAR; INJ PUMP | 1 | 2410- | B | Z=44 | ||
| 005 | I8-98247 696-1 | VALVE; EXH | 8 | 2410- | A | |||
| 349 | I8-98351 646-0 | PIVOT; CHAIN LEVER | 1 | 2410- | A | |||
| 107 | I8-98351 840-0 | SHAFT; IDLE GEAR | 1 | 2410- | A | (C) | ||
| 087 | I8-98224 626-0 | BOLT; ROCKER SHAFT | 14 | 2410- | B | M6X25 HEX SOCKET | ||
| 114 | I8-98176 233-0 | BOLT; IDLE GEAR | 1 | 2410- | B | (C) M12X75 FLANGE | ||
| 068 | I8-97311 669-0 | SPRING; VLV | 16 | 2410- | B | H=49NATURAL | ||
| 003 | I8-98398 234-1 | CAMSHAFT; EXH | 1 | 2410- | A | |||
| 190 | I0-91180 206-0 | NUT; CHAIN TENSIONER | 2 | 2410- | B | M6 FLANGE | ||
| 112 | I8-98231 907-0 | GEAR; IDLE | 1 | 2410- | B | (A) Z=35 | ||
| 329 | I8-98351 804-0 | GEAR; INJ PUMP | 1 | 2410- | A | EURO0 SPECIFICATION(K75),EURO2 SPECIFICATION(NT2) Z=57 | ||
| 315 | I8-98378 675-1 | TENSIONER; AUTO | 1 | 2410- 1 | A |
