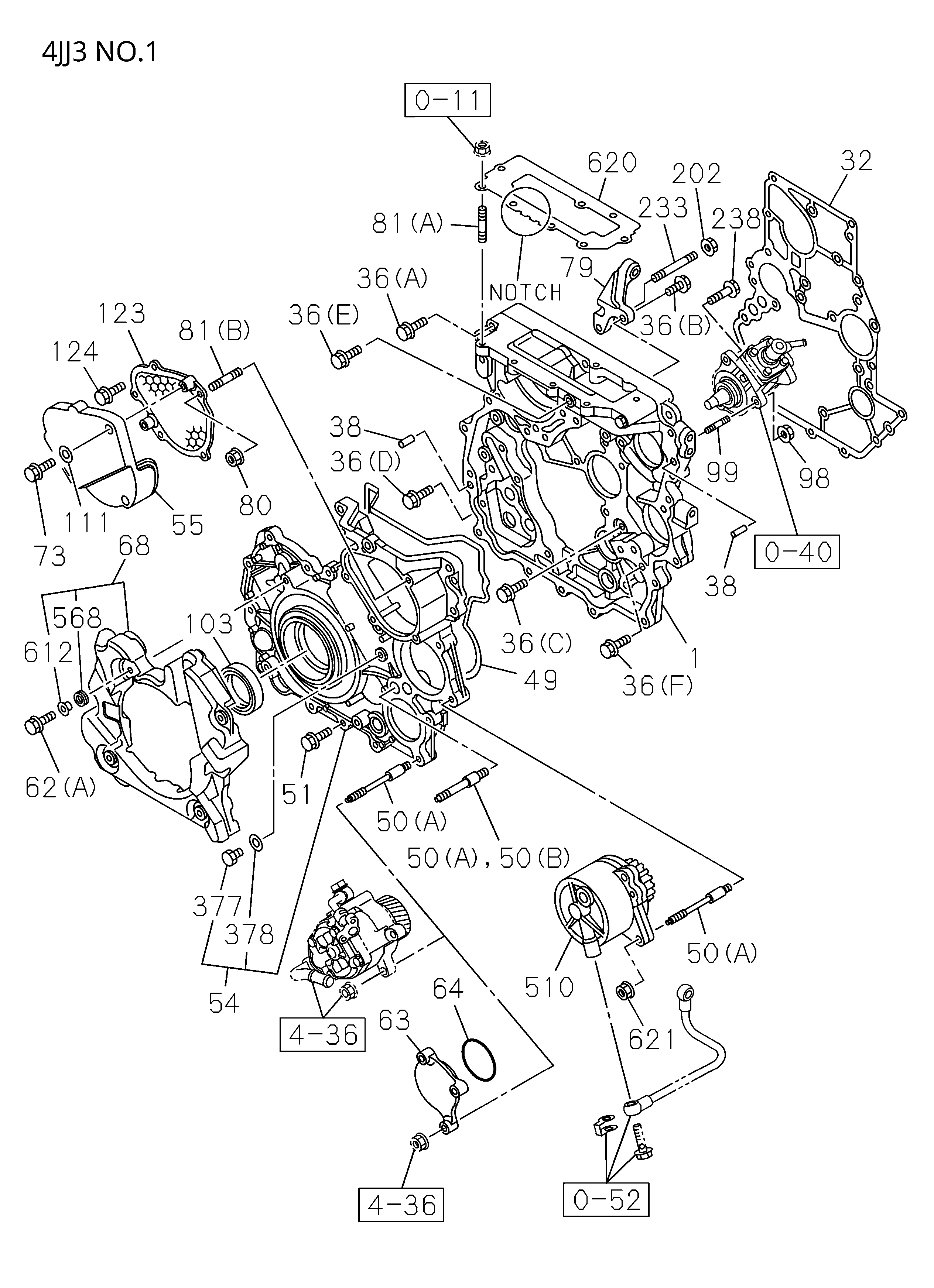

0-20 | 0-20A TIMING GEAR CASE AND FLYWHEEL HOUSING
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 510 | I8-97820 921-0 | PUMP ASM; VACUUM | 1 | 2410- | A | EURO5 SPECIFICATION(NT5) | ||
| 124 | I0-28050 616-0 | BOLT; TIMING COVER | 3 | 2410- | B | M6X16 FLANGE | ||
| 036 | I0-28050 816-0 | BOLT; GEAR CASE | 1 | 2410- | B | (C) M8X16 FLANGE | ||
| 518 | I0-28050 825-0 | BOLT; VAC PUMP | 3 | 2410- | A | M8X25 FLANGE | ||
| 081 | I0-49140 830-0 | STUD; GEAR CASE COVER FIX | 2 | 2410- | B | (A) M8X30 L=48 | ||
| 073 | I0-28050 612-0 | BOLT; COVER FIX | 2 | 2410- | B | M6X12 FLANGE | ||
| 062 | I0-28650 620-0 | BOLT; COVER | 4 | 2410- | B | (A) M6X20 FLANGE | ||
| 517 | I8-97654 300-0 | GASKET; VAC PUMP | 1 | 2410- | B | (B) | ||
| 050 | I8-97354 808-2 | STUD | 1 | 2410- | B | POWER STEERING ELECTRIC<NV9> (A) M8X27,M8X14 L=64.5 | ||
| 378 | I8-97555 647-0 | GASKET; PLUG,GEAR CASE COVER | 1 | 2410- | B | |||
| 036 | I0-28650 825-0 | BOLT; GEAR CASE | 16 | 2410- | B | (D) M8X25 FLANGE | ||
| 510 | I8-97495 786-0 | PUMP ASM; VACUUM | 1 | 2410- | B | |||
| 583 | I8-98368 785-0 | PLUG; FRT COVER | 1 | 2410- | A | M20X14 | ||
| 584 | I1-09630 088-0 | GASKET; PLUG,FRT COVER | 1 | 2410- | A | ID=20.2 OD=26 | ||
| 055 | I8-97375 190-1 | COVER; NOISE SHIELD | 1 | 2410- | B | |||
| 050 | I8-97354 808-2 | STUD | 5 | 2410- | B | (A) M8X27,M8X14 L=64.5 | ||
| 621 | I0-91180 208-0 | NUT; VAC PUMP | 3 | 2410- | B | M8 FLANGE | ||
| 051 | I8-97354 697-1 | BOLT; GEAR CASE COVER | 14 | 2410- | B | M6X28.5 | ||
| 175 | I8-97071 561-1 | SEAL; OIL,CR/SHF,RR | 1 | 2410- | B | ID=95 OD=118 | ||
| 097 | I8-98248 823-1 | GASKET; BLOCK TO HSG | 1 | 2410- | A | |||
| 211 | I0-28151 090-0 | BOLT; HSG | 2 | 2410- | A | (C) M10X90 FLANGE | ||
| 111 | I0-91614 806-0 | WASHER; PL | 2 | 2410- | B | ID=6.4 OD=22 | ||
| 595 | I8-97654 298-0 | GASKET; VLV | 1 | 2410- | B | (B) ID=12 OD=24 | ||
| 185 | I0-28650 825-0 | BOLT; RET TO C/BL | 5 | 2410- | B | M8X25 FLANGE | ||
| 175 | I8-98259 276-0 | SEAL; OIL,CR/SHF,RR | 1 | 2410- | A | ID=83 OD=108 | ||
| 595 | I8-97654 299-0 | GASKET; VLV | 2 | 2410- | B | (A) ID=18 OD=24 | ||
| 377 | I8-97555 648-0 | PLUG; COVER,GEAR CASE | 1 | 2410- | B | |||
| 172 | I8-97379 826-0 | RETAINER; CR/SHF | 1 | 2410- | B | |||
| 620 | I8-97331 631-2 | GASKET; GEAR CASE | 1 | 2410- | B | GRADE=B T=1.45 2-NOTCH | ||
| 620 | I8-97328 828-2 | GASKET; GEAR CASE | 1 | 2410- | B | GRADE=A T=1.40 1-NOTCH | ||
| 002 | I8-97824 872-0 | HOUSING; FLYWHEEL | 1 | 2410- | A | |||
| 049 | I8-97945 298-0 | GASKET; GEAR CASE TO COVER | 1 | 2410- | B | |||
| 062 | I0-28050 820-0 | BOLT; COVER | 8 | 2410- | A | (C) M8X20 FLANGE | ||
| 104 | I8-98248 079-0 | COVER; DUST,OIL SEAL FRT,CR/SHF | 1 | 2410- | A | |||
| 510 | I8-97848 140-0 | PUMP ASM; VACUUM | 1 | 2410- | A | EURO4 SPECIFICATION(NT4) | ||
| 568 | I8-97555 650-0 | RUBBER; MTG,COVER | 4 | 2410- | B | |||
| 081 | I0-41010 616-0 | STUD; GEAR CASE COVER FIX | 2 | 2410- | B | (B) M6X16 L=25 | ||
| 233 | I0-49140 830-0 | STUD; BRKT | 1 | 2410- | B | M8X30 L=48 | ||
| 068 | I8-97507 824-0 | COVER ASM; GEAR CASE COVER | 1 | 2410- | B | |||
| 240 | I9-08151 030-0 | PIN; FLYWHEEL HSG | 2 | 2410- | A | L=30 | ||
| 036 | I0-28050 835-0 | BOLT; GEAR CASE | 1 | 2410- | B | (E) M8X35 FLANGE | ||
| 238 | I0-28050 830-0 | BOLT; DIST | 1 | 2410- | B | M8X30 FLANGE | ||
| 054 | I8-97507 238-1 | COVER; GEAR CASE | 1 | 2410- | B | |||
| 054 | I8-98248 078-2 | COVER; GEAR CASE | 1 | 2410- | A | |||
| 036 | I0-28050 845-0 | BOLT; GEAR CASE | 2 | 2410- | B | (F) M8X45 FLANGE | ||
| 103 | I8-98158 110-0 | SEAL; OIL,CR/SHF,FRT | 1 | 2410- | B | ID=73 OD=96 | ||
| 620 | I8-97331 632-2 | GASKET; GEAR CASE | 1 | 2410- | B | GRADE=C T=1.50 3-NOTCH | ||
| 103 | I8-98259 275-0 | SEAL; OIL,CR/SHF,FRT | 1 | 2410- | A | ID=57 OD=76 | ||
| 202 | I0-91180 208-0 | NUT; BRKT | 1 | 2410- | B | M8 FLANGE | ||
| 510 | I8-98247 221-4 | PUMP ASM; VACUUM | 1 | 2410- | A | EURO0 SPECIFICATION(K75),EURO2 SPECIFICATION(NT2) | ||
| 123 | I8-97371 720-1 | COVER; TIMING,LWR | 1 | 2410- | B | |||
| 032 | I8-98228 292-0 | GASKET; GEAR CASE TO C/BL | 1 | 2410- | B | |||
| 099 | I0-49140 830-0 | STUD; INJ PUMP | 2 | 2410- | B | M8X30 L=48 | ||
| 205 | I0-91180 210-0 | NUT; HSG | 2 | 2410- | A | M10 FLANGE | ||
| 050 | I8-98134 221-0 | STUD | 1 | 2410- | B | EXC. POWER STEERING ELECTRIC<NV9> (B) M8X70,M8X14 L=107.5 | ||
| 080 | I0-91180 206-0 | NUT; COVER | 2 | 2410- | B | M6 FLANGE | ||
| 001 | I8-98480 847-0 | CASE; TIMING GEAR | 1 | 2410- | B | |||
| 064 | I8-97109 679-0 | GASKET; COVER,P/S | 1 | 2410- | B | POWER STEERING ELECTRIC<NV9> ID=59.6 | ||
| 211 | I8-97916 324-1 | BOLT; HSG | 3 | 2410- | B | (B) M12X25 | ||
| 211 | I0-28161 040-0 | BOLT; HSG | 12 | 2410- | A | (A) M10X40 FLANGE | ||
| 032 | I8-98248 248-0 | GASKET; GEAR CASE TO C/BL | 1 | 2410- | A | |||
| 011 | I8-98317 692-0 | PLATE; RR,C/BL | 1 | 2410- | B | |||
| 144 | I0-91180 108-0 | NUT; COVER | 2 | 2410- | A | M8 FLANGE | ||
| 038 | I9-08151 020-0 | PIN; GEAR CASE COVER | 2 | 2410- | B | OD=10 L=20 | ||
| 079 | I8-98480 893-1 | BRACKET; GEAR CASE COVER | 1 | 2410- | B | |||
| 062 | I0-28050 612-0 | BOLT; COVER | 3 | 2410- | A | (B) M6X12 FLANGE | ||
| 063 | I8-97367 336-2 | COVER; P/S | 1 | 2410- | B | POWER STEERING ELECTRIC<NV9> | ||
| 612 | I8-97555 649-0 | COLLAR | 4 | 2410- | B | |||
| 517 | I8-97524 100-0 | GASKET; VAC PUMP | 1 | 2410- | B | (A) | ||
| 517 | I8-98345 848-1 | GASKET; VAC PUMP | 1 | 2410- | A | EURO5 SPECIFICATION(NT5) (C) | ||
| 098 | I0-91180 208-0 | NUT; STUD,INJ PUMP | 2 | 2410- | B | M8 FLANGE | ||
| 517 | I8-98317 822-0 | GASKET; VAC PUMP | 1 | 2410- | A | EURO0 SPECIFICATION(K75),EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) (C) | ||
| 617 | I8-97654 432-0 | BOLT; CHECK VLV | 1 | 2410- | B | |||
| 518 | I8-97654 294-0 | BOLT; VAC PUMP | 3 | 2410- | B | M6X16 | ||
| 036 | I0-28050 860-0 | BOLT; GEAR CASE | 1 | 2410- | B | (A) M8X60 FLANGE | ||
| 036 | I0-28650 830-0 | BOLT; GEAR CASE | 2 | 2410- | B | (B) M8X30 FLANGE | ||
| 004 | I8-97524 104-0 | VALVE ASM; CHECK | 1 | 2410- | B |
