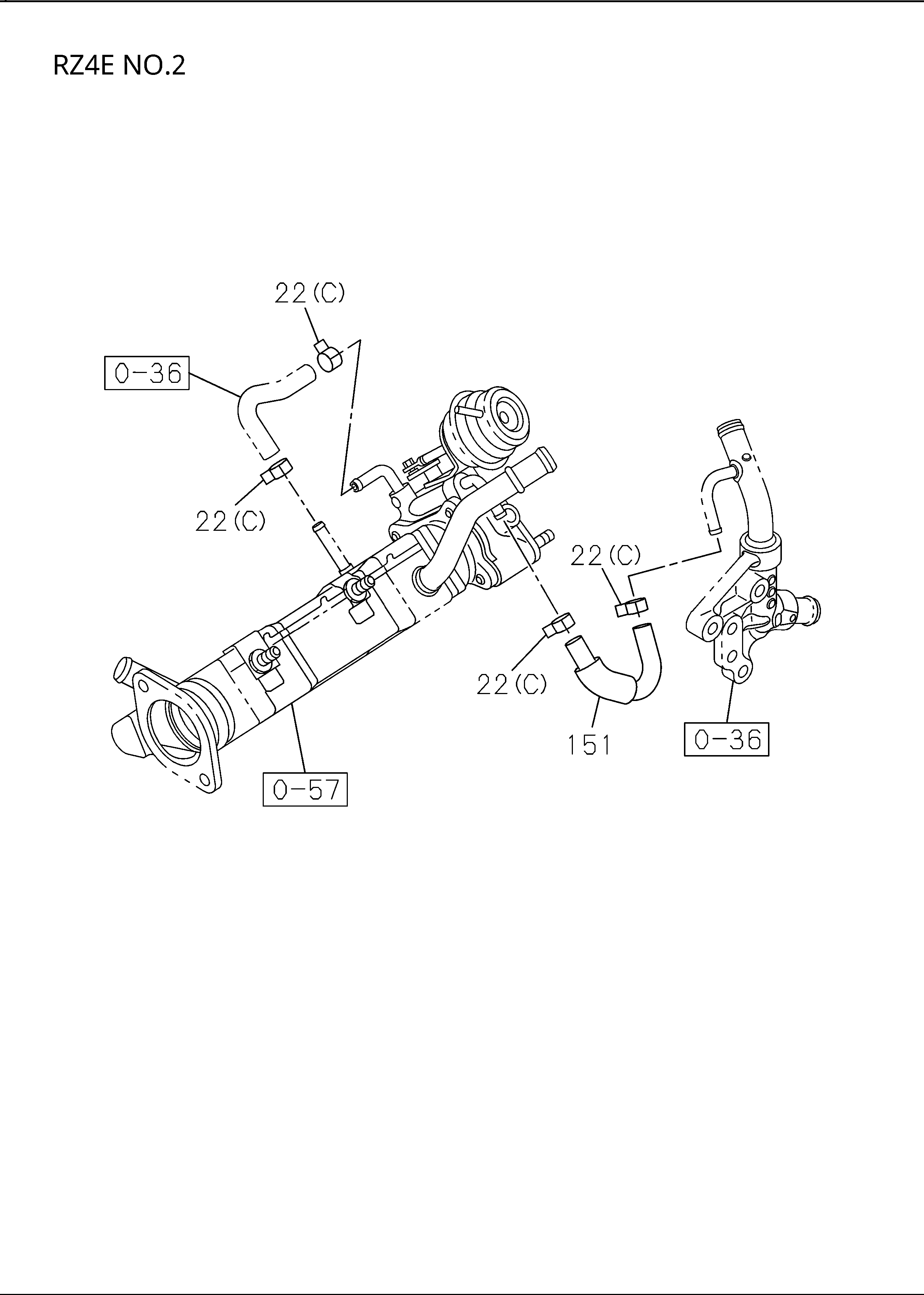

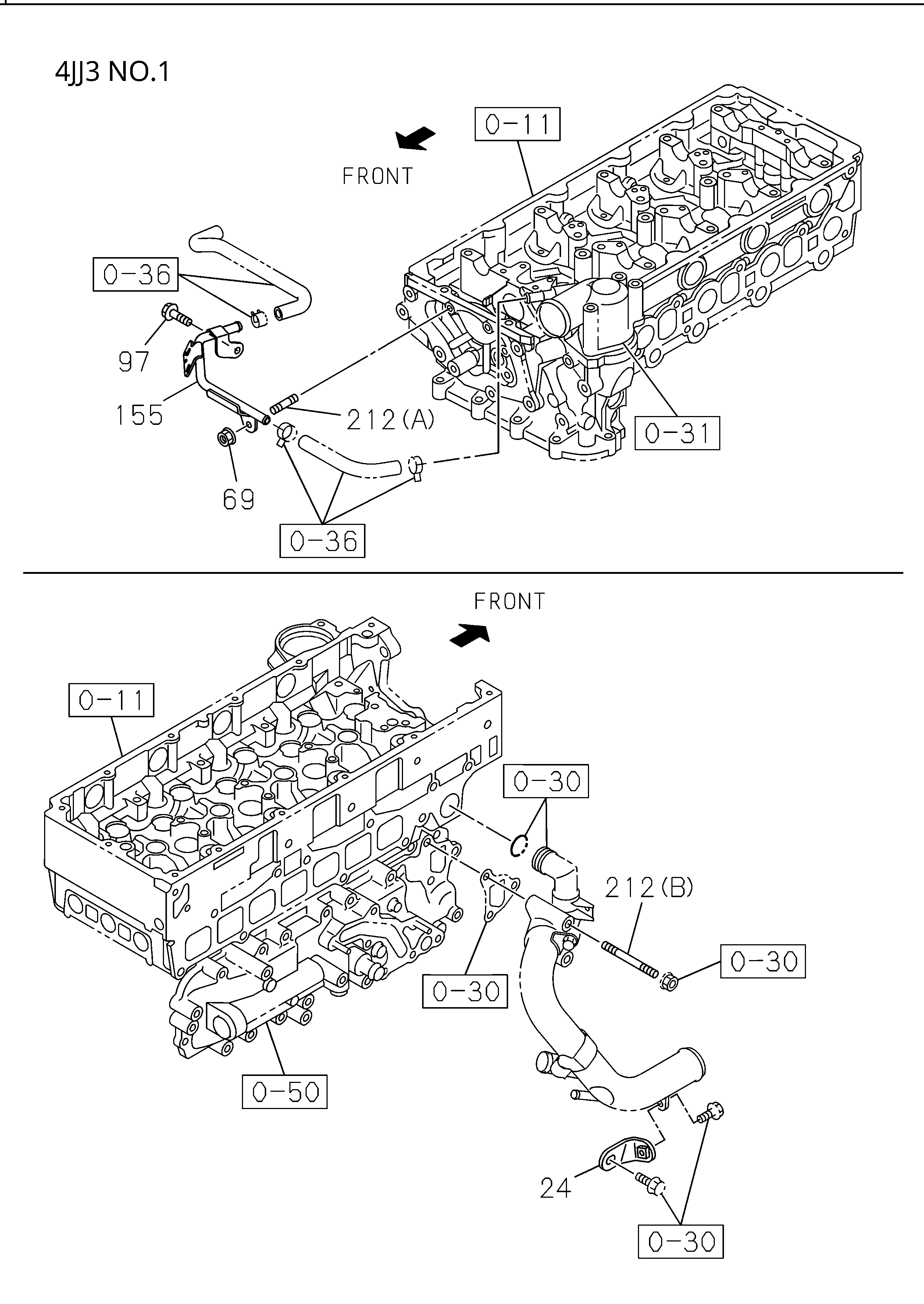

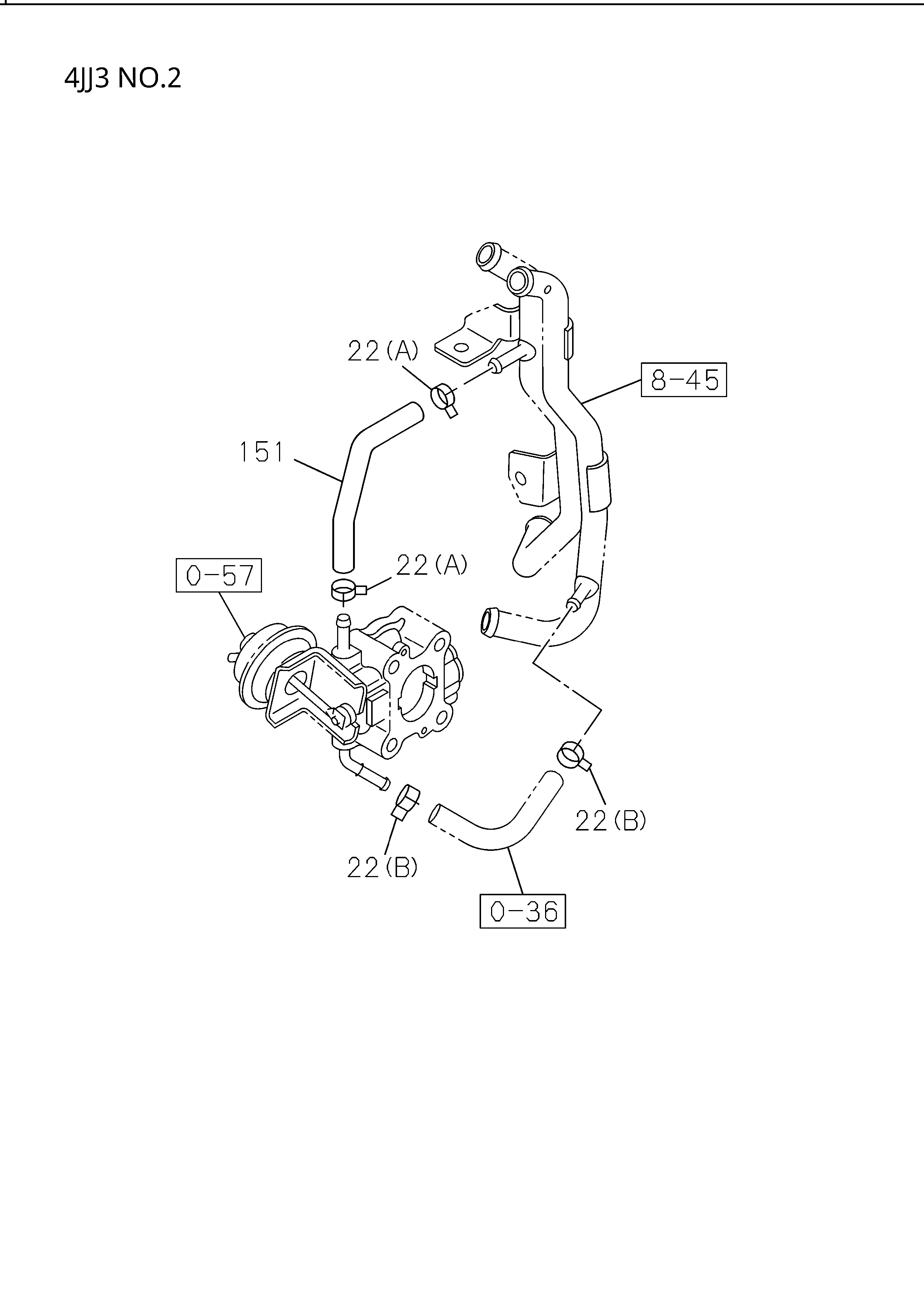

0-32 | 0-32A WATER PIPING; ENGINE
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 151 | I8-98179 012-1 | HOSE; WATER OUTLET | 1 | 2410- | B | EURO5 SPECIFICATION(NT5) | ||
| 155 | I8-98480 903-1 | PIPE ASM; WATER | 1 | 2410- | B | |||
| 212 | I9-04110 875-0 | STUD; PIPE | 2 | 2410- | B | (B) M8X75 L=87 | ||
| 024 | I8-98228 424-1 | BRACKET; WATER PIPE | 1 | 2410- | B | |||
| 097 | I0-28050 616-0 | BOLT; WATER PIPE | 1 | 2410- | B | M6X16 FLANGE | ||
| 138 | I8-98487 360-0 | PIPE; WATER | 1 | 2410- | A | EURO0 SPECIFICATION(K75),EURO2 SPECIFICATION(NT2) | ||
| 198 | I0-28050 616-0 | BOLT; PIPE | 2 | 2410- | A | EURO0 SPECIFICATION(K75),EURO2 SPECIFICATION(NT2) M6X16 FLANGE | ||
| 166 | I8-97498 120-0 | BRACKET; CLIP | 1 | 2410- | A | A/T 6 SPEED AISIN(Y6A) EURO0 SPECIFICATION(K75),EURO2 SPECIFICATION(NT2) | ||
| 069 | I0-91180 206-0 | NUT; WATER PIPE | 1 | 2410- | B | M6 FLANGE | ||
| 022 | I8-97329 627-0 | CLIP; WATER HOSE | 4 | 2410- | A | EURO5 SPECIFICATION(NT5) (C) ID=13 | ||
| 022 | I8-98051 892-0 | CLIP; WATER HOSE | 2 | 2410- | B | EURO5 SPECIFICATION(NT5) (B) ID=11.5 | ||
| 212 | I0-41010 612-0 | STUD; PIPE | 1 | 2410- | B | (A) M6X12 L=21 | ||
| 022 | I8-97944 125-0 | CLIP; WATER HOSE | 2 | 2410- | B | EURO5 SPECIFICATION(NT5) (A) ID=12.8 | ||
| 033 | I0-28050 825-0 | BOLT; BRKT | 2 | 2410- | A | A/T 6 SPEED AISIN(Y6A) EURO0 SPECIFICATION(K75),EURO2 SPECIFICATION(NT2) M8X25 FLANGE | ||
| 151 | I8-97679 747-0 | HOSE; WATER OUTLET | 1 | 2410- | A | EURO5 SPECIFICATION(NT5) |
