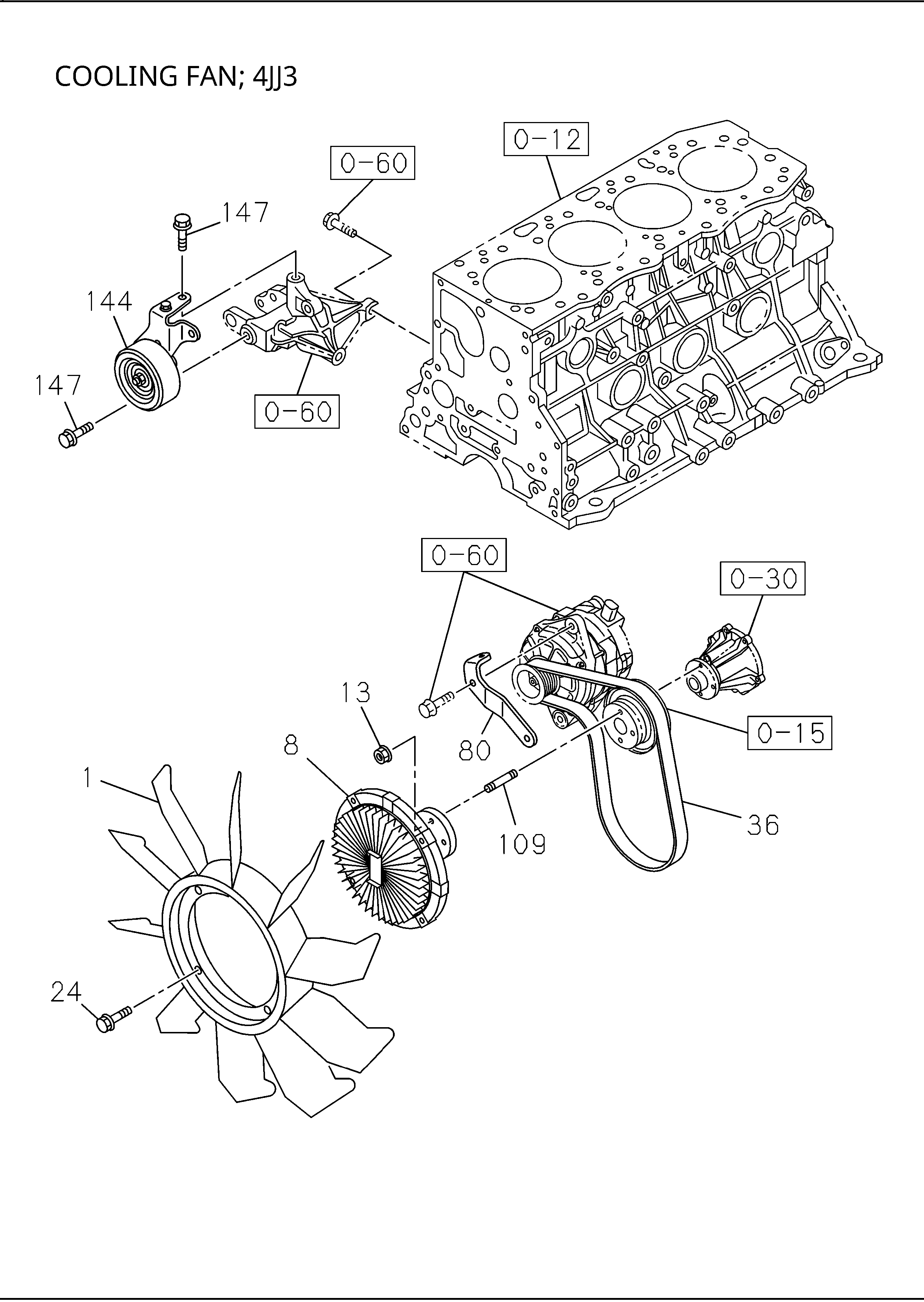

0-33 | 0-33A FAN AND FAN BELT
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 144 | I8-98276 119-1 | TENSIONER; DRIVE BELT | 1 | 2410- | B | |||
| 080 | I8-97495 805-0 | PLATE; ADJ | 1 | 2410- | B | |||
| 109 | I8-98256 636-0 | STUD; FAN CLU | 4 | 2410- | B | M6X20 L=31 | ||
| 024 | I0-28650 625-0 | BOLT; FAN | 4 | 2410- | AB | M6X25 FLANGE | ||
| 109 | I8-98318 479-0 | STUD; FAN CLU | 4 | 2410- | A | M6X19 L=27 | ||
| 013 | I8-98049 362-0 | NUT; COOLING FAN | 4 | 2410- | AB | M6 FLANGE | ||
| 001 | I8-98162 703-0 | FAN; COOLING | 1 | 2410- | AB | |||
| 036 | I8-98020 247-0 | BELT; COOLING FAN | 1 | 2410- | B | L=1086 MITSUBOSHI | ||
| 008 | I8-98119 213-1 | CLUTCH; COOLING FAN | 1 | 2410- | AB | |||
| 147 | I0-28651 020-0 | BOLT; BELT TENSIONER | 3 | 2410- | B | M10X20 FLANGE |
