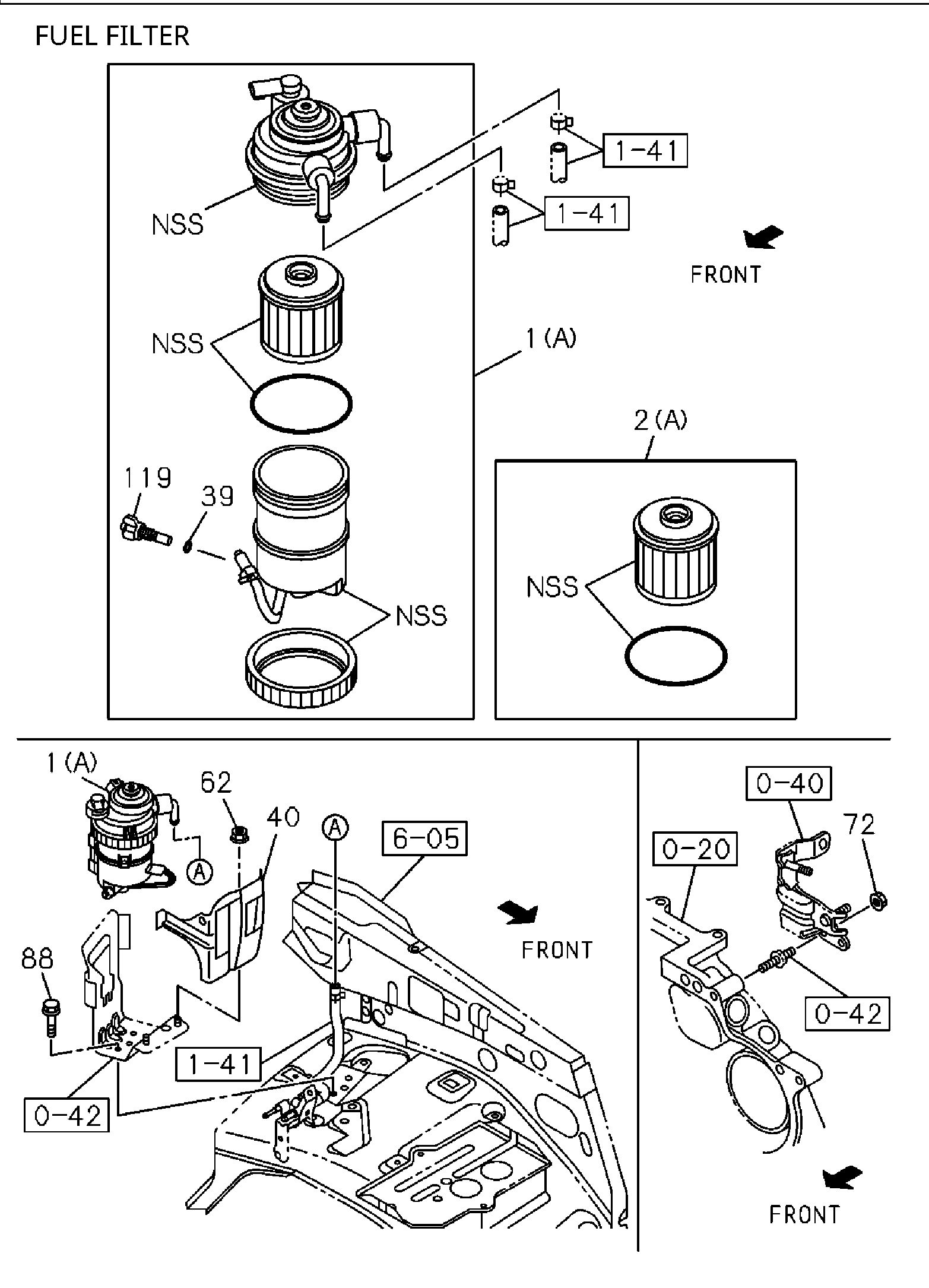

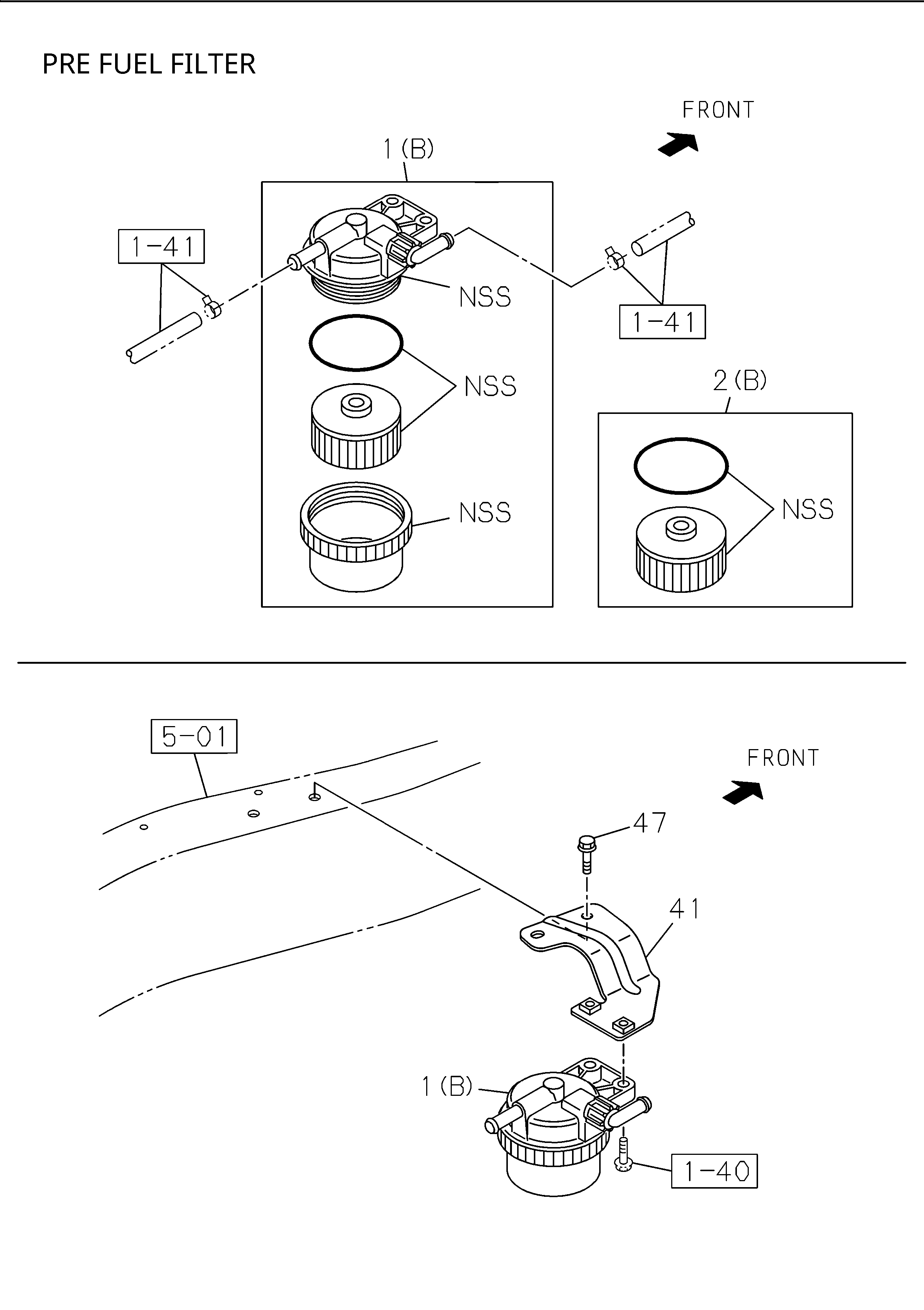

0-41 | 0-41A FUEL FILTER AND BRACKET
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 088 | I8-98076 109-0 | BOLT; BRKT,FUEL FILTER | 3 | 2410- | AB | M8X16 FLANGE | ||
| 041 | I8-98395 248-0 | BRACKET; FUEL FILTER | 1 | 2410- | AB | PRE FUEL FILTER<KF0> | ||
| 002 | I8-98159 693-0 | ELEMENT KIT; FUEL FILTER | 1 | 2410- | AB | (A) ORANGE PLATE END | ||
| 001 | I8-98182 445-0 | FILTER ASM; FUEL | 1 | 2410- | AB | PRE FUEL FILTER<KF0> (B) | ||
| 119 | I8-98188 941-0 | PLUG; DRAIN,FUEL FILTER | 1 | 2410- | AB | |||
| 072 | I0-91180 106-0 | NUT; BRKT,FUEL FILTER | 1 | 2410- | A | EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) M6 FLANGE | ||
| 001 | I8-98067 761-3 | FILTER ASM; FUEL | 1 | 2410- | AB | EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) | ||
| 002 | I8-98194 119-0 | ELEMENT KIT; FUEL FILTER | 1 | 2410- | AB | PRE FUEL FILTER<KF0> (B) BLUE PLATE END | ||
| 040 | I8-98388 198-2 | BRACKET; FUEL FILTER | 1 | 2410- | AB | |||
| 039 | I8-98188 943-0 | GASKET; DRAIN PLUG | 1 | 2410- | AB | |||
| 062 | I0-91180 208-0 | NUT; FUEL FILTER | 2 | 2410- | AB | M8 FLANGE | ||
| 047 | I8-98276 856-0 | BOLT; BRKT,FUEL FILTER | 2 | 2410- | AB | PRE FUEL FILTER<KF0> M10X30 FLANGE | ||
| 001 | I8-98239 983-0 | FILTER ASM; FUEL | 1 | 2410- | AB | RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) |
